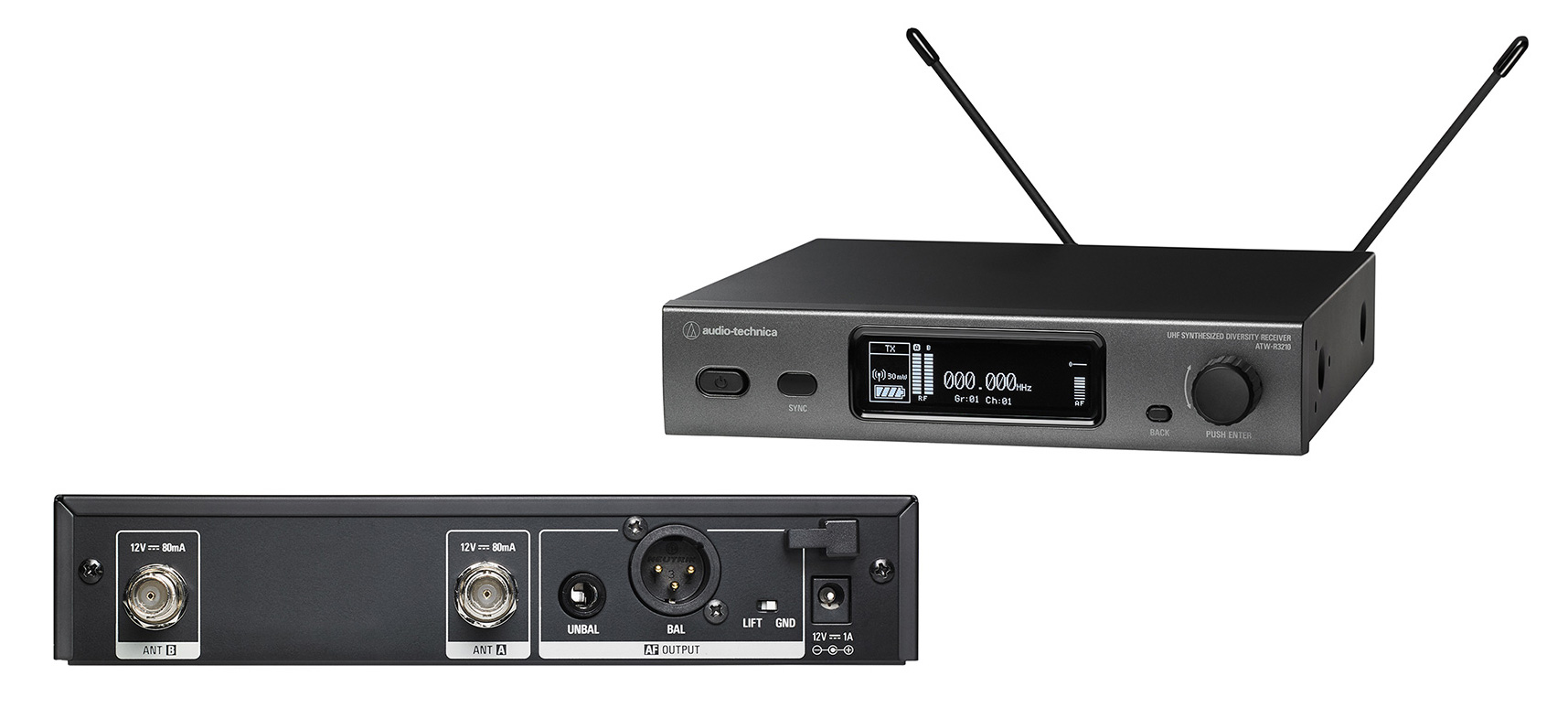

Audio-Technica 3000 Series UHF Wireless System ATW-R3100 Manual


Introduction

The Audio-Technica 3000 Series UHF Wireless System ATW-R3100 is a professional-grade true diversity receiver designed for reliable wireless microphone performance in live sound, installed audio, houses of worship, schools, theaters, and corporate AV environments. Built for users who need stable RF reception, simple channel management, and clean audio output, this receiver is known for its practical feature set and rugged rack-mountable design.

One of the biggest advantages of the ATW-R3100 is its use of 200 PLL-synthesized UHF frequencies, which helps reduce interference and gives users more flexibility when coordinating multiple wireless channels. The unit also includes Digital Tone Lock squelch, soft-touch controls, an LCD display, and step-through menus that simplify setup in demanding environments. For sound technicians, presenters, and performers, these features translate into fast operation and dependable day-to-day use.

The Audio-Technica 3000 Series UHF Wireless System ATW-R3100 is especially well suited for users who want a balance of performance and affordability. It supports balanced XLR and unbalanced 1/4-inch outputs, includes a ground-lift switch, and offers an adjustable high-pass filter for better audio tailoring. Typical pricing in the used and secondary market often falls in the approximate range of $150 to $350 depending on condition, band, and included accessories. Availability is mostly through used audio dealers, surplus retailers, and reseller marketplaces, since this model is no longer broadly sold as new in many regions.

Specifications for Audio-Technica 3000 Series UHF Wireless System ATW-R3100

Receiver type: True diversity UHF wireless receiver for professional microphone systems
Frequency range: 200 PLL-synthesized UHF frequencies
Channel spacing: 25 kHz frequency step for better channel coordination
Audio response: 70 Hz to 15 kHz
Signal-to-noise ratio: Up to 110 dB with low-noise operation
Total harmonic distortion: 1% or less at typical operating conditions
Operating range: Up to 300 feet in typical open-line-of-sight use
Outputs: XLRM balanced output and 1/4-inch unbalanced output
Controls: LCD information display, soft-touch buttons, step-through menus
RF management: Digital Tone Lock squelch and adjustable receiver squelch
Additional controls: Meter hold function, transmitter battery-life fuel gauge
Audio shaping: Adjustable-slope high-pass filter with Off, 6 dB, 12 dB, and 18 dB settings

Compared with simpler analog receivers, the ATW-R3100 offers stronger interference handling and more flexible channel selection. Against modern digital wireless systems, it may not match newer companding-free designs, but it remains a dependable choice for users who prioritize solid RF performance and straightforward operation.

ATW-R3100 Setup Guide: How to Install and Configure the Receiver

Start by placing the receiver in a well-ventilated rack or stable tabletop location, then connect the antennas and power supply. After powering on the unit, use the LCD menu system to choose an open channel and match it to the transmitter being used with the system. If you are coordinating several wireless microphones, scan available frequencies and select a clean channel group to minimize interference.

Connect the audio output using XLR for balanced professional audio or 1/4-inch output for simpler mixer or amplifier connections. Set the output level according to your sound system input requirements, and adjust the high-pass filter if you need to reduce low-frequency rumble or handling noise. For best results, keep the receiver away from Wi-Fi routers, large metal surfaces, and other RF-heavy equipment.

Safety precautions are important: do not block ventilation openings, avoid moisture, and use only the correct power supply. If pairing fails, confirm that the transmitter and receiver are on the same frequency and that the batteries are properly installed. If RF signal is unstable, reposition the antennas and reduce physical obstructions between the transmitter and receiver.

Troubleshooting the Audio-Technica 3000 Series UHF Wireless System ATW-R3100

If you experience no audio output, check the transmitter battery, confirm the transmitter is powered on, and verify that both devices are tuned to the same frequency. A weak or noisy signal usually points to antenna placement problems, RF interference, or an incorrect squelch setting. Reposition antennas for better line of sight and avoid placing the receiver near other transmitting devices.

Problem: Audio cuts in and out
Fix: Replace batteries, reduce distance, and check for obstructions or RF interference.
Problem: Distorted sound
Fix: Lower transmitter gain, reduce receiver output level, or adjust mixer input sensitivity.
Problem: Hiss or background noise
Fix: Verify tone lock settings, lower squelch if needed, and use a clearer channel.
Problem: No display or power
Fix: Inspect the power connection and confirm the supply is correctly seated.

This model does not rely on common numeric error codes in normal operation, so most issues are resolved through frequency matching, battery replacement, antenna positioning, and output level adjustment. For ongoing reliability, perform regular channel scans before each event and keep spare batteries available. Warranty coverage and support may vary by seller because this is often purchased used or as discontinued stock. For help, contact an authorized Audio-Technica service center or the seller who supplied the unit.

Pros and Cons of the Audio-Technica 3000 Series UHF Wireless System ATW-R3100

Pros

Reliable true diversity design improves reception stability in live environments
200 selectable UHF frequencies help with channel coordination in multi-mic setups
Balanced XLR and unbalanced 1/4-inch outputs support flexible integration
LCD interface and step-through menus make setup faster for technicians
High-pass filter and squelch controls give practical sound-shaping options
Strong value for buyers seeking a proven wireless receiver at a lower cost

Cons

Older design compared with newer digital wireless systems
Availability is limited because it is commonly found on the used market
Channel coordination is good, but not as advanced as modern networked systems
Feature set is focused more on reliability than premium digital convenience

For churches, schools, and small production teams, the Audio-Technica 3000 Series UHF Wireless System ATW-R3100 remains a practical and cost-effective option. It competes well with other older UHF receivers, especially when dependable RF performance matters more than the latest digital features.

Customer Reviews of the Audio-Technica 3000 Series UHF Wireless System ATW-R3100

Users commonly rate this receiver around 4 out of 5 stars for its dependable performance and easy operation. Many buyers praise the stable wireless reception, clear audio, and durable rack-ready construction. A frequent comment is that the receiver is easy to integrate into existing sound systems and works well for speeches, worship services, and small stage productions.

Common complaints focus on the age of the platform, limited current availability, and the fact that many units are sold used rather than new. Some users also note that setup is straightforward but less advanced than newer digital systems. Overall, the strongest recommendation is for budget-conscious buyers who want a reliable UHF receiver and do not need modern app-based control or advanced digital networking.

Frequently Asked Questions

What is the Audio-Technica 3000 Series UHF Wireless System ATW-R3100 used for?

It is used as a wireless receiver for microphones in live sound, presentations, houses of worship, schools, and installed AV systems.

How far can the receiver work?

Typical operating range is up to about 300 feet in open, unobstructed conditions.

Is the Audio-Technica 3000 Series UHF Wireless System ATW-R3100 still a good buy?

Yes, if you need a dependable, affordable UHF receiver and are comfortable buying used or discontinued stock.

PDF

Faqs

How do I set up the audio-technica 3000 Series UHF Wireless System ATW-R3100 for the first time?

Start by placing the receiver where its antennas have a clear line of sight and connecting it to power and your mixer, speaker, or camera input. Match the transmitter and receiver frequency range before powering on, then use the receiver’s automatic frequency scan if available to find an open channel. After that, set the audio output level, check the RF and AF meters, and do a quick sound test to confirm clean signal and stable reception.

Why is my audio-technica 3000 Series UHF Wireless System ATW-R3100 dropping out or cutting in and out?

Dropouts usually come from weak antenna placement, low transmitter battery power, or RF interference. Move the receiver higher, avoid blocking the antennas with metal objects, and keep it away from Wi-Fi routers, LED lighting, and other wireless gear. Make sure the transmitter and receiver are on the same band and within range. If the signal is still unstable, try a different channel and confirm the antennas are securely connected.

What should I check if the audio-technica 3000 Series UHF Wireless System ATW-R3100 has no audio output?

First, confirm the receiver is powered on and the transmitter is active with a fresh battery. Then check that the receiver’s output cable is connected to the correct input on your mixer or amplifier. Verify the output level setting is not too low and that any mute or squelch setting is not blocking audio. If the RF light is strong but there is still no sound, test with another cable or input to isolate the problem.

Which microphones and transmitters work with the audio-technica 3000 Series UHF Wireless System ATW-R3100?

The audio-technica 3000 Series UHF Wireless System ATW-R3100 works with compatible 3000 Series transmitters on the same frequency band, such as bodypack or handheld units designed for that system. Compatibility depends on matching the exact band and frequency range, so always confirm the receiver and transmitter are in the same UHF range before buying replacements. Using the wrong band can cause pairing failures, poor performance, or no signal at all.

How can I optimize range and sound quality on the audio-technica 3000 Series UHF Wireless System ATW-R3100?

For the best performance, place the receiver above crowd level and keep the antennas visible and spread apart. Avoid placing it near thick walls, racks of metal equipment, or other RF-heavy devices. Use fresh batteries in the transmitter and keep the audio gain properly adjusted to prevent distortion. If your venue has many wireless systems, scan for a cleaner channel and keep cables short and secure to reduce noise and interference.

What do the RF, AF, and battery indicators mean on the audio-technica 3000 Series UHF Wireless System ATW-R3100?

The RF indicator shows how strong the radio link is between transmitter and receiver, while the AF indicator reflects the incoming audio level. A healthy RF signal means the receiver is locked onto the transmitter, and a strong AF signal indicates the mic or input is actually sending sound. If the battery indicator warns low power, replace the batteries before a live event. Watching all three helps you spot problems before they become audible.

How do I reduce interference when using the audio-technica 3000 Series UHF Wireless System ATW-R3100 in a crowded wireless environment?

In crowded RF spaces, scan for an open frequency instead of manually choosing one at random. Keep the receiver away from routers, stage lighting dimmers, and digital video gear that can create noise. If possible, maintain line of sight between antennas and transmitter, and avoid stacking receivers too tightly together. For multi-system setups, coordinate all wireless devices so each one uses a separate, stable channel with minimal overlap.

How should I maintain and store the audio-technica 3000 Series UHF Wireless System ATW-R3100 for long-term reliability?

Power down the receiver after use, remove batteries from transmitters during long storage, and keep all connectors clean and dry. Coil cables loosely to prevent stress on the plugs, and store the unit in a padded case away from heat, moisture, and dust. Periodically inspect antennas, output cables, and battery contacts for wear or corrosion. A quick pre-event test before each use helps catch issues early and keeps the system dependable.
