Setup: Aukey Mini RGB Light User Manual

Content

Aukey Mini RGB Light

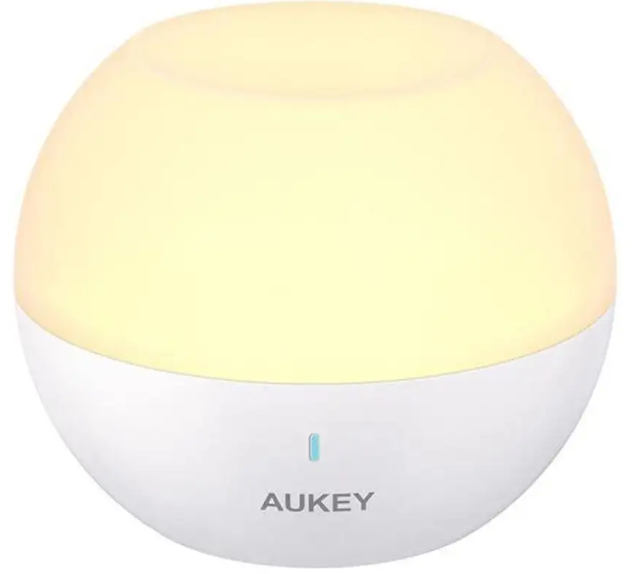

Aukey Mini RGB Light-product

Introduction

The Aukey Mini RGB Light (model LT-ST23) is a compact, portable LED lamp designed to deliver vibrant, customizable lighting for any environment. Whether you need focused illumination for reading, ambient mood lighting for relaxation, or colorful effects for entertainment, this versatile device covers all your needs. With four distinct modes—bright white, soft yellow, manual RGB color cycling, and automatic RGB color cycling—the Aukey Mini RGB Light adapts effortlessly to different occasions, from late-night study sessions to lively parties or romantic evenings.

Built for portability and durability, the Aukey Mini RGB Light features a water-resistant shell (IP65-rated) and can even float, making it suitable for poolside or bathtub use. Its 2200mAh rechargeable battery offers up to 6 hours of continuous use at maximum brightness and up to 100 hours on the dimmest setting, ensuring long-lasting performance for indoor and outdoor adventures. The lamp includes two magnetic mounts, a carabiner clip, and a hanging loop for flexible placement—attach it to metal surfaces, clip it to your backpack, or hang it from a ceiling for hands-free convenience.

Targeting students, campers, travelers, and home decorators, the Aukey Mini RGB Light stands out for its blend of portability, robust build, and dynamic lighting options. Priced around $17.99 on major online retailers, it offers exceptional value for a feature-rich, portable LED lamp. Its combination of user-friendly touch controls, energy efficiency, and eye-friendly lighting (≥80Ra color rendering index) makes it a smart choice for anyone seeking flexible illumination on the go.

Package Contents

  • Mini RGB Light
  • Micro-USB Cable
  • Two Circular Metal Plates
  • Carabiner
  • User Manual
  • Warranty Card

Specifications

  • Model: LT-ST23
  • Luminous Flux: 180 lumens (Max)
  • Color Temperature: 2700K / 6500K
  • Color Rendering Index: ≥ 80Ra
  • Input: DC 5V 1A
  • Power Consumption: 2W
  • Charging Time: 3.5 hours
  • Continuous Use Time: 6 hours (brightest light),100 hours (dimmest light)
  • Battery Capacity: 2200mAh
  • LED Type: SMD2835
  • Number of LEDs: 29
  • Water-Resistance Rating: IP65-equivalent
  • Dimensions: 95 x 95 x 75mm / 3.74” x 3.74” x 2.95”
  • Weight: 259g / 9.12oz

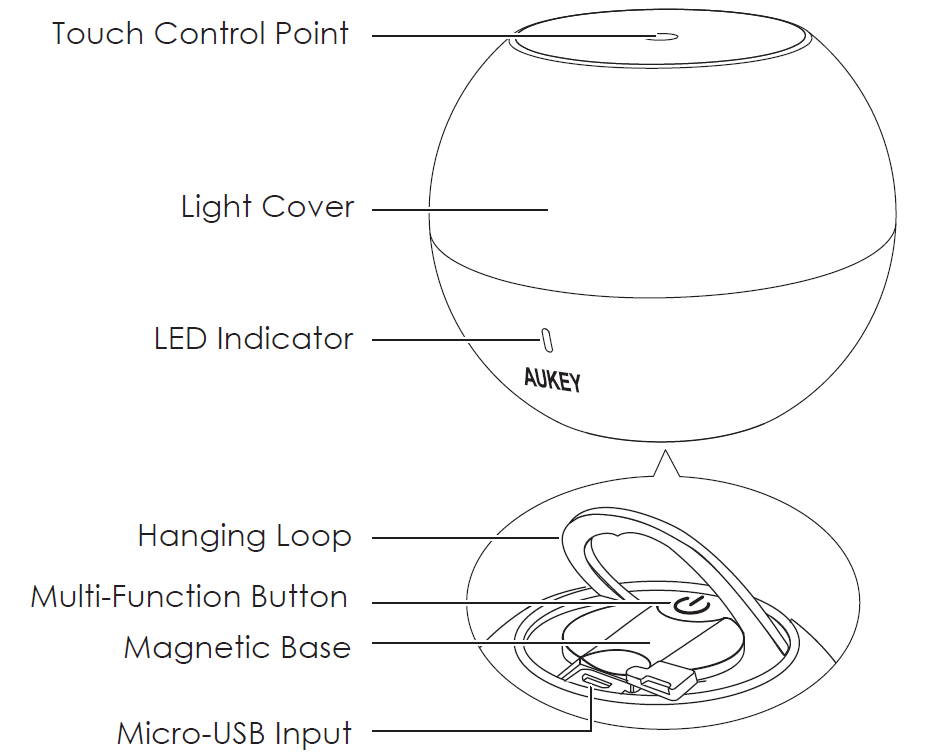

Product Diagram

Aukey Mini RGB Light-Product Diagram

Getting Started

Connect one end of the included micro-USB cable to the charging input port of the LT-ST23 and the other end of the cable to a USB charger or charging port to charge. The LED indicator will be flashing red while charging and blue when fully charged. Charging takes around 3.5 hours.

Powering On/Off the Light

  • Long-press the multi-function button to turn on/off the light. When the light is switched on, the LED indicator is blue (or flashes red when the battery is below 20%)
  • With the light on, double-tapping the touch control point (center-top of the light cover) also switches the light on/off, but off is standby with touch control active. Only the multi-function button switches the light fully off.

Switching Between Light Modes

There are four main light modes: cool white, soft yellow, manual RGB color-cycling, and automatic RGB color-cycling.

  • Switch between light modes by pressing the multi-function button

Adjusting Light Brightness

  • Long-press the touch control point until you get the desired brightness. On each long press, the brightness will smoothly scale in the opposite direction.
  • Stop at any brightness level between the highest and lowest (LED indicator will flash green when these are reached)
  • Brightness is only adjustable in cool white and soft yellow light modes

Using the Light Color Modes

There are two RGB color-cycling light modes. The first is manual and the second is automatic. Use the manual to choose a color. It automatically cycles through all the colors continuously.

  • In the manual, long-press the touch control point until you get the desired color.

Light Memory Function

The light switches on with the last-set mode, so you don’t need to repeat color selection or brightness adjustment to reach your preferred setting.

Using the Magnetic Light Mounts

The light directly attaches to many metal surfaces. For convenient mounting o  other surfaces, two metal plates are included.

  1. Clean the flat surface (such as a wall) where you want to install the light with a mixture of equal parts (1:1) isopropyl alcohol and water.
  2. Carefully remove the metal plate’s adhesive backing and adhere the plate to the surface.e
  3. Press and hold firmly for a few minutes to ensure tigadhesionesi.on Place the light’s magnetic base against the magnetic plate so that it magnetically attaches

Product Care & Use

  • Don’t repair, dismantle, or modify the product
  • Keep away from extreme heat
  • When using the hanging strap, ensure secure fixing to avoid the light falling. ing
  • Disconnect the power cable and switch off the light before cleaning or when not in use for a long time.
  • Clean the light only with a soft, dry cloth
  • Charge the LT-ST23 at least once every 3 months

Troubleshooting

Below are common issues, solutions, and preventive measures for the Aukey Mini RGB Light to help you keep your device running smoothly.

  • Light Not Turning On – Ensure the battery is charged. If the lamp doesn’t respond, connect it to a 5V 1A microUSB charger for at least 3.5 hours. If still unresponsive, try a different cable or power source.
  • Dim or Flickering Light – This could indicate a low battery. Recharge the lamp fully. If the problem persists, the battery may be aging and need replacement.
  • Touch Controls Unresponsive – Make sure the lamp’s surface is clean and dry. If issues continue, reset the device by charging it fully and trying again.
  • Error Codes – The Aukey Mini RGB Light does not display error codes. Most issues can be resolved by charging or resetting the device.

Preventive Measures: Avoid exposing the lamp to extreme temperatures. Store it in a dry place when not in use. Regularly clean the touch surface and charging port.

Warranty & Support: The product comes with a 24-month warranty from Aukey. For warranty claims or technical support, visit the official Aukey website or contact customer service via the retailer where you purchased the lamp. Always keep your proof of purchase for warranty purposes.

Contact Information: For direct assistance, refer to the official Aukey support channels listed in your user manual or on the Aukey website.

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Pros & Cons

Advantages

  • Versatile Lighting: Four modes, including adjustable white/yellow light and dynamic RGB color effects, cater to diverse needs.
  • Portability & Durability: Compact, lightweight, and water-resistant (IP65), with a floating design for pool or bath use.
  • Long Battery Life: Up to 6 hours at full brightness and 100 hours at minimum, ideal for travel and emergencies.
  • Flexible Placement: Magnetic mounts, carabiner clip, and hanging loop allow for creative positioning.
  • Value for Money: Priced competitively for a feature-rich, portable LED lamp.

Limitations

  • Moderate Brightness: At 180 lumens, it’s best for ambient or task lighting, not for lighting large spaces.
  • MicroUSB Charging: Uses an older charging standard, not USB-C.
  • No Smart Features: Lacks Wi-Fi, app, or voice control compared to some premium alternatives.
  • Manual Color Control: RGB color changes are not app-based and require manual adjustment.

Comparison: The Aukey Mini RGB Light stands out for portability and durability, but if smart home integration or higher brightness is a priority, consider models like the Aukey LT-T6 or LT-T7, which offer app control and brighter output.

Customer Reviews

User feedback highlights the Aukey Mini RGB Light’s portability, robust build, and versatile lighting options. Many customers praise its battery life, ease of use, and the convenience of magnetic and carabiner mounts for outdoor activities. The floating design is frequently mentioned as a unique, practical feature for pool or bath use.

Common complaints include the moderate maximum brightness, which may not suffice for large-area illumination, and the use of microUSB instead of USB-C for charging. Some users note that while the RGB effects are fun, color transitions are manual and not as seamless as some app-controlled alternatives.

Star ratings from major retailers consistently place the Aukey Mini RGB Light in the 4 to 4.5 range, reflecting strong satisfaction among users who value portability and reliability over advanced smart features. Purchase recommendations are strongest for travelers, campers, and those seeking a dependable, portable mood lamp.

Frequently mentioned issues are addressed in the troubleshooting section above. Overall, the Aukey Mini RGB Light is a well-regarded, budget-friendly option for dynamic, portable lighting.

PDF

Faqs

How do I set up the aukey Mini RGB Light for the first time?

To set up the aukey Mini RGB Light, charge it fully using the included MicroUSB cable (about 3.5 to 5 hours). Once charged, press the touch control point to switch between the four light modes: cool white, soft yellow, manual RGB color-cycling, and automatic RGB color-cycling. Adjust brightness by long-pressing the touch point in white or yellow modes. The light remembers your last settings for convenience.

What should I do if the aukey Mini RGB Light is not turning on or responding to touch controls?

If your aukey Mini RGB Light is unresponsive, first ensure it is fully charged. Check the MicroUSB cable and charging port for damage or debris. Try a long press on the touch control point to reset brightness or color mode. If it still doesn't respond, look for any blinking indicator lights signaling battery or hardware issues. Contact aukey support if problems persist.

Can I use the aukey Mini RGB Light while it is charging?

Yes, the aukey Mini RGB Light supports use while charging with its MicroUSB cable. This feature allows you to have continuous light without waiting for the battery to recharge, which is especially useful for extended use such as camping or indoor tasks.

What are the different lighting modes available on the aukey Mini RGB Light and how do I switch between them?

The aukey Mini RGB Light offers four main modes: bright cool white (2700-6500K), soft yellow light, manual RGB color-cycling (select a static color), and automatic RGB color-cycling (continuously cycles through colors). Tap the touch control to cycle through modes, and long-press to adjust brightness or select specific colors in manual mode.

Is the aukey Mini RGB Light waterproof and suitable for outdoor use?

Yes, the aukey Mini RGB Light has an IP65-equivalent water resistance rating, meaning it is splash-resistant and can withstand rain or accidental water exposure. It even floats on water, making it ideal for outdoor activities like camping or poolside lighting. However, avoid full submersion to maintain durability.

How do I mount or position the aukey Mini RGB Light for hands-free use?

The aukey Mini RGB Light includes two magnetic metal plates allowing you to mount it on metal or adhesive surfaces. It also comes with a carabiner clip and a rubber loop for hanging on backpacks, tents, or hooks. Its compact size and magnetic base make versatile placement easy both indoors and outdoors.

What is the expected battery life of the aukey Mini RGB Light on different brightness settings?

The aukey Mini RGB Light provides up to 6 hours of continuous use at the brightest setting and can last up to 80-100 hours on the dimmest light mode. The built-in 2200mAh battery charges in about 3.5 to 5 hours, offering flexible usage depending on your brightness needs.

How should I clean and maintain the aukey Mini RGB Light to ensure longevity?

To maintain your aukey Mini RGB Light, clean it gently with a soft, dry cloth to remove dust or dirt. Avoid using harsh chemicals or submerging it in water, despite its splash resistance. Store it in a dry place when not in use and ensure regular charging to preserve battery health.
