Introduction — Overview of the beurer Daylight Therapy Lamp TL 70

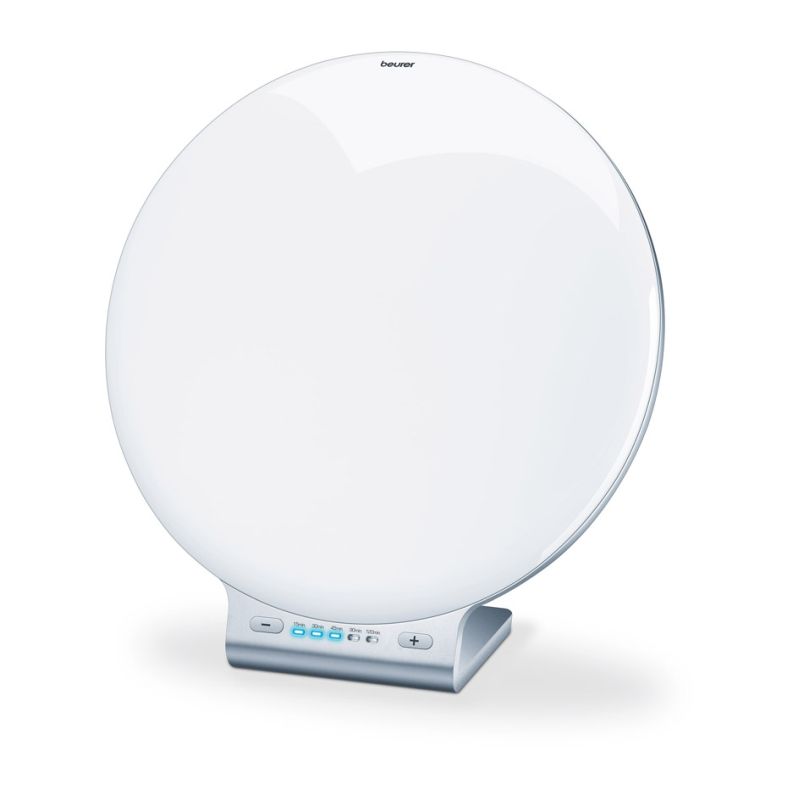

The beurer Daylight Therapy Lamp TL 70 is a medically approved LED daylight lamp designed to improve mood, energy and sleep patterns by simulating natural daylight with up to 10,000 lux of illumination at approximately 10 cm distance[1]. The TL 70 combines an elegant, compact design (illumination surface Ø ≈ 33 cm) with energy‑efficient, flicker‑free and UV‑free LED technology, making it suitable for home and office use where natural sunlight is limited.

Key benefits and unique selling points include a high light intensity of 10,000 lux for effective light therapy, 10 brightness levels with memory function, a 5‑level timer (15–120 minutes) with automatic switch‑off, and exceptionally even illumination for comfortable treatments. The lamp is certified as a medical device (Class IIa) and built to provide flicker‑free, UV‑free light at a color temperature around 5300 K, which closely resembles daylight.

Target audience and use cases: professionals and remote workers who spend long hours indoors, people affected by seasonal affective disorder (SAD) or winter blues, shift workers, students, and anyone wanting to improve morning alertness or regulate circadian rhythm. Typical sessions are 20–30 minutes daily in the morning (timing and duration depend on individual needs and physician advice), using a comfortable brightness level that allows eyes to remain open but not stare directly into the lamp.

Estimated price range and availability: the TL 70 is positioned as a mid‑range daylight lamp; typical retail prices (new) vary by region and retailer but commonly fall in the mid‑hundreds in local currency (check local electronics and medical suppliers for current prices). The TL 70 is widely available through Beurer’s official channels and major retailers worldwide.

Technical Specifications

• Model No.: TL 70
• Dimensions (W × H × D): 366 × 335 × 203 mm
• Weight: 1130 g (1240 g including mains adapter)
• Lighting Elements: LED
• White Wavelength: 410–800 nm
• Maximum Light Output: 14.83 mW/m²
• Power: 36 Watts
• Light Intensity: 10,000 lux (at a distance of approximately 10 cm)
• Operating Conditions:
  • Temperature: +5°C to +35°C
  • Relative Humidity: 15–90%
  • Atmospheric Pressure: 86–106 kPa
• Storage Conditions:
  • Temperature: -20°C to +50°C
  • Relative Humidity: 15–90%
  • Atmospheric Pressure: 86–106 kPa
• Product Classification: External power supply, Protection Class II, IP21
• Color Temperature of LEDs: 5,300 K (±300 K)
• Included in Delivery:
  • Daylight Therapy Lamp
  • Mains Adapter
  • Operating Instructions

Unit Description

Overview:

1. Fluorescent Screen
2. Rear of the Device Housing
3. On/Off Button
4. Mains Part Connector
5. Timer Adjustment (- / +)
6. Timer LED Display

7. Brightness Adjustment (Dimmer)



Initial Use

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any damage or faults on the device, do not use it and contact customer services or your supplier.

Positioning the Device

Place the device on an even surface. The position should be chosen to ensure a distance of between 10 cm and 40 cm between the user and the device. The lamp is most effective at this distance.

Mains Connection

• To prevent possible damage to the device, the daylight therapy lamp must only be used with the mains part described here.
• Insert the mains part into the connection provided for this purpose on the rear of the daylight therapy lamp. The mains part must only be connected to the mains voltage that is specified on the type plate.
• After using the daylight therapy lamp, unplug the mains part from the mains socket first and then disconnect it from the daylight therapy lamp.

Note:

• Ensure that there is a socket near the place where the lamp will stand.
• Lay the mains cable in such a way that no one can trip over it.

Operation

Insert the Mains Part

Insert the mains part into the connector.

Switch On the Light

Press the ON/OFF button.

LED Display/Timer

The daylight therapy lamp TL 70 indicates your current treatment time with the aid of 5 LEDs. The treatment time can be set at the following 5 levels. The timer function is not activated when the light is switched on for the first time. The light now shines until it is switched off again or a treatment time is set (timer = 0 min). In order to use the timer, set the desired level from 1 to 5 using the "+/-" buttons. On level 1, a treatment time of 15 minutes is set. The other levels are as follows:

Brightness Adjustment

The daylight therapy lamp TL 70 has 10 brightness levels. The desired brightness level can be set using the "+/-" buttons on the side – this level should be set so that it is pleasant for the eye during the treatment. When the device is switched off, the last level that was set is saved. When the device is next switched on, it restarts with the saved brightness level.

Enjoying the Light

Sit as close as possible to the lamp, between 10 cm and 40 cm. You can go about your normal activities while using it. You can read, write, make telephone calls, etc.

• Every so often, briefly look directly into the light, since the effect results from the eyes/retina receiving the light.
• Use the daylight therapy lamp as often as you want. However, the treatment is at its most effective if you carry out the light therapy according to the prescribed time period of at least 7 successive days.
• The most effective time of day for the treatment is between 6 am and 8 pm, and we recommend that it is used for 2 hours per day.
• Do not look directly into the light the whole time you are using it, however, since that could lead to overstimulation of the retina.
• Start with shorter periods of illumination, which you increase over the course of a week.

Note:

Eye aches and headaches may arise after the first time using the lamp. These will go away in later sessions, as the nervous system will become accustomed to the new stimulation. Important Instructions When using the lamp, maintain the recommended distance of 10–40 cm between your face and the lamp. The duration of the application depends on the distance:

Basically, the closer you are to the source of light, the less time you should use it.

Enjoying Light Over Longer Periods

Repeat your use of the lamp in the dark seasons for at least 7 successive days, or even longer, depending on your individual needs. If possible, conduct the treatment in the morning hours.

Switching Off the Lamp

Press the On/Off button. The LEDs switch off. Unplug the mains part from the mains socket.

CAUTION!

The light remains hot after use. Let the lamp cool off first long enough before you put it away and/or pack it up!

Cleaning and Care of the Unit

The unit should be cleaned occasionally.

Important

• Ensure that no water penetrates inside the unit!
• Before you clean the unit, always switch it off, unplug it, and let it cool off.
• Do not wash the unit in a washing machine!

Use a slightly damp cloth to clean the device.

• Do not touch the unit with wet hands while it is plugged in; do not allow any water to be sprayed onto the unit. The unit must be operated only when it is completely dry.
• Do not use abrasive detergents and never immerse the unit in water.

Storage

If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children.

Follow the storage instructions provided in the "Technical Data" chapter.

• It takes about 30 minutes from the lowest storage ambient temperature of -20 °C to resume normal operation at an ambient temperature of 20 °C.
• It takes about 30 minutes from the highest storage ambient temperature of 50 °C to resume normal operation at an ambient temperature of 20 °C.

Troubleshooting — Common Problems, Fixes and Support for beurer Daylight Therapy Lamp TL 70

Common issue: Lamp will not power on. Possible fixes: verify the mains connection and ensure the power adapter is fully inserted; try a different outlet; inspect the cable for damage; consult the user manual’s safety and connection section for correct setup.

• Problem: No light or reduced brightness. Solution: Ensure the device is switched on, adjust the 10‑level dimmer using the +/- buttons, check the memory function (the lamp reopens at the last saved level), and confirm the power supply voltage matches the device rating.
• Problem: Timer not working or not switching off. Solution: the timer function must be activated with the +/- buttons; level 1 = 15 min through level 5 = 120 min; set timer or disable by reducing level until LEDs go out.
• Problem: Flicker or strange light color. Solution: the TL 70 uses flicker‑free LED technology and ~5300 K color temperature; persistent flicker suggests a hardware fault—stop use and contact support.

Preventive measures: place the mains cable so it cannot be tripped over, operate within the recommended temperature and humidity range (+5°C to +35°C, 15–90% relative humidity), and avoid exposing the lamp to liquids or impact to preserve LED integrity.

Warranty and support: Beurer provides product documentation and a manufacturer warranty—warranty length can vary by market (retailer listings commonly show multi‑year warranties; verify at point of sale) For repairs or questions, consult the TL 70 manual (available from Beurer product pages) or contact Beurer customer service in your country via the official Beurer support channels listed on the product site.

Pros & Cons — Balanced Assessment of the beurer Daylight Therapy Lamp TL 70

• Pros — Effective bright light therapy: 10,000 lux output at ~10 cm provides clinically relevant intensity used for seasonal light deficiency and circadian support
• Pros — Adjustable and convenient: 10 dimmable brightness levels with memory and a 5‑level timer (15–120 minutes) make the device easy to customize for individual protocols
• Pros — Energy efficient & safe: LED technology offers flicker‑free, UV‑free light at ~5300 K, low power consumption (~36 W), and even illumination over a 33 cm surface
• Cons — Size vs. coverage: With an illumination surface of ≈33 cm diameter, the TL 70 is mid‑sized — effective when positioned close (recommended distance ≈10 cm for 10,000 lux) but may require precise placement compared with larger light boxes for whole‑desk coverage.
• Cons — Not portable battery powered: The unit requires mains power, which reduces portability compared with battery options for travel; verify local voltage compatibility before use
• Value for money: For users seeking a medically certified, mid‑size lamp with flexible timers and dimming, the TL 70 offers strong value compared with basic models; alternatives with larger panels cost more, while cheaper lamps may lack medical certification or flicker‑free LEDs.

Customer Reviews — Typical Feedback, Ratings and Recommendations for beurer Daylight Therapy Lamp TL 70

Overall user sentiment for the beurer Daylight Therapy Lamp TL 70 is generally positive: users praise the bright, even, flicker‑free light, the solid build, and the useful timer and memory functions; many report improved morning alertness and reduced winter lethargy after regular use.

Common praises: clear, natural daylight color (~5300 K), easy operation, and energy efficiency (LED). Common complaints: need to position close to achieve full 10,000 lux effect, and the lamp’s mid‑size coverage may not suit users wanting large desk illumination.

Sample ratings: many retailers and user reviews place the TL 70 in the 4‑star range for effectiveness and build quality (individual retailer ratings vary); buyers who prioritize a medically certified device and even illumination often recommend it as a reliable mid‑range choice.

Purchase recommendation: recommended for users seeking a compact, medically approved light therapy lamp for daily morning sessions; consider a larger panel if you need broader desktop coverage or greater distance from the lamp.
