Setup and Pair: Blaupunkt BTW-LITE Wireless Earbuds

Content

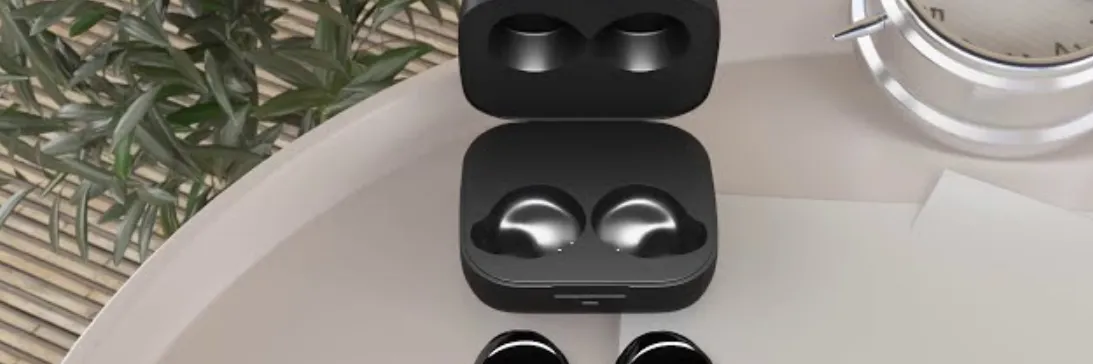

Introducing the Blaupunkt BTW-LITE Wireless Earbuds

The Blaupunkt Wireless Earbuds are the perfect companion for your busy lifestyle. These earbuds are designed to provide high-quality sound while offering the convenience of true wireless technology. With an estimated price of $59.99 and a launch date set for March 2023, these earbuds are set to revolutionize the way you listen to music.

Detailed Specifications

The BTW-LITE Wireless Earbuds come with a range of features that make them stand out from the crowd. Some of these key features include

Bluetooth version 5.0 for fast and stable connectivity
Up to 16 hours of battery life with the charging case (3.5 hours on a single charge)
IPX5 water resistance rating for protection against sweat and water splashes
Touch controls for easy operation
Built-in microphone for hands-free calling

Appearance

Button illustration

LED
Touch key
Ear-gels
Charging contactor

Operation instruction of earbud

(1). Indicator Flashing Mode
Item No.	Status	Indicator Flashing Mode
1.1	Power on the earbud	White light goeson for 1 second
1.2	Power oﬀ the earbud	Light goes out
1.3	Pairingmode	Right earbud: Whitelight ﬂashing quicklyonce every 0.5 seconds. Left earbud:Light goes out.
1.4	Connected	Light goes out
1.5	Listening music	Light goes out
1.6	Incoming call	White light ﬂashingquickly
1.7	Phone call in progress	Light goes out
1.8	Battery charging mode	White light goes on
1.9	Battery has beenfully charged	Light goes out

(2). Voice Notiﬁcation In English
Item No.	Event	Voice Notiﬁcation
2.1	Power on the earbud	Power on
2.2	Power oﬀ the earbud	Power oﬀ
2.3	Pairing with Bluetooth music device	Pairing
2.4	Left & rightearbud paired successfully	TWS Connected
2.5	Connected with Bluetooth music device	Connected
2.6	Disconnected with Bluetooth music device	Disconnected
2.7	Receiveincoming call	With tone
2.8	Play/Pause	With tone
2.9	Refuse incoming call	With tone
2.10	End a call	With tone
2.11	Battery level is below 10%	Battery Low (onceevery 4 minutes)
2.12	Restore to Factory Settings	Resetting Earbuds

(3). Function Keys Table
Item No.	Function	Status	Action(Right side,primary)	Action(Left side,secondary)
3.1	Power on	Earbud is oﬀ	Take the earbuds out from the charging case Press and hold touchkey for 1.5 seconds	Take the earbuds out from the charging case Press and hold touchkey for 1.5 seconds
3.2	Power oﬀ	Earbud is on	Put the earbuds into the charging case or Press and hold touch key for 4 seconds Switch on for 8 minutes without pairing	Put the earbuds intothe charging case or Press and hold touchkey for 4 seconds Switch on for 8 minutes without pairing
3.3	Pairing with Bluetooth device	Earbud is oﬀ	Entering intopairing mode afterthe left & right earbuds are taken out of the charging case and pair auto.matically. Then earbud will search for last paired Bluetooth device. or After being disconnected from Bluetooth device, earbudwill go into pairing mode directly.	Entering into pairing mode after the left & rightearbuds are takenout of the charging case and pair automatically. Then earbuds will search for last paired Bluetooth device. or After being disconnected from Bluetooth device, earbudwill go into pairing mode directly.
3.4	Restore to Factory Settings	Earbud is oﬀ	Press and hold the touch key for 10 seconds when the earbuds are oﬀ until the white light ﬂashes quickly twice.	Press andhold the touchkey for 10 seconds when the earbuds are oﬀ until the white light ﬂashes quickly twice.
3.5	Adjust volume	Earbud is paired with device	---	---
3.6	Previous song	Playing music	---	Press touch keytwice on leftearbud to return to the previous song.
3.7	Next song	Playing music	Press touch key twice on right earbud to skip to the next song.	---
3.8	Play / Pause	Playing music	Press touch keyonce to pauseand press once again to resume.	Press touch keyonce to pauseand press once again to resume.

3.9	Receive a call	Playing musicor connected with smartphone	Press touch key once.	Press touch key once.
3.10	End a call	A phone callhas been connected	Press and holdtouch key for 2 seconds	Press and hold touch key for 2 seconds
3.11	Refuse incoming call	There is an incomingcall	Press and holdtouch key for 2 seconds	Press and hold touch key for 2 seconds
3.12	Voice dialing	Earbud is connected with smartphone	Press and hold touchkey for 1.5 seconds (need to have support by smartphone)	Press andhold touch keyfor 1.5 seconds (need to have support by smartphone)

Detailed Description

The BTW-LITE Wireless Earbuds are designed to be comfortable and secure, with a lightweight design and ergonomic shape that fits snugly in your ear. The earbuds come with three different sizes of ear tips to ensure a perfect fit for everyone. The earbuds also feature touch controls, allowing you to easily adjust the volume, skip tracks, or answer phone calls with a simple tap. With Bluetooth version 5.0, the earbuds offer fast and stable connectivity, allowing you to connect to your phone or other devices quickly and easily. The Blaupunkt BTW-LITE Wireless Earbuds also come with a charging case that provides up to 16 hours of battery life, ensuring that you can listen to music all day long. The earbuds are also IPX5 water-resistant, meaning that they are protected against sweat and water splashes, making them perfect for use during exercise or in wet weather. The built-in microphone also allows you to make hands-free calls, making these earbuds a versatile and convenient choice for anyone who wants high-quality sound on the go.

Operation instruction of charging case

LED Indicator of charging case

Button illustration

Micro USB charging port
LED

Charging case operating instruction

Charging the case(power input)

Plug in MicroUSB charging cable andlight of charge the case withDC

5V 1A power source.

Charge earbuds by the case(power output)

Place the earbudsin their designated positions and theywill

be charged.

LED Indicator during discharge (charging earbuds)

Dischargeof charging case(charging earbud)

Chargingthe earbuds by charging case:

White light of charging case goes on. And the light goes oﬀ after the earbuds are fully charged.
White lightof charging case goes out if the earbuds are

taken out of the charging case during charging.

LED Indicator during charging of charging case

Being charged	White light ﬂashesquickly.
Fully charged	White light goes on.

Indication when battery power level of charging case is low White light of charging case ﬂashes slowly when the earbuds are put into charging case with low battery power.

Cleaning and maintenance

Clean the earbuds and the charging case on a regular basis.
Use dry and soft cotton cloth to wipe the unit.
Note: Do not insert anything into the product.
Keep away from sharp objects to avoid scratches.
Put the unit in a dry and shady place if it is to be idle for a long time.
Do not clean the product with detergent or chemicals.

Important Safety Instructions

Please read the instructions thoroughly before using this product and retain it for future reference. Hearing Safety

Do not wear earbuds with high volume for a long time to avoid damaging your hearing.
Please refer to local laws and regulations if you want to answer phone calls via this device during driving.
For your safety, avoid distraction from music or phone calls when you are driving or doing other activities with potential dangers. Warning: Please set the volume to proper level to avoid hearing damages.

Caution

Do not expose this product to high temperatures.
Do not immerse the earbuds into water or expose them to humidity for a long time.
Do not clean the product with detergent containing alcohol, ammonia, benzene or abrasives.
Avoid dropping.
Place the earbuds back into the charging case when not in use and keep it away from children and pets to avoid choking hazard.
Unauthorized disassembly of any parts of this product is forbidden, which may cause ﬁre hazard, warranty voidance, and/or property loss.
Close attention is needed when using near children.
Keep the charging case away from water, rain or any other liquid.
Don’t use the product in thunderstorm to avoid malfunction or electric shock.
Always ask a professional technician or authorized personnel for repair.

This product contains lithium battery. Never expose it to excessive heat such as direct sunlight or ﬁre to avoid explosion.

Troubleshooting

No.

Problem

Solution

Failed to turn on the earbuds

Earbuds low battery, please charge them

Failed to chargethe earbuds

Place the earbuds intothe charging caseproperly
Make surethe charging caseis charged fully

Can’t charge the charging case

Make sure the charging cableis intact and plugged in properly

Can’t ﬁnd pairing name in the Bluetooth device list

The earbuds reconnected with previously paireddevice automatically:

Deactivate the Bluetooth function of previously paireddevice or clearthe pairing name from its Bluetooth device list, and then search again
Put the device to be connected and the earbuds within 10 meters/ 33 feet

Failed to pairthe earbuds with

your device

Turn on the deviceand activate its Bluetooth function before pairing
Bring the earbuds intopairing mode as instructed in the “Pairing” section

No soundin one of the earbuds in couple earbuds mode

Place bothearbuds back to the charging case and takethem out. Thenthey will pair with each other automatically. If pairing failed, restore them back to the factory

settings as instructed in the “Restore to Factory Settings” section.

Poor sound quality

Wear the earbuds properly and keep themclose to eachother.
Place the connected deviceclose to the earbuds or remove the obstacles between them
Clear the debris on the earbuds

Unstable connection

Keep the earbuds andyour Bluetooth devicewithin 10 meters/ 33 feet
The eﬀective distance may shorten withobstacles in theway
Turn oﬀ other Bluetooth devices to decrease the interference

Can’t hear the other party during

a phone call

Set the volumeto higher level

The other partycan’t hear your

voice during a phone call

Free the built-in microphone of any covers

Touch key controlof the earbuds

is unresponsive

Place the earbudsinto the charging case and disconnect the Bluetooth connection.

Afterwards, take out the earbuds from the charging case and pair again.

WARRANTY INFORMATION

A 12-month manufacturer guarantee covering flaws in materials and workmanship is included with the Blaupunkt BTW-LITE. Damages resulting from misuse or regular wear and tear are not covered by the guarantee. To make a warranty service claim, save your proof of purchase.

Pros & Cons of BTW-LITE Wireless Earbuds

Pros

Affordable price point
Lightweight and comfortable design
Fast and stable Bluetooth connectivity
Long battery life with charging case
Water-resistant design

Cons

No active noise cancellation feature
Touch controls can be sensitive and may take some getting used to
Limited color options

Customer Reviews of BTW-LITE Wireless Earbuds

Customers who have purchased the Blaupunkt Wireless Earbuds have praised their comfortable fit, high-quality sound, and long battery life. However, some customers have noted that the touch controls can be sensitive and may take some getting used to. The earbuds also do not have an active noise-cancellation feature, which may be a drawback for some users.

Faqs

How can I connect my Bluetooth device to my Blaupunkt BTW-LITE Wireless Earbuds?

Start by activating your device's Bluetooth. When you remove the Blaupunkt BTW-LITE Earbuds from their case, pairing mode is initiated immediately. From the Bluetooth list on your device, choose 'BTW-LITE'. Try again after resetting the earbuds if they don't appear. See our website's 'How to Pair' section for more thorough pairing guidelines.

If one of my Blaupunkt BTW-LITE earbuds stops working, what should I do?

Put both earphones in the charging case to reset them if you experience problems with one of them. Should the issue continue, refer to our online troubleshooting guide for detailed answers or get in touch with customer care for more help.

How do I upgrade the firmware on my BTW-LITE Wireless Earbuds from Blaupunkt?

When available, firmware upgrades can be applied using the Blaupunkt mobile app. Any updates can be downloaded and uploaded to your earbuds after the app notifies you of them. Prior to beginning an update, always make sure your earbuds are completely charged

Can I use my laptop or computer and the Blaupunkt BTW-LITE Wireless Earbuds?

Yes, provided that Bluetooth connectivity is installed on your laptop or computer. To pair your BTW-LITE Earbuds with your PC, use the normal procedure that may be found in the user manual or on our support page.

How can I use my Blaupunkt BTW-LITE to manage calls and audio playback?

The touch controls on the Blaupunkt BTW-LITE are simple to use. Press the earphone once to start or stop the song. You can also tap once to answer or end a call. See the complete control guide on our FAQ page for additional control choices, such skipping tracks and turning on voice assistance.

Are the BTW-LITE Earbuds from Blaupunkt water-resistant?

Because of their sweat and splash resistance, the BTW-LITE Earbuds are appropriate for use during exercise or light precipitation. They must not, however, be immersed in water. For additional details regarding water resistance, view our comprehensive specifications on the internet.

How can I find out how long the Blaupunkt BTW-LITE Earbuds' battery lasts?

The majority of smartphones will show the linked Bluetooth devices' battery life. By looking at the LED indicators on the earphones and charging case, you can easily determine the battery's condition. See our assistance section for an explanation of how to interpret the LED signals.

If the Blaupunkt BTW-LITE Earbuds aren't charging, what should I do?

Make sure the earbuds are inserted into the charging case correctly and that the case is charged. Use a gentle cloth to clean the charging contacts if they are still not charging. If problems persist, you might need expert assistance; our customer care can assist.

How can I get the best sound quality out of my BTW-LITE Blaupunkt Earbuds?

Selecting the appropriate ear tip size for a snug fit and placing the earbuds correctly are key to getting the finest sound. To learn how to get the most out of your BTW-LITE Earbuds and enhance your listening experience, check out our online tutorial.

How long is the Blaupunkt BTW-LITE Wireless Earbuds warranty?
