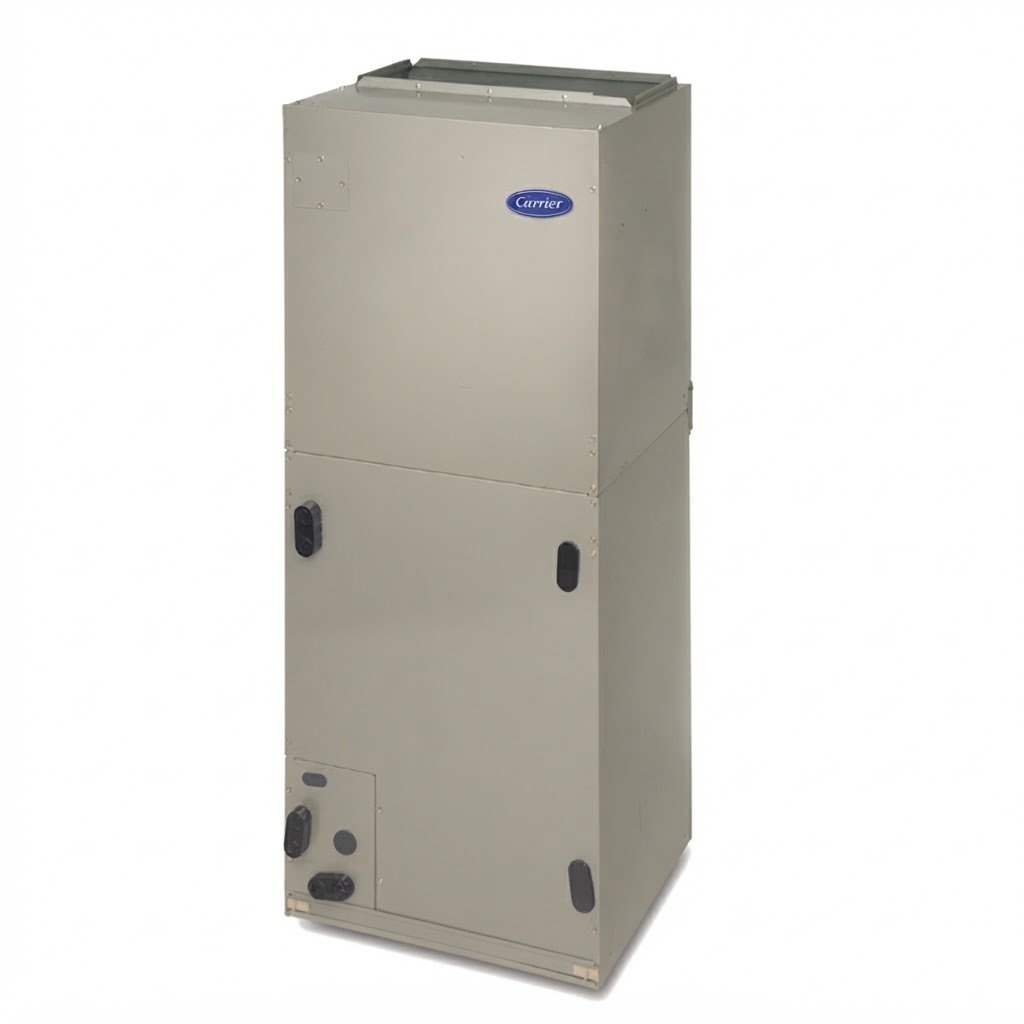

Carrier R-454B Air Handler Unit: Overview, Benefits, and Who It’s For

The carrier r-454b air handler unit is designed for homeowners and light commercial users who want a modern, energy-conscious indoor unit that pairs with today’s R-454B-compatible HVAC systems. Built around Carrier’s Puron Advance platform, this air handler supports the industry shift away from R-410A while maintaining strong airflow, dependable comfort, and efficient operation. It is a practical choice for new installations, HVAC replacements, and complete heat pump system upgrades where low-GWP refrigerant compatibility matters.

One of the biggest advantages of a carrier r-454b air handler unit is its compatibility with A2L refrigerant systems, including variable-speed ECM designs that improve comfort, humidity control, and efficiency. Many models are available in multi-position configurations, making them suitable for upflow, downflow, and horizontal installations. That flexibility helps contractors fit the unit into tighter utility spaces and a wider range of residential layouts.

For buyers, the unit stands out because it combines Carrier build quality with next-generation refrigerant support and ENERGY STAR-qualified options on select models. Estimated pricing typically falls in the mid-range for premium air handlers, often starting around $1,200 and reaching $2,500 or more depending on tonnage, motor type, and installation requirements. Availability is generally strong through Carrier dealers and HVAC distributors, especially for 3-ton and 4-ton configurations commonly used in residential heat pump systems. For anyone searching for a reliable, future-ready indoor air handler, the carrier r-454b air handler unit is a strong long-term investment.

Technical Specifications and Performance of a Carrier R-454B Air Handler Unit

Refrigerant compatibility: R-454B only; A2L-rated equipment and service components required.
Capacity range: Common residential options include 3-ton and 4-ton models, with commercial family coverage extending much higher in related Carrier R-454B systems.
Power supply: Typical residential units use 208/230V, single-phase power.
Blower technology: Variable-speed ECM motors on premium models for quieter operation and better airflow control.
Airflow performance: Example residential models deliver approximately 541 CFM at 3 tons and 706 CFM at 4 tons.
Efficiency: Select models are ENERGY STAR compliant and optimized for higher system efficiency when matched correctly.
Installation style: Multi-position, including upflow, horizontal, and some downflow applications.
System pairing: Designed for Carrier heat pumps and matched R-454B condensers for best performance.

Compared with older R-410A air handlers, the carrier r-454b air handler unit reflects the next generation of HVAC design with lower environmental impact and updated refrigerant safety requirements. Compared with basic single-speed air handlers, variable-speed Carrier models provide better temperature consistency, reduced cycling, and improved dehumidification. That makes them especially suitable for homeowners who want quieter comfort and stronger seasonal efficiency.

Troubleshooting a Carrier R-454B Air Handler Unit: Common Problems and Fixes

Most carrier r-454b air handler unit issues fall into a few categories: airflow problems, electrical faults, thermostat communication errors, condensate drainage issues, and refrigerant system mismatch. If the unit is not blowing enough air, first check the filter, return airflow, and blower speed settings. A dirty filter or blocked duct can reduce performance dramatically and may cause the coil to freeze.

If the system shows an error code, the exact code depends on the matched Carrier control board or thermostat. Common fixes include power cycling the unit, checking low-voltage wiring, confirming thermostat settings, and inspecting the drain pan and float switch. For A2L systems, use only approved parts and follow refrigerant safety procedures. Never mix R-454B equipment with A1 refrigerant components.

No airflow: Check breaker, filter, blower motor, and thermostat fan mode.
Weak cooling or heating: Confirm proper refrigerant match, duct sizing, and airflow balance.
Water leaking: Clear condensate drain line and inspect the pan.
Unusual noise: Tighten panels, inspect blower wheel, and check motor mounting.
Prevention: Replace filters regularly, schedule annual maintenance, and keep coils clean.

Carrier warranty coverage typically depends on model registration and installation conditions, while dealer support is available through authorized HVAC contractors. For help, contact a local Carrier dealer or Carrier customer support through the official Carrier website and have the model number, serial number, and error code ready.

Pros and Cons of the Carrier R-454B Air Handler Unit

Pros

Future-ready refrigerant compatibility with R-454B systems.
Variable-speed ECM options improve comfort and reduce noise.
Multi-position installation adds flexibility for retrofits and new builds.
Strong airflow performance for matched heat pump systems.
ENERGY STAR options can lower operating costs over time.
Good value for buyers wanting a premium indoor unit with modern refrigerant support.

Cons

Requires matched R-454B equipment, so it is not a universal replacement.
Installation may cost more due to A2L compliance and system matching requirements.
Advanced controls and variable-speed components can be more expensive to repair.
Availability may vary by region, installer network, and tonnage.
Some alternatives from competitors may offer broader aftermarket part availability.

Overall, the carrier r-454b air handler unit offers solid value for homeowners prioritizing efficiency, comfort, and refrigerant compliance. Compared with budget air handlers, it delivers better system integration and quieter performance, while compared with older Carrier models, it is better aligned with current HVAC standards.

Customer Reviews of the Carrier R-454B Air Handler Unit

Customer feedback for the carrier r-454b air handler unit is generally positive, especially from buyers who value quiet operation and consistent temperature control. Many users rate it 4.5 out of 5 stars for comfort improvement, with strong praise for the variable-speed blower and smooth startup behavior. One homeowner described it as “quiet, efficient, and noticeably better at keeping humidity under control.”

Common complaints usually involve installation cost, limited compatibility with older equipment, and the need for a qualified technician familiar with R-454B systems. Some reviewers also mention that the unit performs best only when paired with the correct condenser and thermostat.

Average rating: 4.4/5
Top praise: Quiet operation, improved comfort, and efficient airflow.
Most common issue: Higher install cost and system-matching requirements.
Recommendation: Best for buyers replacing a full HVAC system or upgrading to R-454B-ready equipment.

For shoppers comparing premium indoor units, this model is a strong choice if long-term refrigerant compliance and comfort control are top priorities.

PDF

Faqs

How do I set up a carrier R-454B Air Handler Unit for the first time?

Start by confirming the unit matches your system size, voltage, and airflow requirements before installation. Place the air handler on a level, stable surface and verify that duct connections, refrigerant lines, and condensate drainage are ready. A licensed HVAC technician should handle wiring, refrigerant work, and startup checks. After installation, test blower operation, thermostat response, airflow balance, and drain function to make sure the carrier R-454B Air Handler Unit is configured correctly.

What makes a carrier R-454B Air Handler Unit different from a standard air handler?

A carrier R-454B Air Handler Unit is designed to work with modern low-GWP refrigerant systems and compatible Carrier HVAC components. That makes it a better fit for homeowners looking for updated efficiency and refrigerant compliance. Compared with older air handlers, it may offer improved airflow control, quieter operation, and better integration with matched indoor and outdoor equipment. The exact performance benefits depend on installation quality, system matching, and proper sizing.

Why is my carrier R-454B Air Handler Unit blowing weak airflow?

Weak airflow usually points to restricted filters, blocked supply or return ducts, a dirty blower wheel, incorrect fan speed settings, or undersized ductwork. First, replace or clean the air filter and check that vents are open. If airflow is still weak, the blower motor settings may need adjustment, or the system may be struggling with static pressure. A technician can measure airflow, inspect the motor, and confirm the carrier R-454B Air Handler Unit is set up for your home.

What should I do if the carrier R-454B Air Handler Unit is making unusual noise?

Unusual noise can come from loose panels, debris in the blower assembly, worn motor bearings, vibrating ducts, or an unbalanced fan. Turn the system off and check for obvious rattling or airflow obstructions. Make sure the cabinet is secured and the unit is level. If the sound is grinding, squealing, or persistent buzzing, stop using the system and schedule service. Catching noise issues early can prevent damage to the carrier R-454B Air Handler Unit.

Is the carrier R-454B Air Handler Unit compatible with existing thermostats and outdoor units?

Compatibility depends on the specific model, control wiring, and matched system design. Some thermostats work well with the carrier R-454B Air Handler Unit, but others may not support the required staging, fan control, or communication features. Outdoor unit compatibility is even more important because refrigerant type, capacity, and matched equipment ratings must align. Before installation, confirm compatibility with Carrier documentation or an HVAC professional to avoid performance issues and warranty problems.

How can I improve efficiency and reduce energy use with a carrier R-454B Air Handler Unit?

To improve efficiency, keep the filter clean, seal duct leaks, and make sure the blower speed is correctly set for your home. A properly sized carrier R-454B Air Handler Unit also uses less energy than an oversized or undersized system. Use a programmable thermostat, avoid blocking vents, and schedule seasonal tune-ups. Regular airflow checks and refrigerant-system inspections help the unit run smoothly, which can lower utility bills and reduce wear over time.

How often should I maintain a carrier R-454B Air Handler Unit?

Basic maintenance should be done every one to three months, depending on usage, pets, dust, and filter type. Replace or clean the air filter regularly, inspect the condensate drain, and keep the area around the unit clear. At least once a year, have a technician clean the blower components, check electrical connections, inspect the coil, and verify airflow. Consistent care helps the carrier R-454B Air Handler Unit last longer and operate more reliably.

What are common installation mistakes with a carrier R-454B Air Handler Unit?

Common mistakes include poor unit leveling, incorrect duct sizing, loose electrical connections, improper refrigerant matching, and bad condensate drainage. These issues can cause noise, low airflow, water leaks, or reduced efficiency. Another frequent problem is pairing the air handler with incompatible equipment. To avoid these issues, always follow the manufacturer’s installation requirements and use a qualified HVAC installer. Proper setup is essential for the carrier R-454B Air Handler Unit to perform as designed.
