Carrier WPH5 Heat Pump System Manual and Buying Guide

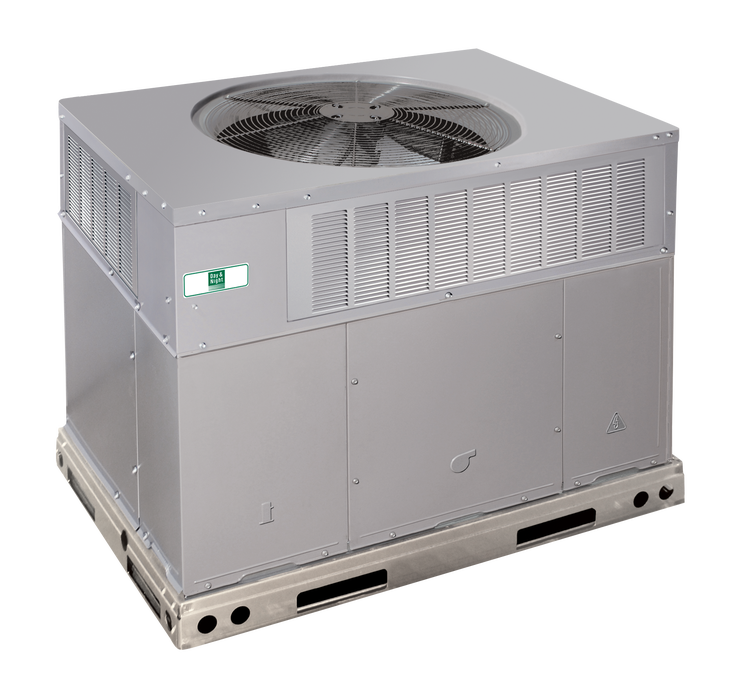

Introduction to the Carrier WPH5 Heat Pump System

The Carrier WPH5 Heat Pump System is a single-packaged heating and cooling solution designed for homeowners and light commercial users who want dependable year-round comfort in one compact cabinet. Built for rooftop or ground-level installation, this packaged heat pump combines heating and cooling components into a single unit, making it a practical choice for homes with limited indoor equipment space. The Carrier WPH5 heat pump system is designed around efficient operation, quieter performance, and simplified serviceability, which makes it attractive for new installations and system replacements alike.

This model is especially well suited for moderate climates, supplemental comfort needs, and properties that benefit from an all-in-one HVAC design. With R-454B refrigerant, a single-stage compressor, and capacity options from 2 to 5 tons, it offers a balance of performance and affordability. The system is known for its 13.4 SEER2 efficiency rating and multi-speed blower configuration, helping improve airflow control and comfort consistency. For buyers comparing packaged heat pumps, the WPH5 stands out as a solid mid-range option that emphasizes value, reliability, and straightforward operation.

Estimated pricing typically falls in the mid-range for packaged HVAC systems, with installed costs varying widely based on ductwork, labor, electrical work, and local market conditions. Availability is generally through Carrier dealers and authorized distributors. The Carrier WPH5 Heat Pump System is a strong fit for homeowners seeking a practical, efficient packaged heat pump without the complexity of separate indoor and outdoor equipment.

Technical Specifications for Carrier WPH5 Heat Pump System

System type: Single-packaged heat pump system
Efficiency: 13.4 SEER2
Refrigerant: R-454B
Capacity range: 2 to 5 nominal tons
Available sizes: 24 to 60
Electrical configuration: Single-phase and three-phase options
Compressor: Single-stage compressor
Air handling: Multi-speed blower for improved comfort control
Application: Packaged heating and cooling for residential and light commercial use

Compared with higher-end variable-speed packaged heat pumps, the Carrier WPH5 Heat Pump System is simpler and often more affordable, while still delivering dependable efficiency and comfort. It is a practical alternative to two-piece split systems for buyers who prefer a compact, all-in-one design. The use of R-454B also reflects newer refrigerant standards, making it a more current option in the packaged heat pump category.

Troubleshooting the Carrier WPH5 Heat Pump System

Common issues with the Carrier WPH5 Heat Pump System often involve airflow restrictions, thermostat communication problems, refrigerant-related performance changes, or electrical faults. If the unit is not heating or cooling properly, first check the thermostat settings, air filter condition, and disconnect or breaker status. Reduced airflow usually points to a clogged filter, dirty coils, blocked return vents, or a failing blower component. Ice on the outdoor section can indicate restricted airflow or a defrost-cycle concern.

Typical error codes on packaged HVAC systems may relate to pressure switches, flame or ignition faults, sensor failures, or blower motor problems, depending on the control board and configuration. If an error code appears, record the code exactly as displayed, shut the system down if needed, and contact a qualified HVAC technician. Preventive maintenance should include seasonal coil cleaning, filter replacement, refrigerant inspection, condensate drain checks, and electrical connection tightening.

Warranty coverage commonly includes five years on the compressor and one year on other parts, with longer coverage often available when the product is properly registered within the required period. For service, contact the installing dealer first. If additional help is needed, Carrier consumer relations can be reached at 1-800-227-7437. This support path is the best option for warranty questions, dealer lookup, and product registration guidance.

Pros and Cons of the Carrier WPH5 Heat Pump System

Pros

Compact all-in-one design: Ideal for homes that need heating and cooling in a single cabinet.
Good value for the class: Offers a competitive balance of efficiency, features, and price.
Modern refrigerant: Uses R-454B, which aligns with newer HVAC refrigerant trends.
Comfort-friendly airflow: Multi-speed blower helps improve temperature consistency.
Flexible sizing: 2 to 5 ton options make it suitable for a wide range of applications.

Cons

Single-stage operation: Less refined than variable-speed alternatives in premium systems.
Moderate efficiency: 13.4 SEER2 is solid, but not class-leading for buyers focused on maximum savings.
Installation sensitivity: Performance depends heavily on correct ductwork and rooftop setup.
Less advanced than premium models: Some competing packaged heat pumps offer quieter operation and tighter humidity control.

Overall, the Carrier WPH5 Heat Pump System is a smart choice for buyers who want dependable comfort and strong value without paying for premium variable-speed features. It is especially appealing when comparing packaged heat pumps against higher-cost alternatives from other major brands.

Customer Reviews and Ownership Feedback

Typical owner feedback for packaged Carrier heat pumps highlights reliable heating and cooling, practical space savings, and manageable operating costs. Many users rate the system around 4 out of 5 stars for everyday comfort and ease of maintenance. Positive comments often mention consistent airflow, straightforward controls, and the convenience of having everything in one cabinet.

Common complaints usually involve installation quality, noise variation depending on site conditions, and occasional service calls tied to filters, sensors, or thermostat settings. Buyers who choose professional installation and schedule regular maintenance report the best results. A frequent recommendation is to verify sizing carefully before purchase, since correct tonnage has a major effect on comfort and efficiency. For homeowners looking for a dependable packaged HVAC solution, the Carrier WPH5 Heat Pump System is often viewed as a sensible, budget-conscious upgrade.

PDF

Faqs

How do I set up the carrier WPH5 Heat Pump System for the first time after installation?

Start by confirming that the indoor and outdoor units are properly mounted, wired, and connected to the correct thermostat and power supply. After that, check the refrigerant lines, drainage, and air filters before turning the system on. Set the thermostat to heat or cool mode, then run a short test cycle to verify airflow, temperature response, and error-free operation. If the carrier WPH5 Heat Pump System does not start normally, review the breaker, thermostat settings, and wiring connections first.

Why is my carrier WPH5 Heat Pump System not heating or cooling properly?

If the carrier WPH5 Heat Pump System is running but not heating or cooling well, the most common causes are dirty filters, blocked vents, low refrigerant, or incorrect thermostat settings. Check whether the thermostat is in the right mode and whether airflow is restricted by furniture or dust buildup. Outdoor unit issues such as ice, debris, or fan problems can also reduce performance. If the system still struggles after basic checks, a technician should inspect refrigerant levels and electrical components.

What thermostat settings work best with the carrier WPH5 Heat Pump System for efficient operation?

For efficient use of the carrier WPH5 Heat Pump System, keep the thermostat on a steady temperature instead of making large manual changes. Frequent adjustments can force the heat pump to work harder and use more energy. Use the heat pump mode instead of emergency heat unless the outdoor unit has failed or temperatures are extremely low. A programmable or smart thermostat can improve comfort and efficiency by reducing runtime when the home is empty.

Which home setups and electrical requirements are compatible with the carrier WPH5 Heat Pump System?

The carrier WPH5 Heat Pump System works best in homes with the correct electrical capacity, proper ductwork, and enough space for both indoor and outdoor units. Before installation, confirm that the panel can handle the required circuit and that the thermostat wiring matches the system configuration. Homes with poorly sealed ducts or undersized returns may not get full performance. A licensed HVAC installer should verify compatibility, especially if the system is replacing older equipment.

Why does the carrier WPH5 Heat Pump System switch to auxiliary or emergency heat too often?

If the carrier WPH5 Heat Pump System uses auxiliary or emergency heat too often, the thermostat may be misconfigured, the outdoor sensor may be inaccurate, or the heat pump may be struggling in cold weather. Dirty filters, low airflow, and refrigerant issues can also make backup heat turn on sooner than expected. Check the thermostat balance settings and temperature thresholds first. If backup heat keeps running, have an HVAC professional inspect the system for mechanical or sensor problems.

How can I reduce noise from the carrier WPH5 Heat Pump System during startup and operation?

To reduce noise from the carrier WPH5 Heat Pump System, make sure the outdoor unit is level and installed on a stable base. Loose panels, debris near the fan, or vibration against a wall can create extra sound. Inside the home, loud airflow may point to dirty filters, closed registers, or oversized fan speed settings. Regular cleaning and a professional inspection can help identify whether the noise is normal startup sound or a sign of worn parts.

How often should I maintain the carrier WPH5 Heat Pump System to keep it efficient?

Basic maintenance for the carrier WPH5 Heat Pump System should be done every month, while a full professional service is usually recommended once or twice a year. Replace or clean air filters regularly, keep vents open, and clear leaves or dirt from the outdoor unit. Before peak heating or cooling seasons, check thermostat operation and inspect visible wiring, drainage, and airflow. Routine care helps prevent breakdowns, improves efficiency, and extends the system’s lifespan.

What should I check if the carrier WPH5 Heat Pump System keeps short cycling?

Short cycling on the carrier WPH5 Heat Pump System usually means the unit turns on and off too frequently. Common causes include a dirty air filter, incorrect thermostat placement, oversized system capacity, refrigerant problems, or restricted airflow. Start by checking the filter and thermostat settings, then make sure supply and return vents are not blocked. If the system still short cycles after basic troubleshooting, a technician should evaluate the refrigerant charge, controls, and compressor performance.
