Dyson CSYS Desk Lamp

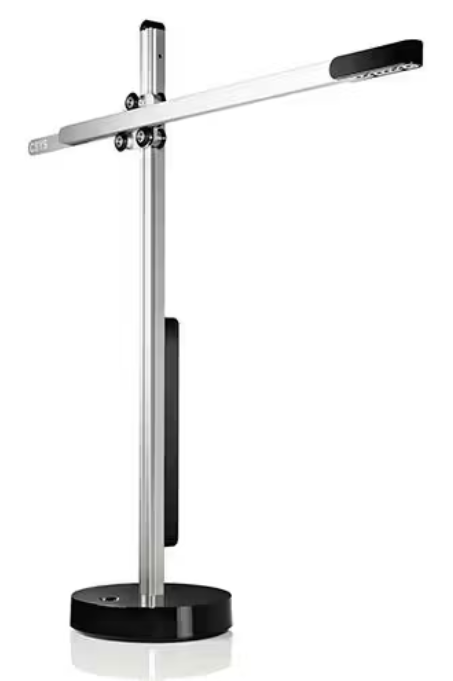

Introduction

The Dyson CSYS Desk Lamp redefines task lighting with its blend of innovative technology and sleek design, crafted for professionals, creatives, and home office users seeking precision illumination. Engineered by Dyson, this desk lamp integrates advanced Heat Pipe cooling technology that prevents LED overheating, ensuring consistent brightness and color quality for up to 60 years. Its unique 3 Axis Glide™ motion allows effortless vertical, horizontal, and 360° rotational adjustment, delivering powerful, targeted light exactly where you need it.

Ideal for workplaces, studios, or study environments, the Dyson CSYS provides a glare-controlled, warm white light (2700K) with a high color rendering index (CRI) of 80+, which enhances visibility and reduces eye strain during prolonged tasks. Touch-sensitive continuous dimming with memory recall lets users customize brightness levels from relaxing ambient light to intense task illumination.

Available in sophisticated silver and black finishes, the Dyson CSYS Desk Lamp typically retails between $800 and $850, positioning it as a premium lighting solution. It is widely available through Dyson’s official website and authorized retailers. Its combination of durability, energy efficiency, and ergonomic features makes it a smart investment for those prioritizing high-quality workspace lighting.

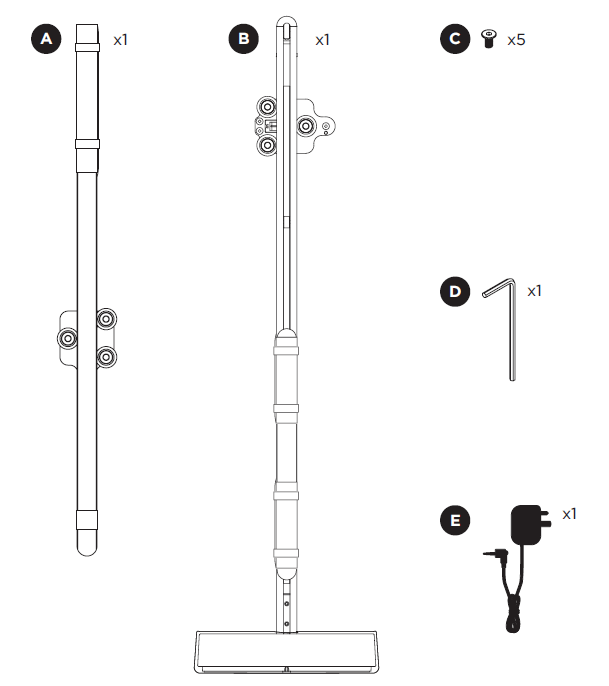

IN BOX

Specifications of the Dyson CSYS Desk Lamp

• Weight: 6.2 kg
• Dimensions: Height 650 mm, Length 177 mm, Width 527 mm
• Light Source: 8 high-power LEDs with Heat Pipe cooling technology
• Color Temperature: 2700K (warm white)
• Color Rendering Index (CRI): 80 (typical)
• Luminous Flux: 650 lumens
• Luminous Efficacy: 54 lumens per watt
• Light Output: 648 lux at task surface
• Beam Angle: 60 degrees
• Standby Power Consumption: 0.3 watts
• Key Features: 3 Axis Glide™ motion, touch-sensitive continuous dimming, built-in memory recall, conical reflectors for glare control
• LED Lifetime: Up to 144,000 hours without brightness loss

Compared to traditional halogen desk lamps, the Dyson CSYS offers superior energy efficiency, longer lifespan, and better glare control. Its 3 Axis Glide motion provides unmatched flexibility in positioning, outperforming many fixed-arm or less adjustable LED desk lights on the market.

IMPORTANT SAFETY INSTRUCTIONS

Read the CSYS TASK instruction manual before product assembly. General safety precautions must always be followed.

• Do not install the light in a damp, wet,, or outdoor location.
• Do not pick up the light using the horizontal arm. Always use the vertical arm to carry the light.
• Never position the light by moving the weight. Always use the horizontal arm holding the LEDs.
• Do not look directly into the light source.
• Do not interfere with the flat power cable visible in the vertical and horizontal arms of the light. This is an electrical conductor and a key component of the product.
• Always use the power supply provided. Do not re-wire.
• The product is not compatible with dimmer circuits.
• The LEDs are non - non-replaceable – if damaged or faulty, please contact JDP or your nearest retailer.
• Only clean with a microfibre cloth.

Setup Guide for Dyson CSYS Desk Lamp

1. Unbox your Dyson CSYS Desk Lamp and place it on a stable desk surface.

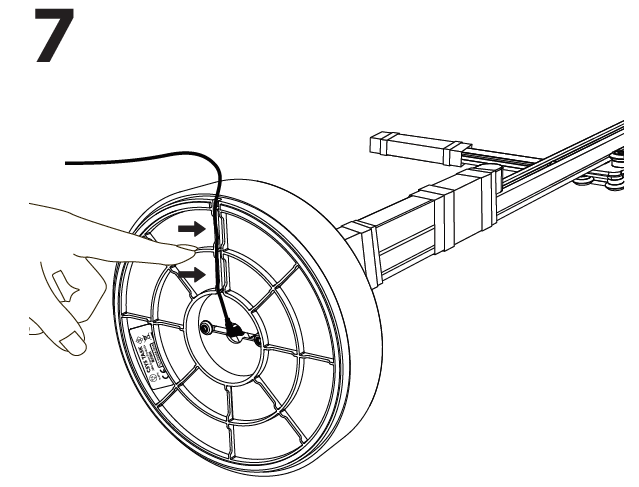

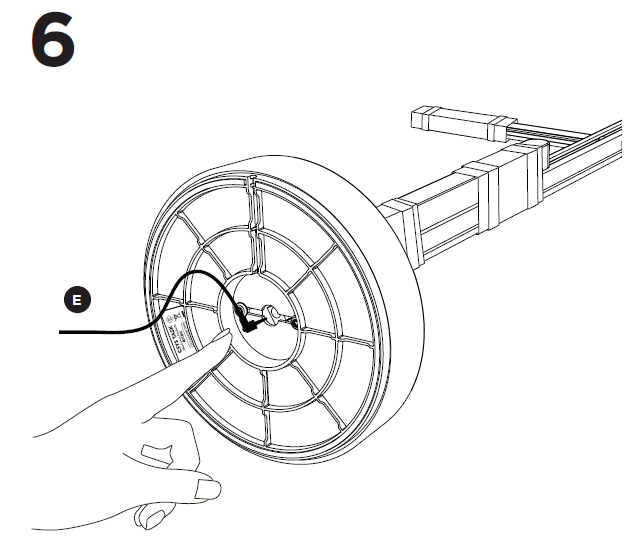

2. Attach the power cable by guiding it through the cable channel on the lamp base without twisting. Ensure the lamp is upright with the cable secured.
3. Plug the power adapter into a compatible electrical outlet (100-240V, 50/60Hz).

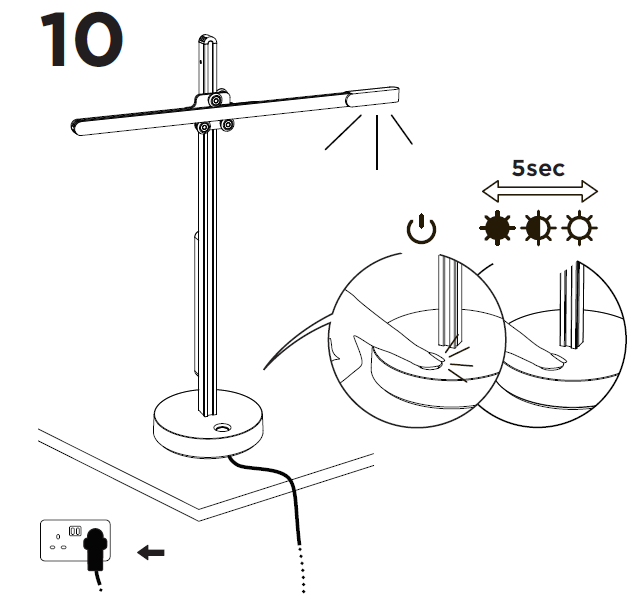

4. Press and hold the power button for 5 seconds to activate the lamp and cycle through dimming settings.

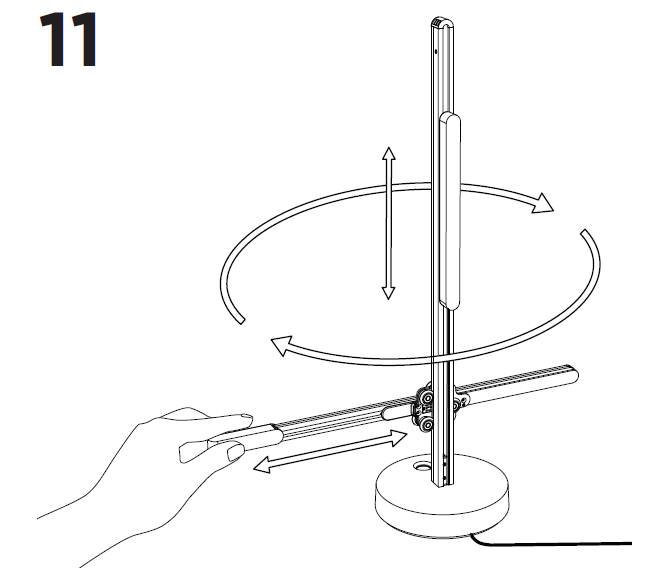

5. Adjust the lamp head using the 3 Axis Glide™ motion to position the light vertically, horizontally, or rotate 360° as needed.
6. Use the touch-sensitive slider on the lamp base to customize brightness continuously. The lamp remembers your last setting when powered off.

Configuration options: The lamp offers a continuous dimming range from approximately 100 lux (ambient light) to over 1000 lux (high-intensity task light).

Troubleshooting tips: If the lamp does not power on, check the power connection and ensure the outlet is functional. Avoid using the lamp with dimmer circuits as it is incompatible.

Safety warnings: Do not disassemble the lamp. Keep the lamp away from water or excessive moisture. Allow for proper ventilation around the Heat Pipe to prevent overheating.

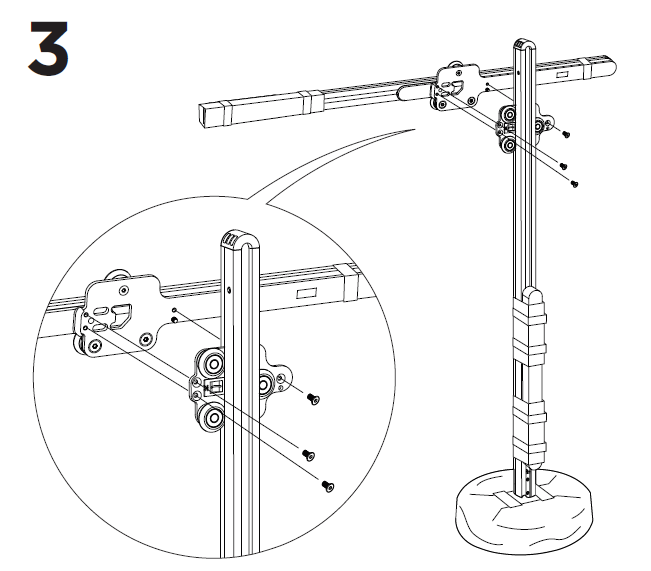

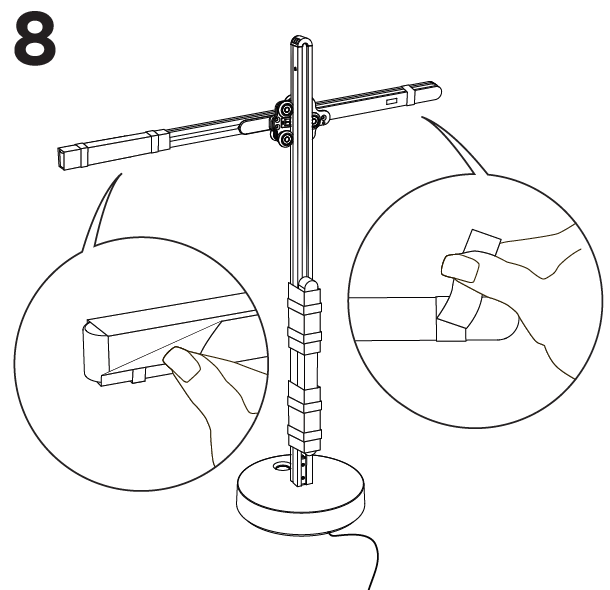

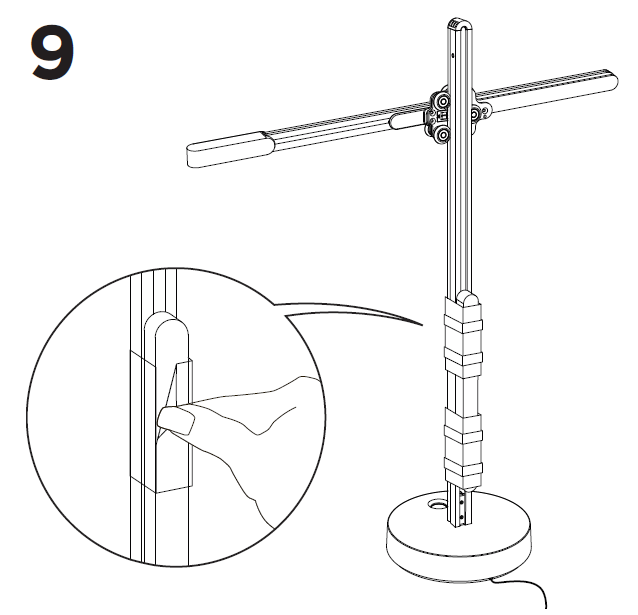

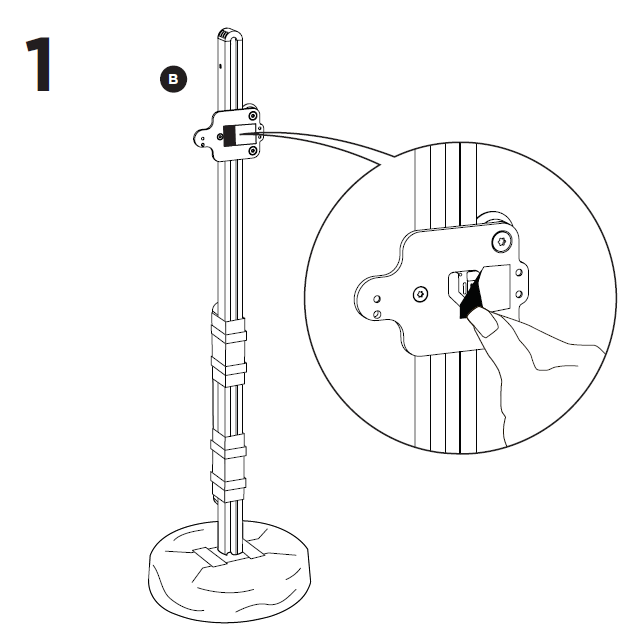

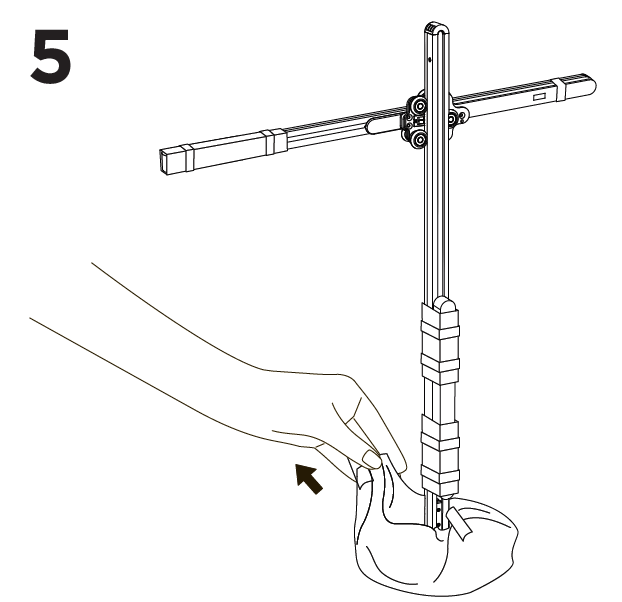

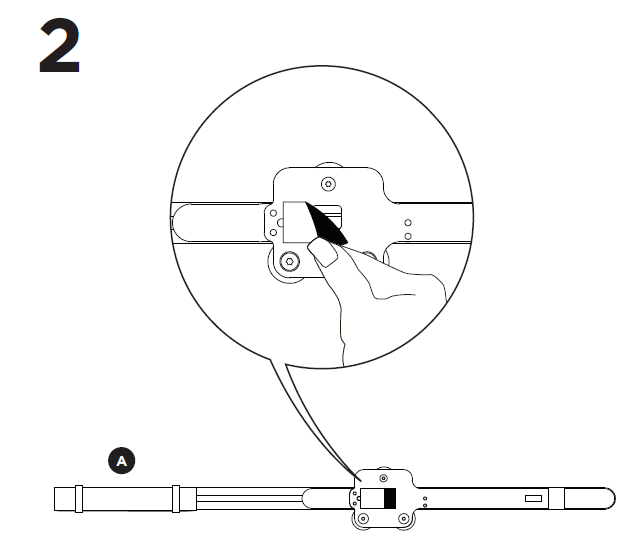

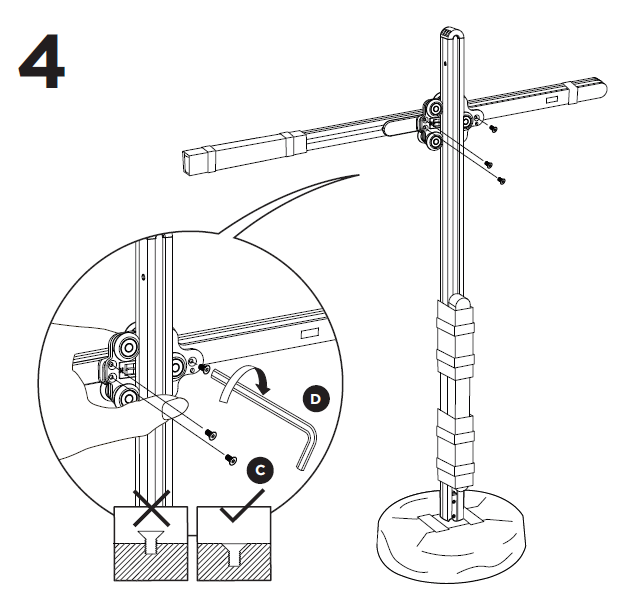

Installation

Troubleshooting Common Issues with Dyson CSYS Desk Lamp

• Lamp won’t turn on: Verify the power cable is securely connected and the outlet is active. Avoid dimmer switch outlets.
• Touch dimmer not responding: Clean the touch-sensitive slider gently to remove dust. Restart the lamp by disconnecting and reconnecting power.
• Light flickering: Ensure a stable power supply; flicker may indicate voltage fluctuations. The lamp is designed with low optical flicker,, but external factors can affect performance.
• Memory setting lost: This may indicate a power interruption. The lamp stores settings internally; if the issue persists, contact Dyson support.

Preventive measures include regular cleaning, avoiding use with incompatible circuits, and ensuring the lamp is positioned to allow airflow around the Heat Pipe cooling system.

The Dyson CSYS Desk Lamp comes with a 2-year warranty covering parts. For support, contact Dyson customer service via their official website or phone.

Warranty

This product has a limited 2-year warranty covering reasonable use of the product. If a component fails within the 2 2-yeararranty period, it will be replaced, subject to inspection.

Pros & Cons of the Dyson CSYS Desk Lamp

• Pros:
  • Exceptional longevity with h LED lifespan of up to 144,000 hours
  • Highly adjustable 3 Axis Glide™ motion for precise positioning
  • Touch-sensitive continuous dimming with memory recall enhances usability
  • Heat Pipe cooling technology preserves light quality, reducing eye strain
  • Energy-efficient with low standby power consumption (0.3W)
• Cons:
  • Premium price ($800–$850) may be prohibitive for some users
  • Color temperature fixed at warm white (2700K), limiting customization
  • Not compatible with dimmer circuits, restricting some installation options
  • Relatively heavy at 6.2 kg, making portability limited

Compared to alternatives like the BenQ e-Reading LED or Philips Hue Beyond, the Dyson CSYS excels in precision and longevity but at a higher cost and with fewer color temperature options.

Customer Reviews of Dyson CSYS Desk Lamp

Users consistently praise the Dyson CSYS Desk Lamp for its brilliant, stable illumination and superb adjustability. Many highlight reduced eye strain and high build quality as major positives. The touch dimming and memory feature receive frequent commendation for convenience.

Common complaints involve the steep price and the lamp’s weight, which some find less portable compared to lighter LED desk lamps. A few users note that the fixed warm white color temperature may not suit all preferences.

Overall ratings average 4.5 out of 5 stars, with recommendations focusing on professionals and enthusiasts who prioritize eye comfort and precise lighting in work or creative spaces.
