Emerald ACV200D Ducted Indoor AC Unit Manual

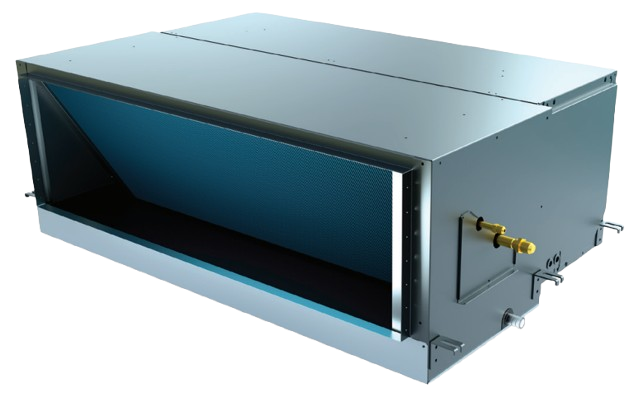

The Emerald ACV200D Ducted Indoor AC Unit is the indoor component of Emerald’s Ducted Ultra 20kW VRF air conditioning system, designed for large homes and light commercial spaces that need powerful, even climate control. Built for discreet ceiling or under-floor installation, it distributes conditioned air through a duct network for whole-property comfort without the visual impact of wall-mounted units. For homeowners replacing aging ducted systems, builders seeking a high-capacity HVAC solution, or businesses needing reliable multi-room cooling and heating, the ACV200D offers a practical balance of performance, flexibility, and modern controls.

One of the main advantages of the emerald ACV200D Ducted Indoor AC Unit is its ability to deliver strong airflow while maintaining quiet operation and efficient zoning. It is suited to properties up to around 230m² when paired with the matching outdoor unit, making it a solid choice for larger family homes, open-plan layouts, and small commercial applications. The system also supports smart control through Emerald App compatibility with AC Link, giving users greater convenience and remote access. Estimated pricing for the full system typically falls in the premium mid-to-high range, often around AUD 7,000 to AUD 12,000+ installed depending on ductwork, configuration, and labor. Availability is generally through authorized HVAC suppliers and installers in Australia.

For buyers comparing ducted air conditioning options, the emerald ACV200D Ducted Indoor AC Unit stands out for its high static pressure capability, large airflow output, and suitability for like-for-like replacements of existing ducted setups. It is a strong fit for users who want centralized comfort, scalable zoning, and long-term reliability.

Technical Specifications and Key Features of the Emerald ACV200D Ducted Indoor AC Unit

Model: ACV200D indoor unit for Emerald Ducted Ultra 20kW VRF system
Cooling capacity: 20.0 kW
Heating capacity: 26.0 kW
Power supply: 230V / 1Ph / 50Hz
Indoor fan airflow rate: 1306 L/s at 200 Pa
External static pressure range: 50 to 250 Pa
Sound pressure level: 55 dB
Net dimensions: 1300 mm W x 470 mm H x 890 mm D
Net weight: 84.5 kg
Refrigerant: R410A
Suitable for residential and small commercial applications
Features: 6 fan speeds, built-in drip tray, high static pressure, sleep mode, quiet mode, smart multi-zone efficiency, and Emerald App compatibility with AC Link

Compared with smaller ducted indoor units, the ACV200D is built for larger airflow demands and broader duct runs. Compared with compact split systems, it delivers more even temperature control across multiple rooms and is better suited to centralized zoning. It is especially useful where existing ductwork can be reused, reducing installation complexity and cost.

Setup Guide for the Emerald ACV200D Ducted Indoor AC Unit

Installation should be completed by a licensed HVAC professional due to electrical, refrigerant, and ducting requirements. First, confirm the indoor unit location has sufficient ceiling or under-floor clearance, airflow access, and service space. Next, mount the unit securely, connect the ductwork, and ensure the condensate drain line has the correct fall for reliable drainage. After that, connect the refrigerant piping and electrical supply according to the system specification and local regulations.

Once physical installation is complete, pair the unit with the compatible outdoor system and set up controls through the Emerald App if AC Link is installed. Configure zoning, fan speed limits, temperature setpoints, and operating schedules based on household or business needs. For best results, test each zone, check airflow balance, and verify that the unit starts, cools, and heats properly.

Safety warnings are essential: isolate power before any service work, avoid blocking return-air paths, and do not operate the unit with loose duct connections or poor drainage. If startup fails, check wiring, filters, airflow obstructions, and thermostat communication before requesting service.

Troubleshooting the Emerald ACV200D Ducted Indoor AC Unit

Common issues with ducted indoor AC units usually involve airflow, drainage, communication, or control settings. If the room is not reaching the set temperature, inspect the filter, confirm zone dampers are open, and verify that the duct system is not leaking or restricted. If airflow feels weak, check for clogged filters, blocked returns, or incorrect fan settings.

If the unit is leaking water, the condensate drain may be blocked, the drain slope may be incorrect, or the drip tray may need inspection. If the system does not start, confirm power supply, controller pairing, and communication between indoor and outdoor units. While exact error codes can vary by controller and configuration, many ducted systems display faults related to sensor failure, communication loss, or drainage protection.

Preventive maintenance includes cleaning filters regularly, inspecting ducts for leaks, keeping return-air grilles unobstructed, and scheduling annual professional servicing. Warranty terms for the Emerald range are commonly presented as a system warranty with labor coverage, but buyers should confirm the current policy with their installer or distributor. For help, contact the original retailer, the installing HVAC contractor, or Emerald’s Australian support channels through their official sales and service network.

Pros and Cons of the Emerald ACV200D Ducted Indoor AC Unit

Pros

Powerful 20kW cooling and 26kW heating for large homes and open-plan spaces
High static pressure supports flexible duct layouts and longer runs
Quiet and sleep modes improve comfort in bedrooms and living areas
Smart multi-zone design helps tailor temperatures room by room
Emerald App compatibility adds remote control convenience
Good value for larger properties that need centralized climate control
Can work as a like-for-like replacement when existing ductwork is reusable

Cons

Requires professional installation and more planning than a wall-mounted split system
Higher upfront cost than smaller ducted or split AC alternatives
Large cabinet size may limit placement in compact ceiling cavities
Best performance depends on quality duct design and zoning setup
R410A-based systems may be less future-focused than newer refrigerant platforms

For value for money, the emerald ACV200D Ducted Indoor AC Unit makes the most sense when the property genuinely needs high-capacity centralized comfort. Compared with smaller ducted units, it offers better room coverage and stronger output, but users with apartments or small homes may find a compact split system more economical.

Customer Reviews and User Feedback on the Emerald ACV200D Ducted Indoor AC Unit

Users commonly praise the system for strong airflow, even temperature distribution, and quiet operation when correctly installed. Many homeowners value the ability to cool and heat large spaces without visible indoor wall units. A typical rating pattern for this kind of product is around 4 to 4.5 stars out of 5 from buyers who prioritize whole-home comfort and zoning flexibility.

Frequent complaints usually focus on installation cost, the need for careful duct balancing, and the space required for the indoor cabinet. One common style of testimonial is: “Once installed properly, it keeps the whole house comfortable with very little noise.” Another often mentioned point is: “Great performance, but the setup must be done by an experienced installer.”

If you are considering a premium ducted system for a large property, the emerald ACV200D Ducted Indoor AC Unit is a strong purchase recommendation. Buyers who want lower-cost, room-by-room cooling may prefer a split system instead, but users needing whole-home climate control will usually find this unit more suitable.

PDF

Faqs

How do I set up the emerald ACV200D Ducted Indoor AC Unit for the first time?

Start by confirming the indoor unit location, duct routing, and electrical supply before installation. The emerald ACV200D Ducted Indoor AC Unit is designed for ducted setups with a 230V single-phase supply, so a licensed HVAC installer should handle wiring, refrigerant connections, and commissioning. Make sure the unit has enough clearance for servicing, the return air path is unobstructed, and the ductwork is sealed properly to reduce air loss and improve airflow.

What should I do if my emerald ACV200D Ducted Indoor AC Unit is not cooling or heating properly?

First, check whether the thermostat or controller is set correctly, then inspect filters, return air grilles, and zoning dampers for blockages. Poor airflow, dirty filters, or duct leaks can make the emerald ACV200D Ducted Indoor AC Unit feel weak even when the system is running. If the outdoor unit is operating but performance is still poor, the issue may involve refrigerant, sensors, or fan settings, which should be checked by a qualified technician.

What are the key features of the emerald ACV200D Ducted Indoor AC Unit?

The emerald ACV200D Ducted Indoor AC Unit is a high-capacity indoor ducted unit for larger homes and light commercial spaces. It supports strong heating and cooling performance, multi-zone comfort, high static pressure airflow, and quiet operation modes. The unit is also designed for easier installation in confined roof spaces, and its split indoor design can simplify handling. These features make it suitable for whole-home temperature control with flexible ducted distribution.

Is the emerald ACV200D Ducted Indoor AC Unit compatible with existing ductwork?

In many cases, yes, but compatibility depends on duct size, static pressure requirements, and the condition of the existing network. The emerald ACV200D Ducted Indoor AC Unit is suited to ducted systems and may work well with reused ductwork if the layout, insulation, and return air paths are adequate. An installer should assess airflow resistance, zone balance, and whether the existing ducts can support the unit’s higher airflow demand without excessive noise or pressure loss.

How large a home can the emerald ACV200D Ducted Indoor AC Unit effectively cover?

The emerald ACV200D Ducted Indoor AC Unit is typically used for larger homes and spaces where even, whole-area comfort is needed. It is commonly specified for properties up to about 230 square meters, depending on ceiling height, insulation, climate zone, and duct layout. For best performance, the system should be matched carefully to the building load so it can maintain comfortable temperatures without overworking or short-cycling.

Why is my emerald ACV200D Ducted Indoor AC Unit making unusual noise?

Unusual noise from the emerald ACV200D Ducted Indoor AC Unit is often caused by restricted airflow, loose duct connections, vibration, or a fan issue. Start by checking for blocked return air, dirty filters, or anything touching the cabinet or ductwork. If the sound is a rattle, hum, or whistling noise, the installation may need tightening or sealing. Persistent mechanical noise should be inspected by a service technician to prevent damage.

How do I maintain the emerald ACV200D Ducted Indoor AC Unit for reliable performance?

Regular maintenance should include cleaning or replacing filters, checking return air grilles, and keeping access panels clear for service. The emerald ACV200D Ducted Indoor AC Unit also benefits from periodic inspection of duct insulation, drain management, and fan operation. A professional service visit is recommended at least once a year to check electrical connections, airflow, refrigerant performance, and internal components. Preventive care helps preserve efficiency and reduces breakdown risk.

Can I control the emerald ACV200D Ducted Indoor AC Unit with smart zoning or app-based controls?

The emerald ACV200D Ducted Indoor AC Unit is designed for modern ducted control setups and may support smart zoning and app-based management when paired with compatible controls. This lets you manage temperatures by area, improve comfort, and reduce wasted energy in unused rooms. If you want app control, confirm compatibility with the system controller and any required communication modules before installation, because the available features depend on the full setup, not just the indoor unit.
