Introduction of Emerson SmartSet Clock Radio CKS1507

The Emerson SmartSet Clock Radio CKS1507 is a versatile and feature-rich clock radio that combines style, functionality, and convenience in one sleek package. With its SmartSet technology, you can easily set the time and radio presets without any hassle. This clock radio is perfect for busy individuals who want a reliable and easy-to-use alarm clock that can also provide them with their favorite radio stations. The Emerson SmartSet Clock Radio CKS1507 is available for an estimated price of $30 to $40 and was launched in 2021.

Package Contents

1. CKS1507 Clock Radio x 1



2. Owner’s Manual



Detailed Specifications

The Emerson SmartSet Clock Radio CKS1507 comes with the following key features:

• SmartSet technology for easy time and radio preset setup
• Dual alarm settings with weekday and weekend options
• AM/FM radio with 20 preset stations
• Gradual wake alarm with radio or buzzer
• Snooze and sleep functions
• High-contrast LCD display with dimmer
• AC power with battery backup compact design that fits easily on any nightstand

Location of Controls and Indicators

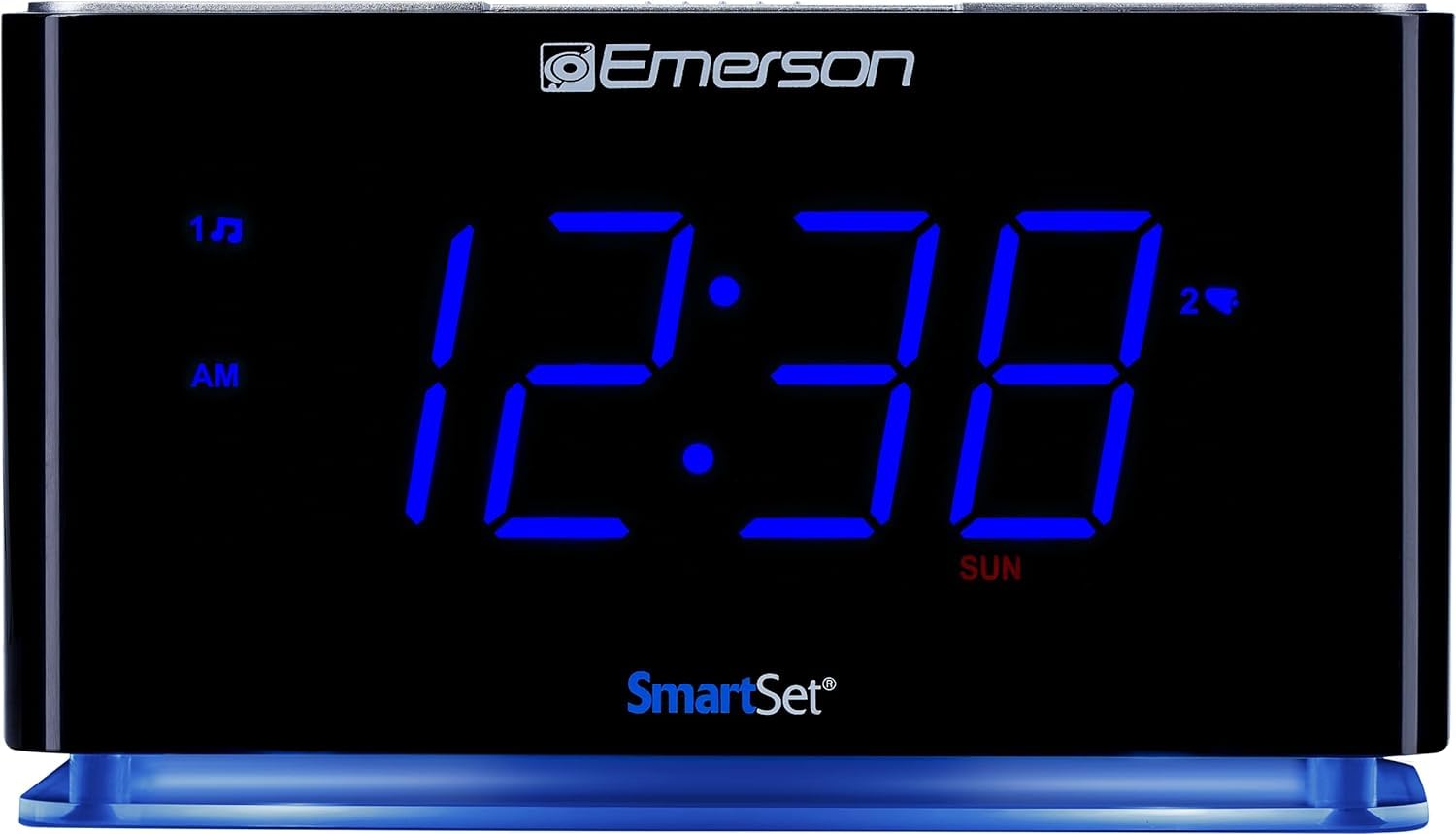

Emerson SmartSet Clock Radio CKS1507 FRONT PANEL

Emerson SmartSet Clock Radio CKS1507 TOP PANEL

1. ALARM 1 Radio/Buzzer Indicators
2. AM Indicator ( ‘On’=AM, ‘Off=PM)
3. AUX Indicator
4. DAY of WEEK Indicators
5. LOW BATTERY Indicator
6. MHZ (FM Radio ) Indicator
7. BT (Bluetooth) Indicator
8. ALARM 2 Radio/Buzzer Indicators
9. POWER ( ‘On’/Standby) Button
10. ALARM 1/STORE(FM station ) Button
11.  SLEEP/TIME ZONE Button
12. PAUSE/SNOOZE/DIMMER Button 13. SET/TUNE DOWN Buttons
13. VOLUME-DOWN Button
14. SET/TUNE UP Button
15. SOURCE (FM, Bluetooth, AUX) Button
16. VOLUME+ UP Button
17. AC Adapter
18. FM Antenna(cable)
19. BACKUP BATTERY Compartment (located at the back of unit)
20. Night Light On/Off Button
21. USB Charge Out
22. AUX IN Jack
23. ALARM 2/MEMORY(FM station)
24. TIME SET/FM Frequency Display

Description of Emerson SmartSet Clock Radio CKS1507

The Emerson SmartSet Clock Radio CKS1507 is a highly functional and easy-to-use clock radio that boasts a variety of features to make your mornings easier and more enjoyable. With its SmartSet technology, you can set the time and radio presets with just a few simple steps, eliminating the need for confusing buttons and settings. The clock radio also features dual alarm settings with weekday and weekend options, allowing you to set different wake-up times for different days of the week. The AM/FM radio offers 20 preset stations, so you can easily access your favorite radio stations with just a touch of a button. The gradual wake alarm feature allows you to wake up gently to the sound of your favorite radio station or a buzzer, while the snooze and sleep functions give you added flexibility and convenience. The high-contrast LCD display shows the time and radio information clearly, and the dimmer allows you to adjust the brightness to your liking. The clock radio is powered by AC power with battery backup, ensuring that it stays on and keeps accurate time even during power outages. With its compact design, the Emerson SmartSet Clock Radio CKS1507 fits easily on any nightstand or table, making it a great addition to any bedroom or office.

Preparation For Use

Unpacking And Set Up

• Remove the radio from the carton and remove all packing material from the radio. Save the packing material, if possible, in case the radio ever needs to be serviced or transported. The original carton and packing material is the only safe way to pack your radio to protect it from damage in transit.

• Remove any descriptive labels or stickers on the front or top of the cabinet. Do not remove any labels or stickers from the back or bottom of the cabinet.

• Note the serial number on the bottom of your radio and write this number in the space provided on the Warranty page of this manual.

• Place your radio on a level surface such as a table, desk or shelf, convenient to an AC outlet, out of direct sunlight, and away from sources of excess heat, dirt, dust, moisture, humidity, or vibration.

• Unwind the Line cord connecting the AC adapter and extend it to its full length. The FM antenna is built into this cord.lt must be fully extended to provide the best FM reception.

Protect Your Furniture
This model is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate the controls. These feet are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil-based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber feet before you place the product on fine wooden furniture.
Power Source
This radio is designed to operate on normal 120V 60Hz AC power only. Do not attempt to operate the radio on any other power source. You could cause damage to the radio that is not covered by your warranty. This radio should be connected to an AC outlet that is always live. Do not connect it to an outlet that is controlled by a wall switch. When the power to the radio is interrupted, the built-in lithium battery takes over to maintain the time and alarm settings. To maximize the life of the lithium battery keeps the radio connected to a ‘live’ AC outlet at all times.

Important Notes

• Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates heat, places lacking ventilation, dusty areas, places subject to constant vibration, and/or humid or moist areas.

• Operate controls and switches as described in the manual.

• Before turning on the power, make certain that the AC adapter is properly installed.

• When moving the set, be sure to first disconnect the AC adapter.

Setting the Time Zone

Initial Default Setting at Clock Mode
The first time you connect your new SmartSetR clock radio to the AC outlet the internal computer will automatically set the time correctly for the Eastern Time Zone, which is the initial default setting. The display will scan for a few seconds and then show the correct Day and Time in the Eastern zone. If you live in the Eastern Time zone, there’s nothing else to do. Your clock is set correctly and running. If you do not live in the Eastern Time zone you must change the default zone display to your own zone. You only do this one time and the SmartSetKwill remember the new default zone setting and will always return to that setting after power interruption. There are 7 time zones programmed into your SmartSete clock radio as follows:

1. ZONE 1 -Atlantic Time

2. ZONE 2 -Eastern Time (Default Setting)

3. ZONE 3 -Central Time

4. ZONE 4 -Mountain Time

5. ZONE 5 -Pacific Time

6. ZONE 6 -Yukon Time

7. ZONE 7 -Hawaiian Time



Note: Time Zone and Time Setting can only be adjusted in standby mode, where the function of Radio, Bluetooth, and AUX are disabled(Indicators of “MH “, “81-and “AUX”are OFF).

Setting the Time

Year, Date, and Time Display
To display Year, Date, and Time sequentially, short press TIME SET once for each.

Manual Time Adjustments

Year Date Time

1. Press and Hold “TIME SET” until the Year Display blinks. Then release the button.

2. Press to adjust Year

3. Press “TIME SET” and the Month Display will blink

4. Press to adjust the Month

5. Press “TIME SET” and the Date Display will blink

6. Press “14 ” or “H ” to adjust the Date

7. Pressand the Hour Display will blink

8. Press to adjust the Hour

9. Press and the Minutes Display will blink

10. Press to adjust Minutes

11. Press to finish time adjustments session

Note: To skip manual adjustments, keep it idle for 5 seconds to resume clock display mode.

• Daylight Saving and Leap Year Adjustments

  • All Daylight Saving and Leap Year adjustment is made automatically by the SmartSetR internal computer as following:

• Start of Daylight Saving time

  • At 2:00 AM on the 2nd Sunday in March, the clock will automatically advance to 3:00 AM

• End of Daylight Saving time

  • At 3:00 AM on the 1st Sunday in November, the clock will automatically reset to 2:00 AM

• Leap Year

  • At 12:00 Midnight on February 28th, the calendar display will change to”2 29″.

Setting the Alarm

The alarm can only be set in standby mode where the function of Radio. Bluetooth and AUX are disabled (i.e.indicators of “MHz “, BT, and “AUX” are OFF)

Adjusting the Wake-up times

Adjusting Alarm Week Mode

Press and Hold “AU” or”AL2″, then press or “to adjust: Weekdays (Monday to Friday), Weekends (Saturday and Sunday) or every day (Monday to Sunday)

• Short press AL1 or AL2 to turn ON the Alarm Mode:

• When Buzzerlights are on, the wake-up Buzzer alarm will be ON.

• When the Music lights on, the wake-up Radio alarm will be ON.

• To completely turn off the alarm, short press AL1 or AL2 until the Buzzeror Radio /7 light is OFF.

Wake To Radio and Alarm Volume Setting

• Press the POWER button to turn the unit ON.

• Press the SOURCE button to select FM Radio mode.

• Tune to or recall from Memory the station that you wish to hear when the alarm comes ON.

• Press Vol+ or Vol- to set the maximum radio volume at which the alarm will reach gradually at wake-up time.

• The default alarm volume is U08 for radio volume set up between U00-U08(before the unit turned OFF to standby mode). For a louder alarm, set up radio volume above U08 before the unit is turned OFF.

Emerson SmartSet Clock Radio CKS1507 Snooze Alarm

When the Alarm comes ON, press the SNOOZE button z=’* to pause it for 9 minutes. The snooze Alarm \ will not repeat after one hour. To turn off Snooze Alarm mode, press the POWER button once.

Listening to FM Radio

Press the Power button to turn ON the unit and press the SOURCE button to change to Radio Mode (“MHz” On) Power on

• Switch to Radio Mode (Press the SOURCE button)

• Tuning to FM Station (Either press Tune Up or Tune Down to your desired station)



• Auto Searching/Scanning FM Stations (Press the Tune-Up or Turn Down button for 2 seconds and release)



  Searching will stop at a station with an acceptable reception

• Storing Favorable Station to Memory (20 stations can be stored) At Radio Mode, Press Tune Downor Tune Up button to search your desired station. Press the AL1/STO. button, Program Number “P01” will be blinking on the display, press Tune Down or Tune Upito change the program number from “P01” to “P20”, once you selected the desired program number, press the AL 1/STO. again and the favorable station will be stored to the selected program number.



• Recall Favorable Station to Memory
  Press theAL2/MEM button, Program number will be shown on the display, pressure Down or Tune Up to select your stored program number and listen to your favorable station. Note:Keep the clock radio away from other electronic devices to avoid radio interference. For better reception, fully extend and adjust the position of the FM antenna (cable)



Pairing Bluetooth Speaker

• Press the POWER button to turn the unit ON

• Press the SOURCE button to select Bluetooth (bt) mode ( “BT” flashes for pairing)

• Enable your Bluetooth device and select CKS1507 from its Available/Paired device list. After pairing successfully, the unit will prompt and “BT” will become solid

• Automatic connection with your Bluetooth devices is possible if they have been paired successfully with this unit before.

• After paired, you can play your music through this Bass Boosted Bluetooth Speaker.



Sleeping to Music Timer

Press the Power button C) to turn ON the unit ,and press SOURCE button to select either FM Radio, Bluetooth or AUX mode to play radio or music Sleep mode setting

• Press and hold the SLEEP button. The display will show the sleep timer.

• Press Up or Down button to choose your desired sleep timer (02-90 minutes).

• Release all buttons, the sleep timer will start counting down and turn off the unit when the desired sleep timer elapsed.

• To display the sleep timer during count down process, press the SLEEP button.

• To cancel the sleep timer during count down process, press the POWER button to shut off the unit.

3- Level Dimmer Control

The brightness of the clock display can be set at High/Medium/Low level in standby. Radio and AUX modes with a press of the Hizilk button

Night Lighting

Press the NIGHT LIGHT button to turn the blue nightlight ON or OFF when needed

Enjoying Audio Source via AUX IN Jack

Press the POWER button to turn the unit ON Press the SOURCE button until “AUX” appears on display, connect your audio or mobile device and play music through the unit with the 3.5mm earphone jack.

USB for Charging

Output 5V up to 1.5A for charging mobile phone or portable digital audio player.
Note: Charging current drawn from the unit may vary due to different USB charging cable conditions or battery charging characteristics

Changing the Lithium Battery

• When the LOW BATT indicator ‘Flashes’. you should change the battery that is used for the backup clock and alarm setting as

• it will be ‘Oft ‘ when you have changed the battery in the correct instructions.





The battery backup is intended for short power outages only. The unit’s primary functions cannot run on the battery backup alone. This unit uses a button cell battery that will last up to 1 year and maintains the time.
WARNING: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DO NOT INGEST BATTERY CHEMICAL BURN HAZARD
It is product contains a swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children the battery compartment does not close securely, stop using the product away from children. If you think batteries might have been swallowed or placed inside any part of the loot seek immediate medical attention.
The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on the apparatus. This marking indicates that this product should not be disposed of with other household wastes throughout the country. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle this unit responsibly so as to promote the re-use of material resources. To return your used device. please use return and collection systems or contact the retailer where the product was purchased as they know how to safely recycle this product.

Care and Maintenance

Care Of Cabinets
If the cabinet becomes dusty, wipe it with a soft cloth. lf the cabinet becomes smudged or dirty, clean it with a soft, slightly dampened cloth. Never allow water or any liquid to get inside the cabinet. Never use any abrasive cleaners or cleaning pads as these will damage the finish of your radio.

Lithium Battery Precautions

• Dispose of the old battery properly. Do not leave it lying around where a young child or pet could play with or swallow it. If the battery is swallowed, contact a physician immediately.

• The battery may explode if mistreated. Do not attempt to recharge it or disassemble it. Do not dispose of the old battery in a fire.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED AND THERE IS NO BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

DANGER: A lightning flash with an arrowhe, ad symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude the o constitute an rTHE risk of electric shock to person.

CAUTION: RISK OF ELECTRIC SHOCK DOES NOT OPEN
WARNING: THE OF ELECTRIC SHOCK NOT REMOVE COVER BACK), NO USER PARTS INSIDE SERVICING TO QUALIFIED SERVICE personal

CAUTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. WARNING: SHOCK HAZARD – DO NOT OPEN.

2. Caution Marking and rating plate was located at rear enclosure of the apparatus.

3. Attention should be drawn to the environmental aspects of battery disposal;

4. Minimum distances 10cm around the apparatus for sufficient ventilation;

5. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;

6. No naked flame sources, such as lighted candles, should be placed on the apparatus; it convenient de ne pas placer

7. The use of apparatus in moderate climates

8. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

9. WARNING Do not ingest the battery, Chemical Burn Hazard 8,- This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.lf you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

10. When a plug on the unit is used as a disconnect device, this unit must remain readily accessible.

11. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. les batteries (bloc de batteries ou batteries installers)

12. ATTENTION Danger of explosion if the battery is not replaced correctly. Replace only with the same type or equivalent type

13. The appliance must not be exposed to water dripping or splashing and no objects filled with liquids such as vases should be placed on the appliance.

Important Safety Instructions

1. Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.

2. Do not use this apparatus near water.

3. Clean only with dry cloth.

4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

5. Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus(including amplifiers) that produce heat.

6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, ask an electrician to replace the obsolete outlet.

7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

8. Only use attachments/accessories specified by the manufacturer.

9. Unplug this apparatus during lightning storms or when unused for long periods of time.

10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

12. The AC adapter must not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

13. The AC adapter is used as a disconnect device and it must remain readily accessible during intended use. In order to disconnect the apparatus from the AC power completely,the AC adapter must be removed from the AC outlet completely.

14. The battery must not be exposed to excessive heat such as sunshine, fire, etc.

CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

Troubleshooting

Here are some common problems and solutions for the Emerson SmartSet Clock Radio CKS1507:

• Problem: The clock radio is not keeping accurate time.

  Solution: Make sure the clock radio is plugged in and the battery backup is inserted correctly. Also, make sure the time is set correctly and the clock radio is in a location where it can receive a strong signal for the radio.

• Problem: The radio is not receiving any stations.

  Solution: Make sure the clock radio is in a location where it can receive a strong signal for the radio. If the problem persists, try resetting the clock radio by unplugging it from the power outlet, waiting a few minutes, and then plugging it back in.

• Problem: The alarm is not sounding.

  Solution: Make sure the alarm is set correctly and the volume is turned up. If the problem persists, try resetting the clock radio by unplugging it from the power outlet, waiting a few minutes, and then plugging it back in.

Emerson SmartSet Clock Radio CKS1507 Warranty

Emerson Radio Corp. warrants this product to be free from manufacturing defects in the original material, including original parts, and workmanship under normal home use and conditions (“manufacturing defect”) for a period of ninety (90) days from the date of original purchase in, and if used in the United States.

Pros & Cons

Pros

• Easy to use with SmartSet technology
• Dual alarm settings with weekday and weekend options
• AM/FM radio with 20 preset stations
• Gradual wake alarm with radio or buzzer
• Snooze and sleep functions
• High-contrast LCD display with dimmer
• AC power with battery backup
• Compact design

Cons

• No Bluetooth or Wi-Fi connectivity
• No USB charging port
