Epson Expression Premium Printer XP-800 Instruction Manual

Epson Expression Premium Printer XP-800

Introduction

The Epson Expression Premium Printer XP-800 is a versatile and feature-rich all-in-one printer designed to meet the needs of both home users and small businesses. Launched in 2013, this printer combines printing, scanning, copying, and faxing capabilities in a single compact unit. The estimated price of the Epson Expression Premium Printer XP-800 is around $200-$300, depending on the region and availability.

This printer is ideal for those who require high-quality photo printing, as well as everyday document printing. It features wireless connectivity, making it easy to print from mobile devices and computers without the need for cables. The XP-800 also supports Epson's Connect suite of mobile printing solutions, including Epson iPrint, Apple AirPrint, and Google Cloud Print.

With its sleek design and user-friendly interface, the Epson Expression Premium Printer XP-800 is a great addition to any home or office setup. It offers a range of innovative features that enhance productivity and convenience.

Product Basics

• See these sections to learn about the basic features of your product.
• Setting Up the Control Panel
• Product Parts Locations
• Using Eco Mode
• EPSON Connect Solutions
• Using AirPrint
• Using Google Cloud Print

Setting Up the Control Panel

• See these sections to set up the control panel for use.
• Control Panel Buttons and Lights
• Adjusting Control Panel Position
• Changing LCD Screen Language
• Turning Off Control Panel Sounds
• Parent topic: Product Basics

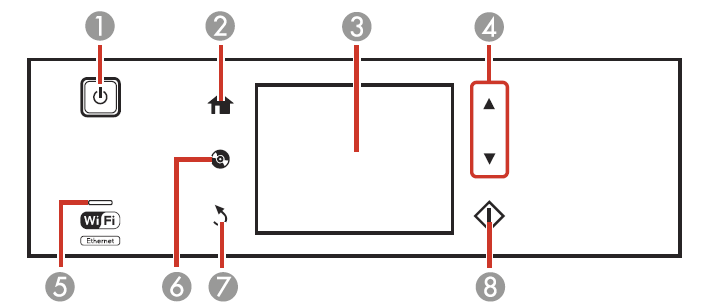

Control Panel Buttons and Lights

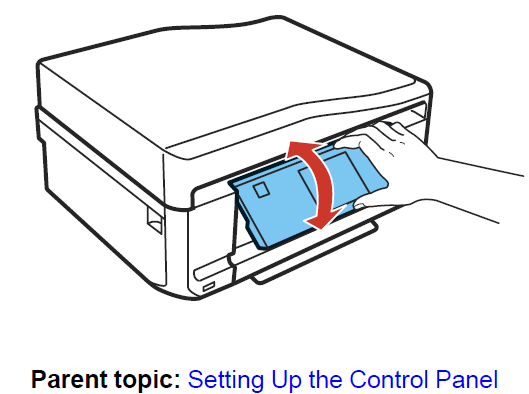

Adjusting Control Panel Position

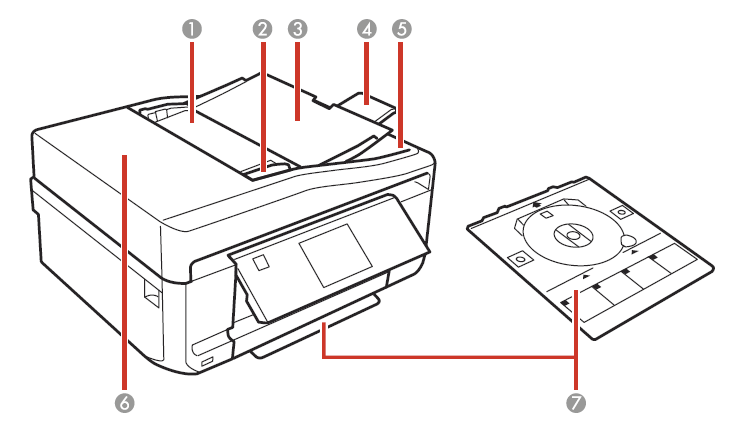

Product Parts - Top

1. Automatic Document Feeder (ADF)
2. Edge guide
3. ADF paper support
4. ADF output extension
5. ADF output tray
6. ADF cover
7. CD/DVD tray (shown removed and in storage position)

1. Rear paper feed slot
2. Paper support

Product Parts

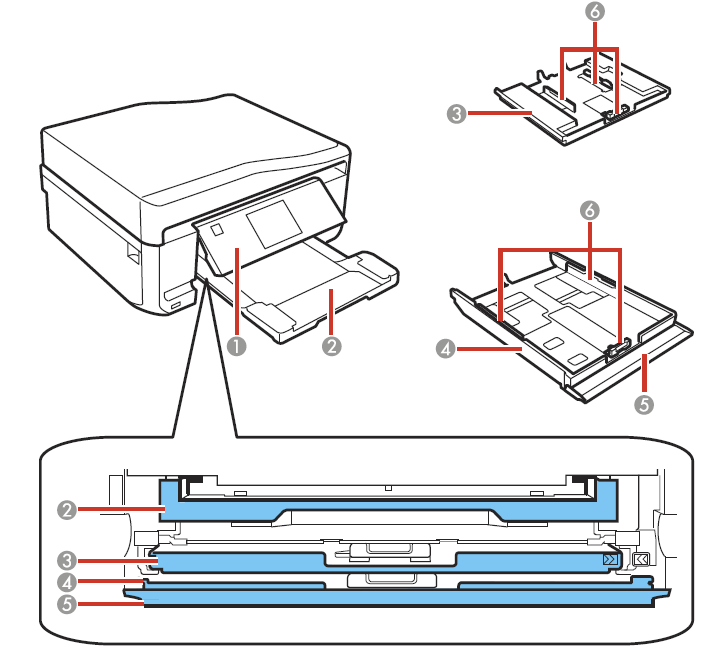

Front

1. Control panel
2. Output tray
3. Cassette 1 (upper cassette)
4. Cassette 2 (lower cassette)
5. Front cover
6. Cassette edge guides

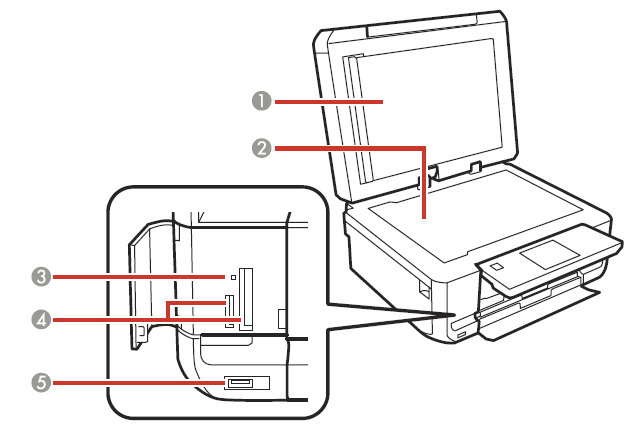

1. Document cover
2. Scanner glass
3. Memory card access light
4. Memory card slots
5. USB Type A port for external devices

Parent topic: Product Parts Locations

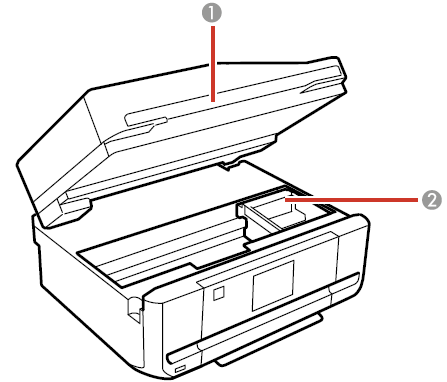

Inside

1. Scanner unit
2. Print head/ink cartridge holder

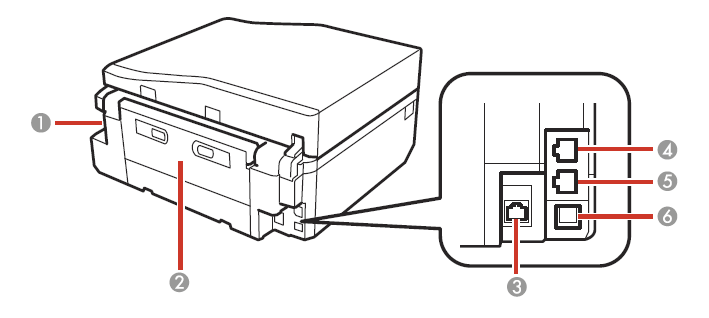

Product Parts - Back

1. AC inlet
2. Rear cover
3. LAN port
4. LINE port
5. EXT port
6. USB port

Technical Specifications

Windows System Requirements
To use your product and its software, your computer should use one of these operating systems:

• Microsoft Windows 7
• Windows Vista
• Windows XP Professional x64 Edition
• Windows XP SP3

Mac System Requirements
To use your product and its software, your Mac should use one of these operating systems:

• Mac OS X 10.5.8
• Mac OS X 10.6.x
• Mac OS X 10.7.x
• Mac OS X 10.8.x

Printing Specifications

Paper path

• Paper cassette 1 (upper) and cassette 2 (lower), front entry.. Rear paper feed slot, top entry

Capacity

• 0.24 inch (6.0 mm) for cassette 1
• 0.43 inch (11.0 mm) for cassette 2
• One sheet between 0.002 (0.05 mm) to 0.024 inch (0.6 mm in ) thickness for the rear paper slot

Scanning Specifications

• Scanner type: Flatbed, color
• Photoelectric: device CIS
• Effective pixels: 40800 × 56160 pixels at 4800 dpi
• Document size Maximum: 8.5 × 11.7 inches (216 × 297 mm)
• Scanner glass: US letter or A4
• Scanning resolution: 4800 dpi (main scan) 4800 dpi (sub scan)
• Output resolution: 50 to 4800, 7200, and 9600 dpi (50 to 4800 dpi in 1 dpi increments)
• Image data: 16 bits per pixel per color internal 8 bits per pixel per color external (maximum)
• Light source: LED

Automatic Document Feeder (ADF) Specifications

• Paper input: Face-up loading
• Paper output: Facedown ejection
• Paper size: US letter, legal, or A4 size
• Paper type: Plain paper
• Paper weight: 17 lb (64 g/m2) to 24 lb (95 g/m2)
• Sheet feeding capacity: Total thickness: 0.12 inch (3 mm) Approximately 30 sheets (US letter or A4) or 10 sheets (legal)

Fax Specifications

• Fax type: Black and white and color fax capability
• Support line Household phone line
• Speed Up to 33.6 kbps
• Resolution Monochrome
  • Standard: 200 × 100 dpi
  • Fine: 200 × 200 dpi
  • Photo: 200 × 200 dpi
• Color
  • Fine: 200 × 200 dpi
  • Photo: 200 × 200 dpi
• Error correction mode: CCITU/ITU Group 3 fax with error correction mode
• Speed dial/group dial numbers: Up to 60 (combined)
• Page memory: Up to 180 (ITU-T No. 1 chart )
• Redial: 2 times (with 1 minute interval)
• Interface: RJ-11 Phone Line RJ-11 Telephone set connection

Using Eco Mode

Your product enters sleep mode automatically if it is not used for a period of time. You can make the time period shorter and select other options to save energy and resources.

• Changing the Sleep Timer Setting From the Control Panel
• Changing the Sleep Timer Setting - Windows
• Changing the Sleep Timer Setting - Mac OS X

Parent topic: Product Basics

Setup Guide

To set up the Epson Expression Premium Printer XP-800, start by unpacking the printer and all included accessories. Install the ink cartridges according to the instructions provided in the user manual. Connect the printer to your network using either the wireless setup wizard or an Ethernet cable.

Download and install the Epson printer software from the official Epson website if it is not included on a CD. Follow the on-screen instructions to complete the installation. Once set up, you can configure additional settings such as mobile printing and cloud printing services.

Troubleshooting

If you encounter issues with your Epson Expression Premium Printer XP-800, here are some common problems and solutions:

• Paper Jam: Turn off the printer, open the top cover, and carefully remove any jammed paper.
• Ink Cartridge Issues: Ensure that the ink cartridges are properly seated and not expired.
• Network Connectivity: Check your network settings and ensure that the printer is connected to the correct network.
• Print Quality: Adjust print settings or clean the print head to improve print quality.

Always refer to the user manual or Epson's support website for detailed troubleshooting guides.

Pros & Cons

Pros:

• High-quality photo printing
• Wireless and Ethernet connectivity options
• Touchscreen LCD for easy navigation
• Automatic Document Feeder for convenient copying and scanning
• CD/DVD printing capability

Cons:

• Ink cartridges can be expensive if not purchased in bulk
• Slightly slower print speeds compared to some competitors
• Noisy during operation

Customer Reviews

Customers have generally praised the Epson Expression Premium Printer XP-800 for its excellent photo printing quality and user-friendly interface. Many have appreciated the wireless connectivity and the ability to print directly from mobile devices. However, some users have noted that the ink cartridges can be costly and that the printer can be noisy during operation.

Common Complaints:

• Ink costs and cartridge replacement frequency
• Noise level during printing
• Occasional paper jams
