Rear Facing Infant Car Seat Introduction

The Evenflo SecureMax Rear Facing Infant Car Seat is a premium safety seat designed for infants weighing between 4 to 35 pounds and up to 32 inches tall. Featuring advanced safety technologies such as SensorSafe, which alerts caregivers of potential dangers, and SafeZone Load Leg for added stability, this car seat ensures peace of mind during travel. Its lightweight design and no-rethread harness make adjustments effortless. The SecureMax is priced at approximately $239.99.

Specifications

• Rear-facing design for infants from 4 to 35 pounds and up to 32 inches tall
• Advanced rollover test standard exceeding federal safety standards
• EASYCLICK LATCH system for quick and secure installation
• SmartLevel indicator ensures proper angle and positioning
• Integrated sensors and alerts for improper installation or misuse
• Machine washable and dryable seat pad for easy maintenance
• Compact design for easier storage and transport

CHILD REQUIREMENTS

Warning: Failure to follow these Child Requirements could result in serious injury or death.

This child restraint is designed for use by children in rear-facing orientation only. To use this child restraint properly, children MUST meet the size and age requirements below. In addition, Evenflo recommends consulting with your child’s physician before allowing your child to transition from a rear-facing to forward-facing child restraint.

The American Academy of Pediatrics (AAP) recommends keeping children rear-facing until they reach the maximum height or weight for their child restraint in rear-facing orientation. Additionally, some states’ laws require children to be rear-facing until age 2.
Accordingly, you will see this guidance reflected in the Child Requirements. Please review any applicable local, state or provincial laws related to child passenger safety before installing and using this child restraint.

Rear-facing Use

• No restraint can guarantee absolute protection from injury in every crash.
• 1.8 to 15.8 kg (4 to 35 lbs)
• 43 to 81 cm (17 to 32 in.) and top of child’s head is at least 2.5 cm (1 in.) below the top of the child restraint seat back.

IMPORTANT: Once your child exceeds any of the size requirements above, they MUST discontinue use of this child restraint.

Base Features

SecureMax Base

1. Recline foot adjustment button
2. Recline foot
3. SafeZone Load leg (Not available on all models)
4. SafeZone Load leg adjustment buttons (Not available on all models)
5. SafeZone Load leg storage compartment (stored position) (Not available on all models)
6. Recline indicator
7. LATCH storage pocket
8. LATCH connector
9. LATCH release button
10. Belt path
11. Carrier attachment bar
12. Fit-lock belt tightener
13. Fit-lock belt tightener release button
14. Fit-lock belt tightener lock indicator
15. User Guide storage compartment

Child Seat Features

Front

1. Lap belt guides
2. Base attachment hooks
3. Seat pad
4. Canopy
5. Handle
6. Headrest adjustment button
7. Headrest
8. Harness
9. SensorSafe Chest clip
10. Harness buckle
11. Harness buckle strap
12. Harness adjustment button
13. Harness adjustment strap
14. Infant body support
15. Handle adjustment button
16. Stroller attachment buttons
    Back
17. Carrier release handle
18. Harness strap
19. Waist strap slots
20. Waist strap
21. Harness buckle strap retainer

22. Harness splitter plate



* Not all features are available on all models. Styles may vary.

Using the Handle

ALWAYS make sure the handle is securely locked in upright carrying position (1) before carrying.
ANY locked position can be used in vehicle.

There are 4 positions:

• Carrying position (1),
• Middle positions (2 - 3)
  NEVER use these positions to carry your child in the carrier.

• Stationary position (4).
  NEVER use this position to carry your child in the carrier.



To change handle positions, squeeze both Handle Releases and rotate the handle to the desired position until it locks into place.

Description

The Evenflo SecureMax Rear Facing Infant Car Seat is built with safety and convenience in mind. The EASYCLICK LATCH system allows for a hassle-free installation, ensuring that the car seat is securely fastened in your vehicle. The SmartLevel indicator helps you achieve the perfect angle, ensuring your child's safety. The integrated sensors and alerts system notifies you of any improper installation or misuse, providing an additional layer of security.

The car seat features a machine washable and dryable seat pad, making maintenance a breeze. Its compact design allows for easy storage and transport, making it ideal for families on the go.

Installing the Canopy

1. To attach canopy, insert the canopy bow into the canopy mounts on both sides of the seat until they click into place.
2. Fasten the hook and loop patches on the canopy to the seat pad as shown. Repeat on other side of seat.

3. To remove, press tab on canopy bow and pull out. Canopy can be removed for washing.

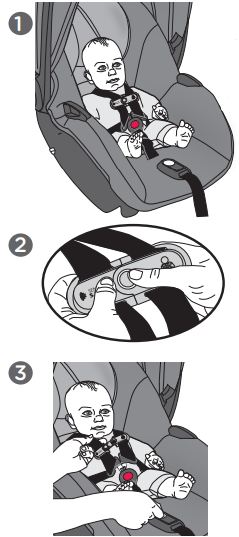

Removing the Child from the Carrier

1. Press the red buckle release, and remove the buckle tongues.
2. Push the release button and pull the chest clip apart.

3. To loosen the harness straps, press the harness release button while pulling upward on the harness straps.



Using as an Infant Carrier

Secure the child in the carrier by following.

Position 4
To use as a stand: Squeeze both handle releases and rotate the handle to Position 4 (Stand) until it locks into place and the carrier rests on a level surface.
Position 1
To use as a carrier: Squeeze both handle releases and rotate the handle to Position 1 (Carry) until it locks into place. Carry at your side, using the handle as shown.

WARNING! The harness MUST be securely buckled at all times.

WARNING! DEATH or SERIOUS INJURY can occur.

• NEVER place this carrier near the edges of counter tops, tables, or other high surfaces. The child’s movements can cause the carrier to slide and fall.
• NEVER leave the child in this carrier when the harness straps are loose or undone. Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child even when carrier is outside the vehicle.
• NEVER place the carrier in any position in a shopping cart. The carrier may fall from the cart and your child may be injured.
• DO NOT carry on your hip.

LATCH Storage

• Insert LATCH connectors into the LATCH storage pockets on the base as shown.
• DO NOT store the LATCH on top of the base.

• The LATCH strap MUST pass UNDER the base.



Replacement Parts

Not available on all models. Styles may vary.
To order replacement parts you can order online at www.evenflogold.com    or contact Evenflo. When you contact us, please have the product model number and date of manufacture (found on the back of the child restraint).

Evenflo SecureMax Setup Guide

To set up the Evenflo SecureMax Rear Facing Infant Car Seat,

• Start by locating the LATCH anchors in your vehicle.
• Attach the EASYCLICK LATCH connectors to these anchors and pull the strap to secure the car seat.
• Use the SmartLevel indicator to ensure the car seat is at the correct angle.
• Next, place your infant in the car seat, ensuring the harness is snug and the chest clip is at armpit level.
• Finally, check all connections and ensure the car seat is securely fastened before moving your vehicle.

Care and Cleaning

• DO NOT lubricate or immerse in water the LATCH connectors, the buckle, or any other part of this child restraint, unless rinsing is permitted, as stated on the back of the buckle for your restraint.
• Plastic and metal parts may be wiped clean with mild soap and water and dried with a soft cloth. Do not use abrasive cleaners or solvents.
• Take care not to damage any labels.
• The harness can be wiped clean with mild soap and water. Allow harness to air dry.
• Machine wash the seat pad separately in cold water, delicate cycle. Tumble dry 10 to 15 minutes on low heat.
• NEVER use child restraint without the seat pad.
• To protect the child restraint from damage caused by weather, rodents, and other elements common to garages, the outdoors, and other storage locations, remove the seat pad and thoroughly clean the restraint and pad prior to storage. Take care to clean in the areas where crumbs and other debris tend to accumulate.

Tip! To help protect the vehicle upholstery, place a towel beneath and behind the child restraint.

WARNING! Make sure both harness straps are installed completely on the splitter plate, as shown.After the cleaning. Failure to properly attach the harness straps to the splitter plate may result in a loose harness and serious injury or death to your child.

Troubleshooting

If you encounter any issues with the installation or usage of the Evenflo SecureMax, here are some common problems and solutions:

• Incorrect Angle: Check the SmartLevel indicator to ensure the car seat is at the correct angle.
• Loose Installation: Make sure the EASYCLICK LATCH system is fully engaged and the strap is tightened.
• Alarm or Alert: Refer to the user manual to address any alerts or alarms related to improper installation or misuse.

Evenflo SecureMax Rear Facing Infant Car Seat Warranty

By simply registering your Evenflo Gold Stroller or Gold Car Seat online within 3 months of purchase, you, the Registrant https://www.evenflogold.com

Pros & Cons

Pros:

• Advanced safety features exceeding federal standards
• EASYCLICK LATCH system for easy installation
• SmartLevel indicator for correct angle positioning
• Integrated sensors and alerts for safety
• Machine washable and dryable seat pad
• Compact design for easy storage and transport

Cons:

• Limited weight range compared to convertible car seats
• No built-in cup holder or storage compartments
• Slightly heavier than some other infant car seats

Customer Reviews

Customers have praised the Evenflo SecureMax for its ease of installation and advanced safety features. Many have noted the peace of mind they get from knowing their infant is protected by a car seat that exceeds federal safety standards. However, some have mentioned that the car seat is slightly heavier and lacks additional features like built-in cup holders.

Most Common Complaints

• Weight and bulkiness of the car seat
• Lack of additional features like cup holders or storage
• Higher cost compared to some other infant car seats
