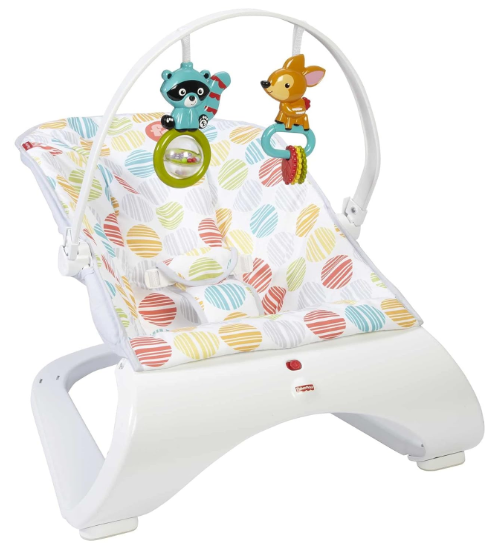

Introduction of Fisher-Price Comfort Curve Bouncer CFB88

The Fisher-Price Comfort Curve Bouncer (CFB88) is a cozy, soothing infant seat designed to provide a comfortable, safe, and entertaining environment for your little one. This bouncer features a soft, padded seat with a Comfort Curve design that supports your baby's head, neck, and spine. The CFB88 is suitable for infants from birth until they can sit up unassisted, typically around 6 months of age. The estimated price for the Fisher-Price Comfort Curve Bouncer CFB88 is $59.99, making it an affordable option for parents seeking a reliable and convenient bouncer for their baby. The product was launched in 2020 and has since become a popular choice among parents and caregivers.

Fisher-Price Parts

IMPORTANT! Please remove all parts from the package and identify them before assembly. Some parts may be packed in the pad.

Note: Screw shown actual size. Tighten or loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.

Detailed Specifications

• Product Dimensions: 22.8 x 23.2 x 17.7 inches
• Weight: 4.4 pounds
• Seat Material: Plush, machine-washable fabric
• Frame Material: Durable, lightweight plastic
• Battery Requirement: No batteries required
• Maximum Weight Recommendation: 25 pounds
• Age Recommendation: From birth until baby can sit up unassisted
• Additional Features: Calming vibrations, removable toy bar, non-slip feet

IMPORTANT! Please keep this instruction sheet for future reference, as it contains important information.

• Please read these instructions before assembly and use of this product.
• Adult assembly is required. Tool needed for assembly: Phillips Screwdriver (not included).
• Requires one D (LR20) alkaline battery (not included) for soothing unit operation.
• Use from birth until child is able to sit up unassisted.
• Product features and decorations may vary from photographs.

Assembly of Fisher-Price Comfort Curve Bouncer CFB88

1. "Snap" the rear cross brace onto the bases, as shown.




   Hint: The cross brace is designed to fit onto each base one way. If it does not seem to fit, try the other base.

2. "Snap" the base assembly into the front cross brace.



3. Slide the footrest into the front cross brace, as shown.




   Hint: The power switch on the footrest should fit into the lower hole on the front cross brace.

4. Insert four screws into holes in the front cross brace and footrest. Tighten the screws.



5. Make sure the socket in each retainer is upright.
   Fit the seat back tube onto the base, as shown.
   Hint: The seat back tube is designed to fit one way. If it does not seem to fit, turn it around and try again.

6. Insert a screw in each hole in the seat back tube. Tighten each screw. Pull the seat back tube up to be sure it is secure.



7. Position the pad above the frame.
   Fit the upper pocket on the back of the pad onto the seat back tube.



8. Fit each retainer through each side opening in the pad.



9. Insert and "snap" the pegs on the pad into the holes in the footrest.



10. Fasten the buckle on the rear cross brace to the buckle on the back of the seat pad.

11. Insert and “snap” the toy bar plugs into each retainer socket. The toy bar is designed to fit one way. If it does not seem to fit, turn it around and try again.



Hint: The toy bar is removable. Press the ends of the latches and lift the toy bar.

Description of Fisher-Price Comfort Curve Bouncer CFB88

The Fisher-Price Comfort Curve Bouncer CFB88 offers a soothing, calming experience for infants with its Comfort Curve design that supports your baby's head, neck, and spine. The plush, machine-washable fabric ensures a snug and comfortable seating experience. The bouncer is lightweight and easy to move around the house, allowing you to keep your baby close while attending to daily tasks. The CFB88 features a removable toy bar with two soft toys to entertain and engage your little one during playtime. The bouncer also includes calming vibrations, which can be activated with a simple switch, to help soothe and relax your baby. The non-slip feet provide stability and safety during use.

Battery Installation

Hint: We recommend using an alkaline battery for longer battery life.

• Loosen the screw in the battery compartment door and remove the door.
• Insert one D (LR20) alkaline battery into the battery compartment.
• Replace the battery compartment door and tighten the screw.
• If this product begins to operate erratically, you may need to reset the electronics. Slide

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc), or rechargeable.
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely.
• Do not dispose of the product in a fire. The batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be charged under adult supervision.

Comfort Curve Bouncer CFB88 Setup Guide

1. Unbox the Fisher-Price Comfort Curve Bouncer and remove all packaging materials.
2. Attach the toy bar by inserting the ends into the designated slots on both sides of the bouncer's frame.
3. Place your baby in the bouncer, ensuring they are positioned correctly and securely.
4. To activate the calming vibrations, locate the switch on the side of the bouncer's frame and slide it to the "on" position.
5. occasionally check the bouncer's stability and adjust the feet if necessary to maintain a secure base.

Setup and Use

WARNING: To prevent serious injury or death:

• Fall Hazard - Never use on any elevated surface, since child’s movement may cause product to slide or tip over. Use only on a floor.
• Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion) since product can tip over and cause suffocation in soft surfaces.
• Never use as a carrier or lift while child is seated. Never use the toy bar asa handle.
• Always use the restraint system.
• This product is not intended to replace a crib or bassinet for prolonged periods of sleep.
• Never leave child unattended.
• Never use for a child able to sit up unassisted.

Fisher-Price Comfort Curve Bouncer CFB88 Care

1. The pad is machine washable. Wash it separately in cold water on the gentle cycle. Do not use bleach. Tumble dry separately on low heat and remove promptly.
2. The frame, toy bar and toys may be wiped clean using a mild cleaning solution and damp cloth. Do not immerse the toy bar. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue.

To remove the pad

• Lift to remove the pad pegs from the footrest.
• Lift to remove the pad.
• To replace the pad, refer to Assembly steps 7 - 10.

Fisher-Price Consumer Information

WARNING: To prevent serious injury or death

• Fall Hazard - Never use on any elevated surface, since child’s movement may cause product to slide or tip over. Use only on a floor.
• Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion) since product can tip over and cause suffocation in soft surfaces.
• Never use as a carrier or lift while child is seated. Never use the toy bar as a handle.
• Always use the restraint system.
• This product is not intended to replace a crib or bassinet for prolonged periods of sleep.
• Never leave child unattended.
• Never use for a child able to sit up unassisted.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts.

Securing Your Infant

• Place your child in the seat. Position the restraint pad between your child’s legs.

• Fasten the restraint belts to the restraint pad.
  Make sure you hear a “click” on both sides.

• Check to be sure the restraint system is securely attached by pulling it away from your child. The restraint system should remain attached.

• Tighten each waist belt so that the restraint system is snug against your child. Please refer to the next section for instructions to tighten the waist belts.



To tighten the restraint belts
Feed the anchored end of the restraint belt up through the buckle to form a loop ( A ) . Pull the free end of the restraint belt ( B )
To loosen the restraint belts
Feed the free end of the restraint belt up through the buckle to form a loop ( A ). Enlarge the loop by pulling on the end of the loop toward the buckle. Pull the anchored end of the restraint belt to shorten the free end of the restraint belt ( B ).

Soothing Unit

• Make sure your child is properly secured in the seat.
• Slide the power switch to: Vibrations or Off.

IMPORTANT! Low battery power causes this product to operate erratically: no vibrations and the product may not turn off. Remove and discard the battery and replace with a new D (LR20) alkaline battery.

Fisher-Price Comfort Curve Bouncer CFB88 Troubleshooting

• Common Problem: The vibrations are not working.
• Solution: Ensure the switch is in the "on" position and check the battery compartment for any loose connections.
• Common Problem: The bouncer is not as stable as expected.
• Solution: Adjust the non-slip feet to ensure the bouncer is resting evenly on the floor and has a secure base.

Pros & Cons

Pros

• Affordable price
• Comfortable, supportive design
• Removable toy bar with soft toys
• Calming vibrations
• Lightweight and portable

Cons

• Limited entertainment options for older infants
• Does not convert into a play yard or other furniture

Customer Reviews and Complaints about Fisher-Price Comfort Curve Bouncer CFB88

The Fisher-Price Comfort Curve Bouncer CFB88 has received positive reviews from many parents and caregivers, who appreciate its affordability, comfort, and convenience. Some customers have expressed concerns about the bouncer's limited entertainment value for older infants and its lack of conversion options into other furniture pieces.
