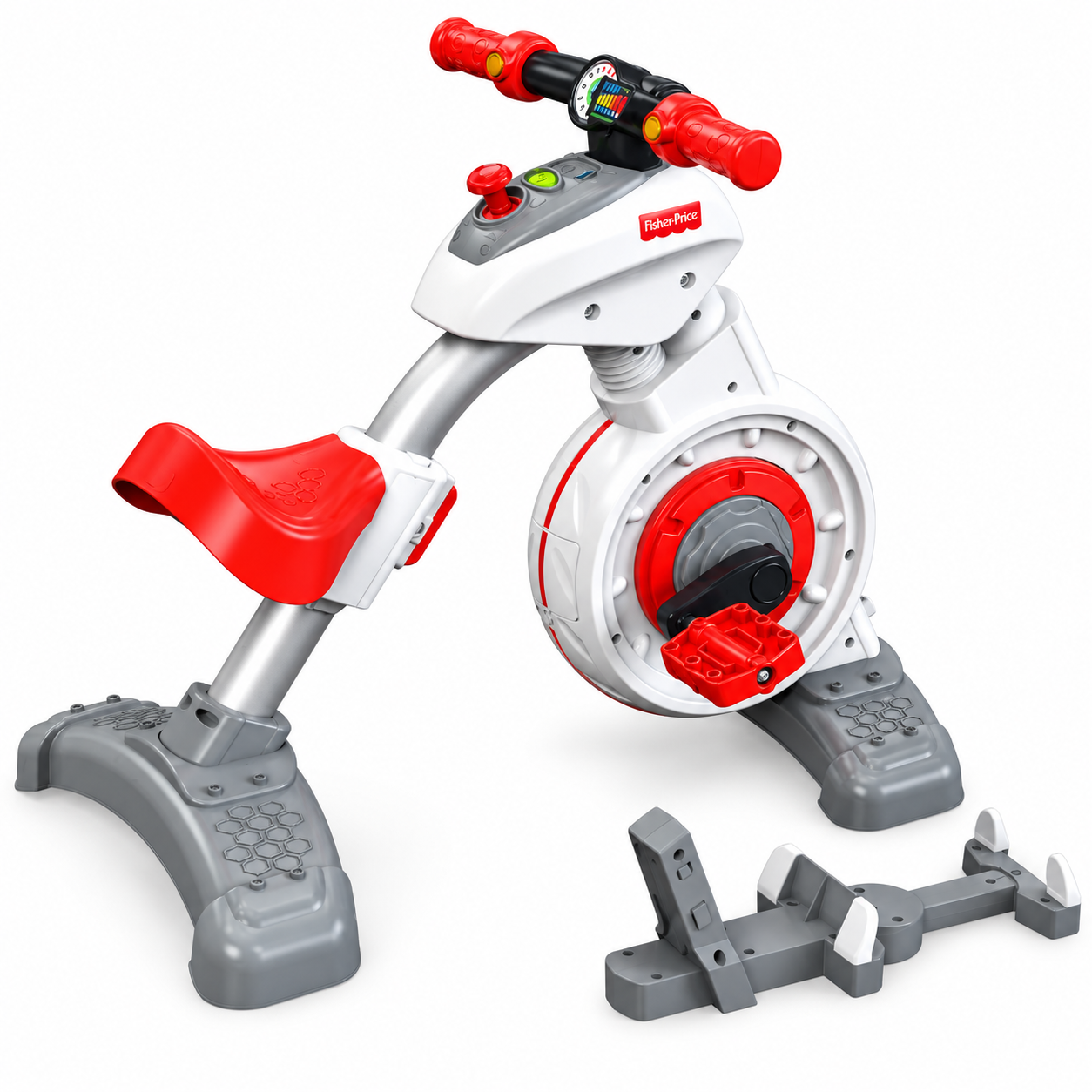

Introduction of Fisher-Price Smart Cycle Think and Learn DRP30

The Fisher-Price Smart Cycle Think and Learn DRP30 is an interactive learning bike that combines physical activity with educational games. This bike is designed for toddlers aged 3-6 years old and helps to improve their motor skills, coordination, and cognitive abilities. The estimated price of the product is around $150, and it was launched in August 2021.

Parts

Fisher-Price Smart Cycle Think and Learn DRP30 Assembly

1. Fit the frame to the front base.




   Hint: The frame is designed to fit the front base one way. If it does not seem to fit, try assembling it to the other base.

2. Turn the assembly over.



   Insert two M4,5 x 15 mm screws into the front base. Fully tighten the screws.

3.  Fit the seat assembly to the back base.



4. Turn the assembly over.



   Insert two M4,5 x 15 mm screws into the back base. Fully tighten the screws.

5.  Fit the seat assembly into the large socket in the frame assembly.



6.  Insert the M8 x 76 mm screw into the frame and tighten.



7. Fit the pedal assembly into the large opening in the frame.



   Make sure the connector on the pedal assembly is fitted to the connector on the frame.

8.  Insert four M4,5 x 15 mm screws into the pedal assembly and tighten.



9.  Fit the handlebar to the collar on the front of the frame.



10. Insert two M4,5 x 30 mm screws into the handlebar and tighten.



    Pull up on the handlebar to be sure it's secure to the frame.

11. Insert and "snap" the end of the tablet holder into the socket in the front of the frame.
    To remove the tablet holder, simply push the buttons on each side of its base and pull to remove.



Detailed Specifications

The Smart Cycle Think and Learn DRP30 features a sturdy steel frame, adjustable seat, and handlebars, and a 3-position incline to fit children of different heights and abilities. The bike also includes a 5.5" full-color LCD screen that displays educational games, songs, and animations. The bike requires 3 AA batteries, which are not included in the package. The product dimensions are 22.5" x 20.5" x 34.5" (L x W x H), and it weighs around 25 lbs.

Smart Cycle Controls

Mission to Tech City

• Launch the app on your tablet or TV (a media streaming box is required for TV play).
• Turn Smart Cycle power ON.
• The Connection LED on Smart Cycle blinks while it's connecting to the app. When it stops blinking, you're connected.

• Here's the home screen. Press a Handlebar Button to play!



Time for a learning adventure!

1. In the garage, use the Joystick to highlight character choices - T.R., Frita, Walla or Widgey. Press a Handlebar Button to select your choice.



2. It's time to practice using the Smart Cycle®'s controls. Follow Teach 'n Tag Movi's™ directions and have fun!



3. Awesome! You've completed the practice drive. Now, it's time to customize your character's vehicle. Use the Joystick to highlight your choice and then press a Handlebar Button to select.



   Hint: You'll earn stars in activities and games along the way. For every three stars earned, you'll be rewarded with a new accessory or paint choice for your vehicle.

4. When you press the Nav Button, you'll see this screen. You can choose your destination, go to the Home screen, go to the Garage to customize your vehicle/change characters or Exit the game.



Seaside Village

1. Each destination has four games/activities. You'll need to complete the first game/activity to unlock the next game/activity.
   Hints: Once you've unlocked a game/activity, you can go back to it again and again!

2. Use the Joystick to highlight the game/activity, then press a Handlebar Button to select.



Let's Drive to Seaside Village

Use the Handlebar to steer and pedal to get to Seaside Village.

1. Alpha balloons
   Use the Handlebar to aim the air compressor hose toward the letter that matches the missing letter in the word on the screen. Press a Handlebar Button to select the letter. Then pedal to blow up the balloon.



2. Balloon Pop
   Use the Handlebar to aim the slingshot toward the letter that matches the missing letter in the word on the screen. Then press a Handlebar Button to launch an object. Did you hit the correct letter?




   Hint: You may need to pedal to adjust the distance the object needs to travel to hit the letter.

3. Seaside Race
   Are you ready to race? 3-2-1-GO! Pedal as fast as you can!



You Get a Prize!

1. After completing an activity, you may receive a star!



2. When you earn three stars, pedal fast to open your prize. The next time you're in the Garage, you'll see a new accessory or paint choice for your vehicle.



Mountain Forest of Fisher-Price Smart Cycle Think and Learn DRP30

• After completing all four games/activities in Seaside Village, you can go to Mountain Forest. Use the Joystick to highlight the destination and then press a Handlebar Button to select.

• Just like Seaside Village, there are four games/ activities. You'll need to complete the first game/activity to unlock the next game/activity.



Let's Drive to Mountain Forest

Use the Handlebar to steer and pedal to go to Mountain Forest.

• Drone Zoom
  Use the Joystick to fly the drone through word clouds or word syllables that match the word or syllable on the screen.



• Night Light
  Use the Joystick to shine a flashlight to find the animal that matches the word on the screen. Pedal to make the lighted area larger! When you find it, press a Handlebar Button.



• Mountain Forest Racing
  Are you ready to race? 3-2-1-GO! Pedal as fast as you can!



  Match-a-Word is an activity included in each destination. Use the Joystick to highlight a familiar word learned in that destination that matches the word on the screen. Press a Handlebar Button to select it.



• Tech City
  After completing all four games/activities in Mountain Forest you can go to Tech City. Use the Joystick to highlight the destination and then press a Handlebar Button to select.



  Just like Seaside Village and Mountain Forest, there are four games/activities. You'll need to complete the first game/activity to unlock the next game/activity.

• Let's Drive to Tech City
  Use the Handlebar to steer and pedal to go to Tech City.



Tech City

1. Sort & Rhyme
   First look at the pictures at the top of the screen. Pedal to start the conveyor belt moving. Look at the picture on the crate. Which picture on the top of the screen does it rhyme with? Use the Joystick or press a Handlebar Button to move the crate toward it.



2. Bot Chef
   Look at the ingredients on the list on the screen. Use the Joystick to select the ingredient that matches. Then press a Handlebar Button to drop it into
   the blender. Pedal to mix all the ingredients together!



3. Tech City Racing
   Are you ready to race? 3-2-1-GO! Pedal as fast as you can!



   After completing all of the games and activities, you've probably earned a lot of stars along the way. Go to the Garage to see all of the accessories and paint choices you've earned for your vehicle.



Just for Grown-ups

1. Content for all of the games and activities increases in complexity the more your child plays and gains success. There are more than 15 levels in all! For example, words are shorter in the lowest level - "Bug" and longer in a higher level - "Balloon".
2. If you'd like to check your child's progress in games and activities or need customer support, touch the information icon on the Home screen. Then enter the code shown on the screen.

Fisher-Price Smart Cycle Think and Learn DRP30 Description

The Smart Cycle Think and Learn DRP30 is a stationary bike that features a variety of educational games and activities that are designed to teach children early learning skills such as letters, numbers, shapes, and colors. The bike includes a motion sensor that responds to the child's movements and rewards them with positive feedback and encouragement. The bike also includes a parental control panel that allows parents to set limits on the gameplay time and adjust the difficulty level of the games.

Attach Your Tablet

(Tablet is not included.)

1.  While turning and holding the knob on the front of the tablet holder, lift the upper bar.



2. Place your tablet in the holder and push the center of the upper bar down to secure.
   Check to be sure your tablet is secure.



Adjust Seat Height

• While pressing the seat latch, lift or lower the seat to a comfortable height for your child.



Setup Guide

Setting up the Smart Cycle Think and Learn DRP30 is relatively easy. First, assemble the bike by attaching the seat, handlebars, and stabilizers to the frame. Next, insert the batteries into the battery compartment and turn on the bike. Connect the bike to a tablet or smartphone using the Bluetooth connection and download the Smart Cycle app. The app includes a variety of educational games and activities that are designed to work with the bike. Once the bike is connected to the app, adjust the seat and handlebars to fit the child's size and let them start pedaling and learning.

Battery Installation

We recommend using alkaline batteries for longer battery life and proper function.

• Locate the battery compartment on the front wheel. Loosen the screw and remove the door.
• Insert four AA (LR6) alkaline batteries.
• Replace the battery compartment door and tighten the screw.
• If this product begins to operate erratically, you may need to reset the electronics. Slide the Power Switch off and then back on.

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable.
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely. Do not dispose of this product in a fire. The batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
•  Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be charged under adult supervision.

Troubleshooting of Fisher-Price Smart Cycle Think and Learn DRP30

Pros & Cons

Pros

• Interactive and fun way to learn early learning skills
• Adjustable seat and handlebars to fit different sizes
• Parental control panel to set limits on gameplay time
• Durable and sturdy construction

Cons

• May be too loud for some users
• Limited selection of games and activities
• Requires a tablet or smartphone to access the app
• May not be challenging enough for some children

Customer Reviews about Fisher-Price Smart Cycle Think and Learn DRP30

Customers have given positive reviews for the Smart Cycle Think and Learn DRP30, praising its durability, adjustability, and educational value. However, some customers have complained about the limited selection of games and activities, as well as the volume of the bike. Overall, the Smart Cycle Think and Learn DRP30 is a great investment for parents who want to encourage their children's learning and physical activity.
