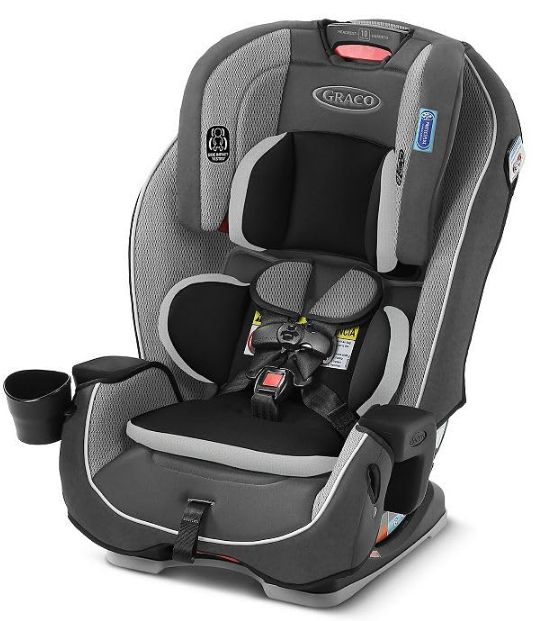

Graco Milestone 3 in 1 Car Seat 17681-2139283 Introduction

The Graco Milestone 3 in 1 Car Seat 17681-2139283 is a versatile and practical solution for parents seeking a car seat that adapts to their child's growth. This innovative car seat transitions seamlessly through three stages: from rear-facing (5-40 lbs) to forward-facing (22-65 lbs) and finally to a highback booster (40-100 lbs). With features like a no-rethread harness system and a 4-position recline, it ensures safety and comfort for every journey. Priced at $159.99, it offers exceptional value for families.

Replacement Parts

To purchase parts or accessories in the United States, please contact us at the following https://www.gracobaby.com  or 1-800-345-4109

Detailed Specifications

The Graco Milestone 3 in 1 Car Seat has the following key features:

• 3-in-1 car seat: can be used as a rear-facing infant seat, a forward-facing toddler seat, and a high-back booster seat
• 4-position recline: provides a comfortable riding position for your child and helps to minimize head slump
• Simply Safe Adjust Harness System: allows you to adjust the height of the harness and headrest in one easy step
• InRight LATCH system: provides an easy and secure installation with a one-second attachment
• Steel-reinforced frame: adds durability and strength to the car seat
• Machine-washable cover: makes it easy to clean up spills and messes

Car Seat Features

1. Headrest/Harness Adjustment Handle
2. Headrest
3. Booster Shoulder Belt Guide
4. Headrest Pillow
5. Body Pillow
6. Harness Covers
7. Harness Straps
8. Chest Clip
9. Buckle
10. Harness Release Lever (under flap)
11. Harness Adjustment Strap
12. Recline Handle
13. Seat Base
14. Cup Holder

1. Rear-Facing Level Indicator
2. Top Tether Strap
3. Forward-Facing Belt Path
4. Booster Lap Belt Path
5. Rear-Facing Belt Path
6. LATCH Strap
7. LATCH Strap Storage

1. Top Tether Strap Storage
2. Instruction Manual Storage
3. Instruction Manual

Description

The Graco Milestone 3 in 1 Car Seat is a top-of-the-line car seat that offers superior protection and comfort for your child. It is designed to grow with your child, so you can use it for many years without having to buy a new car seat. The rear-facing infant seat can accommodate children from 5-40 pounds, the forward-facing toddler seat can accommodate children from 20-65 pounds, and the high-back booster seat can accommodate children from 30-100 pounds. The Simply Safe Adjust Harness System makes it easy to adjust the height of the harness and headrest, so you can ensure that your child is always properly secured. The InRight LATCH system provides a quick and secure installation, and the steel-reinforced frame adds durability and strength to the car seat. The machine-washable cover is a convenient feature that makes it easy to keep the car seat clean.

Rear-Facing Safe Use Checklist

Rear-Facing:  5-40 lb (2.3-18 kg)

• Car seat must be rear-facing in the vehicle back seat.
• Make sure LATCH strap or vehicle seat belt is routed through the rear-facing belt path, marked with a blue label.
• Install this car seat tightly in your vehicle. Car seat should not move at the rear-facing belt path more than 1” (2.5 cm) from side to side and front to back.
• Check rear-facing level indicator to make sure the ball is within the blue zone. Vehicle MUST be on level ground.
• Harness straps must be at or just below the top of child’s shoulders and chest clip must be at armpit level.
• Infants who weigh less than 20 lb (9 kg) MUST be rear-facing.
• The American Academy of Pediatrics (AAP) and NHTSA recommend that children be rear-facing until the age of 2 or until they reach the maximum rear-facing height and weight.  This car seat can remain rear-facing for children 40 lb (18 kg) or less.

WARNING: NEVER place this child restraint rear-facing in a vehicle seating location that has an active front air bag.

Setup Guide

To set up the Graco Milestone 3 in 1 Car Seat, follow these steps:

1. Place the car seat on the vehicle seat and adjust the recline angle to the correct position.
2. Attach the LATCH connectors to the lower anchors in your vehicle.
3. Tighten the LATCH strap by pulling on the adjustment strap.
4. Adjust the harness height to fit your child.
5. Secure your child in the car seat using the harness and crotch strap.

Cleaning Seat Pad

Clean with a damp sponge using mild soap and cool water. Refer to seat pad care tag for washing instructions.

Headrest Pad

1. If needed, headrest pad may be removed for cleaning.
2. To remove, unsnap the pad to pull the harness straps out.
3. Pull the plastic tab out of the slots just below the red adjustment handle.
4. Remove the elastic straps from the hooks on both sides of the headrest.
5. Pull pad off of headrest.
6. Machine wash cover in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
7. Reverse the steps to reattach the cover on the headrest.

Graco Milestone 3 in 1 Car Seat 17681-2139283 Lower Seat Pad

• If needed, lower seat pad may be removed for cleaning.
• To remove, unsnap lower seat pad from side pad.
• Undo the plastic hooks on both armrest.
• Remove the elastic straps from the hooks in the rear-facing belt path.
• Unsnap the pad from the armrests.
• Pull the pad off.
• Machine wash cover in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
• Reverse the steps to reattach the bottom seat pad. Place front of the plastic shell in the pocket in the pad.

Side Pad

• If needed, side pad may be removed for cleaning.
• To remove, lower headrest and unsnap the pad from back.
• Pull the plastic tabs out from the back  and sides of the seat.
• Remove the elastic straps from the hooks in the forward-facing belt path.
• Pull the pad off.
• Machine wash cover in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
• Reverse the steps to reattach the bottom seat pad. Place the corner of the sidewing  in the pocket at the bottom of the side

Cleaning Crotch Buckle

• Recline the car seat and locate the metal retainer.  Rotate the metal retainer up through the shell and pad.  From the front, pull out the buckle.
• To clean buckle, place in a cup of warm water and gently agitate the buckle. Press the red button several times while in the water.
• DO NOT SUBMERGE THE BUCKLE STRAP. DO NOT USE SOAPS, HOUSEHOLD DETERGENTS or LUBRICANTS.
• Shake out excess water and allow to air dry. Repeat steps as needed until it fastens with a click. Re-insert the buckle into the same slot it was removed.  Pull up on buckle to make sure it is secured.

WARNING! Inspect and clean buckle from time to time to remove any objects or debris that could prevent latching.

Cleaning Harness and LATCH Straps

Surface wash only with mild soap and damp cloth. DO NOT IMMERSE THE HARNESS STRAPS or LATCH STRAP IN WATER Doing so may weaken the straps.
If harness straps or LATCH belt are frayed or heavily soiled, contact Customer Service at https://www.gracobaby.com  or 1-800-345-4109.

Troubleshooting

If you encounter any problems with the Graco Milestone 3 in 1 Car Seat, try the following solutions:

• If the car seat is difficult to install, make sure that you are using the correct recline angle and that the LATCH connectors are securely attached.
• If the harness is too tight or too loose, adjust the height of the harness to fit your child.
• If the car seat cover is stained or dirty, remove it and machine wash it in cold water.

Pros & Cons

Pros

• Versatile 3-in-1 design
• Easy to install and adjust
• Durable and strong steel-reinforced frame
• Machine-washable cover

Cons

• May be too large for some vehicles
• Heavy and bulky
