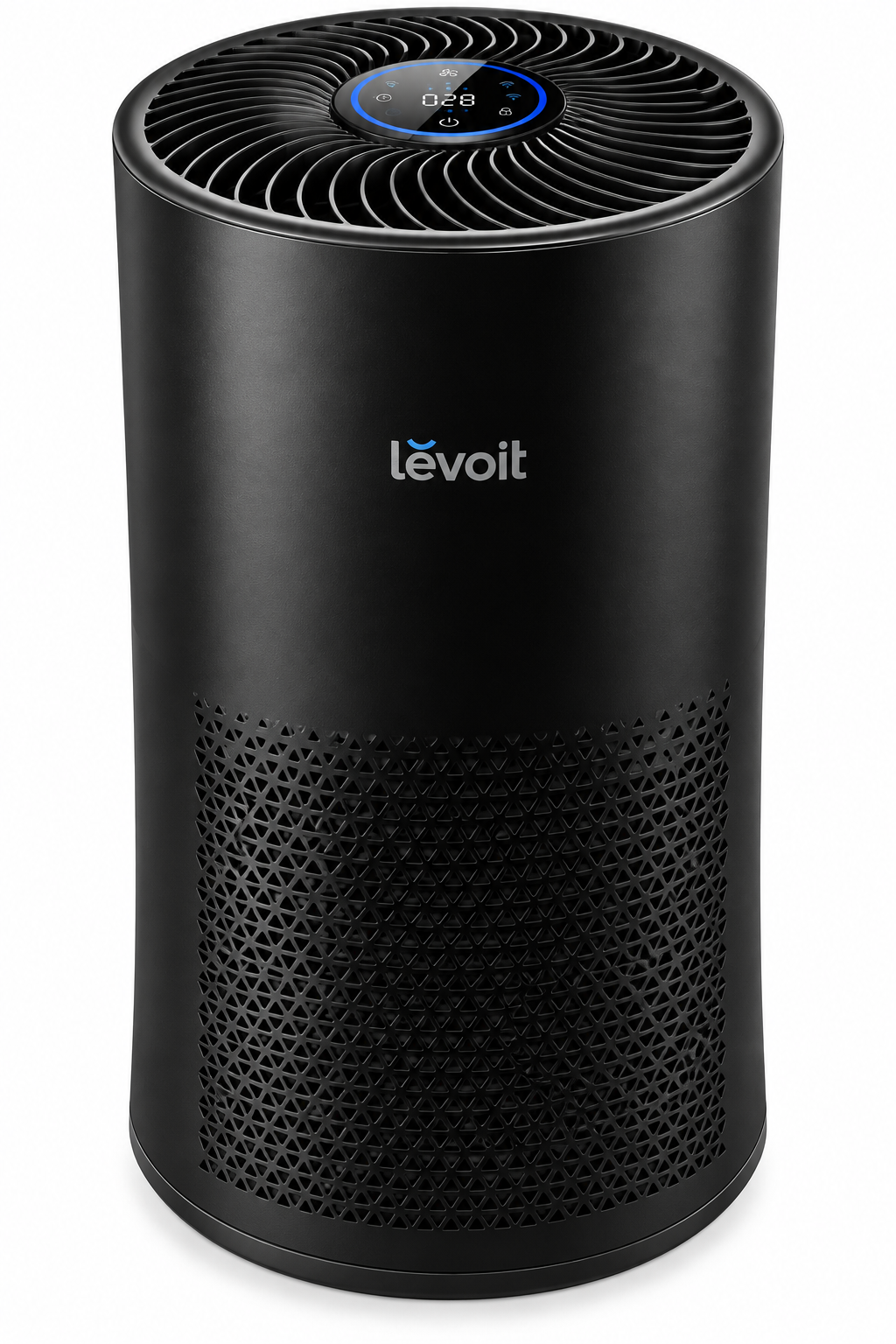

Levoit Tower True Hepa Air Purifier LV-H133-RBK

Introducing the Levoit LV-H133 Tower Air Purifier allows you to breathe cleaner air in greater settings. This strong unit's True HEPA filtration system efficiently gets rid of odors, dust, and allergies. It has many fan settings and an air quality sensor, which enable it to automatically adjust to maintain the best possible indoor air quality. It is a chic and inconspicuous complement to any space because to its elegant tower shape and silent functioning.

Package Contents

• 1 x Air Purifier
• 1 x 3-Stage Filter (Pre-Installed)
• 1 x User Manual

Specifications

READ AND SAVE THESE INSTRUCTIONS

Safety Information

To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use your air purifier as described in this manual.
• Do not use your air purifier outdoors.
• Keep your air purifier away from water, and wet or damp areas. Never place in water or other liquids.
• Keep your air purifier away from heat sources.
• Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
• Keep 5 ft/ 1.5 m away from where oxygen is being administered.
• Supervise children when they are near the air purifier.
• Do not place anything into any opening on the air purifier.
• Do not sit or place heavy objects on the air purifier.
• Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes.
• Always unplug your air purifier before servicing (for example, changing the filter).
• Do not use your air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 18).
• WARNING: To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed controls (such as a dimmer switch).
• Not for commercial use. Household use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

GETTING TO KNOW YOUR AIR PURIFIER

Function Diagram

1. LED Display/ Control Panel
2. Air Outlet
3. Housing
4. Power Cord
5. Air Intake  (triangles at the bottom)
6. Air Quality Sensor
7. Air Quality Sensor Cover
8. Filter

9. Filter Cover



LED Display

1. Fan Speed Button
2. Auto Mode Button
3. Sleep Mode Button
4. Display Off Button
5. Check Filter Indicator
6. Timer Button
7. On/Off Button
8. Air Quality Indicator
9. Timer Display

10. Fan Speed Indicator



CONTROLS

1. On/Off Button
   Turn the air purifier on/off.

2. Fan Speed Button
   Cycles through fan speeds: low, medium, and high.

   Fan Speed Indicator	Fan Speed
   	Low
   	Medium
   	High

3. Auto Mode Button
   Turns Auto Mode on/off.
4. Sleep Mode Button
   Turns Sleep Mode on/off.
5. Display Off Button
   Turns the display off.
   Press any button (except (')) to turn the display back on.
6. Check Filter Indicator
   Lights up red to remind you to check the filter (see page 11).
7. Timer Button
   Set the timer.

Description

With its sleek form, the Levoit Tower True Hepa Air Purifier LV-H133-RBK offers effective air purification without competing with any workplace or home decor. Its three-stage filtration technology efficiently removes allergens, dust, smoke, and pet dander from the air by using a pre-filter, a True HEPA filter, and a High-Efficiency Activated Carbon Filter. The sleep mode guarantees silent operation at night, and the air quality meter gives you real-time feedback on the quality of the air in your room. This air purifier is secure and energy-efficient because of its child lock mechanism and Energy Star certification.

GETTING STARTED

1. Remove the filter cover. Pull the filter from the housing. [Figure 1.1]



2. Take the filter out of its plastic packaging. then reinstall it into the housing. Make sure the pull tabs on the filter are facing out. [Figure 1.2]
3. Replace the filter cover by lining up the cover's feet with the slots in the bottom of the housing. [Figure 1.3]

4. Push the cover securely closed.  [Figure 1.4]



Note:  If you are not planning to use the air purifier for a long period of time, keep the filter clean by leaving it inside its plastic packaging until it is ready to be used.

USING YOUR AIR PURIFIER

General Operation

1. Place the air purifier on a level surface. [Figure 2.1] Leave 15 in / 38 cm of clearance on all sides of the purifier.  [Figure 2.2]



2. Plug in. Tap () to turn on the air purifier. The fan will start automatically.
3. Optionally, tap to change the fan speed. You can also select Auto Mode or Sleep Mode, or set a timer.
   1. For best results, or to address a specific air quality issue such as smoke, run the air purifier at high speed for 15-20 minutes before using a lower speed or Auto Mode.
   2. To effectively clean air, keep windows and doors closed while the air purifier is on.
4. Tap () to turn off the air purifier.

Auto Mode

Auto Mode adjusts the fan speed automatically based on air quality. For example, if the air quality is bad, the fan will be set to high speed.

1. Tap to turn Auto Mode on/off.

2. Tapping orwill also exit Auto Mode.

   Indicator	Air Quality	Fan Speed
   Color
   Blue	Very Good	Sleep Mode
   Green	Good	Low
   Orange	Moderate	Medium
   Red	Bad	High

Air Quality Indicator

This indicator uses an automatic sensor to display the air quality. This sensor uses an infrared light to detect airborne particles  The air purifier will take 30 seconds to detect the air quality each time it is turned on. During this time, the air quality indicator color will be blue. After 30 seconds, the air quality indicator color will change based on the detected air quality.

Sleep Mode

Sleep Mode uses the lowest possible fan speed to operate quietly.

• Tap to turn Sleep Mode on/off.
• Tapping or will also exit Sleep Mode.

Timer

You can set a timer between 1-12 hours.

1. Tap repeatedly (or press and hold   to set a time.
2. Once you choose a time, the timer will flash 5 times and start counting down.
3. The air purifier will automatically power off once the timer is finished.
4. To cancel a timer, tap repeatedly until the timer reads " - - - -·_ The timer will flash 5 times to confirm cancellation.

Note

• You can change the fan speed at any time while the timer is counting down. The timer will work with any mode.
• Pressing or unplugging the air purifier will cancel the timer.

Memory Function

The air purifier will remember its programmed settings while turned off and resume those settings when turned back on. The air purifier must remain plugged in for the memory function to work.
Note: The air purifier will not remember timers.

ABOUT THE FILTER

The True HEPA Combination Filter uses a 3-stage filtration system to purify air.

1. Nylon Pre-Filter
   Captures large particles such as dust. lint, fibers, hair, and pet fur.
   Maximizes the life of the True HEPA Filter by protecting it.
2. H13 True HEPA Filter
   Removes at least 99.97%  of airborne particles 0.3  micrometers (µm) in diameter.
   Filters small particles such as fine dust, smoke particles, and allergens such as pollen and pet dander.

3. Custom High-Efficiency Activated Carbon Filter
   Physically adsorbs smoke, odors. and fumes.
   Customized using Levoit's exclusive ARC Formula􀁯 to be especially effective for cooking smells and pet odors in a multi­pet household.
   The ARC Formula extends the life of the filter by chemically decomposing molecules trapped within the Activated Carbon Filter. which prevents oversaturation and second-hand pollution.
   Filters compounds such as formaldehyde, benzene. ammonia. hydrogen sulfide, and volatile organic compounds  (VOCs)



Note: Levoit air purifiers filter airborne particles 0.3 microns in size. Arovast Corporation makes no claims that this air purifier helps reduce the COV/0-19 virus.

Setup Guide

Setting up the Levoit Tower True Hepa Air Purifier LV-H133-RBK is a straightforward process:

1. Remove the air purifier from the packaging and plug it into a power outlet.
2. Remove the plastic cover from the filter and insert the filter into the air purifier.
3. Press the power button to turn on the air purifier.
4. Press the auto mode button to automatically adjust the fan speed based on the air quality in your space.
5. Use the touch controls to adjust the fan speed, set the timer, and enable sleep mode or the child lock feature.

CARE & MAINTENANCE

Cleaning the Air Purifier

1. Wipe the outside of the air purifier with a dry cloth. Do not clean with water or any other liquid to avoid risk of electric shock.
2. Clean the outside of the filter with a brush or vacuum hose each month to prevent buildup of hair or dust Do not clean the filter with water or other liquids.

Cleaning the Air Quality Sensor

If the air quality sensor is blocked by accumulated dust, the air quality indicator may not work correctly.

1. Unplug the air purifier.
2. Open the sensor cover.

3. Clean the sensor lens with a damp cotton swab. {Figure 3.1]



4. Dry the sensor lens with a dry cotton swab.
5. Close the sensor cover.

Check Filter Indicator

, will light up as a reminder to check the filter. The indicator is automatic. You may not need to change your filter yet. but you should check it when lights up.

Resetting the Check Filter Indicator

Reset the Check Filter Indicator when:

• lights up.
  • Replace the filter (see page 12).
  • Turn on the air purifier.
  • Press and hold , for 3 seconds.
  • The light will turn off after the filter indicator is successfully reset.
• The filter was changed before lit up.
  1. Press and hold ,, for 3 seconds until lights up.
  2. Press and hold '' again for 3 seconds.
  3. The light will turn off after the filter indicator is successfully reset.

Storage

If not using the air purifier for an extended period of time. wrap the filter in plastic packaging and store in a dry place to avoid moisture damage.

When Should I Replace the  Filter?
The filter should be replaced every 6-8 months. You may need to replace your filter earlier or later depending on how often you use your air purifier. Using your air purifier in an environment with relatively high pollution may mean you will need to change the filter more often. even if ,lfil, is off.
You may need to replace your filter if you notice:

• Increased noise when the air purifier is on
• Decreased airflow
• Unusual odors
• A visibly clogged filter

Note: To maintain the performance of your air purifier, only use official Levoit filters. For more information, contact Customer Support.

Replacing the Filter

1. Unplug the air purifier, then remove the filter cover. [Figure 4.1]



2. Remove the old filter. [Figure 4.2]



3. Clean any dust or dirt from inside the housing. [Figure 4.3]



4. Unwrap the new filter and place it into the housing. Make sure the pull tabs are facing out. [Figure 4.4]



5. Replace the filter cover onto the housing. [Figure 4.5]



6. Plug in and turn on the air purifier. Press and hold, fill, for 3 seconds to reset it

Troubleshooting

Problem	Possible Solution
Air purifier will not turn on or respond to button controls.	- Plug in the air purifier.  - Check to see if the power cord is damaged. If it is, stop using the air purifier and contact Customer Support - Plug the air purifier into a different outlet.  - Air purifier may be malfunctioning. Contact Customer Support
Air purifier makes an unusual noise when the fan is on.	- Make sure the filter is properly in place with plastic packaging removed  - Replace the filter (see page 12). - Air purifier may be damaged, or a foreign object may be inside. Stop using the air purifier and contact Customer Support (see page 18). Do not try to repair the air purifier.
Airflow is significantly reduced.	- Make sure the filter’s plastic packaging is removed. - Tap to increase the fan speed.  - Leave at least 15 in / 38 cm of clearance on all sides of the air purifier. <br>  - Replace the filter
Poor air purification quality.	- Tap to increase the fan speed.  - Make sure no objects are blocking the top or sides of the air purifier for proper airflow.  - Close doors and windows while running the air purifier.  - Make sure the filter is removed from its plastic packaging and properly in place (see page 7).  - If the room is larger than 442 ft² / 41 m², air purification will take longer. The air purifier may not be as effective in significantly larger rooms. - Replace the filter
The air purifier is producing an unpleasant odor.	- Replace the filter - Make sure that the air purifier is in a room where the relative humidity is less than 85% RH. Higher humidity levels may cause mildew to grow on the filter.
is still illuminated after replacing the filter.	- Reset
has not turned on within 8 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used. If you don’t use your air purifier often, will take longer to turn on.
turned on before 6 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used. If you run your air purifier frequently, will turn on sooner.

WARRANTY

Arovast Corporation ("Arovast") warrants this product to the original purchaser to be free from defects in material and workmanship, under normal use and conditions, for a period of 2 years from the date of original purchase.

Pros & Cons

Pros

• Effective at removing airborne particles
• Sleek, modern design
• Quiet operation in sleep mode
• Real-time air quality indicator
• Child lock and Energy Star certified

Cons

• May be expensive for some budgets
• Filter replacements can be costly

Customer Reviews

Customers have praised the Levoit Tower True Hepa Air Purifier LV-H133-RBK for its effectiveness in removing airborne particles, quiet operation, and stylish design. However, some have noted that the filter replacements can be expensive and that the air quality indicator may be overly sensitive.
