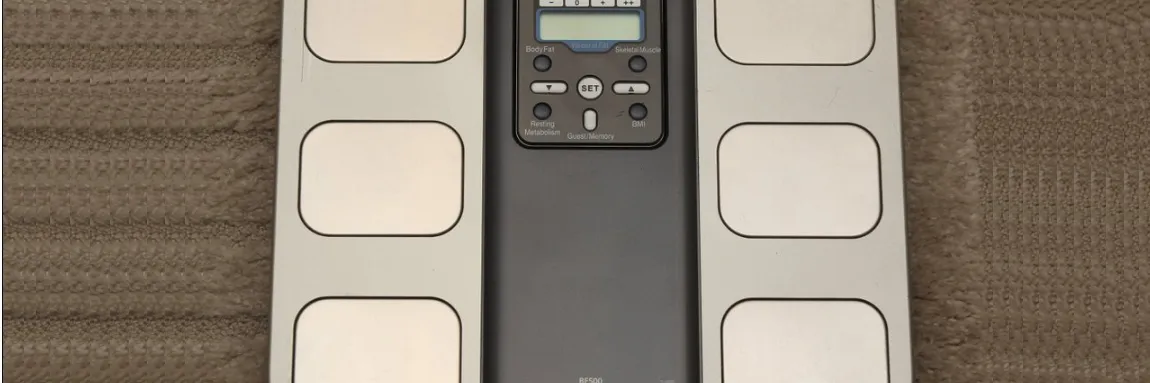

Introduction of Omron Body Composition Monitor HBF-500CAN

Composition Monitor Omron provides comprehensive health insights by measuring key parameters such as body fat percentage, visceral fat, and body mass index (BMI). Utilizing advanced OMRON 8-sensor technology, it delivers accurate readings for both adults and children aged six and up. With a user-friendly interface, this monitor is designed for easy operation. Priced at approximately $89.99, it serves as an essential tool for those looking to track their health and fitness progress effectively.

The Body Composition MONITOR with Scale is easy to use. The monitor displays the calculated value of body fat percentage, skeletal muscle percentage, resting metabolism, Body Mass Index(BMI) and visceral fat level using the Bioelectrical

Impedance Method (BI). Set your personal data using a Personal Number. Push the power switch on, select your Personal Profile Number, and step onto the measurement platform. The personal memory function can be used to store data for up to four personal profiles. The memory function stores the measurement results for each personal profile from 1 day, 7 days, 30 days and 90 days ago.

Components

Your HBF-500CAN comes with the following components:

• Main Unit
• Instruction Manual
• 4 “AA” Batteries

SPECIFICATIONS

Model: OMRON Body Composition Monitor with Scale - HBF-500CAN

Display:

• Weight display: 0 to 300 lb with 0.2 lb increments (0 to 135 kg with 0.1 kg increments)
• Body fat percentage: 5.0 to 60.0% with 0.1% increments
• Skeletal muscle percentage: 5.0 to 50.0% with 0.1% increments
• BMI: 7.0 to 90.0 with 0.1 increments
• Resting metabolism: 385 to 5000 kcal with 1 kcal increments
• Visceral fat level: 30 levels with 1 level increments
  • The age range for the skeletal muscle percentage, resting metabolism and visceral fat level is 18 to 80 years old.
  • The age range for the body fat percentage classification is 20 to 79 years old.
  • BMI classification: (Underweight/0 (Normal) / + (Overweight) / ++ (Obese) with 12 levels of Bar display
  • Body fat percentage classification: (Low)/0 (Normal) / + (High) / ++ (Very High) with 12 levels of Bar display
  • Visceral fat classification: 0 (Normal) / + (High)
  • Memory: 1 day/7 days/30 days/90 days

Set Ranges:

• Height: 3' 4" to 6' 6" (100.0 to 199.5 cm)
• Age: 10 to 80 years old
• Gender: Male/Female
• Power Supply: 4 AA batteries
• Battery Life: Approximately 1 year (when used four times a day)
• Operating Temperature/Humidity: +50°F to +104°F (+10°C to +40°C), 30 to 85% RH
• Storage Temperature/Humidity/Air Pressure: -4°F to +140°F (-20°C to +60°C), 10 to 95% RH, 700 - 1060 hPa

External Dimensions

• Display Unit: Approximately 11 7/8" (W) x 1 3/8" (H) x 6 1/8" (D)
• Main Unit: Approximately 11 7/8" (W) x 2 1/4" (H) x 12 3/4" (D)
• Weight: Approximately 4.85 lb (including batteries)

Contents:

• Main Unit,
• 4 AA batteries,
• Instruction Manual

UPC Code

• 0 73796 50031 3

WARNING
This monitor cannot be used with a cardiac pacemaker or other implanted medical devices. The Body Composition MONITOR with Scale passes an extremely weak electrical current of 50kHz and less than 500 µA through your body to determine the amount of fat tissue when taking a measurement. This weak electrical current is not felt while using the monitor. Do not use, or allow others to use, this monitor if fitted with a cardiac pacemaker or other medical device.

CAUTION
Read all of the information in the instruction manual and any other literature in the box before operating the unit.

SAFETY INFORMATION

To assure the correct use of the product, basic safety measures should always be followed including the warnings and cautions listed in this instruction manual.

SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property.

OPERATING THE DEVICE

• This monitor cannot be used with a cardiac pacemaker or other implanted medical devices. The Body Composition MONITOR with Scale passes an extremely weak electrical current of 50kHz and less than 500µA through your body when taking a measurement to determine the amount of fat tissue. This weak current is not felt while using the monitor. Do not use, or allow others to use, this monitor if fitted with a cardiac pacemaker or other medical device.
• Contact your physician or healthcare provider before beginning a weight reduction or exercise program.
• Keep the monitor out of the reach of young children. Cord can become entangled and cause strangulation.
• Consult your physician before using this monitor when pregnant.
• Persons with disabilities or persons that are physically frail should be assisted by another person when using this monitor or use a handrail, a walker, or other support device to prevent falling when stepping on and off the monitor.
• Read all of the information in the instruction manual and any other literature in the box before operating the unit.
• Do not use mobile telephones, microwave and other devices that generate strong electrical or electromagnetic fields near the monitor. This may result in an operational failure.
• Do not step on the edge or the display area of the measurement platform. The monitor may tilt. The display unit may be damaged.
• Do not step on the measurement platform when your body or feet are wet, for example after taking a bath or shower. You may slide and lose your balance.
• Do not place the monitor on a cushioned floor surface such as a carpet or mat. A correct measurement may not be possible.
• Do not use the unit on slippery surfaces such as tile floors or wet floors. A monitor may move. You may lose your balance and fall.
• Do not jump on the measurement platform. You may lose your balance and fall. The monitor may be damaged.
• Stand on the measurement platform with bare feet. Attempting to stand on the measurement platform when wearing socks may cause you to slip and lose your balance.
• Should battery fluid leak and contact your eyes, skin or clothing immediately rinse with plenty of clean water. Immediately contact your physician in case of eye contact. (or skin, but not clothing.)
• Dispose of the device, batteries, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.
• Operate the unit only as intended. Do not use for any other purpose.
• This unit is intended for home use only. It is not intended for professional use in hospitals or other medical facilities. This unit does not support the standards required for professional use.

CARE AND MAINTENANCE

• Do not disassemble or modify the unit. Changes or modifications not approved by Omron Healthcare will void the user warranty.
• Do not subject the monitor to strong shocks, such as dropping the unit on the floor.
• Do not submerge the device or any of the components in water.

KNOW YOUR UNIT

Display

WARNING
Contact your physician or healthcare provider before beginning a weight reduction or exercise program.

USING THE DISPLAY UNIT
Extend the cord as illustrated to the right.

STORING THE DISPLAY UNIT

1. Coil the cord into the Display Unit Holder.
   Make sure the cord is coiled evenly, and does not stick out of the Display Unit Holder.

2. Place the Display Unit into the Display Unit Holder.
   The display unit will click into place.



POWER SWITCH
The power will automatically switch off in the following conditions:

1. If the monitor is not used within one minute of 0.0 lb appearing on the display.
2. If no information is entered for 5 minutes when entering personal data.
3. If the monitor is not used for 5 minutes after the measurement results are displayed.
4. Five (5) minutes after the result is displayed when measuring weight only.

Description

Body Composition Monitor is a sleek and compact device that fits easily into any home environment. It features a sturdy platform with metal contacts that users step on to take measurements. The full-body sensor technology ensures accurate and consistent readings, while the automated measurement mode simplifies the process, requiring minimal user input.

The device includes a clear LCD display that shows all measured data in an easy-to-read format. This makes it simple for users to track their progress over time and make informed decisions about their health and fitness routines.

BATTERY INSTALLATION

1. Locate the Battery Cover on the back of the unit.
   1. Press the tab on the battery cover in the direction of the arrow to release the cover as illustrated.
   2. Pull the tab of the cover upwards.
2. INSTALL 4 “AA” SIZE BATTERIES so the + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated in the battery compartment.
3. Replace the battery cover.
   1. Align the hooks on the battery cover with the slots in the battery compartment.

   2. Push the battery cover until the tab clicks into place.



BATTERY REPLACEMENT
Measurement values and personal profiles stored in the memory will not be deleted during battery replacement. The date and time will need to be set when monitor is turned on.

When the Low Battery Indicator appears on the display screen remove all four worn batteries. Replace with four new batteries at the same time.

NOTES:

• New batteries will last for approximately one year if the unit is used four times per day. Trial batteries supplied with the unit may have a shorter life.
• Remove the batteries if you do not intend to use the unit for a period of three months or longer before placing in storage.

CAUTION:
Should battery fluid leak and contact your eyes, skin or clothing immediately rinse with plenty of clean water. Immediately contact your physician.
CAUTION:
Dispose of the device, batteries, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

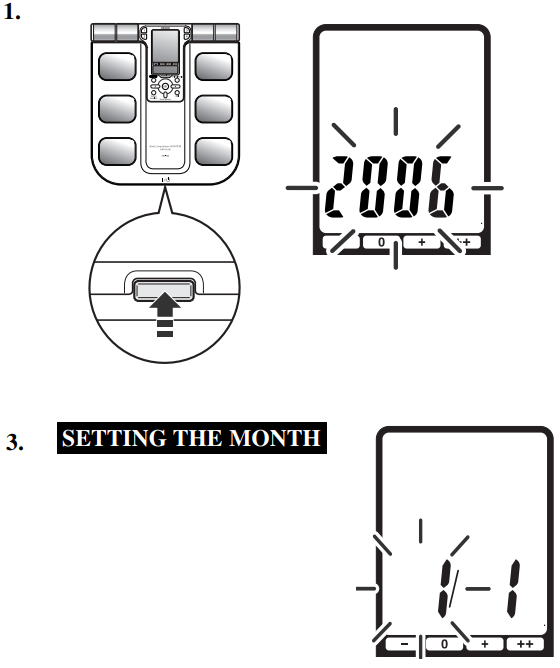

SETTING THE DATE AND TIME

When the power is turned on for the first time, it is necessary to set the date and time.

1. Press the Power Switch to turn the monitor ON.
   If this is the first time that the monitor has been turned on, the year setting flashes.
2. SETTING THE YEAR
   1. Press the to change the year.
   2. Press the SET button.
      The year is set.
      The month flashes on the display.
3. SETTING THE MONTH
   1. Press the to change the month.

   2. Press the SET button.
      The month is set
      The day flashes on the display.



4. SETTING THE DAY
   1. Press the to change the day.
   2. Press the SET button.
      The day is set.
      The hour flashes on the display.
5. SETTING THE HOUR
   1. Press the to change the hour.
   2. Press the SET button.
      The hour is set.
      The minute flashes on the display.
6. SETTING THE MINUTE
   1. Press the to change the minute.

   2. Press the SET button.



The current settings for the year, month and day, hour and minute appear in this sequence on the display. The monitor automatically turns off.

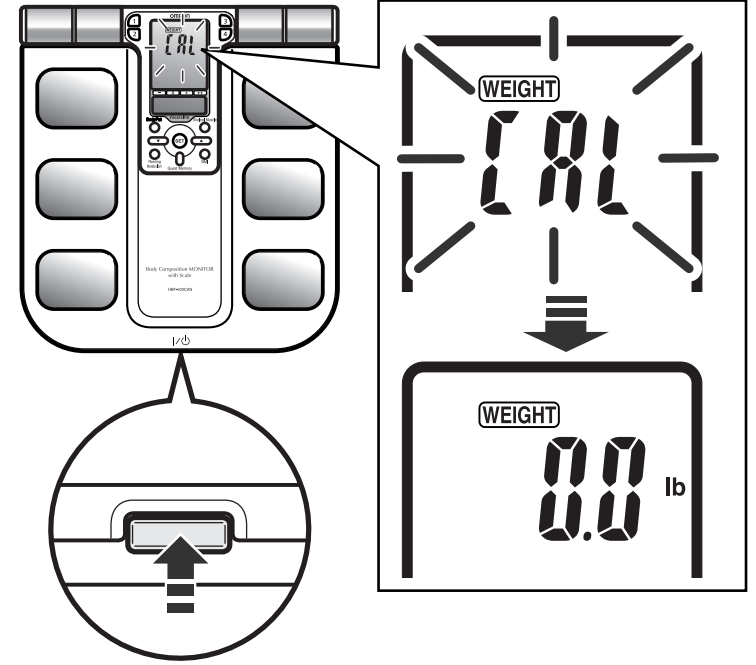

TO ADJUST THE DATE AND TIME

1. Turn the monitor on.
   The CAL symbol blinks on the display, then the display changes to 0.0 lb. Wait until 0.0 lb appears on the display.
2. Press and hold the SET button.
   The year flashes on the display.

3. SETTING THE YEAR, to begin changing the Date and Time.



SETTING PERSONAL DATA

To measure Body Composition, your personal data must be set. Your personal data includes your age, gender and height. The Body Composition Monitor with SCALE provides two options to enter your personal data.

Select a personal profile number to save your personal data. The monitor saves up to 4 personal profiles. Select a number 1 through 4. Use this number to enter your personal data and when taking a measurement.

Select Guest/Memory button if you do not want your personal data stored in the memory. When you use the Guest option you will need to enter your personal data each time you take a measurement. Measurement results are not stored in the memory when the Guest option is used to take a measurement.

1. Press the Power Switch to turn the monitor ON.
   The CAL symbol blinks on the display, then the display changes to 0.0 lb.
   Wait until 0.0 lb appears on the display.
2. Lift the Display Unit out of the Display Unit Holder.
   NOTE: This monitor can be set to either the US or Metric System. Personal Profile and memory will be displayed by selected system.
   To change the US/Metric mode:
   1. Press and hold the △ UP button until “lb” and “kg” blink on the display.
   2. Press the to select the mode, “lb” or “kg”.

   3. Press the SET button to confirm the change.



3. Select a Personal Profile or GUEST as your Personal Data Option.
   1. Personal Profile
      Press the desired Personal Profile Number button (1 through 4). Press the SET button.
      NOTE:
      1. If no information has been entered for the Personal Profile Number you selected, the number and the symbols for gender, age and height blink on the display.
      2. If the personal data has been entered for the number, the Personal Profile Number blinks on the display.

   2. GUEST
      Press the Guest/Memory button.
      The Guest indicator appears.
      Press the SET button.
      The default value for age blinks on the display.



4. Enter your Personal Data



SETTING THE AGE

Set the age between 10 and 80.

1. Press the to change the age.
2. Press the SET button.
   The age is set.
   The gender symbols blink on the display.

SETTING THE GENDER

Set the gender to MALE OR FEMALE

1. Press the to change the gender.

2. Press the SET button.
   The gender is set.
   The default value for height blinks on the display.



SETTING THE HEIGHT

Set the height between 3’4” and 6’6 3/4”.
(Display range in metric display mode: 100.0 cm to 199.5 cm)

1. Press the to change the height.

2. Press the SET button.
   The height is set.



The current settings for age, gender, and height appear in this sequence on the display. The 0.0 lb symbol appears on the display. You can now take a measurement using the Personal Profile Number you selected or the Guest Mode.

CHANGING PERSONAL DATA

If your personal data changes, the information in the Personal Profile Number you selected must be changed for measurement results to be calculated correctly.

1. Press the Power Switch to turn the monitor ON.
   The CAL symbol blinks on the display, then the display changes to 0.0 lb.
   Wait until 0.0 lb appears on the display.
2. Lift the Display Unit out of the Display Unit Holder.
3. Select the Personal Profile Number you want to change.
   1. Press the Personal Profile Number button (1 thorough 4).
      The selected Personal Profile Number flashes once on the display.
   2. Press the SET button.
      The Personal Profile Number is set.
      The current SETTING for age blinks on the display.

4. Enter your personal data to begin changing the personal data.



DELETING PERSONAL PROFILE

1. Press the Power Switch to turn the monitor ON.
   The CAL symbol blinks on the display, then the display changes to 0.0 lb.
   Wait until 0.0 lb appears on the display.
2. Select the Personal Profile Number you want to delete.
   1. Press the Personal Profile Number button to select a Personal Profile Number.
      The display of the selected Personal Profile Number flashes once.
   2. Press the SET button.
      The Personal Profile Number is confirmed and the selected age setting blinks on the display.

3. Press the Guest/Memory button for 2 seconds.
   The personal data and measurement values are deleted from the memory. The Clr symbol appears on the display followed by the
   Personal Profile Number and the symbols for gender, age and height as illustrated below.



Setup Guide

To set up the Omron HBF-500CAN, follow these steps:

1. Place the monitor on a flat, hard surface.
2. Ensure the device is turned off before stepping on it.
3. Step onto the platform with bare feet, ensuring good contact with the metal sensors.
4. Hold still for a few seconds until the measurement is complete.
5. View your results on the LCD display.

No complex assembly or configuration is required; the device is ready for use right out of the box.

CARE AND MAINTENANCE

To keep your Body Composition MONITOR with Scale in the best condition and protect the monitor from damage follow the directions below:
Clean the monitor with a soft dry cloth. Do not use abrasive or volatile cleaners. The monitor is not waterproof.

CAUTION:
Do not submerge the device or any of the components in water.

Store the monitor in a safe and dry location. Do not expose the monitor to direct sunlight, extreme hot or cold temperatures or humidity. Thoroughly dry any moisture off the monitor before storing.

CAUTION:
Do not submerge the device or any of the components in water.

CAUTION:
Do not subject the monitor to strong shocks, such as dropping the unit on the floor.

• Remove the batteries if the monitor will not be used for three months or longer.
• Store the Display Unit in the Main Unit as shown in the figure.
• As you place the lower portion of the Display Unit, it clicks and fits into the Display Unit Holder.
• Do not crease the cord when storing in the Display Unit Holder.
• Use the monitor consistent with the instruction provided in this manual.

CAUTION:
Do not disassemble or modify the unit. Changes or modifications not approved by Omron Healthcare will void the user warranty.

ERROR INDICATORS

TROUBLESHOOTING

Warranty

Your HBF-500CAN Body Composition MONITOR with Scale, excluding the batteries, is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase, when used in accordance with the instructions provided with the unit. The above warranties extend only to the original retail purchaser.

HBF-500CAN Pros & Cons

Pros

• Accurate Measurements: Full-body sensor technology ensures precise readings.
• User-Friendly: Automated measurement mode makes it easy to use.
• Comprehensive Data: Measures multiple health metrics including body fat percentage, BMI, and visceral fat area.
• Affordable: Priced competitively compared to other body composition monitors.

Cons

• Battery Replacement: Batteries may need frequent replacement depending on usage.
• Sensitivity to Foot Placement: Requires proper foot placement for accurate readings.
• No Wireless Connectivity: Does not support wireless connectivity for data syncing.

Customer Reviews

Customers generally appreciate the accuracy and ease of use of the Omron Body Composition Monitor HBF-500CAN. Many reviewers have noted that the device provides consistent readings and is easy to set up and operate. However, some users have mentioned that the battery life could be better and that proper foot placement is crucial for accurate measurements.
