Perlesmith Mobile TV Cart PSTVMC04

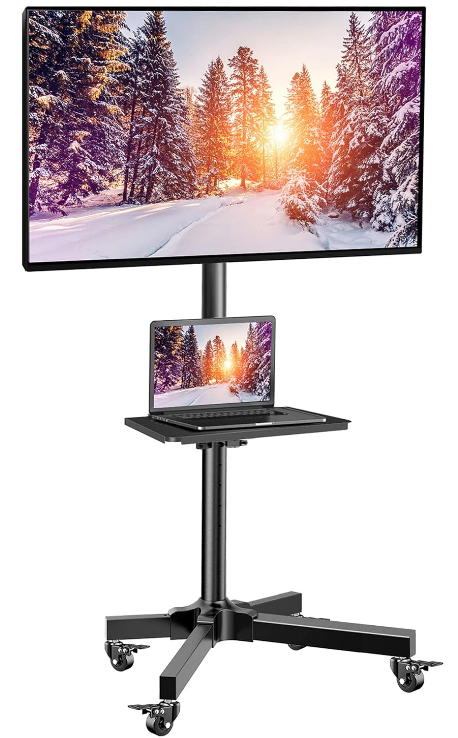

Perlesmith Mobile TV Cart PSTVMC04 is a versatile and durable TV mounting solution designed for portability and convenience. This TV cart is ideal for workplaces, residences, and classrooms, and it can accommodate TVs weighing up to 100 pounds and measuring 32 to 75 inches in size. It has adjustable height settings, locking wheels for stability, and a shelf to hold extra equipment. With its elegant design and simple construction, the PSTVMC04 provides a practical and stylish method to display your TV in a variety of settings.

Tools Needed

(Not included)

Supplied Parts And Hardware

Supplied Parts

Hardware for Assembling the TV Cart

Hardware for Attaching TV Brackets to TV

Detailed Specifications

The Perlesmith Mobile TV Cart PSTVMC04 boasts several impressive features, including:

• Compatibility with most TVs up to 65 inches
• Durable and stable construction with a weight capacity of up to 132 lbs
• Smooth-rolling casters for easy mobility
• Integrated cable management system
• Adjustable height options
• Easy assembly with included tools

Check the VESA Pattern of Your TV before the Installation

• 100 mm ≈ 4 in.
• 200 mm ≈ 7 7/8 in.
• 300 mm ≈ 11 3/4 in.
• 400 mm ≈ 15 3/4 in.

Minimum VESA pattern: 100mm/4 in.(W)x100mm/4 in.(H)

If your TV VESA is greater than 400×400 mm/16×16 in. or less than VESA 100x100mm/4x4in., this TV cart is NOT compatible.

Assembly Instructions

Step 1
Secure Wheels to the Square Tubes

Step1-1
Turn this nut to adjust the height of the wheel [03]

Step1-2
Secure wheels [03] to the square tubes [01] and [02] by using the provided wrench [H]

Step 2
Secure Wheels to the Square Tubes


Secure the square tubes [01] and [02] to the tube connector [03] using M6x60mm bolts [A] and socket plate [B]

Step 3
Secure the Poles [06] and [09] to the Base

1. Attach tube connector cover [05] to the tube connector [04].

2. Secure the lower pole [06] to the tube connector [04] upper using M6x10mm bolts [C] and Allen key [F].

3. Insert the pole cover [08] into the top of the pole [09].

4. Thread the pole connector [07] to the top of the lower pole [06]. Thread the pole [09] to the pole connector [07].



Step 4
Secure Shelf [10] to Pole [06]

Step 4.1
Secure shelf supports [11] to the shelf [10] using M6 nuts [E]

Step 4.2
Secure shelf support connecting plate [12] to the pole [06] using M6x10mm bolts [C]

Step 4.3
Secure shelf [10] to the shelf support connecting plate [12] using M6x10mm bolts [C]

Step 5
Secure Square Plate to Upper Pole [09]

Step 5.1
Slide the square plate connector and rubber pad [13] over the top of the pole [09] and secure the connector using Small Allen Key [F].

Step 5.2
Secure the square plate [14] to square plate connector [13] using M6x10mm bolts [C] and M6 washers [D].

Step 6
Secure the Brackets to the TV

Note: The bolts are shown in accordance with the actual size

Note: The washers and spacers are shown in accordance with the actual size

Select TV Bolts

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.

• Too short will not hold the TV.

• Too long will damage the TV.



Please Note: The provided TV bolts meet most of today’s TVs design. However, some TVs require special bolts which may not be in the hardware bag. In this case, we offer our “PSUHP” Universal Hardware Kit which provides a large selection of bolts that can meet the demand of older and unique
applications.
Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding of how to install the TV bolts or spacers.

CAUTION: Ensure the TV brackets are EQUALLY CENTERED on your  TV AND securely fastened in place.

Option A (For Flat Back TV)


Option B (For Round Back TV)

Option C (For TV with A “Bump”)
Spacers may be necessary for 2 holes ONLY.

Option D
For cable interference or inset holes, use spacers to create extra space between the TV and TV brackets

Step 7
Hang TV to TV Plate [15]

• Hang the TV with brackets to the TV plate

• Push the bottom of the TV to the TV plate

Step 8
Secure TV to TV Plate [15] Tighten the safety bolt on the bottom of the TV brackets to secure TV to the square plate.

Step 9
Cables Management

Setup Guide

Setting up the Perlesmith Mobile TV Cart PSTVMC04 is easy and straightforward.

Here are the steps to follow:

1. Unbox the mobile TV cart and lay out all the parts.
2. Use the included tools to assemble the cart according to the instructions provided.
3. Secure your TV to the cart using the included mounting hardware.
4. Adjust the height of the cart to your desired viewing angle.
5. Plug in your TV and any other devices, using the integrated cable management system to keep cords organized.
6. Use the smooth-rolling casters to move the cart to your desired location.

Important Safety Information

• Please read through these instructions completely before attempting installation. If you do not understand the instructions or have any concerns or questions.

• Check package contents against Supplied Parts and Hardware List to assure that all components were received undamaged. Do not use damaged or defective parts.

• Not all parts and hardware included will be used.

• Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

• Please check https://www.perlesmith.com/ for more products and company information.

Tip-Over Warning

• Serious or fatal crushing injuries can occur from tip over. To help prevent tipping over:

• Never allow children to climb, stand, hang, or play on any part of the TV or TV cart.

• Use tip over restraint or anchor to attach the TV cart to the wall.

• Use of tip-over restraints may only reduce, but not eliminate the risk of tip-over.

Troubleshooting

Here are some common problems and solutions to help you troubleshoot the Perlesmith Mobile TV Cart PSTVMC04:

• Problem: The cart is wobbly or unstable.
  Solution: Make sure all screws and bolts are tightly fastened and that the cart is on a level surface.
• Problem: The TV is not securely attached to the cart.
  Solution: Double-check that the mounting hardware is properly attached and that the TV is securely fastened.
• Problem: The casters are difficult to move.
  Solution: Make sure the casters are unlocked and that the cart is on a smooth surface.

Pros & Cons

Pros

• Compatible with most TVs up to 65 inches
• Durable and stable construction
• Smooth-rolling casters for easy mobility
• Integrated cable management system
• Adjustable height options

Cons

• May be too large for some spaces
•
• Some users may find the assembly process challenging
