Features: Pyle 8’’ Wireless BT Portable Speaker PPHP854B User Manual
Content

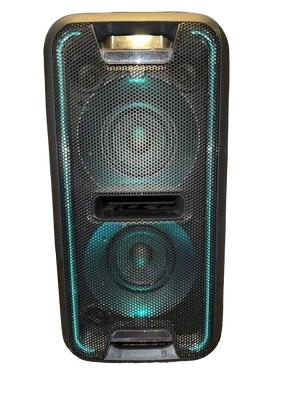

Introducing Portable Speaker PPHP854B
Looking for a powerful and portable sound solution? Look no further than the Pyle 8'' Wireless BT Portable Speaker PPHP854B. This versatile speaker offers high-quality audio in a compact and wireless package, perfect for both indoor and outdoor use. With a sleek and modern design, this speaker is sure to be a stylish addition to any home or backyard. The estimated price for this speaker is $89.99, making it an affordable option for those looking to upgrade their audio setup. The PPHP854B is set to launch in the coming weeks, so be sure to keep an eye out for this exciting new product!
What’s in the Box
- PA Speaker System
- Remote Control
- Power Adapter
- Straps
Portable Speaker PPHP854B Technical Specs
- Material: Polypropylene (PP)
- Max Power Output: 300 Watt Max
- Sound System: 8’’ -inch Subwoofer
- Impedance: 3.0 Ohm
- Frequency Response: 50Hz-12KHz
- USB Interface Type: 2.0
- Digital Audio File Support: MP3
- Maximum USB Flash Support: 32GB
- Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
- Battery Life: Up to 2 Hours (Charge Time: Approx. 4 Hours)
- Rechargeable Battery: 3.7V, 1800mAh – 6.66 Wh
- Power Supply: 120/240V, Switchable (5V/2A Power Adapter)
- Dimensions (L x W x H): 9.9’’ x 6.5’’ x 11.8’’ -inches
Features
- True Wireless Stereo System
- Portable Speaker System
- High-Powered PA Loudspeaker Style
- Wireless BT Music Streaming Ability
- Multi-Color Flashing LED Party Lights
- Built-in Rechargeable Battery
- FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- 6.5mm Microphone input
- Battery Level LED Indicator Lights
- Rugged & Durable Molded Cabinet Design
- Convenient Extendable Carry Handle
- For Indoor / Outdoor Use
Product Details of Pyle 8'' Wireless BT Portable Speaker
- 8'' woofer and wide-range tweeter for full-range sound
- Bluetooth connectivity for wireless streaming
- Rechargeable battery for up to 5 hours of playtime
- Built-in microphone for hands-free calling
- USB charging port for charging mobile devices
Wireless BT Streaming
- Built-in BT for Wireless Music Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Devices
- Smartphones, Tablets, Laptops, Computers, etc.
- Wireless BT Version: 4.2
- Wireless BT Network Name: ‘PYLEUSA’
- Wireless Range: Up to 32’ ft.
FRONT PANEL FUNCTIONS
- PPHP854B Master volume control
- Charge LED indicator
- DC 5V input jack
- Short press to choose input signal, press and hold to turn ON/OFF light
- Next/select saved radio station.
- Play/Pause/TWS function/In FM mode, press and hold to search radio station automatically and save.
- Previous/select saved radio station
- AUX input jack
- USB input jack
- Microphone input jack
- Display screen
REMOTE CONTROL FUNCTIONS
- Power: Used to turn on and off the MP3 player power
- MODE: Used to switch the AUX/ USB/Wireless BT/Radio
- Mute button
- Play/Pause/Press and hold for TWS/ In FM mode, press and hold to search radio station automatically and save
- Next song/In FM mode, short press to select saved radio station
- Previous song /In FM mode, short press to select saved radio station
- EQ solution
- Increase volume
- Choose song number directly/ In FM mode, choose FM Frequency directly
- Choose USB or SD signal directly (Only suitable for models with USB & SD both)
- Decrease volume
- Repeat the song
TWS FUNCTION
To increase the sound effect, our unit provides TWS function as follows:
Turn ON BT mode on your device and connect the machine.
Press and hold each control board “TWS” button more than 3’s, and you will see “ON” on display, unit will start to connect to the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.
Remark: After connection, press and hold again one of the control board “TWS” buttons more than 3’s, you will see “OFF” on display, unit’s TWS disconnection.
Wireless BT Portable Speaker Setup PPHP854B Guide
- Fully charge the speaker using the included power adapter
- Press the power button to turn on the speaker
- Activate Bluetooth on your mobile device and search for the speaker
- Select the speaker from the list of available devices to connect
- Start playing your favorite tunes and enjoy the high-quality sound!
WARNING
DO NOT place objects on top of the device, as objects may scratch the device.
DO NOT expose the device to dirty or dusty environments.
DO NOT insert any foreign objects into the device.
DO NOT expose the device to strong magnetic or electrical Field.
DO NOT use the device in the rain
Please check with your Local Authority or retailer for proper disposal of electronic products.
DO NOT disassemble the device. Only a certified service technician should perform the repair.
The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.
The illegal operation may cause personal injury, which could be fatal and may cause damage to property.
TROUBLESHOOTING
| Fault | Possible Cause | Solution |
|---|---|---|
| No sound | 1. No input sound source.<br>2. Volume is too low. | 1. Use a better music signal.<br>2. Adjust the volume. |
| Distortion of sound | 1. Volume too high.<br>2. Speaker may be damaged. | 1. Turn down the volume.<br>2. If the speaker is damaged, repair or replace it. |
| Karaoke does not work | 1. Microphone plug is not fully inserted.<br>2. Microphone switch is not on.<br>3. Microphone volume knob is at the lowest position. | 1. Plug the microphone properly into the socket.<br>2. Turn on the microphone switch.<br>3. Adjust microphone volume properly. |
| MP3 does not play | 1. The audio format in the U disc is incorrect.<br>2. Improper operation has caused a processing disorder.<br>3. USB disc is disconnected. | 1. Convert audio format into MP3 format.<br>2. Reboot the machine.<br>3. Insert USB disc properly. |
Pros & Cons
Pros about PPHP854B
- Powerful and high-quality sound
- Wireless connectivity for easy streaming
- Long-lasting rechargeable battery
- Built-in microphone for hands-free calling
- Affordable price point
Portable Speaker PPHP854B Cons
- May not be loud enough for large outdoor gatherings
- Battery life could be longer
Customer Reviews
Customers are raving about the Pyle 8'' Wireless BT Portable Speaker PPHP854B, with many praising its high-quality sound and wireless connectivity. Some common complaints include the battery life not being long enough and the speaker not being loud enough for larger outdoor gatherings.
Faqs
How do I set up a Bluetooth connection between my device and the Pyle 8" Wireless BT Portable Speaker PPHP854B?
Turn on the Pyle 8'' Wireless BT Portable Speaker PPHP854B and turn on Bluetooth on your device to establish a connection. Go to the Bluetooth settings on your device, search for compatible devices, and choose "PPHP854B." When asked for a code, type "0000." Your device is now connected when the speaker makes a sound to confirm the connection.
Can I use the Pyle 8'' Wireless BT Portable Speaker PPHP854B speaker while it's charging?
The Pyle 8" Wireless Bluetooth Portable Speaker PPHP854B is functional during the charging process. But whenever possible, it's advised to let the speaker charge completely before using it to extend the life of the battery.
How can I connect something other than Bluetooth to the Pyle 8" Wireless BT Portable Speaker PPHP854B?
The Pyle 8'' Wireless BT Portable Speaker PPHP854B is adaptable for many audio sources and live performances since, in addition to Bluetooth, it supports a wide range of inputs, such as USB, SD card, FM radio, and offers inputs for a microphone and guitar.
What controls are available for the 8-inch Pyle Wireless BT Portable Speaker PPHP854B's bass and treble?
The Pyle 8-inch Wireless Bluetooth Portable Speaker PPHP854B has equalization settings built right in. The speaker panel's knobs allow you to change the treble and bass levels. To adjust the sound to your liking, turn the knobs clockwise to raise and counterclockwise to decrease the levels.
Is it feasible to combine several Pyle 8" Wireless Bluetooth Portable Speakers PPHP854B to get a louder sound?
For synchronized audio, the Pyle 8" Wireless Bluetooth Portable Speaker PPHP854B does not allow wireless connecting out of the box. For a combined audio configuration, you can, however, use external cables to connect numerous speakers through their respective audio input and output ports.
If my Pyle 8" Wireless Bluetooth Portable Speaker PPHP854B is not turning on, what should I do?
Make sure your Pyle 8'' Wireless BT Portable Speaker PPHP854B is correctly charged or plugged in before trying to turn it on. To ensure there is electricity, check the outlet and the power cable. For additional help, go to the user manual or get in touch with customer service if the issue continues.
How long does the Pyle 8'' Wireless BT Portable Speaker PPHP854B take to fully charge and how long does the battery last?
The battery life of the Pyle 8" Wireless Bluetooth Portable Speaker PPHP854B varies according on usage and volume, but it usually lasts up to 4 hours after a full charge. Recharging the speaker from a totally discharged battery takes roughly six hours.
Is it possible to take calls using the Pyle 8-inch Wireless Bluetooth Portable Speaker PPHP854B?
Yes, when a call comes in while your smartphone is paired with the Pyle 8'' Wireless BT Portable Speaker PPHP854B via Bluetooth, the music will stop and you may use the speaker's built-in microphone to answer it, enabling hands-free discussions.
How do I reset the Pyle 8'' Wireless BT Portable Speaker PPHP854B's Bluetooth pairing?
Turn off both your Bluetooth device and the speaker to reset Bluetooth pairing. After turning on the Pyle 8'' Wireless BT Portable Speaker PPHP854B, hold down the Bluetooth button for a brief period of time until an indicator light flashes or a tone is heard, indicating that pairing mode is enabled on the speaker. Link your device again as a fresh connection.
What is the Pyle 8'' Wireless BT Portable Speaker PPHP854B's Bluetooth connection range?
The Pyle 8" Wireless Bluetooth Portable Speaker PPHP854B has a Bluetooth connection range of about 30 feet (9 meters) when there are no obstructions in the way. The surroundings and any physical barriers separating the speaker and the Bluetooth device could affect the range.
