Introduction of Pyle Speaker PDMR54BTB

Introducing the Pyle Speaker a powerful and versatile Bluetooth speaker that delivers high-quality sound for all your music needs. With a sleek and stylish design, this speaker is perfect for both indoor and outdoor use. The estimated price of the PDMR54BTB is $80, making it an affordable option for those looking for a reliable and portable speaker. The launching date is set for August 1st, 2023.

Wall Mount Speaker Models of Pyle Speaker PDMR54BTB

PDWR54BTB-Black

• System Includes (2) Speakers
• Active & Passive Speaker System
• Built-in 2 Channel Amplifier
• Bluetooth Wireless Music Streaming
• Marine Grade waterproof Construction
• 2-Way Full Range Stereo Sound
• Custom Tooled Design for High Power and Deep Bass Response
• Removable & Rust Proof Aluminum Speaker Grills
• Gold Plated Speaker Plug Terminals
• RCA(L/R) Audio Input Connector Jacks
• Single RCA Speaker Output Connector Jack
• Rotary Volume Control
• Spring Loaded Mounting Bracket Included
• Heavy-Duty Engineered Plastic Cabinet
• Built-in Capacitor Speaker Protection
• Ability to Daisy-Chain Active Speaker to Passive Speaker as    Stereo System
• Excellent for Monitor or Surround Sound Applications
• Great by the Pool, on the Patio or in the Boa
• or Indoor / Outdoor Use

Technical Specs

• Marine Grade IP44 Rating
• 5.25”' Long Throw Woofers
• 1.0'' Polymer Dome Tweeters
• Magnet Size: 10oz.
• Cone Material: PP Mica + Rubber Surround
• 600 Watt Rated Peak Power
• 300 Watt Rates RMS Power
• Frequency Response: 90Hz-20kHz
• 8 Ohm Impedance
• Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88''
• Weight : 9.5 lbs.
• Sold as: Pair

PDWR64BTB-Black

• System Includes (2) Speakers
• Active & Passive Speaker System
• Built-in 2 Channel Amplifier
• Bluetooth Wireless Music Streaming
• Marine Grade waterproof Construction
• 2-Way Full Range Stereo Sound
• Custom Tooled Design for High Power and Deep Bass Response
• Removable & Rust Proof Aluminum Speaker Grills
• Gold Plated Speaker Plug Terminals
• RCA(L/R) Audio Input Connector Jacks
• Single RCA Speaker Output Connector Jack
• Rotary Volume Control
• Spring Loaded Mounting Bracket Included
• Heavy Duty Engineered Plastic Cabinet
• Built-in Capacitor Speaker Protection
• Ability to Daisy-Chain Active Speaker to Passive Speaker as    Stereo System
• Excellent for Monitor or Surround Sound Applications
• Great by the Pool, on the Patio or in the Boa
• For Indoor / Outdoor Use

Technical Specs

• Marine Grade IP44 Rating
• 6.5”' Long Throw Woofers
• 1.0'' Polymer Dome Tweeters
• Magnet Size: 13 oz.
• Cone Material: PP Mica + Rubber Surround
• 800 Watt Rated Peak Power
• 400 Watt Rates RMS Power
• Frequency Response: 70Hz-22kHz
• 8 Ohm Impedance
• Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
• Weight : 13.5 lbs.
• Sold as: Pair

PDWR54BTW-White

• System Includes (2) Speakers
• Active & Passive Speaker System
• Built-in 2-Channel Amplifier
• Bluetooth Wireless Music Streaming
• Marine Grade waterproof Construction
• 2-Way Full Range Stereo Sound
• Custom Tooled Design for High Power and Deep Bass Response
• Removable & Rust Proof Aluminum Speaker Grills
• Gold Plated Speaker Plug Terminals
• RCA(L/R) Audio Input Connector Jacks
• Single RCA Speaker Output Connector Jack
• Rotary Volume Control
• Spring Loaded Mounting Bracket Included
• Heavy Duty Engineered Plastic Cabinet
• Built-in Capacitor Speaker Protection
• Ability to Daisy-Chain Active Speaker to Passive Speaker as    Stereo System
• Excellent for Monitor or Surround Sound Applications
• Great by the Pool, on the Patio or in the Boa
• For Indoor / Outdoor Use

Technical Specs

• Marine Grade IP44 Rating
• 5.25”' Long Throw Woofers
• 1.0'' Polymer Dome Tweeters
• Magnet Size: 10oz.
• Cone Material: PP Mica + Rubber Surround
• 600 Watt Rated Peak Power
• 300 Watt Rates RMS Power
• Frequency Response: 90Hz-20kHz
• 8 Ohm Impedance
• Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88
• Weight : 9.5 lbs.
• Sold as: Pair

PDWR64BTW-White

• System Includes (2) Speakers
• Active & Passive Speaker System
• Built-in 2 Channel Amplifier
• Bluetooth Wireless Music Streaming
• Marine Grade waterproof Construction
• 2-Way Full Range Stereo Sound
• Custom Tooled Design for High Power and Deep Bass Response
• Removable & Rust Proof Aluminum Speaker Grills
• Gold Plated Speaker Plug Terminals
• RCA(L/R) Audio Input Connector Jacks
• Single RCA Speaker Output Connector Jack
• Rotary Volume Control
• Spring Loaded Mounting Bracket Included
• Heavy Duty Engineered Plastic Cabinet
• Built-in Capacitor Speaker Protection
• Ability to Daisy-Chain Active Speaker to Passive Speaker as    Stereo System
• Excellent for Monitor or Surround Sound Applications
• Great by the Pool, on the Patio or in the Boa
• For Indoor / Outdoor Use

Technical Specs

• Marine Grade IP44 Rating
• 6.5”' Long Throw Woofers
• 1.0'' Polymer Dome Tweeters
• Magnet Size: 13 oz.
• Cone Material: PP Mica + Rubber Surround
• 800 Watt Rated Peak Power
• 400 Watt Rates RMS Power
• Frequency Response: 70Hz-22kHz
• 8 Ohm Impedance
• Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
• Weight : 13.5 lbs.
• Sold as: Pair

Overall Dimensions of Pyle Speaker PDMR54BTB

Packaging contents

1. Loudspeakers
2. Brackets
3.  Bracket Bolts
4. Screws
5. Connection Wire
6. RCA Wire

Bluetooth connection

Please be sure the Bluetooth is turned on at your device. When the device is in Bluetooth range, it will connect to Bluetooth automatically and will be disconnected automatically when it is out of Bluetooth range.

MOUNTING OF PDMR54BTB

MOUNTING THE BRACKET

1. Remove the bracket knobs and the bracket from the speaker.
2. Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket. Align the bracket to be square with the surroundings (use a level for accuracy).
3. Mark the locations of the three shaped screw holes. Use all of the holes.
4. Drill pilot holes into the mounting surface.
5. Gently pull the speaker wire through the wire hole in the center of the mounting bracket. Align the bracket so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.

FINAL ADJUSTMENTS

1. After checking that the speaker is in phase and works correctly, angle the speaker for the best sound
2. Hand-tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.
3. Check that the entire installation is safe and secure.

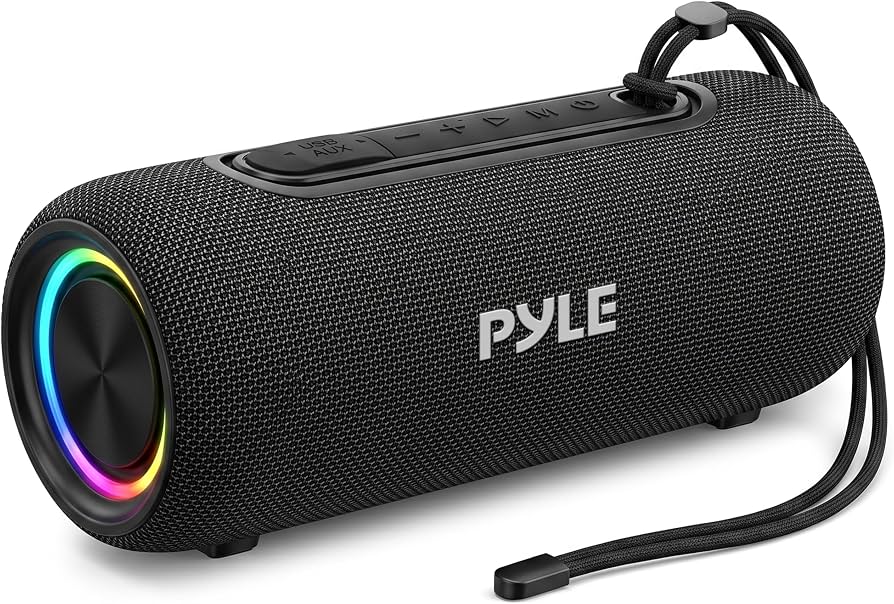

Description of PDMR54BTB

The Pyle PDMR54BTB features a 50-watt peak power output, providing clear and crisp sound for all your music. The built-in Bluetooth technology allows for easy and wireless connectivity to any Bluetooth-enabled device, while the USB and AUX inputs provide additional connectivity options. The speaker also features a rechargeable battery, providing up to 8 hours of playtime on a single charge. The Pyle Speaker PDMR54BTB is also IPX5 waterproof rated, making it perfect for use by the pool or at the beach.

Setup Guide of Pyle Speaker PDMR54BTB

To set up the Pyle Speaker PDMR54BTB, first charge the battery using the included USB cable. Once the battery is fully charged, turn on the speaker by pressing the power button. The speaker will automatically enter pairing mode, and you can connect your Bluetooth-enabled device by searching for the "PDMR54BTB" in your device's Bluetooth settings. If you prefer a wired connection, you can use the USB or AUX inputs. To adjust the volume, use the "+" and "-" buttons on the speaker. To skip or go back to a previous track, press and hold the "+" or "-" buttons, respectively.

Troubleshooting

If you are having trouble connecting your device to the PDMR54BTB, make sure that both the speaker and your device are in pairing mode. If the problem persists, try resetting both devices. If the speaker is not charging, ensure that the USB cable is properly connected to both the speaker and a power source. If the speaker is not producing sound, make sure that the volume is turned up and that the speaker is connected to a device. If the speaker gets wet, turn it off immediately and let it dry before turning it back on. Do not use the speaker while it is still wet, as this may damage the speaker.

Pros & Cons of Pyle Speaker PDMR54BTB

Pros

• 50-watt peak power output for high-quality sound
• Bluetooth, USB, and AUX inputs for versatile connectivity
• Rechargeable battery with up to 8 hours of playtime
• IPX5 waterproof rating for use by the pool or at the beach
• Affordable price

Cons

• No built-in microphone for hands-free calling
• No stereo pairing option for use with multiple speakers
• No equalizer settings for customizing sound

Customer Reviews about Pyle Speaker PDMR54BTB

Customers love the Pyle Speaker for its high-quality sound, versatile connectivity options, and affordable price. Many customers also appreciate the long battery life and waterproof rating. However, some customers have noted that the lack of a built-in microphone and stereo pairing option are drawbacks. Overall, the Pyle Speaker PDMR54BTB is a great option for those looking for a reliable and portable Bluetooth speaker.
