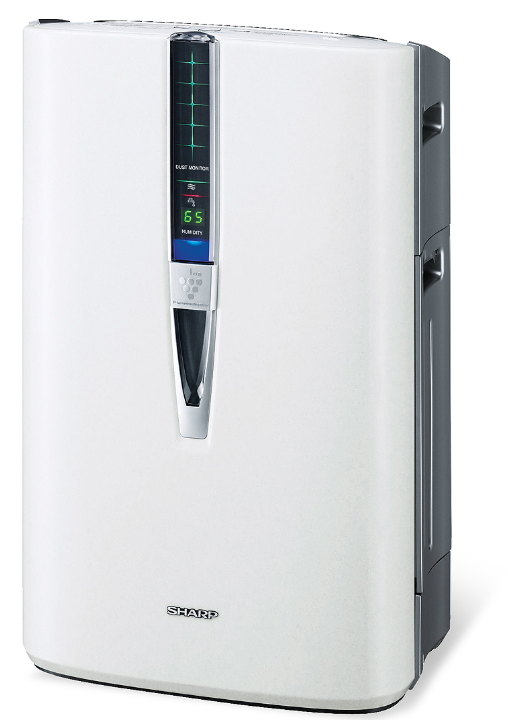

Sharp Air Purifier KC-860U

Introduction

The Sharp Air Purifier KC-860U is a premium air purification and humidification system designed to improve indoor air quality in large rooms. Equipped with advanced Plasmacluster® Ion Technology and a True HEPA filter, this unit effectively captures 99.97% of airborne contaminants as small as 0.3 microns, including pollen, dust, mold spores, and pet dander. Its added activated carbon filter helps reduce common household odors, making it ideal for allergy sufferers and families seeking fresher, healthier air.

Targeted at users with large living rooms, offices, or open spaces up to 1,650 square feet, the KC-860U offers versatile features including multiple fan speeds, auto mode with smart air quality sensors, and a humidifying function to maintain optimal moisture levels. Its quiet operation and energy-efficient design make it suitable for bedrooms and work environments, ensuring comfort without disruption.

Available at an estimated price range of $499 to $650, depending on retailer and promotions, the Sharp KC-860U is accessible through major appliance stores and online platforms. This combination of purification and humidification technology positions the device as a comprehensive solution for maintaining indoor air quality year-round.

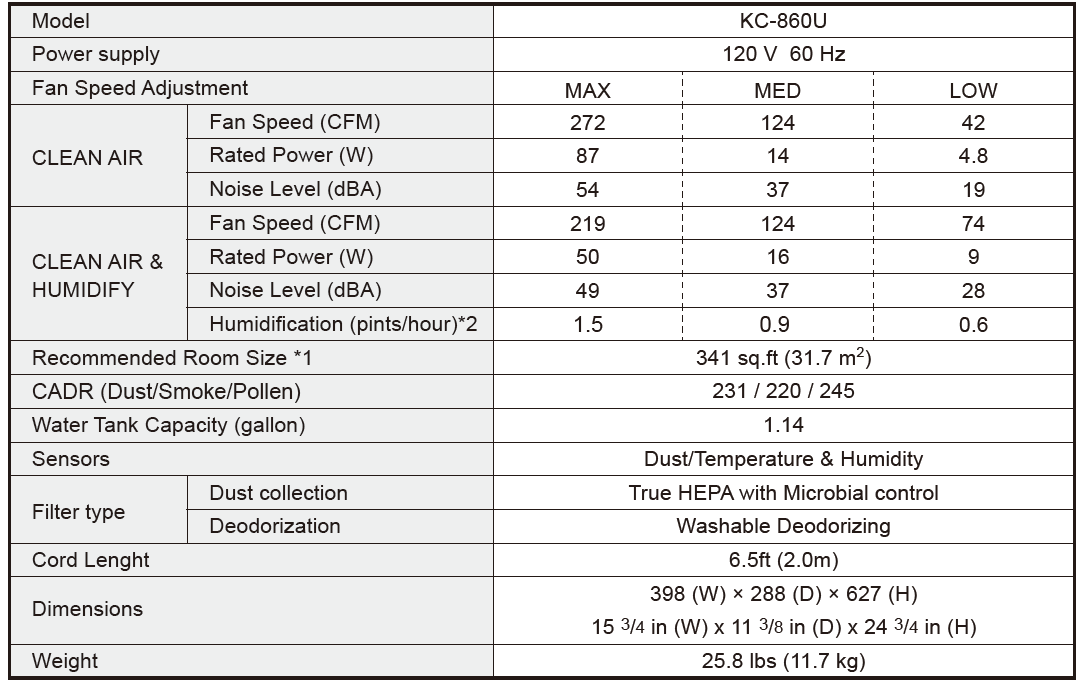

Specifications of Sharp Air Purifier KC-860U for Large Rooms

Coverage Area: Effective up to 1,650 sq. ft. at one air change per hour; AHAM suggested room size 341 sq. ft. at 4.8 air changes per hour

Filtration System: True HEPA filter capturing 99.97% of particles ≥0.3 microns

Additional Filters: Activated carbon filter for odor reduction; filters last up to 5 years,, depending on the environment

Technology: Plasmacluster® Ion Technology (7000 Series),, generating positive and negative ions for natural air refreshment

Fan Speeds: Max, Medium, Low, plus Pollen mode, Quick Clean mode, and Auto mode

Air Quality Monitoring: Sensors adjust purification and humidity automatically in Auto mode

Clean Air Delivery Rates (CADR): Dust 231, Smoke 220, Pollen 245

Humidification: Integrated humidifier to add moisture and reduce static electricity in dry air

Noise Level: Silent Mode operating as low as 17–19 decibels, suitable for bedrooms

Energy Efficiency: ENERGY STAR® certified, 35% more efficient than standard models

Dimensions and Weight: 15.75” W x 24.75” H x 11.15” D; approx. 25.8 lbs

Certifications: AHAM Verified Tested, California Air Resources Board (CARB) Certified

Compared to similar models, the KC-860U excels with its combined humidification and air purification, longer filter life, and quiet operation, making it a top choice for large residential spaces.

INSTALLATION GUIDELINES

• During the operation of the product, please place the unit at least 6.5ft. (2m) away from equipment utilizing electrical waves such as televisions, radios,, or wave clocks.
• Avoid a location where the sensor is exposed to direct breeze or draft.
• The unit may not operate properly.
• Avoid use in locations where furniture, fabrics,, or other items may come in contact with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or rapid temperature changes. (Use under appropriate conditions between 41 - 95˚F (5 - 35˚C) in the room.) (If it is unavoidable,, please allow the unit to stand for 1 hour before switching on.)
• Place on a stable surface with sufficient air circulation.
  When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
  Place the unit on an even surface to avoid water leakage from the Water Tank and/or Humidifying Tray.
• Avoid use in locations where grease or oily smoke is generated  (such as in a kitchen, etc.). The unit surface may crack or the sensor may malfunction as a result.
• Place the unit about 1-2 ft. (30 - 60cm) away from the wall to ensure proper airflow. The wall directly behind the air outlet may become dirty over time. When using the unit for an extended period of time in the same location, periodically clean the wall and protect the wall with a vinyl sheet, etc., to prevent the wall from becoming dirty.

FILTER GUIDELINES

Follow the instructions in this manual for correct care and maintenance of the filters. Use only filters designed for this product.

PART NAMES

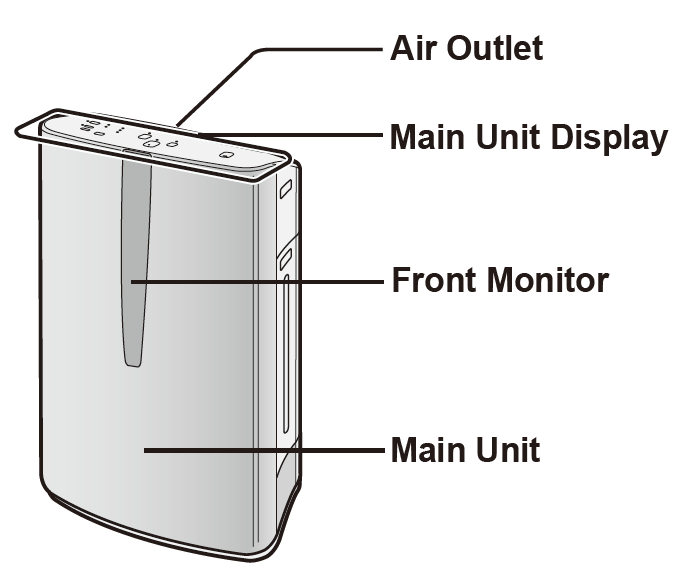

ILLUSTRATIVE DIAGRAM - FRONT

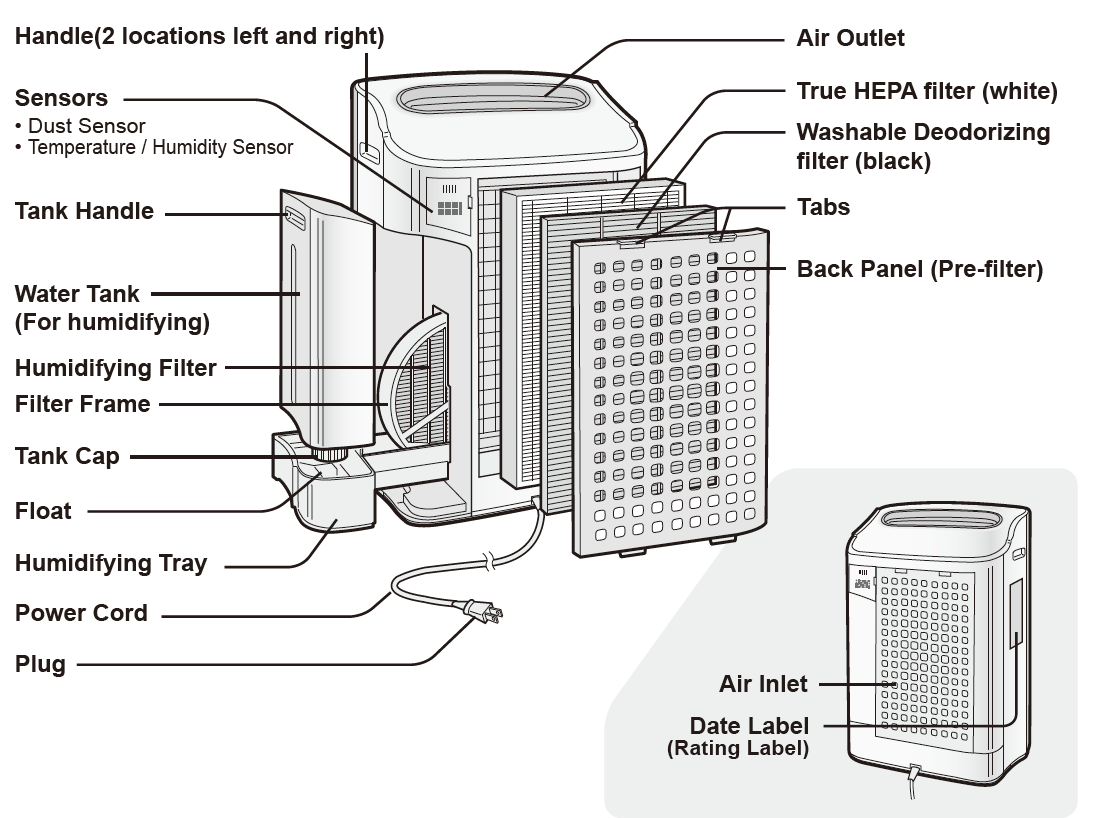

BACK

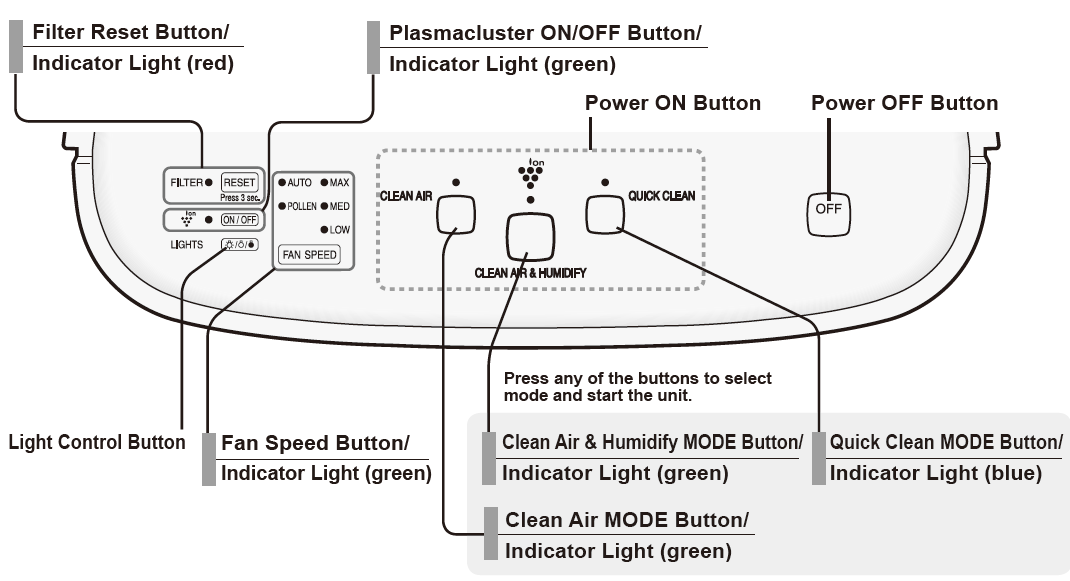

MAIN UNIT DISPLAY

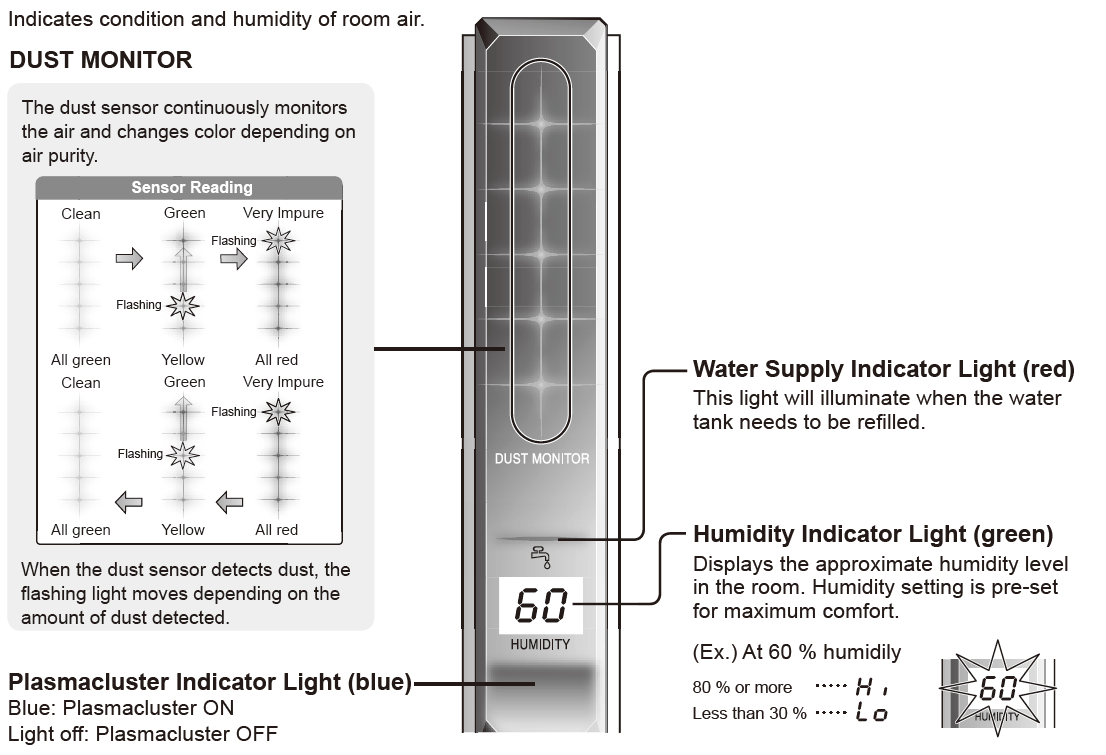

FRONT MONITOR

FILTER INSTALLATION

To maintain the quality of the filters, they are packed in plastic bags and placed in the unit. Be sure to remove the filters from the plastic bags and replace the filters in the unit before initial use.

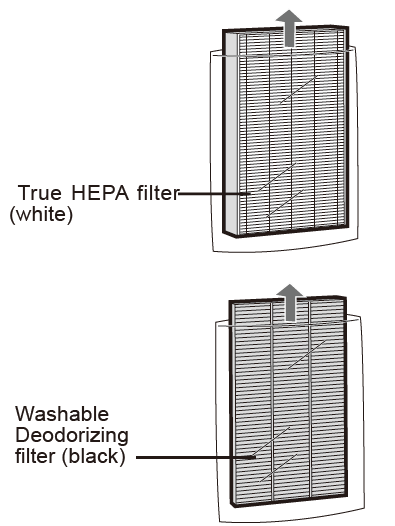

Remove the filters

1. Remove the Back Panel
   Gently push down on the tabs, then tilt and remove the back panel.



2. Remove the Washable Deodorizing filter (black) and True HEPA filter (white) from the plastic bags.



Install the filters

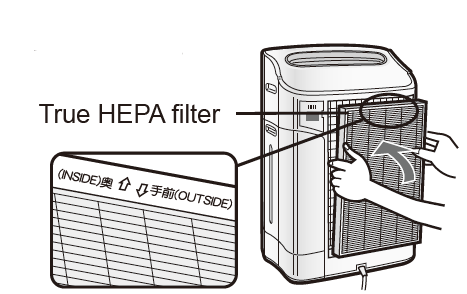

1. Install the True HEPA filter.
   Please make sure that the True HEPA filter is placed in the proper orientation.
   Installing the filter backwards will affect the performance of the unit.

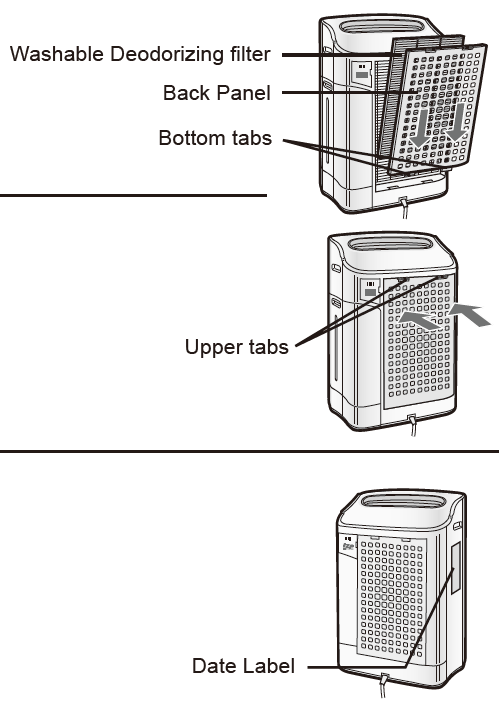

2. Insert the Back Panel’s 2 bottom tabs (left and right) into the small holes in the unit, and slide the Washable Deodorizing filter between the True HEPA filter and the Back Panel.
3. Gently push in the upper tabs (left and right) to lock in place

4. Fill in the usage start date and place on the unit as a guide for when the filters should be replacedbe replaced.



CARE AND MAINTENANCE

To maintain optimum performance of this air purifier, please clean the unit,, including the sensor opening and filters,, periodically.
When cleaning the unit, be sure to first unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result.

FILTER INDICATOR LIGHT

Care Cycle After 720 hours of use (30days 30 days × 24 hours

The Filter Indicator Light will illuminate as a reminder to perform maintenance once of the Back Panel, Sensors, and Humidifying filter. The Indicator Light will turn on after approximately 720 hours of use.

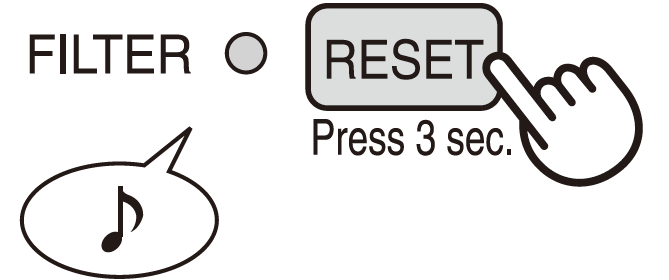

After performing maintenance, reset the Filter Indicator. Plug the unit in, turn the power ON, and press the RESET button for 3 seconds. The Filter Indicator Light will go off. Even if the Filter Indicator Light is already off, the RESET button should be pressed to reset the maintenance timer.

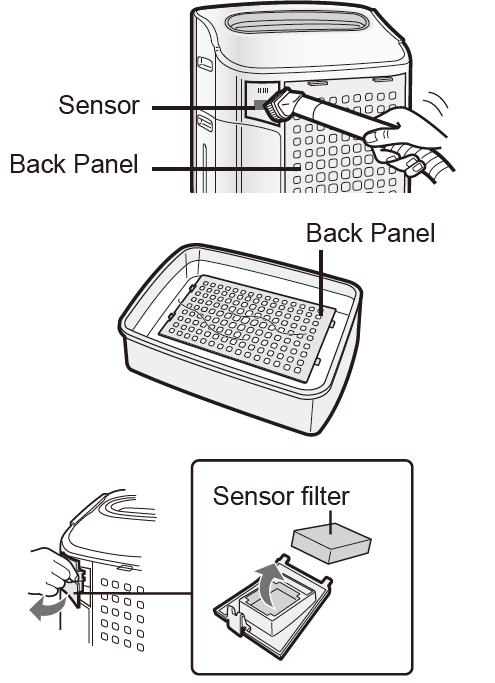

BACK PANEL and SENSORS

Care Cycle:: Whenever dust accumulates on the unit or every 2 months

Gently remove dust from the sensor opening and the back panel, using a vacuum cleaner attachment or a similar tool.

When the back panel has stubborn dirt

1. In case of oily dirt, soak the back panel in water with kitchen detergent.
   Avoid scrubbing the back panel when washing.
2. Rinse the back panel repeatedly with clean water to remove the solution residue.
3. Drip dry the panel to remove excess water.

SENSOR FILTER CARE
Remove the sensor filter and tap it lightly over a sink or bin to dislodge dust. If it is very dirty, wash it gently with lukewarm water. Do not use any detergents or chemicals of any kind to clean the filter. Dry the filter completely before replacing it in the unit. Do not operate the unit without all filters properly installed.

UNIT

Care Cycle:: Whenever dust accumulates on the unit or every 2 months

To prevent dirt or stains on the unit, cleait n it regularly. If stains are allowed to remain, they may become difficult to remove.

• Wipe with a dry, soft cloth.
  For stubborn stains or dirt, use a soft cloth dampened with warm water.
• Do not use volatile fluids
  Benzene, paint thinner, and olishing powder, may damage the surface.
• Do not use detergents
  Detergent ingredients may damage the unit.

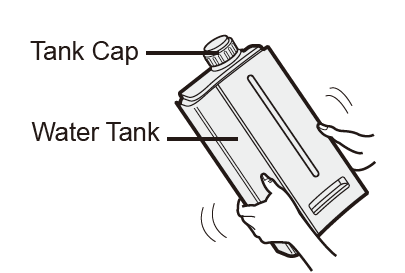

WATER TANK

Care Cycle Every day when Humidifying

Rinse the inside of the tank by leaving a small amount of lukewarm water inside, closing the tank cap firmly, and shaking the tank. Mild household detergents may be used to clean the inside of the tank, but the detergent should be diluted and the tank should be thoroughly rinsed to remove all detergent residue.
(Note the Water Tank is not dishwasher safe.)

TANK CAP CARE
The small cap back of the tank cap is removable. When the tank cap and small cap are dirty and/or slimy, cleaning is necessary.
Use a cotton swab or a toothbrush.

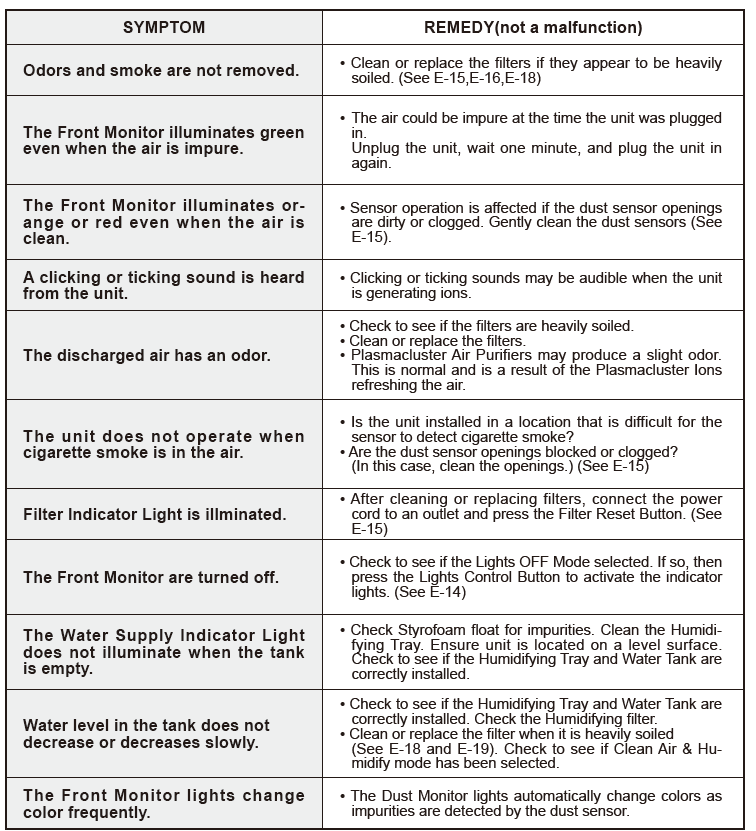

TROUBLESHOOTING

Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction.

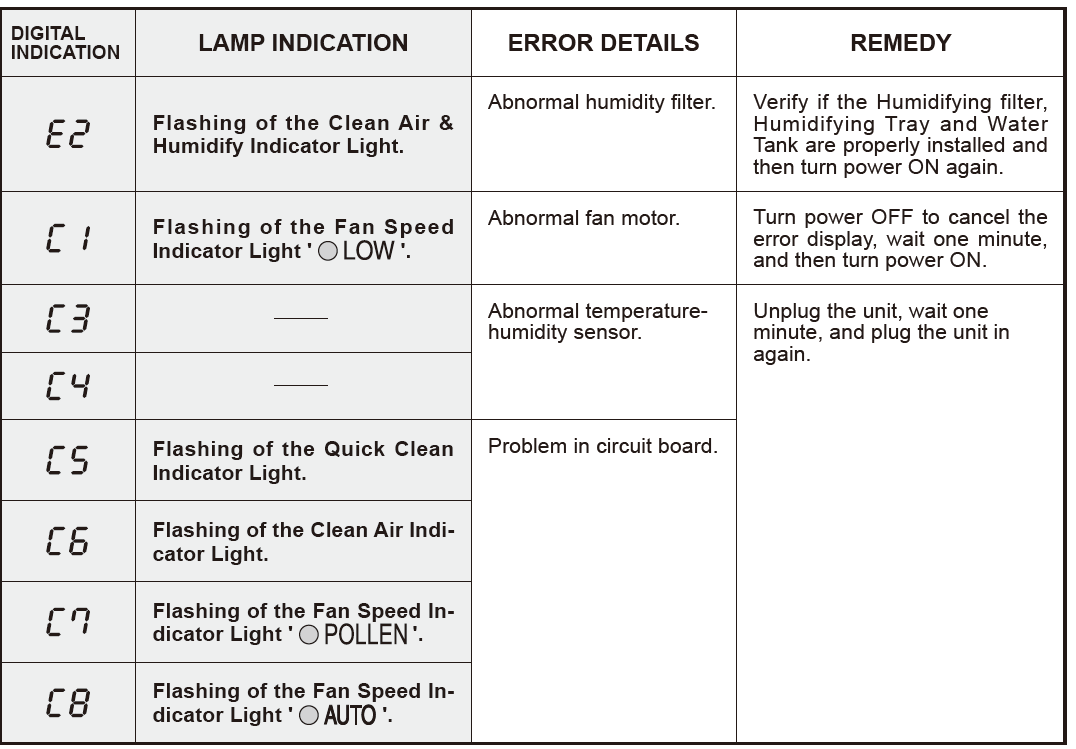

ERROR DISPLAY

If an error occurs again, contact the Sharp Service Center.

CONSUMER LIMITED WARRANTY

CONSUMER LIMITED WARRANTY FOR U.S. USERS
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufac-tured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

• This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth bel,,  ow nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
• To enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
• The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED  WARRANTIES,, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR U,, SE ARE LIMITED  TO THE  PERIOD(S)  FROM  THE  DATE  OF  PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
• Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
• The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product,  and shall onstitute atisfaction ofall claims, whether based on contract,  negligence,  strict llliabilityoroor otherwisen no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage.
• Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

• Your Product Model Number & Description: KC-860U Air Purifier. Be sure to have this information available when you need service for your Product.
• Warranty Period for this Product: One (1) year parts and labor from the date of purchase.
• Additional Item(s) Excluded From Warranty Coverage: Appearance items of the Product, filters, accessories, or any printed material. oductcthatch has been used for rental and/or commercial purposes.
• Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP.
• What to Do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

Pros & Cons of the Sharp Air Purifier KC-860U

• Pros:
  • Highly effective True HEPA filtration captures ultra-fine particles and allergens
  • Plasmacluster Ion Technology enhances air freshness similar to natural environments
  • Long-lasting filters reduce maintenance frequency and costs
  • Multi-mode fan speeds,, including Auto and Quick Clean modes,, for customizable air quality
  • Quiet operation ideal for bedrooms and workspaces
  • Energy-efficient and ENERGY STAR certified for cost savings
  • Integrated humidifier improves air comfort in dry climates
• Cons:
  • Higher price point compared to basic air purifiers, which may be a consideration for budget buyers
  • Bulky size requires sufficient floor space in the Sharproom
  • Humidifier function requires regular water refills and cleaning to prevent mold buildup
  • Limited color options (primarily white) may not suit all interior décors

Overall, the Sharpir Purifier KC-860U offers excellent value for those prioritizing comprehensive air quality solutions and room humidification, outperforming many alternatives that lack multi-functional features.

Customer Reviews and Feedback on Sharp Air Purifier KC-860U

Users consistently praise the KC-860U for its effective air purification and the noticeable improvement in allergy and asthma symptoms. Many highlight the unit’s quiet operation as a significant benefit for nighttime use. The Plasmacluster technology receives positive remarks for providing a fresher atmosphere akin to natural outdoor air. Customers value the long filter lifespan, which reduces maintenance hassles.

Common complaints include the size and weight of the unit, making it less portable, and some users note that the humidifier requires regular attention to avoid odors. A few mention the initial price is on the higher end,, but confirm the investment is worthwhile for the air quality benefits. Overall, the product holds a strong average rating g around 4.5 out of 5 stars, with recommendations focused on households needing large-room coverage and combined purification and humidifying features.
