Introduction

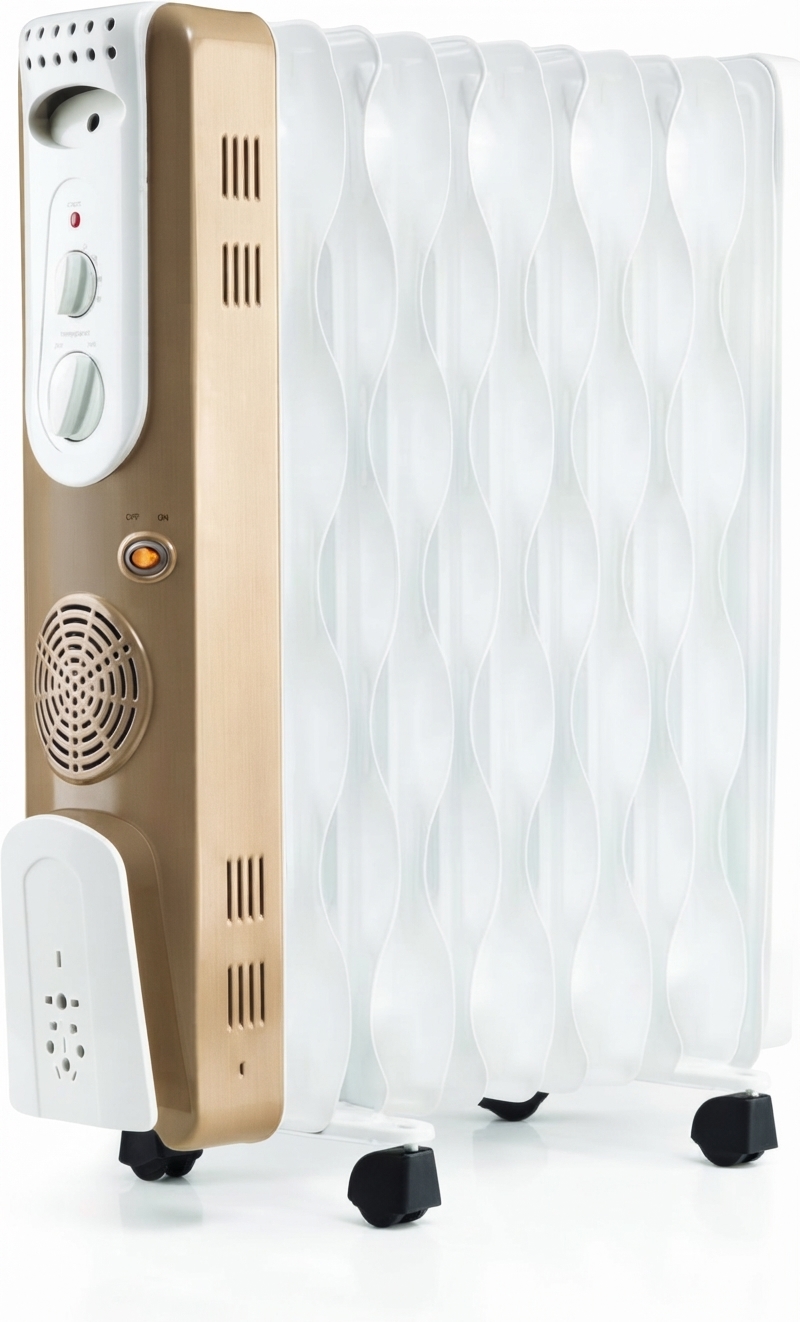

The Usha Oil Filled Radiator OFR 3211F PTC is designed to provide efficient and effective heating for your home. Featuring advanced PTC heating technology, it ensures faster warmth and energy savings. With adjustable temperature settings and safety features, this radiator is perfect for cozying up any space. Priced at $122.66, it combines quality and performance for a comfortable winter experience.
Innovatively designed, using only the highest quality material and components, your Usha Oil Filled Radiator (Model No.: OFR 3211F PTC) is designed for years of trouble free performance. Please read this Instruction Manual carefully before using and keep it cautiously after reading for future reference.

Detailed Specifications

The Usha Oil Filled Radiator OFR 3211F PTC comes with the following key features:

• PTC heating technology for uniform heat distribution
• 32 fins for better heat radiation
• Digital thermostat with temperature display
• Adjustable thermostat control with three heat settings
• Automatic stop feature to prevent overheating
• Castor wheels for easy mobility
• Tip-over safety switch
• Power consumption: 1500 W
• Cord storage facility for easy cable management
• Oil-filled radiator for long-lasting heat retention

ASSEMBLY

Remove the heater and all the accessories from the carton.

1. Turn the heater upside down.
2. Position the wheel base assembles between the end fins.
3. Attach them to the heater using the U-bolls and wing nuts supplied.
4. Tighten the wing nuts.
5. Turn the heater the right way up.

PARTS DESCRIPTION

1. Oil filled fins
2. Thermostat control
3. Power setting switch
4. Handle
5. Turbo switch
6. Turbo
7. Cord storage
8. Castors

Description

The Usha Oil Filled Radiator OFR 3211F PTC is a high-quality and efficient heating solution designed to keep you warm and comfortable during the colder months. The radiator features advanced PTC heating technology, which provides uniform heat distribution and energy savings. The radiator has 32 fins that provide better heat radiation, ensuring that the room is heated quickly and evenly. The digital thermostat with temperature display allows you to monitor the temperature easily, and the adjustable thermostat control lets you choose from three heat settings for optimal comfort.

The radiator has a castor wheel design, making it easy to move from room to room. It also has a tip-over safety switch that automatically shuts off the radiator if it is accidentally knocked over. The automatic stop feature prevents the radiator from overheating, ensuring safe and efficient operation. The oil-filled radiator provides long-lasting heat retention, ensuring that you stay warm and comfortable for longer periods. The cord storage facility provides easy cable management, making it a convenient and practical addition to any room.

OPERATING YOUR OIL FILLED RADIATOR

• Place the heater on the floor at least 90cm away from the wall and any other objects such as furniture, Curtains or plants.
  (Make sure the power supply used corresponds to the one on the rating label)
• With the thermostat control switch in the“O” position and the power setting switches in the “OFF” Position; plug the heater into the main power supply.

OPERATION

1. Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise, to increase the heat, and anti-clockwise to decrease the temperature, until you reach the desired temperature.
2. Switch the heater to one of the following power settings.
   11 fins:  Push switch one (I) for 1000W
   • Push switch two (II) for 1500W
   • Push switch one & two (I&II) for 2500W
   • Fan heater for 400W
3. The power switch lights up when activated.
4. TURBO HEATING
   This model is fitted with a heating fan which heats the room more quickly. To turn this function on, push the button into the position.
   Important a safety device cuts in and switches off the appliance if it overheats due to an accumulation of dust on the air intake and output grills. To restart it, unplug from the mains and leave the appliance to cool down. Clean the air intake and output grills with a vacuum cleaner, then replug into the mains and turn on again.
5. Turning the thermostat control clockwise will increase the “set” temperature.
6. Turning the thermostat anti-clockwise will decrease the “set” temperature.
7. Do not cover the heater at any time during operation. There is a risk of fire if the heater is covered.
8. Once you have finished using your heater, turn the power switches off, and the thermostat control switch to the “0”positions, and unplug from the mains supply.

Setup Guide

Setting up the Usha Oil Filled Radiator OFR 3211F PTC is a simple and straightforward process. Here are the steps to follow:

1. Unbox the radiator and remove all packaging materials.
2. Place the radiator on a flat and stable surface.
3. Plug the radiator into a power outlet.
4. Select the desired heat setting using the adjustable thermostat control.
5. Allow the radiator to heat up for a few minutes before adjusting the temperature as needed.
6. Use the castor wheels to move the radiator to the desired location.

CLEANING YOUR OIL FILLED RADIATOR

1. Always disconnect the heater from the mains supply before cleaning.
2. Clean the outsides of the heater by wiping with damp clothe and buff with a dry cloth.
3. DO NOT use waxes or polishes as these may react with the heater and cause discoloration.

STORING YOUR OIL FILLED RADIATOR

1. Save the box for off-season storage.
2. Clean the heater following the cleaning instructions above.
3. Remove the wheel base assemblies.
4. Place the heater, and wheel assemblies in the original box, and store in a cool and dry place.
5. If you choose to store your heater fully assembled be sure to cover it to protect it from dust.

IMPORTANT PRECAUTIONS

1. Read the instructions carefully before use and save them for future reference.
2. Always disconnect the heater from the main supply when not in use and when cleaning.
3. Do not leave the heater “ON” unattended.
4. Never cover the heater as this may lead to risk of fire.
5. Keep the heater a distance of at least 90cm from any combustible material, such as furniture, curtains, bedding clothes or papers.
6. Keep the heater clean. Do rot allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.
7. Close supervision is required when any appliance is used near or by children.
8. Never allow the cord to touch wet or hot surfaces, become twisted or be within the reach of children.
9. Do not use outdoors.
10. Do not place on or near a hot gas or electric burner.
11. Never use the appliance with a damaged cord or plug or after the appliance has malfunctioned or been damaged in any way.
12. Never attempt to open any part or dismantle the controls. Responsibility for failure cannot be accepted if these instructions have been ignored.
13. Do not use the appliance for anything other than its intended use.
14. This appliance is intended for household use only.
15. Regulations concerning the disposal of the oil when scraping the appliance have to be followed.
16. Any repairs that need to be done to the heater must be referred to an Usha authorized service centre.
17. The appliance is not intended for use by young children or infirm persons without supervision.
18. Young children should be supervised to ensure that they do not play with the appliance.
19. If the supply cord is damaged, it must be replaced by the Usha authorised service centre.
20. The heater must not be located immediately below a socket-outlet.
21. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
22. This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the Usha authorised service centre, if there is an oil leakage. Regulations concerning the disposal of the oil when scrapping the appliance has to be followed.

Troubleshooting

Here are some common problems and solutions for the Usha Oil Filled Radiator OFR 3211F PTC:

• Problem: The radiator is not heating up.

  Solution: Check the power cord and plug to ensure that they are properly connected. If the power cord is damaged, replace it. Check the thermostat setting to ensure that it is not set too low.

• Problem: The radiator is making strange noises.

  Solution: The noises could be caused by air bubbles in the oil. Turn off the radiator and let it cool down. Then, turn it back on and allow the bubbles to disperse.

• Problem: The radiator is leaking oil.

  Solution: If the radiator is leaking oil, turn it off and unplug it. Contact Usha's customer service for assistance.

Warranty Usha Oil Filled Radiator OFR 3211F PTC

This Oil Filled Radiator is warranted for one year against all manufacturing defects from the date of sale.

This Warranty is valid only when…

1. The Oil Filled Radiator has not been opened or tempered with, by any unauthorized person.
2. The warranty card or cash memo duly signed by the authorized dealer are presented with the complaint.
3. The Oil Filled Radiator has been installed, used and maintained in accordance with the instructional manual.

Pros & Cons

Pros

• Advanced PTC heating technology for uniform heat distribution
• Digital thermostat with adjustable heat settings
• Castor wheels for easy mobility
• Automatic stop feature for safety
• Long-lasting heat retention

Cons

• May take some time to heat up initially
• Can be bulkier than other heating solutions

Customer Reviews

Customers love the Usha Oil Filled Radiator OFR 3211F PTC for its efficient heating and uniform heat distribution. The radiator has received positive reviews for its adjustable thermostat control and automatic stop feature. However, some customers have complained about the bulky size and slow heating. Overall, the Usha Oil Filled Radiator OFR 3211F PTC is a recommended product for those looking for an efficient and safe heating solution.
