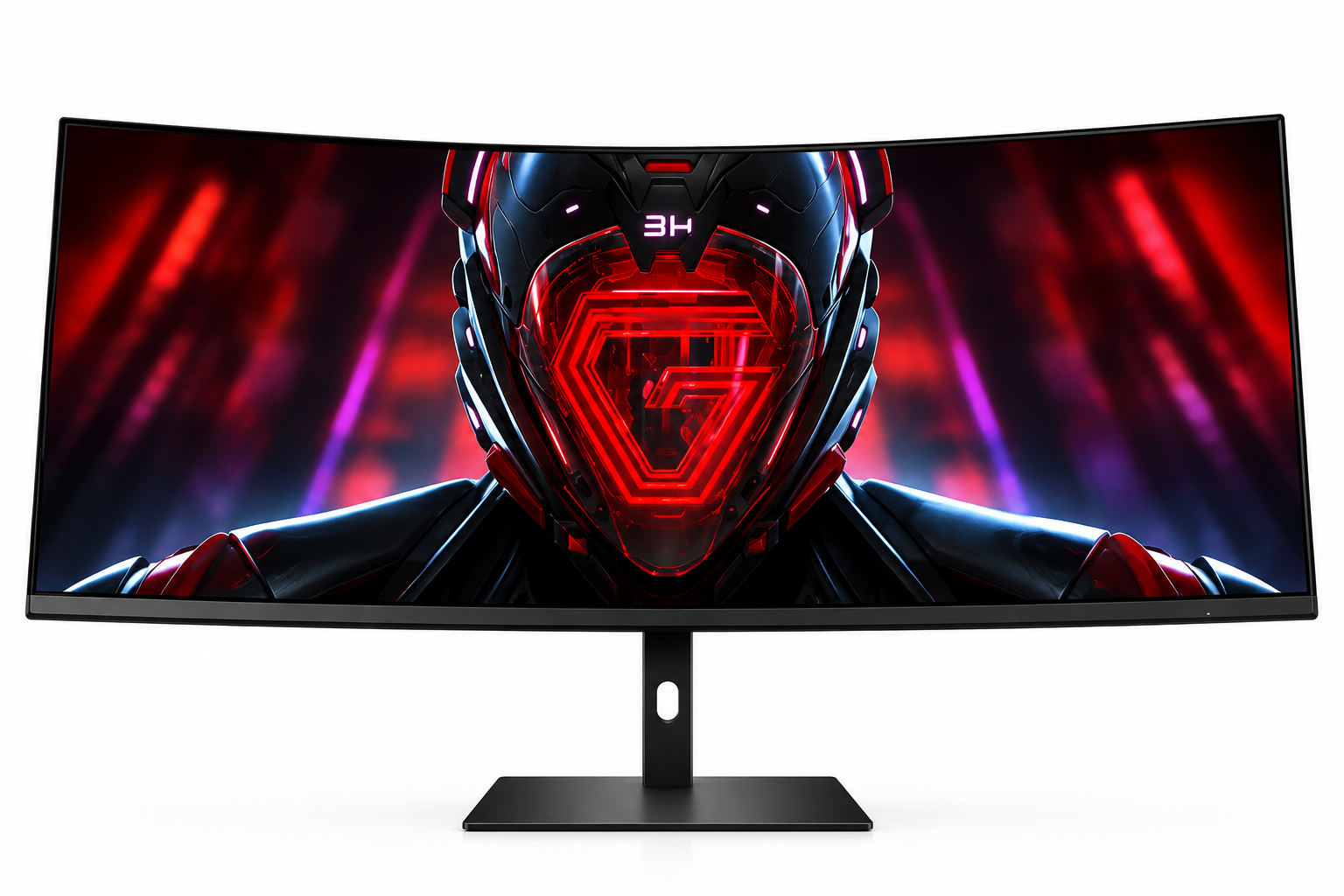

Introducing the Xiaomi Curved Gaming Monitor 34

Xiaomi is set to release its latest Curved Gaming Monitor 34, a state-of-the-art technology designed for ultimate gaming experience. This monitor, priced at an estimated range of $600 to $800, is expected to hit the market by the end of this year. With a 34-inch screen and a curve of 1500R, this monitor offers an immersive viewing experience that brings every game to life. Its 144Hz refresh rate and 4ms response time deliver smooth and seamless gameplay, while its 3440 x 1440 resolution provides crisp and clear visuals with vibrant colors.

Package Contents

Specifications of Xiaomi Curved Gaming Monitor 34

Product Overview

Monitor Overview

Installation

Installing the Xiaomi Curved Gaming Monitor 34 base

1. Remove the foam-encased component from the box and place it on a flat stable surface. Do not remove the monitor from the packing foam.



2. Fasten the stand to the base using the included thumb screw.



3. Remove the top foam layer and the plastic bag to expose the mounting point on the back of the monitor.



4. Attach the stand* by pressing it into the slot on the back of the monitor until it clicks into place.



   • To remove the stand, press the quick release button.

5. Use both hands to carefully take out the fully assembled monitor and place it on a flat stable surface.



Note: To avoid damaging the screen, be careful not to press on the LCD screen when standing it up.

Xiaomi Curved Gaming Monitor 34 Cable Management

1. Remove the monitor's cable-management cover and the stand's cover.

2. Feed the power cord and the signal cable through the opening in the stand and connect them to the monitor. After all cables are in position, install both covers.



Note: The nameplate of this monitor is near the AC IN port, you can find it by removing the cable-management cover.

Wall Mount Installation

1. Press the quick release button to remove the monitor's stand.



2. Fasten the 4 hex studs to the back of the monitor in the positions indicated, then attach the wall mount (sold separately) to the hex studs (mounting holes are spaced 100 × 100 mm apart).



3. Refer to the instructions of the wall mount to mount the monitor.



Note: Do not press on the LCD screen during the mounting process to avoid damaging the screen.

Note: To reduce the risk of falling down, please properly install the wall-mount and take safety protection on the monitor to avoid any injury or damage. Do not place anything on top or hang anything from the wall-mount.

Description

The Xiaomi Curved Gaming Monitor 34 boasts a sleek and modern design with a matte black finish. Its 34-inch curved VA panel offers a wide viewing angle and a high contrast ratio that brings out even the smallest details. Its AMD FreeSync technology synchronizes the monitor's refresh rate with the graphics card, reducing screen tearing and stuttering for a more fluid gaming experience. In addition, its HDMI and DisplayPort inputs offer versatility in connectivity, while its built-in speakers provide a complete audio-visual experience.

Instructions about Xiaomi Curved Gaming Monitor 34

Connections

1. Connecting the DisplayPort cable (only when using DisplayPort).
   Make sure the monitor and the computer are both turned off.
   Connect one end of the DisplayPort cable to the computer's DisplayPort output port, and the other end to one of the monitor's DisplayPort input ports.
2. Connecting the HDMI cable (sold separately) (only when using HDMI).
   Make sure the monitor and the computer are both turned off.
   Connect one end of the HDMI cable to the computer's HDMI output port, and the other end to one of the monitor's HDMI input ports.
3. Connect a headset or any 3.5 mm compatible external audio device to the monitor's audio output port.
4. Plug both the power cords of the computer and the monitor into a power outlet.

Note: If the power cord or DisplayPort cable is damaged, it must be replaced with a genuine power cord or DisplayPort cable purchased from the manufacturer or after-sales service department.

Note: The audio output port can only be used for audio output.

• DisplayPort (1.4): 3440 × 1440, max. refresh rate 144 Hz.
• HDMI (2.0): 3440 × 1440, max. refresh rate 100 Hz.

Button Description

ButtonFunction
1		Menu/Select
2		Up
3		Down
4		Exit/Go Back
5		On/Off

On/Off Button

• Press Turn On/Off

Indicator Status

• Dimmed: Off
• Lit: On
• Blinking: In sleep mode

Menu Description

Mi Monitor

• Brightness/Contrast: Brightness
• Image: Dynamic Brightness
• Picture Quality Settings: Black Level
• Smart Mode: Contrast
• Window Settings: DCR
• Settings

Standard Mode Enabled

• Brightness
• Dynamic Brightness
• Contrast
• Settings

Eye Health

To avoid eyestrain, or neck, arm, elbow, and shoulder pain caused by using the computer for a long time, please follow the suggestions listed below:

• Keep the monitor at a distance of 20–28 inches (approx. 50–70 cm) from your eyes.
• Blink more often to relieve eye fatigue when staring at the monitor.
• Give your eyes a 20-minute break after using the monitor for two hours.
• Take your eyes off the monitor and look at something a certain distance away for at least 20 seconds. Stretch your body to help relieve tension on the neck, arms, back, and shoulders.

Low Blue Light Description
In recent years, eye damage caused by blue light has attracted more and more attention. In general, the wavelength of blue light is 400–480 nm, and the wavelength of harmful blue light is 415–455 nm. This monitor has a function to help reduce your exposure to the blue light emission. You can enable the low blue light mode via the settings menu.

Troubleshooting of Xiaomi Curved Gaming Monitor 34

Pros & Cons

Pros

• Large curved screen for immersive gaming experience
• High refresh rate and response time for smooth gameplay
• Ultra-wide resolution for crisp and clear visuals
• AMD FreeSync technology for reduced screen tearing and stuttering
• Versatile connectivity options and built-in speakers

Cons

• Price range may be expensive for some users
• Limited ergonomic adjustments for the stand
• May not support all gaming consoles' maximum resolution
• May consume more power compared to other monitors

Xiaomi Curved Gaming Monitor 34 Customer Reviews

Customers have praised the Xiaomi Curved Gaming Monitor 34 for its stunning visuals, smooth gameplay, and immersive experience. However, some have noted minor issues with its stand's adjustability and compatibility with certain gaming consoles. Overall, the monitor has received positive feedback for its high-quality performance and design.
