Setup: Ariete Coffee Maker 1389A User Manual

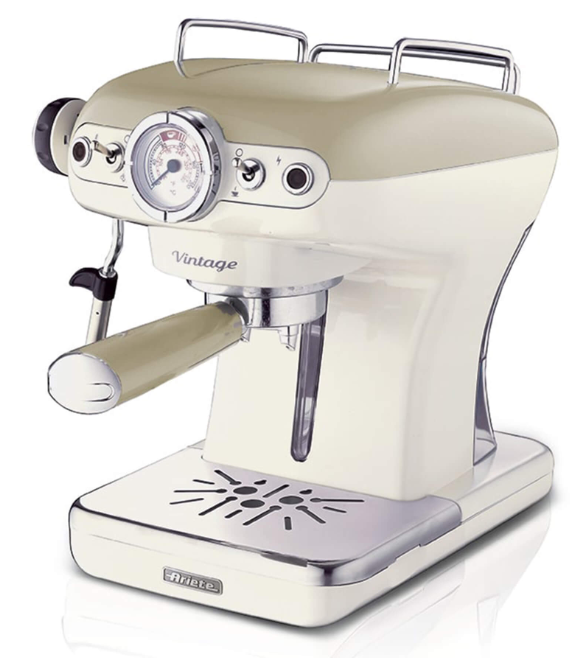

Ariete 1389A Vintage Espresso Coffee Machine

Introduction to the Ariete Coffee Maker 1389A

The Ariete 1389A Vintage Espresso Coffee Machine represents a perfect fusion of nostalgic Italian design and modern coffee-making technology, making it an excellent choice for espresso enthusiasts who value both aesthetics and performance. This elegant vintage espresso machine delivers barista-quality beverages directly in your kitchen, combining retro charm with cutting-edge functionality that appeals to both casual coffee drinkers and serious aficionados.

The Ariete Coffee Maker 1389A stands out in the espresso machine market with its distinctive retro styling, featuring refined metal finishes and pastel color options that add a touch of vintage elegance to any kitchen decor. Whether you're brewing a quick espresso shot or preparing a creamy cappuccino for guests, this versatile machine handles both tasks with remarkable ease and consistency. The machine is particularly suited for home users who desire café-quality espresso without the complexity of professional-grade equipment, making it ideal for apartment dwellers, small kitchen spaces, and coffee enthusiasts with modest counter space.

Key benefits of the Ariete 1389A include its powerful 15-bar pressure pump for optimal extraction, compatibility with both ground coffee and convenient ESE pods, and an integrated milk frothing system perfect for cappuccinos and lattes. The machine's removable components and intuitive button interface make it accessible to users of all skill levels. Priced competitively in the entry-to-mid-range espresso machine category (typically around Rs. 14,950 or equivalent in international markets), the Ariete 1389A offers exceptional value for money. The machine is widely available through online retailers and specialty coffee equipment stores, making it easily accessible for prospective buyers worldwide.

Technical Specifications of the Ariete 1389A Espresso Machine

Understanding the technical specifications of your Ariete Coffee Maker 1389A helps you maximize its performance and capabilities:

• Power Output: 850W aluminum boiler with 900W total system power for consistent heating and steam generation
• Pressure System: 15-bar pressure pump ensuring full-bodied, creamy espresso with perfect crema formation
• Water Tank Capacity: 0.9 liters (removable and refillable for convenient water management)
• Brewing Compatibility: Dual-function capability supporting both ground coffee and ESE (Easy Serving Espresso) pods
• Filter Holder Options: Includes dual-cup filter for two simultaneous cups and single-cup filter for individual servings
• Milk Frothing System: Maxi-Cappuccino device with adjustable steam emission for precise milk texture control
• Physical Dimensions: 23.0 cm length × 28.0 cm width × 31.0 cm height (compact footprint suitable for limited counter space)
• Weight: 3.69 kg (lightweight and easily portable)
• Special Features: Stainless steel removable drip tray, removable cup holder, intelligent 30-minute standby function
• Voltage: 230 Volts (standard European configuration)
• Operation Mode: Fully automatic with intuitive button interface controls
• Safety Certification: CE marked for compliance with European safety standards

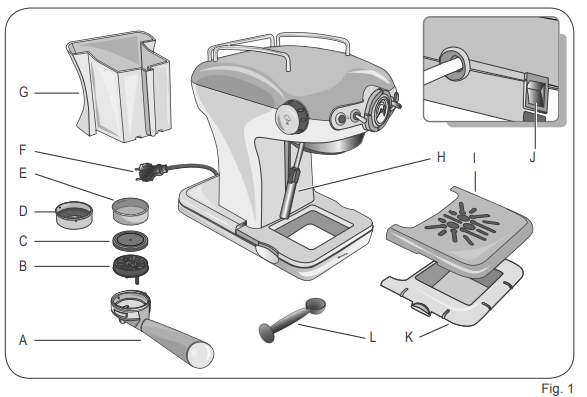

DESCRIPTION OF THE APPLIANCE

• Filter holder
• Drain pan
• Perforated silicone disc (Thermocream ®)
• 1 cup filter/pod
• 2 cup filter
• Power cord + Plug
• Removable water tank
• Maxi Cappuccino attachment and wand for water and steam supply
• Removable cups grill
• On/Off butto
• Drip basin
• Coffee measure/presser
• Steam dispensing knob
• Boller temperature light
• Steam function switch
• Boiler temperature thermometer (C° and F°)
• Coffee dispensing switch
• On light

PRELIMINARY PHASES FOR USE

Starting the appliance
Check that the domestic mains voltage is the same as the voltage indicated on the label of the device. Then place the machine on a flat surface. Wash the tank when used for the first time and fill it with cool tap water (MAX 1 litre), and then carefully push it into its seat (Fig. 3). The suction tube must be inside the tank.

First start-up
After filling the tank with cool tap water, plug it into the electrical outlet, which must be equipped with a grounding unit. Switch on the machine by pressing the button (J). Fig. 1. The light (R) will turn on to indicate that the machine is on.

If you are starting the machine for the first time or after a period of time during which it has not been used, it is recommended that at least one cup of water be allowed to pass through the boiler's hydraulic circuit.

Place a container with a capacity of at least half a litre under the coffee spout and the MaxCappuccinono device (Fig. 5). Put the switch (Q) on the coffee position (). Wait for the water to come out from the coupling seat of the filter holder. Open the steam knob (M) and make water come out of the Maxi Cappuccino device.
Stop dispensing and setting the switch (Q) in the upper position. Close the steam knob. Wait for the light (N) to turn on. At this point,, the coffee maker is ready to brew coffee.

HOW TO MAKE COFFEE

With powder coffee
Insert the dripper (B), the perforated silicone disc (, C, and the 2 cup (E) or 1 cup (D) filter, in the filter holder (A) (Fig. 6).

The perforated silicone disc can be inserted only in one direction on the dripper. Measure out the coffee in the filter and lightly press with the specially provided presser: for two coffees,, completely fill two measuring units, while for one coffee, ee fill only one. Insert the filter holder into its seat. Tighten it securely by turning it from left to right, making sure it is correctly fitted to the flange (Fig. 8).

If too much ground coffee is put inside the filter, turning the filter holder may prove difficult, and/or you may get leaks from the filter holder when the coffee is being dispensed.
The filter ring should be preheated for a few minutes to ensure a nice, hot cup of coffee. This will not be necessary for the following coffees.
Wait for the light (N) to turn on. Position the switch (Q) to coffee brewing (): coffee will flow from the spouts of the filter holder. Stop dispensing and setting the switch (Q) in the upper position. The minimum serving of coffee is 50 ml.

Warning!
As in professional coffee machines, do not remove the filter holder when the dispensing switch is ON (in coffee position( ).

Warning!
After dispensing coffee, wait about ten seconds before removing the filter holder. To remove it, turn it slowly from right to left to prevent splashes or spurts of water or coffee.

When warming up, your appliance may release small puffs of steam from the filter holder; this is perfectly normal.
The indicator light (N) will switch off and on periodically, showing the intervention of the boiler thermostat, which serves to maintain the best water temperature (around 100 °C / 210 °F for making coffee, and about 150 °C / 300 °F to dispense steam).
When using the coffee maker for the first time and thereafter, it is best to begin brewing coffee only when the light (N) is on.

How to make coffee with pods
To make coffee with pods,, it is necessary to install the 1 cup/pod filter (D), supplied with the machine, as follows:

Place the pod in the filter ring (Fig. 17).

Push the pod with your fingers inward. The pod must be well-centred and placed inside the filter.

Now it is possible to put the filter holder in its seat. Tighten the filter holder,, making sure it is securely fitted to the flange (Fig. 8).

The pod could remain stuck in the upper part of the machine after making the coffee, ee and when removing the filter holder. To remove it, tilt the filter holder (Fig. 18) so the pod can fall onto it.

To always have a good coffee, you must purchase pods that show the E.S.E. compatibility mark.

If the pod is not inserted well, or if the filter holder is not tightened firmly, a few drops of water could leak from the filter holder.

Auto-off function
If the machine is turned on but not in use, the auto-off function operates after about 30 minutes.
This function puts the machine in standby. The ON indicator light (R) is off. To restart the machine,, press again the power button (J) again.

Filling the water tank during use
No special operation is necessary when the water in the tank runs out, as the machine is equipped with a special self-priming device. Just unplug the machine, pull out the tank,k and fill it with fresh cool water again.

HOW TO MAKE CAPPUCCINO

To prepare cappuccino, hot chocolate, or heat any other beverage, turn the switch (O) to the steam position and wait that the indicator light (N) turns on to indicate that the boiler has reached the right temperature to dispense steam (about 150 °C / 300 °F).

When warming up, your appliance may release small puffs of steam from the filter holder; this is perfectly normal.
Place a glass under the Maxi Cappuccino device (H). Turn the steam knob (M): at first,, st a little water will come out, immediately followed by a strong jet of steam.
Close the dispensing knob (M) to stop the jet of steam and put the pot of milk to be whipped under the Maxi Cappuccino device (Fig. 12). Plunge the wand all the way into the pot of milk and again open the steam dispensing knob (M) until you get the result you want. During these operations, you will see that the indicator light (N) turns on and off periodically, indicating the action of the thermostat, which maintains the proper temperature of the boiler for steam dispensing.

It is opportune that you start dispensing the steam only when the lamp is on. After each use, dispense the steam for a few seconds to clear the outlet from any milk residue.
Close the steam knob (M). After preparing the cappuccino, return the switch (O) to the upper position to exclude the steam function.

MAKING FURTHER CUPS OF COFFEE
To prepare a cup of coffee right after making a cappuccino, it is necessary to bring the boiler back to the coffee preparation temperature by performing these operations: return the switch (O) to the upper position to cool the boiler and wait that the light (N) goes out and comes on again. To cool the heating unit more quickly, proceed as follows: place a glass under the Maxi Cappuccino device (H). Turn the switch (Q) to position (); turn the steam knob (M): this will cause water to flow out, until the warning light (N) turns back off. Now close the steam dispensing knob (M) and return the switch (Q) to the upper position. Wait for the light (N) to turn on. The coffee maker is now ready to brew coffee again.

HOW TO MAKE TEA OR TISANES
After the steps described in the chapter "Preliminary phase before use", place a cup under the Maxi Cappuccino device (H). Put the coffee switch (Q) in position (). Turn the steam knob (M); in this way, hot water will come out of the Maxi Cappuccino device. The maximum quantity for two cups is 200 ml.

TIPS TO ACHIEVE A GOOD ITALIAN ESPRESSO
The ground coffee in the filter holder must be pressed slightly. A stronger or weaker coffee depends on the coffee grinding level, on the quantity put into the filter holder,r and the pressing. A few seconds are required for the coffee to be dispensed into the cups. If the dispensing time is longer, this means that the coffee is ground too fine or that the coffee put into the filter holder has been pressed too much.

Cleaning the coffee filters
Check that the holes are not clogged , ed and if so, clean them with a small brush (Fig. 13). Let boiling water flow from the filter holder with the filter inserted without the powder to dissolve or remove any coffee residue or impurities.

Cleaning the silicone disc
Wash the silicone disc (C) under running water, bending it slightly on the sides in order to free the centre hole of any residue of coffee grounds that could clog it (Fig. 14).

Cleaning the filter holder seat
With use, it may occur that in the filter holder seat there is a sedimentation of coffee grounds, which can be removed with a toothpick, a sponge (Fig. 15), or letting water run through without fitting the filter holder (Fig. 4).

Complete Setup Guide for Your Ariete 1389A

• Initial Unboxing and Assembly: Upon receiving your Ariete Coffee Maker 1389A, carefully remove all components from the packaging. Inspect the water tank, drip tray, portafilter, steam wand, and power cord for any damage. Wipe down the exterior with a soft, damp cloth to remove any manufacturing residue. Place the machine on a stable, level surface near a power outlet, ensuring adequate ventilation around the unit for proper heat dissipation.
• Water Tank Installation: The water tank is located at the back of the machine. Lift it out gently and rinse thoroughly under running water. Fill the removable tank with fresh, cold filtered water up to the MAX level indicator line. Filtered water is recommended to reduce mineral buildup and extend machine longevity. Securely reseat the tank into its housing, ensuring it clicks into place properly to enable correct water flow to the heating system.
• Pre-Operation Preparation: Before brewing your first espresso, plug the Ariete 1389A into a grounded electrical outlet. Allow the machine to heat for approximately 5-7 minutes until the steam indicator light activates, signaling that the boiler has reached optimal temperature. Run water through the empty portafilter into the drip tray to purge the system and remove any residual dust from manufacturing.
• Brewing Your First Cup: Insert either ground coffee or an ESE pod into the appropriate filter basket. For ground coffee, tamp firmly with consistent pressure using the tamper. Attach the portafilter to the group head and activate the brewing button. Water should flow steadily for 25-30 seconds for optimal extraction. Remove the portafilter carefully using the handle.
• Safety Precautions: Never operate the machine without water in the tank. Allow adequate cooling time before handling the steam wand or group head. Keep hands and flammable materials away from the steam nozzle during operation. Ensure the drip tray is properly positioned before brewing to catch overflow.

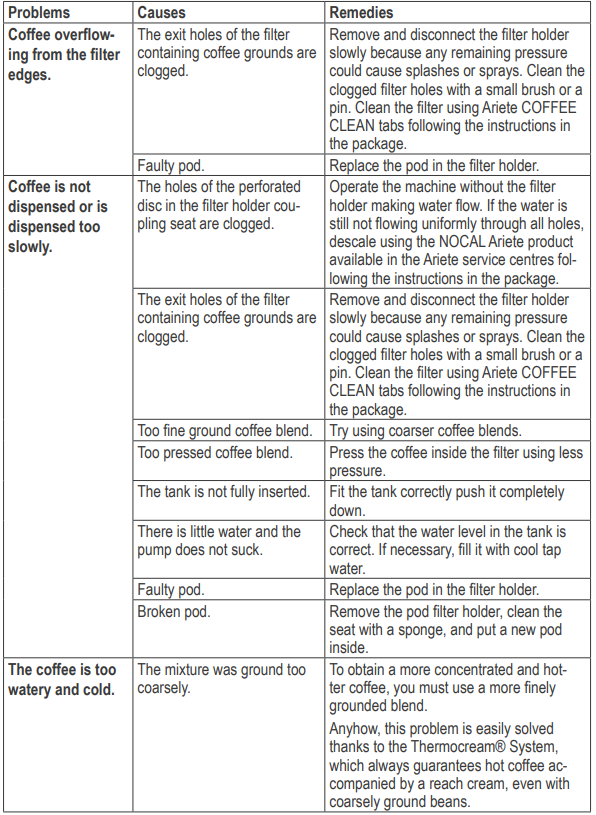

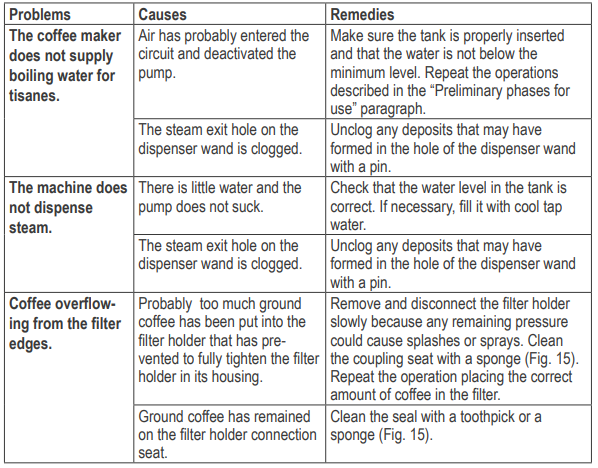

Troubleshooting Common Issues with the Ariete 1389A

• Weak Coffee or Coffee Flows Too Quickly: This issue typically indicates insufficient extraction time. Check that your ground coffee is using a fine grind setting appropriate for espresso machines. Increase the amount of coffee in the portafilter and tamp more firmly with consistent pressure. Ensure the basket is properly inserted and sealed in the group head. If problems persist, the coffee may be too coarse; consider purchasing pre-ground espresso or adjusting your grinder settings.
• No Steam from the Wand: Verify that the steam function has been activated through the machine's control buttons. The boiler must reach steam temperature, indicated by the steam indicator light turning on. If steam still doesn't appear, the steam wand may be clogged with milk residue. Immediately after steaming milk, purge the wand by activating the steam function into the drip tray for 2-3 seconds to clear blockages. For stubborn clogs, soak the removable wand tip in hot water for 15 minutes, then use a thin needle or pipe cleaner to clear internal passages.
• Water Leaking from the Machine: The most common cause is an improperly seated water tank. Remove the tank, inspect the connection points for debris, and reseat it firmly until you hear a click. If the drip tray is full, empty it completely—overflow can cause water to leak from underneath the machine. If leaking continues, the rubber gasket may be faulty and require replacement; contact Ariete customer support for warranty service. Never attempt to repair internal components yourself.
• Machine Not Heating Properly: Ensure the machine has sufficient warm-up time (5-7 minutes) after switching on. Check that water is present in the tank and properly seated. If the machine produces cold water, the heating element may require descaling; run a descaling solution through the system following the manufacturer's guidelines.
• Warranty and Support: The Ariete 1389A includes standard manufacturer warranty coverage. For technical assistance, contact Ariete's customer support team through their official website or authorized retailers. Keep your purchase receipt and product code (00M138913AR0) readily available for warranty claims. Most issues can be resolved through simple maintenance and proper usage techniques.

Advantages and Disadvantages of the Ariete 1389A Vintage Espresso Machine

Significant Advantages:

• Exceptional Design Aesthetics: The Ariete 1389A stands out with its elegant vintage styling featuring refined metal finishes and pastel color options, making it a decorative kitchen centerpiece rather than just a functional appliance
• Powerful Pressure System: The 15-bar pressure pump delivers authentic espresso extraction with rich crema, rivaling café-quality results in a home setting
• Versatile Brewing Options: Compatibility with both ground coffee and convenient ESE pods provides flexibility for different preferences and schedules
• Compact Footprint: At just 23×28×31 cm, the machine fits comfortably on apartment counters and small kitchen spaces without consuming excessive real estate
• User-Friendly Operation: Intuitive button controls and straightforward setup make it accessible to beginners while satisfying experienced espresso enthusiasts
• Excellent Value Proposition: Priced around Rs. 14,950, the machine offers premium features at an accessible entry-level price point
• Removable Components: The detachable water tank, drip tray, and cup holder facilitate easy cleaning and maintenance
• Milk Frothing Capability: The integrated Maxi-Cappuccino device with adjustable steam emission enables preparation of café-quality cappuccinos and lattes

Notable Disadvantages:

• Limited Water Tank Capacity: The 0.9-liter tank requires frequent refilling for households that consume multiple espressos throughout the day
• Compact Size Trade-offs: While the small footprint is advantageous for space, it may feel cramped for users accustomed to larger professional machines with more working space
• Entry-Level Performance Limitations: The machine lacks advanced features like PID temperature control or dual boiler systems found in higher-end models
• Steam and Espresso Limitation: Some users report needing to wait between switching from espresso brewing to steam frothing for temperature adjustment
• Learning Curve for Perfection: Achieving consistently excellent results requires practice and understanding of proper tamping pressure and grind consistency
• Maintenance Requirements: Regular descaling and steam wand cleaning are necessary to maintain optimal performance and prevent mineral buildup

Authentic Customer Reviews and User Feedback for the Ariete 1389A

• Users consistently praise the Ariete Coffee Maker 1389A for its stunning vintage design that transforms their kitchen aesthetic while delivering reliable espresso quality. Customers appreciate the machine's compact size, making it ideal for apartments and smaller homes where space is premium. Many reviewers highlight the excellent value for money, noting that the 15-bar pressure system produces impressive crema and body comparable to machines costing significantly more.
• The dual compatibility with ground coffee and ESE pods receives particular commendation from busy users who value convenience without sacrificing quality. The milk frothing system earns positive feedback for producing smooth, creamy milk texture suitable for cappuccinos and lattes. However, some users mention that the 0.9-liter water tank requires frequent refilling for multiple consecutive servings, and a few report that achieving perfect extraction consistency requires experimentation with grind and tamping technique.
• Common praise includes reliability, attractive design, ease of cleaning, and responsive customer support. Frequently mentioned considerations include the need for regular descaling, occasional steam wand cleaning requirements, and the learning curve for espresso perfection. Overall, users recommend the Ariete 1389A for home coffee enthusiasts seeking stylish, reliable espresso machines with excellent performance-to-price ratio, particularly for those prioritizing design aesthetics alongside functionality.
