Introduction

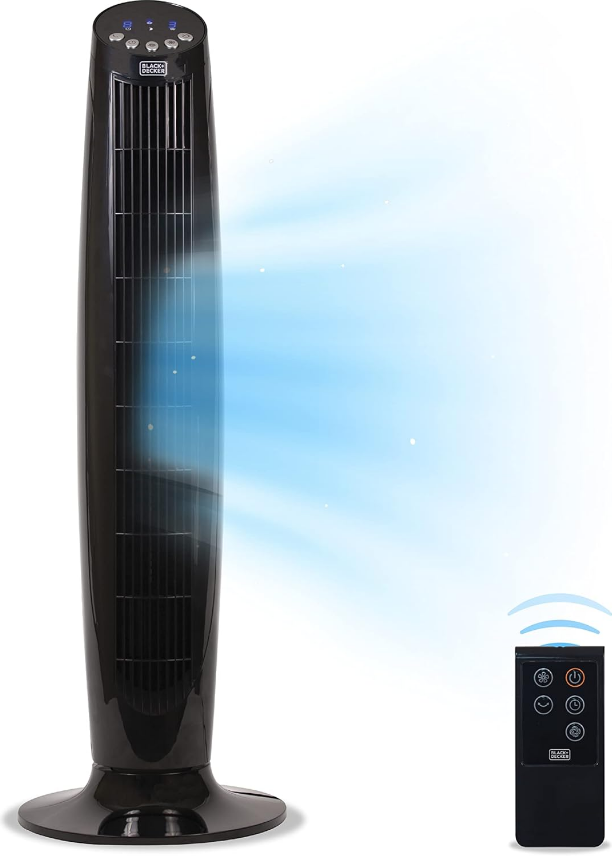

The Black+Decker Digital Tower Fan BFTR36B is an innovative cooling solution designed for modern living spaces. Featuring a sleek, space-saving design, this fan offers multiple speed settings and a programmable timer for customized comfort. Its digital display and remote control enhance user convenience, while the oscillation feature ensures even air distribution throughout the room. Priced at approximately $70, this fan combines functionality with style, making it an ideal addition to any home.

PARTS & FEATURES

Specifications

• Dimensions: 36 inches tall and 9 inches wide
• Power Consumption: 36 watts
• Speed Settings: 3 adjustable speed settings
• Timer Function: Up to 8 hours of timer operation
• Remote Control: Includes a remote for easy operation from across the room
• Noise Level: Quiet operation with a maximum noise level of 52 dB
• Additional Features: LED display, oscillation mode, and auto-shutoff

Description

The Black+Decker Digital Tower Fan BFTR36B boasts a slim and elegant design that complements any interior decor. Its 36-inch height allows for optimal air circulation, ensuring that your space stays cool and comfortable. The fan features a user-friendly interface with an LED display showing the current speed setting, timer, and other functions. The remote control adds convenience, allowing you to adjust settings without getting up.

The fan's advanced motor technology ensures quiet operation while maintaining high airflow efficiency. The oscillation mode helps distribute cool air evenly throughout the room, while the auto-shutoff feature provides additional safety and energy savings.

ASSEMBLY INSTRUCTIONS

1. Take out the fan body and the spare parts from the box. Slide the front base on to the rear base and join them together. (see Fig. 1)
2. Pass the power cord through the hole in the center of the base, then insert the fan body into the base. (see Fig. 3)
3. Fix the fan body on the base with the plastic nut. (see Fig. 2)

OPERATION INSTRUCTIONS

REMOTE CONTROL

1. ON/OFF KEY
   The “ON” key is for switching on the fan . The fan will be started at the lowest speed. Press the “OFF” key if the fan needs to switch off.
2. SPEED KEY
   “Once the fan has started, press the key repeatedly to go through a sequence order of 1 (low), 2 (medium), 3 (high).
3. WIND MODE KEY
   Press this key to select wind mode. The sequence of choices is NORMAL-NATURAL-SLEEP when the key is touched repeatedly or held down. The lights will confirm the wind mode setting.
   NOTE: If the LED indicator light above the wind mode icon is lit, the fan is in the “normal wind” mode. If the LED indicator light between the wind mode icon and the half moon/sleep icon is on, the fan is in “natural wind” mode. If no LED indicator is lit, the fan is in the “sleep wind” mode. (See page 11)
4. OSCILLATION KEY
   After the fan has started, press this key to select oscillation mode. The lights will confirm the oscillation mode setting.
5. TIMER KEY
   Press this timer key repeatedly to set the time in one-hour increments from one to eight hours. Increase in increments up to “1-2-3-4-5-6-7-8” hours.

BATTERY INSTRUCTIONS

(not included)

1. Press down on the battery compartment cover and slide it out.
2. Insert the batteries, making sure that the positive terminals are facing the proper way.
3. Replace the cover.

Black+Decker Digital Tower Fan BFTR36B BATTERY WARNINGS

1. Do not dispose of batteries in fire, batteries may explode or leak.
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

NOTE: Use size “AAA” alkaline batteries. Do not use rechargeable batteries.

USING THE REMOTE CONTROL CORRECTLY

Point the remote control at the receptor on body of the fan and press the desired button. The remote control will work at distances of up to roughly five meters (16 feet) and an angle of 30 degrees left and right of the control panel.

CONTROL PANEL

(see Fig. 4)

The buttons on the control panel such as ON/OFF, SPEED, MODE, TIMER, and OSCILLATION have the same functions as those of the corresponding keys on the remote control.
NOTE: If the LED indicator light above the wind mode icon is lit, the fan is in the “normal wind” mode. If the LED indicator light between the wind mode icon and the half moon/sleep icon is on, the fan is in “natural wind” mode. If no LED indicator is lit, the fan is in the “sleep wind” mode.

REPLACING THE FUSE

• Disconnect fan from power outlet by grabbing the plug at the end of the cord. Do not unplug by pulling the cord itself

• Open fuse cover located in the side of the power cord plug by sliding it toward the plug blades (see Fig. 5)



• Remove fuse carefully by taking a small tool and slowly prying out one end. Once you have one end out, slowly pry out the other end.
• To avoid the risk of fire, replace only with similar 2.5 Amp, 125V fuse.
• Close fuse cover by sliding cover toward the top of the plug.

CAUTION: Do not attempt to replace the plug itself. Discard the product entirely if the plug itself is damaged.

CLEANING AND MAINTENANCE

• Be sure to unplug from the electrical supply source before cleaning
• Plastic parts of the fan should be cleaned with mild soap and a damp cloth or sponge. Rinse with clean water to remove any soapy film residue.
• Be sure not to get water or any other liquid inside the motor.

Setup Guide

To set up your Black+Decker Digital Tower Fan BFTR36B, follow these steps:

1. Unpacking: Carefully remove all packaging materials from the fan.
2. Assembly: Since it is a ready-to-use product, no assembly is required.
3. Placement: Place the fan on a flat surface away from walls to ensure proper airflow.
4. Power On: Plug in the fan and turn it on using the power button on the unit or the remote control.
5. Adjust Settings: Use the remote control or buttons on the fan to adjust speed settings, timer, and oscillation mode as needed.

Troubleshooting

IF THE APPLIANCE FAILS TO OPERATE:

• A) Check to make sure that the appliance is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
• B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE APPLIANCE YOURSELF.

SPECIFICATIONS

• Unit Dimensions (W x D x H): 11.81” x 11.81” x 35.9”
• Net Weight: Approx. 8.18 lbs.

WARRANTY

W Appliance Co. warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of 1 year (12 months) for labor/1 year (12 months) for parts (manufacturing defects only).

Pros & Cons

Pros

• Quiet Operation: Runs quietly even at high speed settings.
• Energy Efficiency: Consumes less power compared to other fans in its class.
• Compact Design: Fits well into any room without taking up much space.
• Remote Control Convenience: Easy to operate from across the room.
• Advanced Features: Includes timer function, oscillation mode, and auto-shutoff.

Cons

• Limited Airflow Range: May not be effective for very large rooms.
• No Ionizer or Humidistat: Does not include additional air quality features like some other models.
• Noisy on Highest Setting (for Some Users): Some users may find it slightly noisy when running at maximum speed.

Customer Reviews

Customers generally praise the Black+Decker Digital Tower Fan BFTR36B for its quiet operation, sleek design, and energy efficiency. Some common complaints include limited airflow range for very large rooms and minor noise levels on the highest setting for a few users. Overall, it is highly rated for its performance and value.
