Introduction

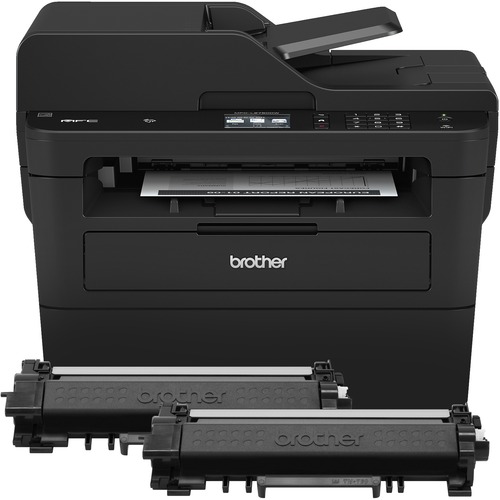

Introducing the Brother MFC-L2750DWXL Extended Print Compact Laser, a powerful and versatile laser copier designed for small to medium-sized offices. This device offers high-speed printing, scanning, copying, and faxing capabilities, all in one compact machine. With a competitive estimated price point around $500 and a launch date set for early 2023, this copier is perfect for businesses seeking efficiency and reliability.

Brother MFC-L2750DWXL Extended Print Compact Laser Detailed Specifications

Here are some of the key features of the Extended Print Compact Laser:

• Print speed: up to 40 pages per minute (ppm) in black and white
• First print out time: as fast as 6.5 seconds
• Print resolution: up to 2400 x 600 dpi
• Scan resolution: up to 1200 x 1200 dpi
• Automatic document feeder (ADF): 50 sheets
• Paper capacity: up to 550 sheets
• Connectivity: USB, Ethernet, Wi-Fi, Wi-Fi Direct
• Dimensions: 19.1 x 17.4 x 16.1 inches (W x D x H)

Description

Brother MFC-L2750DWXL Extended Print Compact Laser is a high-performance laser copier that is built to last. Its sleek and compact design makes it easy to fit into any office space, while its intuitive interface and easy-to-use controls make it simple to operate. With fast print speeds and high-quality output, this device is perfect for businesses that need to produce large volumes of documents quickly and efficiently.

The MFC-L2750DWXL also offers a range of advanced features, including mobile printing, cloud connectivity, and built-in security. With its automatic duplex printing and scanning capabilities, this device is not only cost-effective but also environmentally friendly. Its toner-saving mode and energy-efficient design help reduce power consumption, making it a sustainable choice for any business.

General Information

Control Panel Overview

Related Models: HL-L2390DW/DCP-L2550DW/MFC-L2710DW

The control panel may vary depending on your model.

MFC-L2710DW

1. One Touch buttons
   Store and recall up to eight fax and telephone numbers. To access stored One Touch fax and telephone numbers 1-4, press the One Touch button assigned to that number. To access stored One Touch fax and telephone numbers 5-8, press and hold Shift as you press the button.
2. Function buttons
   • Redial/Pause: Press to dial the last number you called. This button also inserts a pause when programming quick dial numbers or when dialing a number manually.
   • Hook: Press Hook before dialing to ensure a fax machine answers, and then press Start. If the machine is in Fax/Tel (F/T) Mode and you pick up the handset of an external telephone during the F/T ring (pseudo double-rings), press Hook to talk.
   • WiFi (for wireless models): Press the WiFi button and launch the wireless installer on your computer. Follow the onscreen instructions to set up a wireless connection between your machine and your network. When the WiFi light is on, your Brother machine is connected to a wireless access point. When the WiFi light blinks, the wireless connection is down, or your machine is in the process of connecting to a wireless access point.
   • Resolution (for certain models only): Press to change the Fax resolution.
   • 2 in 1 (ID) Copy: Press to copy both sides of an identification card onto a single page.
   • 2-sided: Press to copy on both sides of a sheet of paper.
   • Options: Press to access temporary settings for faxing, scanning, or copying.
3. Liquid Crystal Display (LCD)
   Displays messages to help you set up and use the machine. If the machine is in Fax Mode, the LCD displays:
   • Date & Time

   • Receive Mode
     When you press COPY, the LCD displays



     When you press COPY, the LCD displays



   • Type of copy
   • Number of copies
   • Quality
   • Contrast
   • Copy ratio
4. Mode buttons
   • FAX: Press to switch the machine to FAX Mode.
   • SCAN: Press to switch the machine to SCAN Mode.
   • COPY: Press to switch the machine to COPY Mode.
5. Menu buttons
   • Clear: Press to delete entered data or cancel the current setting.
   • Menu: Press to access the Menu for programming your machine settings.
   • OK: Press to store your machine settings.
   • Press to scroll back or forward through menu selections.
   • a or b
     • Press to scroll up or down through menus and options.
     • Press to change the resolution in Fax Mode.
     • Press to access speed dial numbers.
6. Dial Pad
   • Use to dial fax and telephone numbers.
   • Use as a keyboard to enter text or characters.
7. Power On/Off
   • Turn on the machine by pressing .
   • Turn off the machine by pressing and holding . The LCD displays [Shutting Down] and stays on for a few seconds before turning off. If you have an external telephone or TAD connected, it is always available.
8. Stop/Exit
   • Press to stop an operation.
   • Press to exit from a menu.
9. Start
   • Press to start sending faxes.
   • Press to start copying.
   • Press to start scanning documents.

HL-L2390DW/DCP-L2550DW

1. Power On/Off
   • Turn on the machine by pressing.
   • Turn off the machine by pressing and holding . The LCD displays [Shutting Down] and stays on for a few seconds before turning off.
2. Function buttons
   • Copy/Scan Options: Press to access temporary settings for scanning or copying.
   • WiFi (for wireless models): Press the WiFi button and launch the wireless installer on your computer. Follow the onscreen instructions to set up a wireless connection between your machine and your network. When the WiFi light is on, your Brother machine is connected to a wireless access point. When the WiFi light blinks, the wireless connection is down, or your machine is in the process of connecting to a wireless access point.
   • Scan: Press to switch the machine to Scan Mode.
   • 2 in 1 (ID) Copy: Press to copy both sides of an identification card onto a single page.

3. Liquid Crystal Display (LCD)
   Displays messages to help you set up and use the machine. If the machine is in Ready Mode or COPY Mode, the LCD displays:



   • Type of copy
   • Number of copies
   • Quality d. Contrast
   • Copy ratio

4. Menu buttons



   • Menu
     • Press to access the Menu for programming your machine settings.
   • Clear
     • Press to delete entered data.
     • Press to cancel the current setting.
   • OK
     • Press to store your machine settings.
   • Press to scroll up or down through menus and options.
5. Stop/Exit
   • Press to stop an operation.
   • Press to exit from a menu.
6. Start
   • Press to start copying.
   • Press to start scanning documents.

Related Models: HL-L2395DW/MFC-L2730DW/MFC-L2750DW/MFC-L2750DWXL

The control panel may vary depending on your model.

1. Near Field Communication (NFC) (HL-L2395DW/MFC-L2750DW/MFC-L2750DWXL)
   If your Android device supports the NFC feature, you can print from your device or scan documents to your device by touching it to the NFC symbol on the control panel.
2. Touchscreen Liquid Crystal Display (LCD)
   Access menus and options by pressing them on the touchscreen.
3. Menu Buttons
   • (Back): Press to go back to the previous menu.
   • (Home): Press to return to the Home screen.
   • (Cancel): Press to cancel an operation.
4. Dial Pad (Numerical buttons)
   Press the numbers on the touchpanel to dial telephone or fax numbers and to enter the number of copies.
5. LED Power Indicator
   The LED lights up depending on the machine’s power status.
6. Power On/Off
   • Turn on the machine by pressing .
   • Turn off the machine by pressing and holding down . The touchscreen LCD displays [Shutting Down] and stays on for a few seconds before turning off. If you have an external telephone or TAD connected, it is always available.

Touchscreen LCD Overview

Related Models: HL-L2395DW/MFC-L2730DW/MFC-L2750DW/MFC-L2750DWXL

When a Home screen is displayed, press or to display the other Home screens. The Home screen displays the machine's status when the machine is idle. When displayed, this screen indicates that your machine is ready for the next command. The available features will vary depending on your model.

1. Date & Time Displays the date and time set on the machine.
2. Modes
   • Press to access Fax mode.
   • Press to access Copy mode.
   • Press to access Scan mode.
   • Press to access the [Secure Print] option.
   • Press to connect the Brother machine to an Internet service.
   • Press to connect the Brother machine to the Brother Apps service.
3. Toner Displays the remaining toner life. Press to access the [Toner] menu. When the Toner cartridge is near the end of life or has a problem, an error icon appears on the Toner icon.
4. Press to access the [Settings] menu. If Secure Function Lock or Setting Lock has been turned on, a lock icon appears on the LCD. You must unlock the machine to use Settings.

5. Wireless Status for wireless models Press to configure wireless settings. If you are using a wireless connection, a four-level indicator in each of the Home screens displays the current wireless signal strength.



   Wireless LAN Disabled

6. [Shortcuts] Press to create Shortcuts for frequently used operations, such as sending a fax, making a copy, scanning, and using Web Connect. Three Shortcuts screens are available with up to four Shortcuts on each Shortcuts screen. A total of 12 Shortcuts are available. To display the other Shortcuts screens, press or .

7. Stored Fax(es) The number of received faxes in memory appears at the top of the screen. Press , and then press [Yes] to print the faxes.



8. Warning icon
   The warning icon appears when there is an error or maintenance message; press the message area to view it, and then press to return to Ready Mode.



This product adopts the font of ARPHIC TECHNOLOGY CO., LTD.

Setup Guide

Setting up the Brother MFC-L2750DWXL Extended Print Compact Laser is a straightforward process. Simply unpack the device, connect it to a power source, and turn it on. Follow the on-screen prompts to install the drivers and software, and then connect the device to your network. Once connected, you can start printing, scanning, copying, and faxing right away.

How to Navigate the Touchscreen LCD

Related Models: HL-L2395DW/MFC-L2730DW/MFC-L2750DW/MFC-L2750DWXL

Press your finger on the LCD to operate it. To display and access all the options, press OR  on the LCD to scroll through them. The following steps explain how to navigate through changing a machine setting. In this example, the LCD Backlight setting is changed from [Light] to [Med].

IMPORTANT: DO NOT press the LCD with a sharp object such as a pen or stylus. It may damage the machine.

NOTE: DO NOT touch the LCD immediately after plugging in the power cord or turning on the machine. Doing this may cause an error.

1. Press ([Settings]).
2. Press [All Settings].

3. Press or to display the [General Setup] option, and then press [General Setup].



4. Press or to display the [LCD Settings] option, and then press [LCD Settings].



5. Press [Backlight].



6. Press [Med].



7. Press Home.

Load Paper

Load Paper in the Paper Tray

Use the paper tray when printing on the following media:

Load Paper in the Manual Feed Slot

Use the Manual Feed Slot when printing on the following media:

Open the back cover (face up output tray) before printing to let the printed paper exit onto the face-up output tray.

Error and Maintenance Messages

For information on the most common error and maintenance messages, see the Online User's Guide. To view the Online User's Guide and other available guides, visit support.brother.com/manuals.

Document and Paper Jams

An error message indicates where the paper is stuck in your machine.

Error messages

1. Document Jam
2. Jam Rear
3. Jam 2-sided
4. Jam Tray
5. Jam Inside See the messages in Brother Status Monitor on your computer.

Solutions for Wireless Connection

If you cannot connect your Brother machine to the wireless network, see the following:

• Online User's Guide: Print the WLAN Report
• Quick Setup Guide: Alternative wireless setup

Appendix

Supplies

When the time comes to replace supplies, such as the toner or drum, an error message will appear on your machine's control panel or in the Status Monitor. For more information about the supplies for your machine, visit https://web.global.brother/bd/original/index.htm or contact your local Brother dealer

• The supply order number will vary depending on your country and region.

Toner Cartridge

Approximate cartridge yield is declared in accordance with ISO/IEC 19752.

• Approximate cartridge yield is declared in accordance with ISO/IEC 19752.
• A4/Letter simplex pages

• Approximate cartridge yield is declared in accordance with ISO/IEC 19752.
• A4/Letter simplex pages

• Approximate cartridge yield is declared in accordance with ISO/IEC 19752.
• A4/Letter simplex pages

Drum Unit

• Approximately 12,000 pages based on 1 page per job
• [A4/Letter simplex pages].

The number of pages may be affected due to a variety of factors including but not limited to media type and media size.

Print and Scan Using Your Mobile Device

Brother iPrint & Scan for Mobile allows you to use features of your Brother machine directly from your mobile device, without using a computer. The Mobile Print/Scan Guide for Brother iPrint&Scan contains information on printing from your mobile device. Go to your model's Manuals page on the Brother Solutions Center at https://support.brother.com/g/b/countrytop.aspx?c=us&lang=en

User's Guides and Where to Find Them

The Online User's Guide Helps You Get the Most Out of Your Machine

We hope that you find this guide helpful. To learn more about your machine's features, please take a look at our Online User's Guide. It offers:

Quicker Navigation!

Search box Navigation index in a separate panel

Comprehensive Format!

Every topic in one guide

Simplified Layout!

Step-by-step instructions Feature summary at the top of the page

1. Search Box
2. Navigation
3. Summary
4. Step-by-Step Instructions

To View Online User's Guides

To view the Online User's Guide and other available guides, visit https://support.brother.com/g/s/solutions/manuals/ . (Windows) You can also access your machine's guides using Brother Utilities. The Brother Utilities tool is included in the standard installation and, when installed, you can find it either as a shortcut on your desktop, or from the Windows Start menu.

Questions or Problems?

Take a Look at our FAQs, Solutions, and Videos Online.  Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at https://support.brother.com/g/b/countrytop.aspx?c=us&lang=en

• Provides several ways to search
• Displays related questions for more information
• Receives regular updates based on customer feedback

Brother MFC-L2750DWXL Extended Print Compact Laser Troubleshooting

Use this section to resolve problems you may encounter when using your Brother machine.

Identify the Problem

Even if there seems to be a problem with your machine, you can correct most problems yourself. First, check the following:

• The machine's power cord is connected correctly and the machine's power is on.
• All of the machine's orange protective parts have been removed.
• (For network models) The access point (for wireless network), router, or hub is turned on and its link indicator is blinking.
• Paper is inserted correctly in the paper tray.
• The interface cables are securely connected to the machine and the computer.

• Check the machine's status on your machine or in Brother Status Monitor on your computer.



Pros & Cons

Pros

• High-speed printing and scanning
• Automatic duplex printing and scanning
• Large paper capacity
• Mobile printing and cloud connectivity
• Energy-efficient design

Cons

• Higher upfront cost
• Limited color printing options
• No automatic document feeder for scanning and copying
• No fax cover sheet included

Customer Reviews about Brother MFC-L2750DWXL Extended Print Compact Laser

Brother MFC-L2750DWXL Extended Print Compact Laser has received generally positive reviews from customers, with many praising its fast print speeds and high-quality output. Some users have noted issues with connectivity and toner waste, but overall, the device has been well-received.
