Introduction

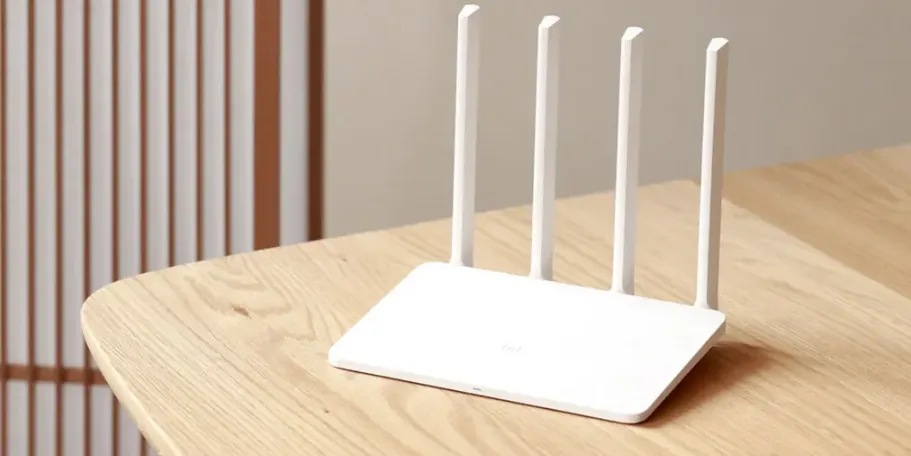

The Mi Wi-Fi Router 3C is a high-performance wireless router designed for small to medium-sized homes and offices. It offers fast and stable Wi-Fi connections, easy setup and management, and a sleek and compact design. The estimated price of the Mi Wi-Fi Router 3C is around $30, making it an affordable option for those looking for a reliable and efficient router.

Technical details

Processor	MT7628N
ROM	16MB NorFlash
RAM	64MB DDR2
Wi-Fi Protocols	802.11n, 2.4GHz2X2 (speed up to 300Mbps)
No. of antennae	4
Heat dispersion mechanism	Fan less architecture
Interface	2x LAN port, 10/100Mbps (Auto MDI/MDIX) 1x RJ45WAN port, 10/100Mbps (Auto MDI/MDIX) 1x Power port 1x Reset button Red/Blue/Yellow LED indicator Note: Compatible with input type RJ-45 (ethernet cable) supported by ISP's all over India such as ACT Fibernet, Airtel Fibernet, Hathway, Tikona, Exitel, YOU Broadband, SITI, GTPL etc.
Operating frequency	2.4GHz
Radio channel	1,2,3,4,5,6,7,8,9,10,11,12,13
Data rate	11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps), CCK(5.5/11Mbps) 11g:OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
Receiver Sensitivity	11Mbps:≤-90dBm,54 Mbps:≤-72dBm, HT20 MCS7:≤-69dBm, HT40 MCS7:≤-66dBm
Operating system	MiWiFi OS(Based on OpenWRT)
Language support	English
Wireless encryption	WPA-PSK/WPA2-PSK encryption, wireless access control (black and white list),SSID hiding, intrusion detection, DoS protection, access control manager, SSID isolation
Wi-Fi Protocols	IEEE 802.11b/g/n,IEEE 802.3/3u
Operating ambient temperature	0-40℃
Relative humidity	10%-90%RH, noncondensing
Nonoperating temperature	-40-70℃
Total power consumption	5W

Setup Guide Using Web Browser

When setting up as a primary router

Connect the Ethernet (RJ45) cable to the Internet port seen behind the router and switch it on. Now, connect to the router by logging on to https://www.miwifi.com/
Enter the ISP provided credentials
1. If you remember your ISP provided username and password, please enter the required details and click on ‘next’
2. Else, you can also import the settings from your previous router. Follow the steps described in the image below and click on ‘Import from existing router’.
Mi 3C Router will now attempt connecting to the Internet with the settings imported.
Note: In case your connection type is DHCP, you won’t be required to either enter the ISP provided username/password or import the configuration.
Set your router admin password
Please note: If you want the same password to be used for router admin control, please select ‘same as Wi-Fi password’ and click on finish.
Choose your location from the options given under the drop down menu.
You can keep the admin password same as Wi-Fi password. If you un-check this option, you can set a different password for Wi-Fi as shown in the following step.
Set Wi-Fi network and password
You are all set! Happy Browsing.

When setting up as a primary router

Choose between Wired or Wireless amplifier modes
- Setting up as a wired amplifier. Please follow the steps as described in the images below:
- Setting up as a wireless amplifier. Please follow the steps as described in the images below:
  Note: If you choose wireless repeater mode, or if you do not insert the LAN cable in the Mi router from the primary router, you will be redirected to this page:
- Choose ‘Amplifier mode (extend existing Wi-Fi)’
Select the Wi-Fi network you wish to amplify and enter the required password
Once the two routers are synced, please setup new network name and password to distinguish between the primary router and wireless repeater which in this case is Mi Wi-Fi Router 3C.
You’re all set. Happy Browsing!

When setting up as a secondary router

Power on the router, connect the Ethernet (RJ45) cable to the Internet port seen behindthe router and switch it on. Download the Mi WiFi app from Google Playstore or Apple App Store. Alternatively, you can also scan the QR code available below or on the product box or inside the product manual.
Open the Mi WiFi app. Sign in to your Mi account. Once signed in, the app allows you to search for the Mi WiFi router. Once detected, ‘Set up now’ button will be active to proceed further.
Click on ‘Set up now’ and tap on the location of the router
Mi WiFi app will automatically detect your network type (PPPoE, DHCP etc.)
Entering your ISP provided credentials
- If you remember your ISP provided username and password, please enter the required details and tap on ‘next’
  Else, you can also import the settings from your previous router. Follow the steps described in the image below and click on ‘Import from existing router’.
  Note: In case your connection type is DHCP, you don’t have to enter the ISP username/password or import the configuration.
Enter your Wi-Fi network name and password.

Please note: If you want the same password to be used for router admin control, please select ‘set as router admin password as well’ and click on finish. Happy browsing!

When setting up as a secondary router

If you want to setup the Mi WiFi router as a secondary router, click on ‘more options’ asseen in step 4. There are basically 2 ways to set up the Mi WiFi Router 3c as a repeater: Wireless repeater mode and wired repeater mode.
- By clicking wireless repeater mode, you have the option to choose the existing WiFi network you want to pair your Mi WiFi Router with.
- Choose the Wi-Fi network you want to pair your Mi WiFi Router with.
- Provide ‘Network Name’ and ‘Password’ and click on ‘Finish’. Happy Browsing.
Upon selection of Wired Repeater Mode,
- Connect the WAN/ Internet port of Mi WiFi Router 3C with the LAN port of your primary router using a LAN (Ethernet/ RJ45) cable, while the WAN/ Internet port of primary router is connected to the ISP.
- Once done, provide ‘Network Name’ and ‘Password’ and click on ‘Finish’. Happy Browsing.

Please note: Ethernet cable is not a part of this package.

Description

The Mi Wi-Fi Router 3C supports 802.11n wireless standard and operates on both 2.4GHz and 5GHz bands, providing a combined data rate of up to 300Mbps. It features 4 high-performance antennas that provide a strong and stable Wi-Fi signal, even in large homes or offices. The router also has 4 Gigabit Ethernet ports, allowing for fast and reliable wired connections. The Mi Wi-Fi Router 3C also has a simple and user-friendly interface, making it easy to set up and manage your network.

Troubleshooting of Mi Wi-Fi Router 3C

If you experience any issues with your Mi Wi-Fi Router 3C, here are some common problems and solutions:

Problem: The router is not providing a Wi-Fi signal.
Solution: Check to make sure the router is powered on and properly connected to your modem. Also, check to make sure the Wi-Fi is enabled and the network name (SSID) and password are correct.
Problem: The Wi-Fi signal is weak or drops frequently.
Solution: Make sure the router is in a central location and not obstructed by walls or other objects. Also, try changing the wireless channel to avoid interference from other devices.

Pros & Cons

Pros

Fast and stable Wi-Fi connections
Easy setup and management
Affordable price
4 high-performance antennas
4 Gigabit Ethernet ports

Cons

Limited range compared to some other routers
No USB port for sharing files or printers

Customer Reviews

Customers have praised the Mi Wi-Fi Router 3C for its fast and stable Wi-Fi connections, easy setup and management, and affordable price. However, some have noted that the range is limited compared to some other routers and that there is no USB port for sharing files or printers.
