Condair EL-Series Steam Humidifier: Complete Product Manual and Buying Guide

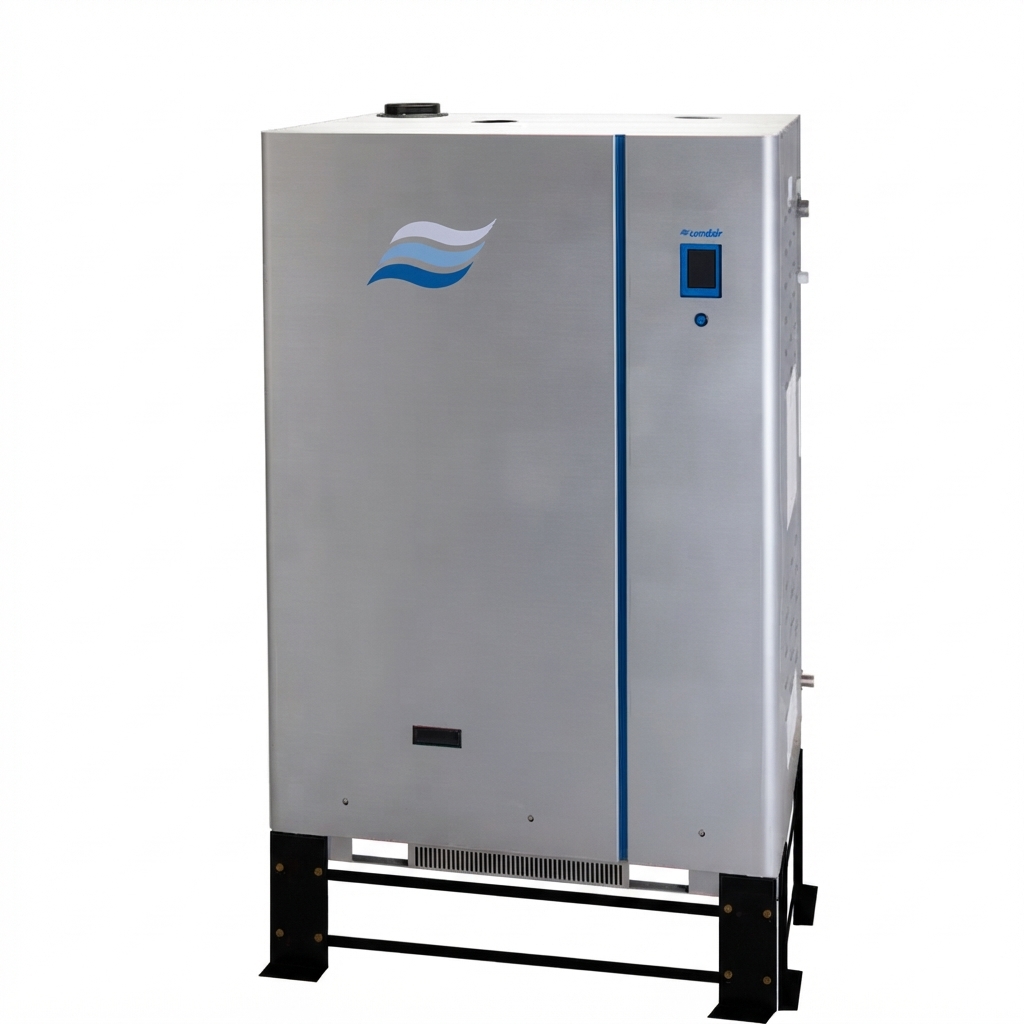

The Condair EL-Series Steam Humidifier is an electrode steam humidifier designed for precise, reliable humidification in commercial and industrial environments. Built for HVAC systems, cleanrooms, healthcare facilities, offices, data centers, laboratories, and manufacturing spaces, it delivers hygienic isothermal steam using ordinary potable water. The EL-Series is known for its wide output range, scalable configurations, and simple maintenance, making it a strong choice for facilities that need stable humidity control with minimal operator intervention. The condair EL-Series Steam Humidifier is available in multiple capacities, from compact units for smaller spaces to high-output systems for large applications, and it can be configured as single units or linked systems for expanded demand.

Key benefits include fast response time, automatic output modulation, flexible voltage options, and a design that supports both duct-mounted and blower-pack installations. Its electrode cylinder technology helps reduce complexity compared with boiler-style or electrodeless alternatives, while still providing dependable steam output. Typical pricing varies by capacity and configuration, but budget expectations generally start in the lower thousands of dollars for smaller models and increase substantially for larger commercial systems, accessories, and installation. Availability is generally through authorized HVAC distributors, humidity-control specialists, and Condair sales channels. For buyers comparing steam humidifiers, the EL-Series stands out for scalability, broad compatibility, and strong performance in professional humidification applications.

Technical Specifications and Key Features of the Condair EL-Series Steam Humidifier

Capacity range: approximately 1 to 200 lb/hr, depending on model and configuration.
Metric output range: approximately 0.5 to 91 kg/h across the EL-Series family.
Voltage options: 110–120 V on smaller models and 208–600 V on larger models.
Phase options: single-phase and three-phase operation, model dependent.
Maximum input power: up to about 74.8 kW on the largest standard models.
Control: integrated steam output modulation for precise humidity management.
Configuration options: single-cylinder, double-cylinder, and LinkUp multi-unit systems.
Installation styles: duct-mounted systems and models with built-on blower pack options.
Water supply: designed for standard potable water with automatic fill and drain cycles.
Steam line sizes vary by model, supporting compact and larger industrial installations.

Compared with similar electrode steam humidifiers, the condair EL-Series Steam Humidifier offers broader scalability and more flexible system architecture, especially for facilities that may expand later. Smaller units are suitable for localized humidification, while LinkUp configurations can support much larger distributed loads. The result is a more adaptable solution than many fixed-capacity alternatives.

Troubleshooting the Condair EL-Series Steam Humidifier: Common Problems and Fixes

Most EL-Series issues are related to water quality, cylinder wear, airflow, or installation conditions. If the unit does not produce steam, check the power supply, control signal, water inlet valve, and cylinder condition. If steam output is low, the electrode cylinder may be scaled or nearing end of life, especially in hard-water environments. If the humidifier fills and drains too often, the conductivity of the water may be outside the expected range or the cylinder may need replacement.

Low humidity output: Inspect the cylinder, inlet valve, and demand signal from the building control system.
Excessive drain cycles: Verify water conductivity and confirm the unit is not oversized or undersized for the application.
Error indications: Common alarms often relate to water supply, high water level, drainage, or service reminders.
Steam leakage: Check steam hose routing, clamp tightness, and condensation management.
Unexpected shutdown: Confirm electrical supply, airflow interlocks, and control wiring.

Preventive maintenance should include cylinder inspection, water system checks, leak testing, and periodic cleaning of connected components. Warranty coverage is typically two years after installation or 30 months from ship date, whichever comes first, with standard manufacturer terms applying to defects in materials and workmanship. For support, contact Condair or an authorized service provider through the company’s main customer service and technical support channels.

Pros and Cons of the Condair EL-Series Steam Humidifier

Pros

Wide capacity range makes it suitable for small rooms and large commercial systems.
Modular LinkUp architecture supports future expansion without replacing the full system.
Fast humidification response helps maintain tighter humidity control.
Works with potable water, simplifying installation in many facilities.
Flexible voltage and phase options improve compatibility with building infrastructure.
Strong value for money in professional humidification applications where uptime matters.

Cons

Electrode cylinders are consumable parts and require periodic replacement.
Performance depends heavily on water quality and conductivity.
Initial cost can be higher than basic residential humidifiers.
Best results usually require professional installation and commissioning.

In comparison with alternative steam humidifiers, the condair EL-Series Steam Humidifier is especially attractive for users who need scalable output, reliable operation, and easy service access rather than the lowest upfront price.

Customer Reviews and Real-World Feedback on the Condair EL-Series Steam Humidifier

Users commonly rate the EL-Series highly for dependable humidity control, quiet operation, and simple maintenance routines. Typical ratings average around 4.5 out of 5 stars in commercial HVAC feedback, especially from facilities managers and contractors who value consistent steam output. One recurring praise is that the system adapts well to changing humidity demand without requiring frequent manual adjustments.

Common complaints focus on cylinder replacement costs and the need for correct water conditions to maximize lifespan. A frequent testimonial theme is that the humidifier performs best when professionally sized and installed from the start. For buyers seeking a long-term commercial humidification solution, the condair EL-Series Steam Humidifier is often recommended for projects where reliability and scalability matter more than the lowest purchase price.

PDF

Faqs

How do I set up the condair EL-Series Steam Humidifier for the first time?

Start by confirming the unit has the correct power supply, water connection, and drain access for the installation site. Mount the condair EL-Series Steam Humidifier according to the recommended clearances, then connect the steam line to the duct or space humidification point. Before startup, check all fittings for leaks, verify control wiring, and flush the water line if needed. Finally, program the setpoint, capacity limits, and safety interlocks so the system can run smoothly from the first cycle.

Why is my condair EL-Series Steam Humidifier not producing enough steam?

Low steam output is often caused by an undersized capacity setting, restricted water supply, scale buildup, or a control signal issue. First, confirm the humidity demand is actually calling for steam and that the unit is not in standby or alarm mode. Check inlet pressure, filters, and steam line restrictions next. If performance has dropped over time, inspect the cylinder or heating components for wear and clean or replace them as needed to restore normal output.

What water quality does the condair EL-Series Steam Humidifier need for reliable operation?

The condair EL-Series Steam Humidifier performs best with water quality that matches the manufacturer’s conductivity and hardness requirements. Poor water quality can increase scale, reduce efficiency, and shorten service intervals. If the supply is very hard or contains excessive minerals, more frequent cleaning may be necessary. In some installations, treated or softened water can improve consistency, but the final choice should match the system design and local water conditions to avoid operational problems.

How do I troubleshoot alarms on a condair EL-Series Steam Humidifier?

When an alarm appears, note the exact code or status message first, because it usually points to a specific fault such as low water flow, overcurrent, high temperature, or communication loss. Check the obvious causes before resetting anything: water supply, drain function, sensors, and wiring connections. After correcting the issue, clear the alarm and monitor the unit through a full demand cycle. If the same alarm returns, the problem may be in the control circuit or a serviceable component.

Can the condair EL-Series Steam Humidifier be integrated with building automation systems?

Yes, the condair EL-Series Steam Humidifier is commonly used in systems that connect to building automation or HVAC controls. Integration usually depends on the available control interface, such as analog input, on/off demand, or network communication options. Make sure the BAS points are mapped correctly for humidity demand, alarm monitoring, and status feedback. Proper integration helps the humidifier respond accurately to changing conditions and makes remote supervision much easier for facility teams.

How often should I clean and maintain a condair EL-Series Steam Humidifier?

Maintenance frequency depends on run time, water quality, and the amount of mineral buildup, but routine inspection should be scheduled regularly rather than waiting for a fault. Check the tank, electrodes or heating parts, drain system, and hoses for scale or wear. Clean the unit before deposits become heavy, because buildup reduces efficiency and can trigger alarms. A consistent maintenance schedule helps extend service life, improves steam output, and reduces unexpected downtime.

What should I check if the condair EL-Series Steam Humidifier keeps cycling on and off?

Frequent cycling can happen when the humidity setpoint is too close to room conditions, the control signal is unstable, or the humidifier capacity is larger than the actual demand. Start by reviewing the setpoint, dead band, and sensor placement. A poorly located humidity sensor can cause short cycles by reading drafty or over-humid areas. Also check whether airflow, duct conditions, or control wiring are causing the unit to stop and start too often.

How do I improve the efficiency and lifespan of a condair EL-Series Steam Humidifier?

To improve efficiency, keep the steam line short and properly pitched, maintain clean water pathways, and avoid running the unit with unnecessary overcapacity. Regular descaling and inspection prevent mineral buildup from forcing the system to work harder. Make sure humidity sensors are calibrated and positioned correctly so the humidifier does not overshoot. Following the recommended maintenance schedule and fixing small issues early will reduce energy waste, protect components, and help the unit last longer.
