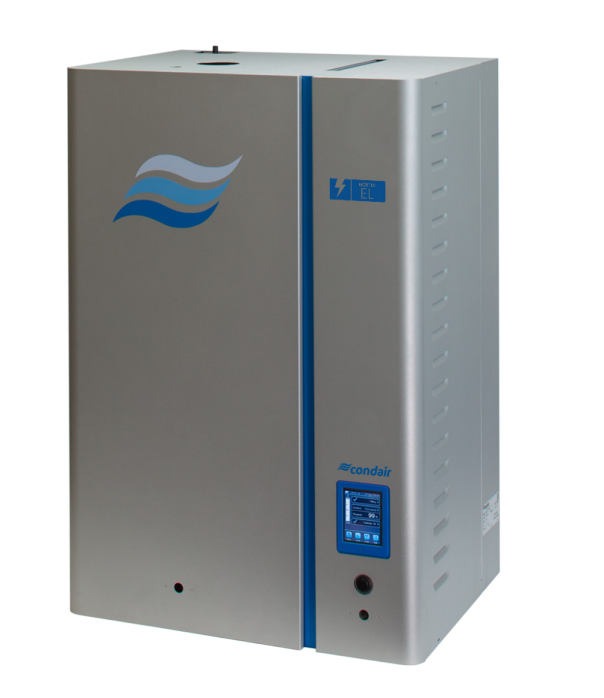

Condair Electrode Steam Humidifier EL-Series: Complete Product Manual and Buying Guide

Introduction

The Condair Electrode Steam Humidifier EL-Series is a high-performance isothermal humidification solution designed for precise moisture control in commercial, industrial, and mission-critical environments. Built around electrode heating technology, it generates clean, sanitary steam by using the conductivity of water, making it a practical choice for offices, hospitals, data centers, laboratories, cleanrooms, schools, and production spaces that require stable humidity levels.

One of the main advantages of the Condair Electrode Steam Humidifier EL-Series is its scalable output range, which supports small applications as well as large multi-unit installations. The series is known for straightforward installation, dependable operation, and low-maintenance performance compared with more complex steam systems. It can be used for direct room humidification with a blower pack or duct humidification through an air handling system, giving it flexibility across different building types.

The EL-Series is especially attractive to facility managers who need accurate humidity control without excessive operational complexity. Available models range from compact units for lower-capacity needs to larger units capable of much higher steam output. Estimated pricing typically falls in the mid-to-premium commercial category, often ranging from several thousand dollars for smaller models to significantly more for large-capacity or multi-unit systems, depending on configuration, controls, and installation requirements. Availability is generally through authorized Condair distributors and HVAC suppliers.

Specifications

Product type: Electrode steam humidifier for isothermal humidification
Capacity range: Approx. 1 to 200 lb/hr per unit depending on model
Metric capacity range: Approx. 1 to 91 kg/hr per unit depending on model
Scalability: Up to twelve single units can be linked for much larger system output
Voltage options: 110-120V on smaller models; 208-600V on larger models
Phase options: Single-phase and three-phase configurations depending on model
Input power: Up to approximately 74.8 kW on the largest listed unit
Cylinder design: Single-cylinder models for smaller capacities; double-cylinder models for high-capacity output
Installation modes: Direct room humidification or ducted steam distribution
Built-on blower pack: Included on smaller and mid-size models; not standard on larger units
Comparable products: Similar to other electrode steam humidifiers from commercial HVAC brands, but the EL-Series stands out for range and modular scaling

Performance is strongest where fast humidity recovery, simple steam generation, and flexible expansion are required. Compared with resistive steam humidifiers, electrode units often offer easier water-level-based modulation and a simpler operating principle, though they depend on suitable water conductivity.

Detailed Description

The Condair Electrode Steam Humidifier EL-Series works by passing electric current through water inside a steam cylinder. As the water heats, it produces atmospheric steam that is delivered into the conditioned space or air duct. This electrode principle naturally adjusts output based on water level and conductivity, helping the unit maintain steady steam production without overly complicated controls.

This design makes the EL-Series well suited for offices, healthcare environments, archives, manufacturing facilities, and data centers where controlled humidity supports comfort, equipment protection, and process stability. In real-world use, the system can be paired with a blower pack for direct room humidification or connected to ductwork for centralized HVAC integration.

Build quality is aimed at commercial reliability, with a rugged cabinet, replaceable steam cylinder, and industrial-grade components designed for frequent operation. The user experience is generally straightforward: once installed and configured, the unit offers consistent humidity delivery with routine maintenance focused on cylinder inspection and replacement as needed. For many buyers, the EL-Series offers a practical balance of performance, serviceability, and scalability.

Setup Guide

Proper installation is essential for safe and reliable operation. The Condair EL-Series is typically installed by qualified HVAC or electrical professionals, especially on higher-voltage models. Before setup, confirm the model size, available power supply, water quality, and whether the unit will humidify a room directly or feed steam into ductwork.

Mount the unit on a stable wall or designated equipment surface according to the installation manual.
Connect the water supply using approved plumbing materials and verify water pressure.
Install the steam line using copper, stainless steel, or approved steam hose where appropriate.
Wire the unit to the correct voltage and phase rating for the selected model.
Set the control method, humidity target, and operating limits through the controller.
Test the blower pack or duct connection to confirm steam is distributed correctly.
Run a commissioning cycle and check for leaks, alarms, or airflow issues.

Safety precautions include disconnecting power before servicing, avoiding hot steam contact, and ensuring adequate clearance around the humidifier. If the unit does not start, check incoming power, water supply, and humidifier demand signal first. In many cases, startup issues are caused by incorrect wiring, insufficient water conductivity, or an improperly installed steam line.

Troubleshooting

Most Condair EL-Series problems are related to water supply, conductivity, steam cylinder wear, airflow, or control signals. A common issue is reduced output, which may indicate a scaling cylinder, low water conductivity, or a clogged water path. Another frequent concern is the unit failing to generate steam, often caused by missing demand input, electrical faults, or an empty water supply.

Low steam output: Check the steam cylinder, water conductivity, and scaling buildup.
Unit not starting: Verify power, control signal, and safety interlocks.
Water filling continuously: Inspect inlet valve, drain line, and level control.
Frequent alarms: Review wiring, airflow, and sensor connections.
Steam leakage: Confirm steam line slope, fittings, and condensate drainage.

Preventive maintenance includes periodic cylinder inspection, cleaning or replacement as needed, and checking electrical terminals and plumbing connections. If issues persist, support is typically available through Condair authorized service channels and distributor support. Warranty coverage and service terms vary by region and installer, so buyers should confirm details with the supplier at purchase.

Pros and Cons

Pros

Wide capacity range for small and large commercial applications
Simple electrode steam generation process
Flexible installation for room or duct humidification
Scalable multi-unit setups for larger facilities
Strong fit for HVAC systems that need reliable humidity control
Good value for facilities that prioritize serviceability and uptime

Cons

Requires suitable water conductivity to operate optimally
Cylinders will need periodic replacement or service
Higher-capacity models require professional installation
Initial cost can be higher than basic residential humidifiers
Best performance depends on correct sizing and commissioning

Compared with alternative steam humidifiers, the Condair Electrode Steam Humidifier EL-Series offers excellent scalability and a practical commercial feature set. It is a strong value for users who need dependable humidification more than advanced consumer-style convenience features.

Customer Reviews

Typical user feedback for the Condair EL-Series is generally positive, especially from facility teams that value consistent humidity control and straightforward operation. Many customers rate it around 4.5 out of 5 stars for performance, scalability, and reliability in demanding environments.

Common praise includes fast steam output, dependable room and duct humidification, and easy integration with building systems. A frequent complaint is the need for maintenance as cylinders age, along with the importance of matching the unit to water conditions and facility load.

One recurring comment is that the system performs best when installed by experienced HVAC professionals. Buyers looking for a commercial steam humidifier with strong long-term utility often recommend it, while smaller buyers may find it more capacity than they need.

Conclusion

The Condair Electrode Steam Humidifier EL-Series is a versatile, commercial-grade humidification solution built for accuracy, scalability, and dependable performance. For organizations that need precise humidity control across offices, healthcare spaces, industrial sites, or large HVAC systems, it remains a strong choice in the electrode steam humidifier category.

PDF

Faqs

How do I set up the condair Electrode Steam Humidifier EL-Series for the first time?

Start by confirming the unit location, water supply, drain connection, power requirements, and controller wiring before commissioning the condair Electrode Steam Humidifier EL-Series. The EL-Series is designed for indoor installation and supports flexible duct or room humidification configurations, so choose the steam distribution setup that matches your application. After installation, check water conductivity, verify the fill and drain cycle, and run a test humidification sequence to confirm stable steam output and proper controller communication.

What water quality does the condair Electrode Steam Humidifier EL-Series need to work properly?

The condair Electrode Steam Humidifier EL-Series is built to operate on potable water, and its electrode system is intended to adapt to normal drinking water conditions. A practical conductivity range often cited for the EL-Series is 150 to 1200 microSiemens per centimeter, which helps the unit generate steam efficiently. If water quality is outside the recommended range, you may see slow steam production, unstable output, or shorter cylinder life, so always verify water specs during setup.

Why is my condair Electrode Steam Humidifier EL-Series not producing steam?

If the condair Electrode Steam Humidifier EL-Series is not producing steam, first check that the unit is powered on, the controller is set correctly, and the water supply is open. A lack of steam can also point to low conductivity, an empty or worn cylinder, blocked fill valves, or an active fault condition. Review the display for alarms, confirm the drain line is clear, and make sure the cylinder has not reached the end of its service life.

How often should I replace the cylinder in the condair Electrode Steam Humidifier EL-Series?

Cylinder replacement frequency depends on water quality, operating hours, and how often the unit runs at high output. The condair Electrode Steam Humidifier EL-Series uses a replaceable steam cylinder, which is a major maintenance item because mineral buildup gradually reduces performance. Signs that replacement is due include reduced steam output, frequent filling and draining, or maintenance alerts on the controller. Many facilities plan inspections on a regular service schedule rather than waiting for a failure.

Can the condair Electrode Steam Humidifier EL-Series integrate with building automation systems?

Yes, the condair Electrode Steam Humidifier EL-Series supports common building automation interfaces, including Modbus and BACnet IP and BACnet MSTP. That makes it a strong choice for facilities that need remote monitoring, scheduling, and centralized control. Depending on the configuration, optional support may be available for other protocols. Before commissioning, confirm the communication settings, address assignment, and wiring so the humidifier can exchange status and control data with the BMS reliably.

What is the best way to improve performance on a condair Electrode Steam Humidifier EL-Series?

For better performance, match the humidifier capacity to the room or duct load, keep the steam distribution path short and properly installed, and maintain the cylinder before scale buildup becomes excessive. The condair Electrode Steam Humidifier EL-Series includes an auto-adaptive control algorithm that helps reduce water use and improve efficiency, but it still depends on correct sizing and water conditions. Regular checks of the fill, drain, and steam line also help maintain consistent output.

How do I troubleshoot maintenance and fault alerts on the condair Electrode Steam Humidifier EL-Series?

When a fault or maintenance alert appears on the condair Electrode Steam Humidifier EL-Series, start by reading the controller message and checking whether the issue is related to water supply, drainage, overheating, or cylinder wear. The unit includes status reporting that can indicate operating, steam production, maintenance required, or fault conditions. Clear simple issues first, such as a closed valve or blocked drain. If the alert returns, inspect the cylinder and wiring and document the fault code for service.

Is the condair Electrode Steam Humidifier EL-Series suitable for duct humidification and direct room humidification?

Yes, the condair Electrode Steam Humidifier EL-Series is available for both duct humidification and direct room humidification. Duct applications typically use a steam hose and distribution setup, while room applications may use a fan unit for direct discharge. The right configuration depends on room size, airflow, and how precisely humidity must be controlled. For best results, place the steam discharge where condensation risk is minimized and follow the recommended installation clearances.
