Introduction

The D-Link E15 Mesh Range Extender AX1500, also known as the E15, is designed to enhance your home Wi-Fi coverage seamlessly. Utilizing advanced Wi-Fi 6 technology, it provides dual-band connectivity with speeds up to 1201 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band. This extender effectively eliminates dead zones, allowing you to connect up to 128 devices without compromising performance. With features like AI optimization and WPA3 security, it ensures a reliable and secure network experience. The D-Link AX1500 is priced at approximately $69.99.

Product Details

• Model: D-Link Mesh Range Extender AX1500
• Wi-Fi Standard: Wi-Fi 6 (AX)

Usage Purpose

The AX1500 is ideal for extending the reach of your existing Wi-Fi network, particularly in larger homes or those with obstacles that interfere with wireless signals. By deploying multiple units, you can create a robust mesh network for reliable, fast internet throughout your home.

Technical Specifications

General

• Device Interfaces: 1 x Gigabit Ethernet LAN port, 1 x Reset button, 1 x WPS button
• LEDs: Power Status/WPS, 3 segment Wi-Fi Signal Strength Indicator
• Antennas: Two external antennas
• Plug Type: Region dependent

Functionality

• IEEE Standard: IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab
• Data Signal Rate: 2.4 GHz (up to 300 Mbps), 5 GHz (up to 1201 Mbps)1
• Security Protocol: WPA/WPA2 - Personal, WPA2/WPA3 - Personal, WPA3 Only, WPS (PBC)
• Mesh: IEEE 802.11k/v, D-Link Wi-Fi Mesh

Software

• Device Management: EAGLE PRO AI app (iOS and Android), Web UI
• Features: D-Link One-Touch extender setup

Physical

• Power Input: 100 to 240 VAC, 50/60 Hz
• Max. Power Consumption: 11 W ± 5%
• Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Storage Temperature: -20 to 70˚ C (-4 to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Weight: 161 g (5.7 oz)
• Dimensions: 105 x 63.5 x 50 mm (4.13 x 2.50 x 1.97 in)
• Certifications: FCC, IC, CE, UL

Maximum wireless signal rate derived from IEEE Standard 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rates. Environmental factors will adversely affect wireless signal range.

Ordering Information

• E15: AX1500 Mesh Range Extender

D-Link E15 Mesh Range Extender AX1500 Features

• Wi-Fi 6 technology provides faster speeds, greater capacity and less network congestion
• Wi-Fi 6 speeds up to 1.5 Gbps, built for the modern device-dense smart home
• Dual-band Wi-Fi makes 4K streaming, gaming and video chatting a breeze
• 1 Gigabit Ethernet LAN port provides optional wired connectivity
• D-Link Wi-Fi Mesh lets you add other compatible D-Link AI Series to expand your network as you wish
• BSS coloring helps organize data packets, making your network more efficient and improving overall Wi-Fi 6 performance
• Mesh Smart Roaming technology auto connects you to the strongest signal
• Space-saving wall plug design
• LED wireless signal strength indicator
• Wi-Fi Protected Setup (WPS) Push Button
• Free EAGLE PRO AI app

Description

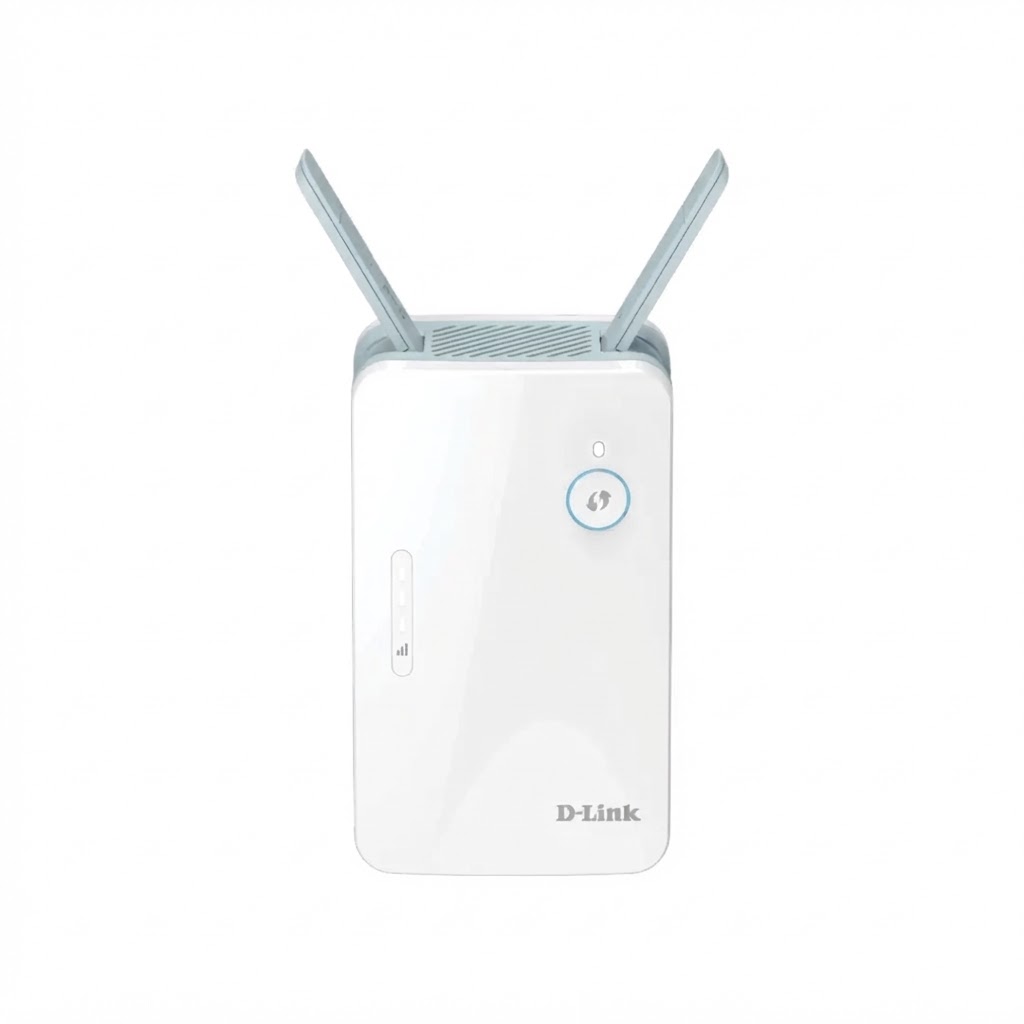

The D-Link E15 Mesh Range Extender AX1500 is compact and sleek, blending into any room effortlessly. It supports Wi-Fi 6, which enhances both speed and network capacity. Two external antennas improve signal strength, and its Gigabit Ethernet port allows for wired device connectivity.

1. Optimization
   The EAGLE PRO AI engine automatically keeps you on the optimal channel
2. Improvement
   Mesh nodes collaborate with each other to optimize network traffic
3. Connectivity
   The EAGLE PRO AI app provides notifications and usage reports to help you manage your network more efficiently
4. Expandable
   The EAGLE PRO AI series can scale to any size home for dead zone free Wi-Fi coverage
5. Wi-Fi 6 Performance
   Future-proof your Wi-Fi with coverage that’s better, faster, and more efficient
6. Gigabit Port
   Plug in a smart TV, game console or another device for a fast and reliable connection
7. Clean Network
   Compliant with the latest security standards like  WPA3 and IEC 62443-4-1

Setup Guide

1. Unboxing & Placement: Place in a central location for optimal coverage.
2. Power On: Connect the power cord and switch on the extender.
3. WPS Button: Press WPS on both the extender and router to connect.
4. Configuration: Use the D-Link Wi-Fi app or web interface for settings.
5. Pairing Additional Units: Follow similar steps to add more extenders to your mesh network.

Troubleshooting

Instructions & Warnings

• Avoid placing the extender near metal objects or other electronics that may interfere.
• Regularly update firmware for the latest features and security patches.
• Use strong passwords to prevent unauthorized access.

AX1500 Pros & Cons

Pros

• High-Speed Performance: Up to 1500 Mbps combined bandwidth.
• Easy Setup: WPS button simplifies the pairing process.
• Compact Design: Fits discreetly in any room.
• Gigabit Ethernet Port: For wired device connections.
• Mesh Technology: Offers a robust whole-home Wi-Fi solution.

Cons

• Cost: Higher than some competitors.
• Limited Ethernet Ports: Only one Gigabit Ethernet port.
• Size: Slightly bulkier compared to smaller extenders.

Customer Reviews

The D-Link E15 Mesh Range Extender AX1500 receives positive feedback for its ease of setup and strong performance, with most users noting significant improvements in coverage. However, some wish it included more Ethernet ports and note its higher price compared to simpler range extenders.

Most Common Complaints

• A limited number of Ethernet ports
• Higher cost compared to basic extenders
