Introduction

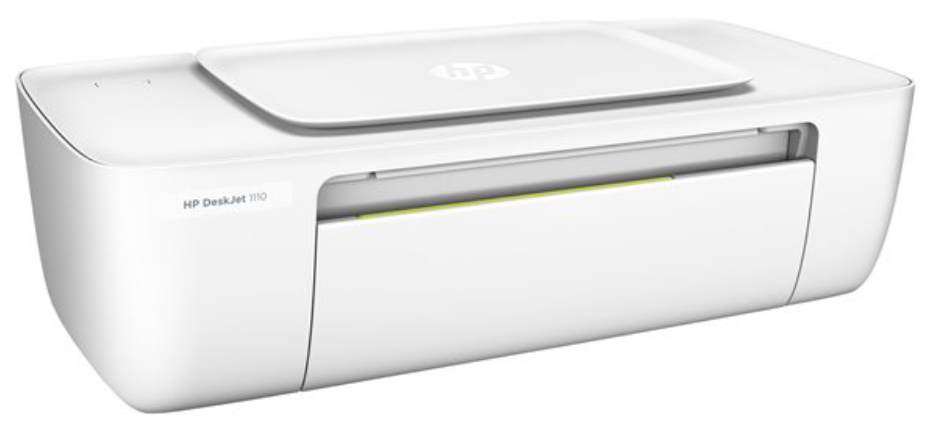

The HP DeskJet 1110 Series is a compact and affordable printer designed for everyday printing needs.

Specifications

• Technical specifications for the HP DeskJet 1110 series are provided in this section. For more product specifications, see the Product Data Sheet  .

System requirements

• Software and system requirements can be found in the Readme file, which is available on the HP printer software CD provided with your printer.
• For information about future operating system releases and support, visit the HP online support website .

Environmental specifications

• Recommended operating temperature range: 15ºC to 30ºC (59ºF to 86ºF)
• Allowable operating temperature range: 5ºC to 40ºC (41ºF to 104ºF)
• Humidity: 15% to 80% RH non-condensing; 28ºC maximum dewpoint
• Nonoperating (Storage) temperature range: –40ºC to 60ºC (–40ºF to 140ºF)
• In the presence of high electromagnetic fields, it is possible that the output from the HP DeskJet 1110 series may be slightly distorted
• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize injected noise due to potential high electromagnetic fields

Input tray capacity

• Plain paper sheets (80 g/m2 [20lb]): Up to 60
•  Envelopes: Up to 5
• Index cards: Up to 20
• Photo paper sheets: Up to 20

Output tray capacity

• Plain paper sheets (80 g/m2 [20lb]): Up to 25
• Envelopes: Up to 5
• Index cards: Up to 10
• Photo paper sheets: Up to 10

Paper size

• For a complete list of supported media sizes, see the printer software.

Paper weights

• Plain Paper: 64 to 90 g/m² (16 to 24 lb)
• Envelopes: 75 to 90 g/m² (20 to 24 lb)
• Cards: Up to 200 g/m² (110-lb index maximum)
• Photo Paper: Up to 280 g/m² (75 lb)

Print specifications

• Print speeds vary according to the complexity of the document
• Method: drop-on-demand thermal inkjet
• Language: PCL3 GUI

Acoustic information

• If you have Internet access, you can access acoustic information from the HP website.

Instructions

1. Unbox the printer and remove all packaging materials.
2. Connect the printer to a power source.
3. Install the ink cartridges.
4. Load paper into the input tray.
5. Connect the printer to your computer using the provided USB cable.
6. Install the necessary printer drivers and software.
7. You are now ready to start printing.

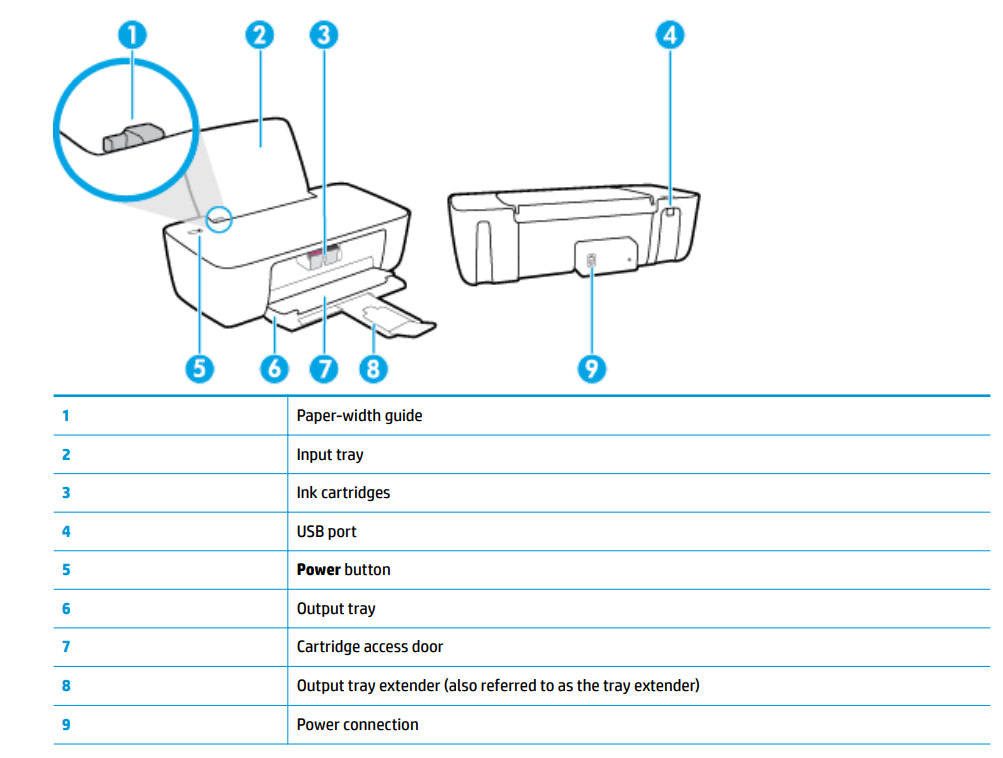

Printer parts

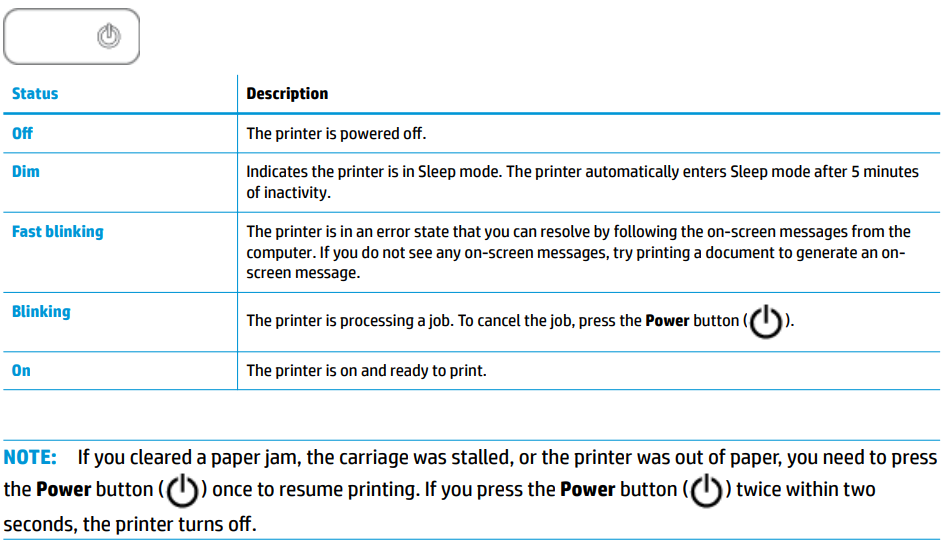

Power button light

Load media

Select a paper size to continue.

To load full-size paper

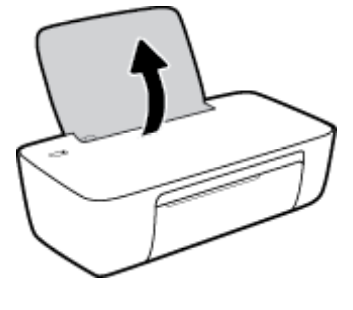

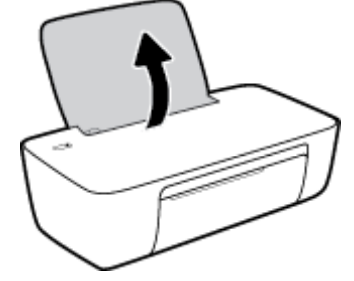

1. Raise the input tray.

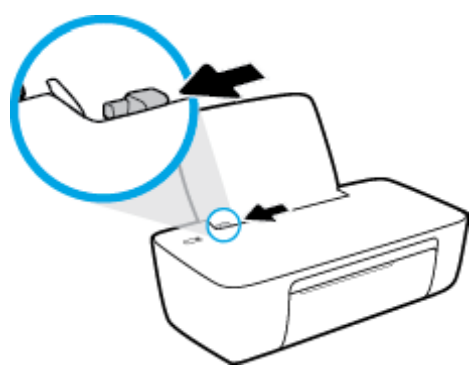

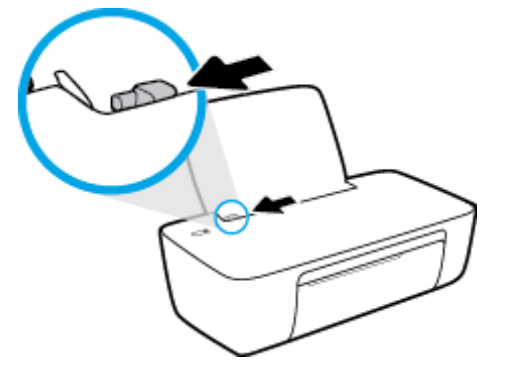

2. Slide the paper-width guide to the left.

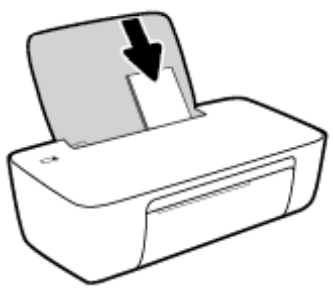

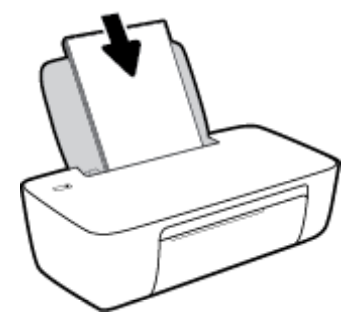

3. Insert a stack of paper into the input tray with the short edge down and the print side up, and slide the stack of paper down until it stops.

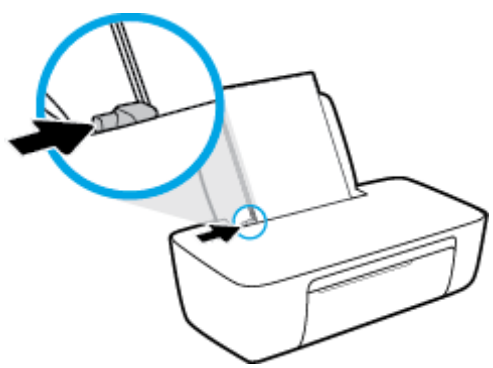

4. Slide the paper-width guide to the right until it stops at the edge of the paper.

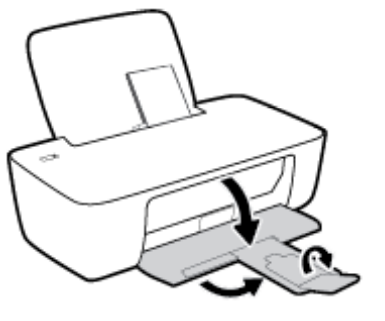

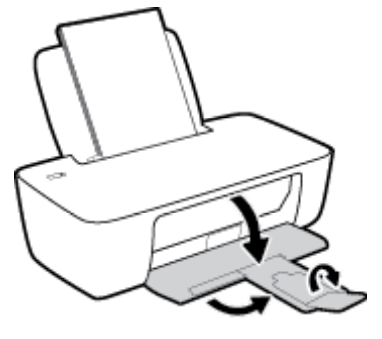

5. Lower the output tray and pull out the output tray extender.



To load small-sized paper

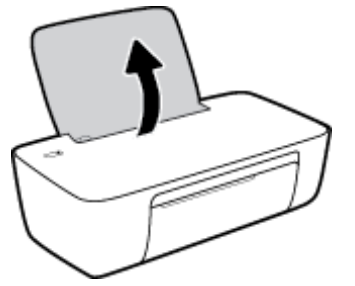

1. Raise the input tray.

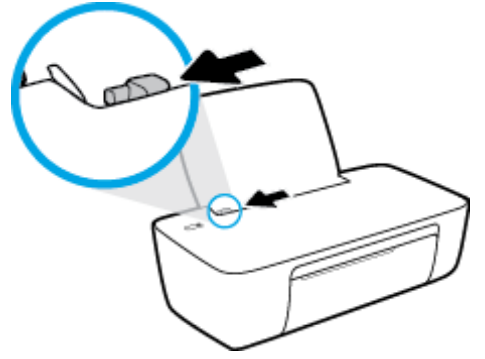

2. Slide the paper-width guide to the left.

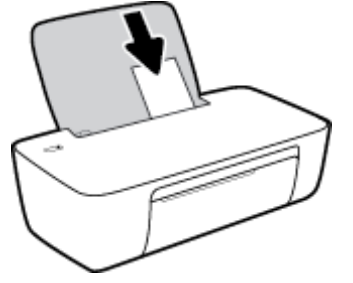

3. Insert a stack of photo paper into the far-right side of the input tray with the short edge down and the print side up, and slide the stack of paper down until it stops.

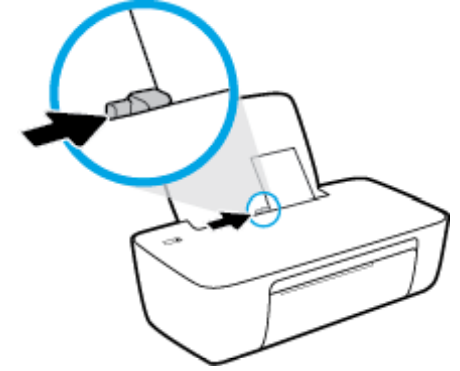

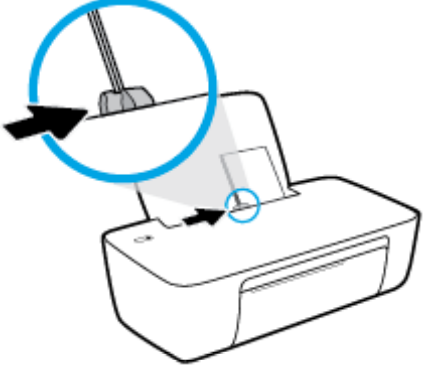

4.  Slide the paper-width guide to the right until it stops at the edge of the paper.

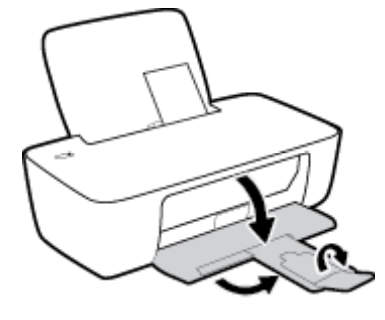

5. Lower the output tray and pull out the output tray extender.



To load envelopes

1. Raise the input tray.



2. Slide the paper-width guide to the left.



3. Insert one or more envelopes into the far-right side of the input tray and slide the stack of envelopes down until it stops.
   The side to be printed on should face up. The flap should be on the left side and facing down.



4. Slide the paper-width guide to the right against the stack of envelopes until it stops.



5. Lower the output tray and pull out the output tray extender.



Sleep mode

• Power usage is reduced while in Sleep mode.
• After the initial setup of the printer, the printer will enter Sleep mode after 5 minutes of inactivity.
• The Power button light is dimmed in Sleep mode.
• The time to Sleep mode cannot be changed.

Auto-Off

This feature turns the printer off after 2 hours of inactivity to help reduce energy use. Auto-Off turns the printer off completely, so you must use the Power button to turn the printer back on. If your printer supports this energy-saving feature, Auto-Off is automatically enabled or disabled depending on the printer's capabilities and connection options. Even when Auto-Off is disabled, the printer enters Sleep mode after 5 minutes of inactivity to help reduce energy use.

• Auto-Off is enabled when the printer is turned on, if the printer does not have network or fax capability, or is not using these capabilities.
• Auto-Off is disabled when a printer’s wireless or Wi-Fi Direct capability is turned on or when a printer with fax, USB, or Ethernet network capability establishes a fax, USB, or Ethernet network connection.

Connect your printer to your computer with a USB cable (non-network connection)
The printer supports a rear USB 2.0 High Speed port for connection to a computer.

To connect the printer to the USB cable

1. Insert the printer software CD in the computer's CD-ROM drive.
   NOTE: Do not connect the USB cable to the printer until you are prompted to do so.
2. Follow the on-screen instructions. When you are prompted, connect the printer to the computer by selecting USB on the Connection Options screen.
3. Follow the on-screen instructions.
   If the printer software has been installed, the printer will operate as a plug-and-play device. If the software has not been installed, insert the CD that came with the printer and follow the on-screen instructions.

Connect a new printer.

• If you have not connected the printer to your computer, or you want to connect another new printer of the same model to your computer, you can use the following instructions to set up the connection.
• NOTE: Use this method if you have already installed the printer software.

To connect a new printer (Windows)

1. Open the printer software. For more information, see Open the HP printer software (Windows) on page 12.
2. In the printer software, click Utilities.
3. Select Printer Setup & Software.
4. Select Connect a new printer. Follow the on-screen instructions.

To connect a new printer (OS X)

1. Open System Preferences .
2. Depending on your operating system, click Print & Fax , Print & Scan , or Printers & Scanners in the Hardware section.
3. Click + below the list of persons on the left.
4. Select the new printer from the list.
