How to Setup: Jbl Speaker Bar 1300MK2 User Guide

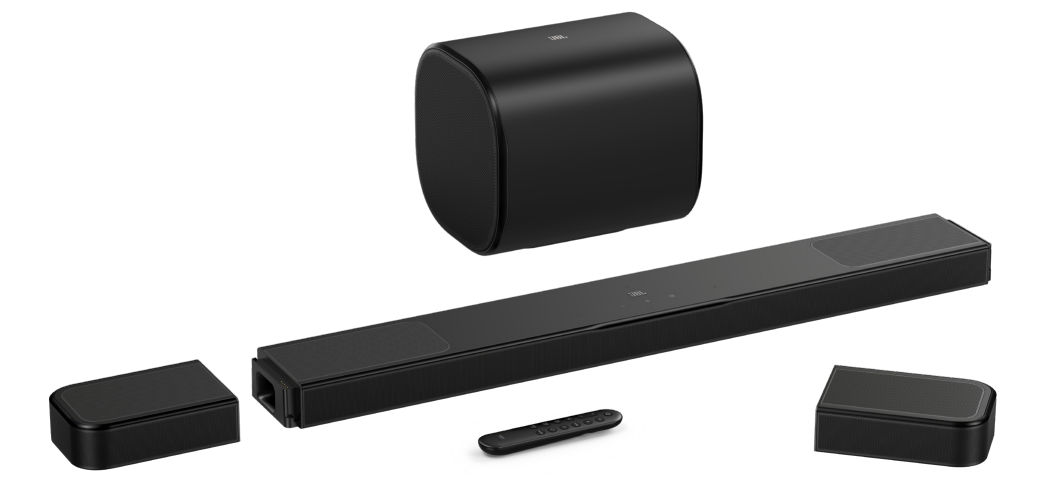

JBL Speaker Bar 1300MK2

Introduction

The JBL Speaker Bar 1300MK2 is a flagship home audio system designed to deliver an immersive cinematic sound experience with cutting-edge technology. Featuring an 11.1.4-channel configuration, this soundbar system includes a main soundbar, two detachable wireless surround speakers, and a powerful 8-inch dual-driver wireless subwoofer. Together, these components produce a staggering maximum output power of 2470 watts, enveloping your living space in rich, dynamic sound.

Equipped with true Dolby Atmos® and DTS: X® technologies, the JBL Speaker Bar 1300MK2 creates vivid 3D spatial audio that enhances movies, music, and gaming. Its MultiBeam™ 3.0 technology widens the soundstage, while PureVoice 2.0 ensures crystal-clear dialogue. Unique to this model is AI Sound Boost, which intelligently optimizes audio performance during playback. The detachable surround speakers can be positioned anywhere for customizable surround sound or used separately as portable Bluetooth® speakers, making this system versatile for various home entertainment needs.

This soundbar is ideal for home theater enthusiasts, audiophiles, and families seeking a premium upgrade from standard TV speakers. Whether for movie nights, binge-watching series, or playing music, the JBL Speaker Bar 1300MK2 offers adaptable solutions for any environment. It supports all major streaming services and ecosystems and features HDMI eARC with 4K Dolby Vision passthrough for seamless integration with modern TVs.

Available from September 2025, the estimated price range for the JBL Speaker Bar 1300MK2 is approximately €1500 (~$1600-$1700 USD), positioning it competitively against other high-end soundbars like the Sonos Arc Ultra. This soundbar is sold through JBL’s official channels and partner retailers worldwide.

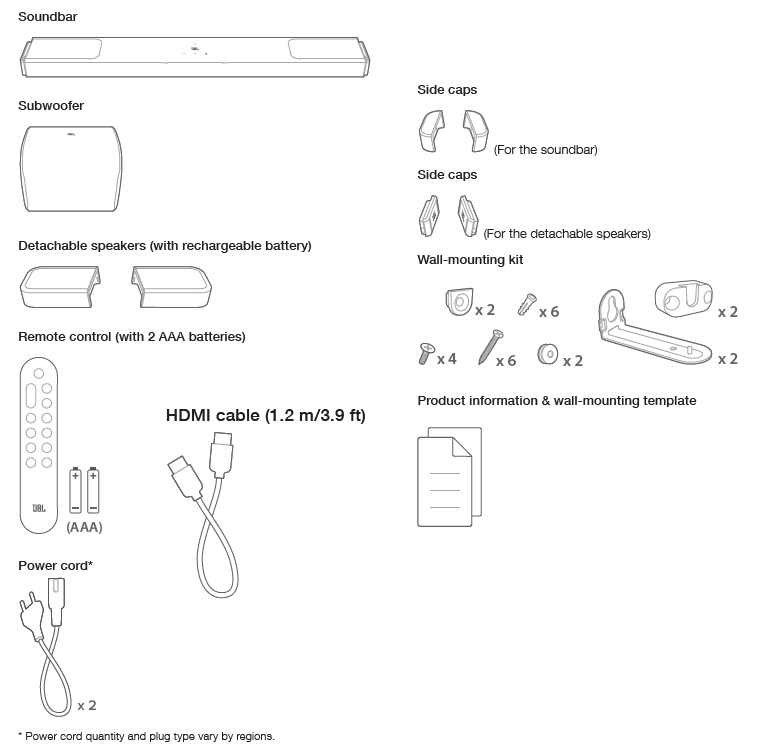

WHAT’S IN THE BOX

PRODUCT OVERVIEW

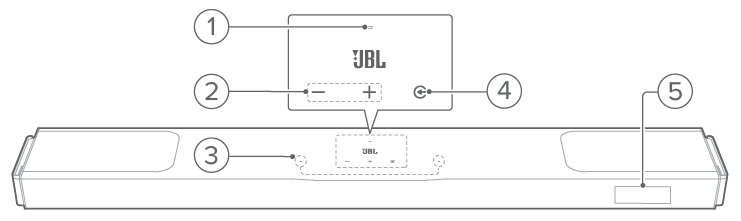

Front panel & Top panel

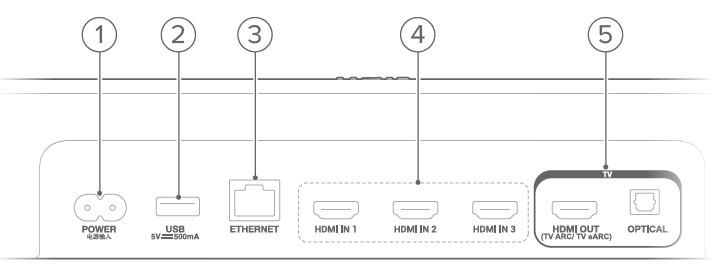

Back panel

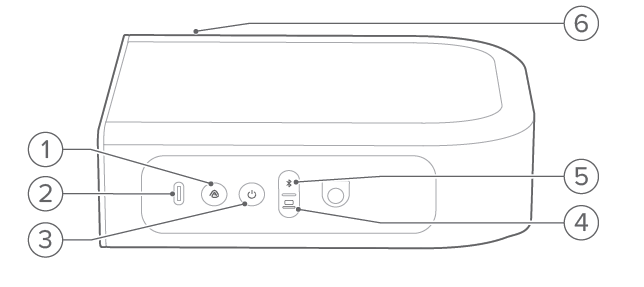

Detachable speakers

Subwoofer

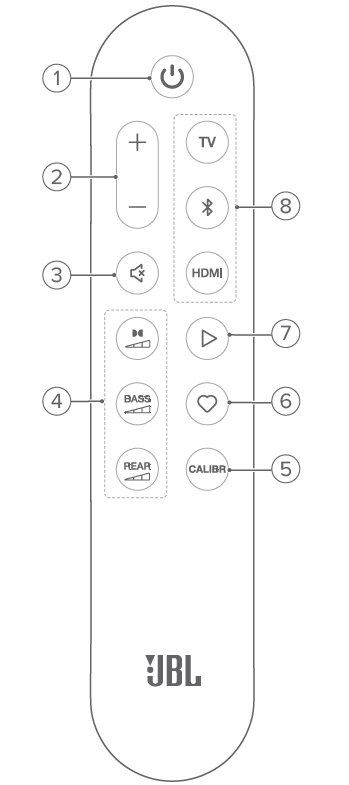

Remote control

PRODUCT OVERVIEW

Front panel & Top panel

Back panel

Detachable speakers

Subwoofer

Remote control

PRODUCT SPECIFICATIONS

General specification

• Model:
  • BAR 1300MK2 (soundbar unit)
  • BAR 1300MK2 SURROUND (detachable speaker)
  • BAR 1300MK2 SUB (subwoofer unit)
• Sound system: 11.1.4 channel
• Power supply: 100 - 240 V AC, ~ 50/60 Hz
• Total speaker power output (Max. @THD 1%): 2470 W
• Soundbar output power (Max. @THD 1%): 950 W
• Surround speaker output power (Max. @THD 1%): 2 x 160 W
• Subwoofer output power (Max. @THD 1%): 1200 W
• Soundbar transducer: 8 x (50 x 75 mm) racetrack drivers, 7 x 1" (25 mm) tweeters, 4 x 3" (75 mm) up-firing full-range drivers
• Surround speaker transducer: 2 x (50 x 90 mm) racetrack drivers, 1 x 2" (50 mm) full-range drivers, 1 x 3" (75 mm) up-firing full-range drivers
• Subwoofer transducer: 2 x 8" (200 mm)
• Networked standby power: <2 W
• Operating temperature: 0 °C - 45 °C
• Lithium battery: 7.2 V, 4722 mAh
• Detachable surround speaker playtime: up to 10 hours (may vary according to content type and volume level)

HDMI specification

• HDMI video input: 3
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3
• HDR pass through: HDR10+, Dolby Vision

Audio specification

• Frequency response: 33 Hz - 20 kHz (-6 dB)
• Audio inputs: Optical, Bluetooth, USB (USB playback is available in the US and APAC versions. For other versions, USB is for Service only.)

USB specification

• USB port: Type A
• USB rating: 5 V DC, 0.5 A
• Supporting file formats: mp3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 - 48 kHz
• MP3 bitrate: 80 - 320 kbps

Wireless specification

• Bluetooth version: Main Bar - v5.3, Detachable surround speaker - v5.4
• Main bar Bluetooth profile: A2DP v1.3, A VRCP v1.5
• Detachable surround speaker Bluetooth profile: A2DP v1.4, AVRCP v1.6
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: <15 dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz / 5 GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power: <20 dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35 GHz, 5.470 - 5.725 GHz, 5.725 - 5.825 GHz
• 5G Wi-Fi transmitter power: 5.15 - 5.25 GHz <23 dBm, 5.25 - 5.35 GHz & 5.470 - 5.725 GHz <20 dBm, 5.725 - 5.825 GHz <14 dBm (EIRP)
• 5G wireless transmitter frequency range: 5.15 - 5.35 GHz, 5.470 - 5.725 GHz, 5.725 - 5.825 GHz
• 5G wireless transmitter power: 5.15 - 5.25 GHz <23 dBm (EIRP), 5.25 - 5.35 GHz & 5.470 - 5.725 GHz <20 dBm (EIRP), 5.725 - 5.825 GHz <14 dBm (EIRP)

Note: Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Dimensions

• Total soundbar dimensions (W x H x D): 1404 x 58 x 136 mm / 55.3" x 2.3" x 5.4"
• Soundbar dimensions (W x H x D): 1030 x 58 x 136 mm / 40.6" x 2.3" x 5.4"
• Detachable surround speaker dimensions (each) (W x H x D): 202 x 58 x 136 mm / 8" x 2.3" x 5.4"
• Subwoofer dimensions (W x H x D): 315 x 277 x 275 mm / 12.4" x 10.9" x 10.8"
• Soundbar weight: 5.93 kg / 13 lbs
• Detachable surround speaker weight (each): 1.3 kg / 2.8 lbs
• Subwoofer weight: 12 kg / 26.5 lbs
• Packaging dimensions (W x H x D): 1124 x 381 x 452 mm / 44.3" x 15" x 17.8"
• Packaging weight: 28.6 kg / 63.1 lbs (EMEA/UK); 24.3 kg / 53.6 lbs (JP/IN/CN)
• RMS @THD 1%: 1235 W
• RMS @THD 1%: 475 W
• RMS @THD 1%: 2 x 80 W
• RMS @THD 1%: 600 W

IMPORTANT SAFETY INSTRUCTIONS

Verify Line Voltage Before Use
The JBL Bar 1300MK2 (soundbar, detachable speaker,s and subwoofer) has been designed for use with 100-240V AC, 50/60Hz. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. If you have any questions about the voltage requirements for your specific model or about the line voltage in your area, contact your retailer or customer service representative before plugging the unit into a wall outlet.

Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied with your unit. We do not recommend that extension cords be used with this product. As with all electrical devices, do not run power cords under rugs or carpets, or place heavy objects on them. Damaged power cords should be replaced immediately by an authorized service center with a cord that meets factory specifications.

Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always pull the plug; never pull the cord. If you do not intend to use this speaker for any considerable length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet
There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your warranty. If water accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service center.

WHAT’S IN THE BOX

TROUBLESHOOTING

Never try to repair the product yourself. If you have problems using this product, check the following points before you request services.

System
The unit will not turn on.

• Check if the power cord is plugged into the power and the soundbar.

The soundbar has no response to button pressing.

• Restore the soundbar to factory settings (See “9. RESTORE FACTORY SETTINGS”).

Sound
No sound from the soundbar

• Make sure that the soundbar is not muted.
• Select the correct audio input source on the remote control.
• Connect the soundbar to your TV or other devices properly
• Restore the soundbar to factory settings (See “9. RESTORE FACTORY SETTINGS”).

Distorted sound or echo

• If you play audio from your TV through the soundbar, make sure that your TV is muted or the built-in TV speaker is disabled.

Audio and video are not synchronized.

• Enable the audio sync function to synchronize audio and video (See “8.1 Audio sync”).

No height sound effects of Dolby Atmos

• If your TV supports HDMI ARC only, make sure that you have connected your digital device to the soundbar through the HDMI IN connector on the soundbar (See “5.1.2 TV (HDMI ARC)”)
• Enjoy the sound effects of Dolby Atmos when you play movies from the TV / HDMI source. For audio streaming over Bluetooth or casting apps (enabled by Google Cast or AirPlay), Dolby Atmos is not supported.

Bluetooth
A device cannot be connected to the soundbar.

• Check if you have enabled Bluetooth on the device.
• If the soundbar has been paired with another Bluetooth device, reset Bluetooth (see “5.2.3 Connect to another Bluetooth device”).
•  If your Bluetooth device has ever been paired with the soundbar, reset Bluetooth on the soundbar, unpair the soundbar from the Bluetooth device, and then pair the Bluetooth device with the soundbar again (see “5.2.3 Connect to another Bluetooth device”).

Poor audio quality from a connected Bluetooth device

The Bluetooth reception is poor. Move the source device closer to the soundbar, or remove any obstacle between the source device and the soundbar. The connected Bluetooth device connects and disconnects constantly.

• The Bluetooth reception is poor. Move the source device closer to the soundbar, or remove any obstacle between the source device and the soundbar.

Wi-Fi
Failed to connect to Wi-Fi.

• Make sure that Wi-Fi is turned on.
• Make sure that you have selected the right network and entered the correct password.
• Make sure that your router or modem is turned on and within the range.
• In your router settings, make sure that you have set the security type to WPA2 or auto.
• Make sure that your soundbar is connected to the same wireless LAN as your smartphone or tablet.
• If you have difficulties in setting up Wi-Fi, re-enter the Wi-Fi setup mode by holding down the soundbar until “SETUP WIFI” is displayed.

Playback
AirPlay cannot find the soundbar as an AirPlay speaker for music streaming.

• On your Apple device, update the software to the latest version: iOS 13.4 and later, Mac OS 10.15.4 and later, or TV OS 14.3.
• Make sure that your Apple device has been connected to the same network as the soundbar.
• For a PC running iTunes for Windows, you can stream music from your PC to the soundbar through Bluetooth.

Music playback does not work smoothly when the sound source switches from Bluetooth to Google Cast or AirPlay.

• The quality of audio casting and playback is dependent on the traffic and coverage of the network that connects the soundbar and your casting devices, such as phones, tablets , and PCs.

Music playback does not resume when the sound source switches from Bluetooth to TV / HDMI IN, and then back to Bluetooth.

• The music playback in the Bluetooth device stops when the sound source switches from Bluetooth to TV / HDMI IN. When you switch back to the Bluetooth source, start music playback in the Bluetooth device again.

Remote control
The remote control does not work.

• Check if the batteries are drained. If so, replace them with new ones.
• Reduce the distance and angle between the remote control and the main unit.

Failed to complete the TV remote control learning.

• Check if you are using an infra-red TV remote control. The IR learning is not supported by a Bluetooth TV remote control.

Low power standby mode
Failed to enter the low-power standby mode

• To enter the low power standby mode, when the detachable speakers are docked on the soundbar, hold on the remote control for 10 seconds until “CEC 1” is displayed on the soundbar. Next, hold for another 10 seconds until “CEC 2” is displayed. After entering the “CEC 2” mode, the soundbar will switch to the standby mode while continuing to charge the detachable speakers. When the detachable speakers are fully charged after about 4 hours, the soundbar will automatically switch to the low power standby mode and stop charging the detachable speakers.
• To exit the low-power standby mode, unplug the power cord and then plug it in again.

Pros & Cons of the JBL Speaker Bar 1300MK2

Pros

• Exceptional Sound Quality: Delivers 11.1.4 channel Dolby Atmos® and DTS: X® immersive 3D sound for a theater-like experience.
• Powerful Output: The 2470W max power and 8" dual-driver subwoofer provide deep, punchy bass and crystal-clear highs.
• Detachable Wireless Speakers: Allows flexible placement for surround sound and doubles as portable Bluetooth® speakers.
• Advanced Audio Technologies: Includes MultiBeam™ 3.0 for a wide soundstage, PureVoice 2.0 for dialogue clarity, and AI Sound Boost for adaptive sound optimization.
• Smart Connectivity: Supports HDMI eARC, 4K Dolby Vision passthrough, and works with all streaming ecosystems via the JBL One App.

Cons

• Price Point: At around €1500, it is a premium investment that may be out of reach for casual listeners.
• Size and Setup: The soundbar and detachable speakers require ample room space and some initial calibration for optimal performance.
• Battery Life: The detachable wireless speakers offer several hours of playback, but require regular recharging after use.
• Competition: Faces strong rivals like Sonos Arc Ultra and Samsung Q9 series, which may offer different feature sets or ecosystem advantages.

Customer Reviews and Feedback on the JBL Speaker Bar 1300MK2

Users consistently praise the JBL Speaker Bar 1300MK2 for its immersive surround sound and effortless transition between TV audio and standalone Bluetooth music playback. Many highlight the convenience of the detachable wireless speakers, noting how they significantly enhance the home theater experience by enabling surround sound placement without messy cables.

Positive reviews emphasize the clarity of dialogue thanks to PureVoice 2.0 and the impactful bass from the compact subwoofer. The AI Sound Boost feature is also appreciated for dynamically adjusting sound in real-time.

Common complaints mostly revolve around the premium price and the need for sufficient room space to fully enjoy the soundstage. Some users mention that setup and calibration can be slightly complex for beginners. Battery life of the wireless speakers is noted as adequate but requiring mindful charging.

Overall, the JBL Speaker Bar 1300MK2 receives an average rating of 4.5 out of 5 stars, with many recommending it for users seeking a high-end, versatile soundbar solution that competes strongly with other Dolby Atmos soundbars in the market.
