Logitech MX-Master 3S Combo 920-011613 User Guide | Specs & Features

cover-image

Content

Introduction

Introducing the Logitech MX-Master 3S Combo 920-011613 the ultimate set of precision tools engineered to get you in your flow for hours of comfortable productivity. The power of the fluid, fast precision typing of MX Keys S keyboard combined with the precise, fast scrolling experience of MX Master 3S mouse.

SYSTEM REQUIREMENTS

What you need

  • Bluetooth Low Energy
    • Requires Bluetooth Low Energy technology
    • Windows 10, 11 or later
    • macOS 10.15 or later
    • Linux (6)
    • ChromeOS (6)
    • iPadOS 14 or later (6)
    • AndroidTM 8.0 or later (6)
  • Logi Bolt USB Receiver
  • Requires available USB Port
  • Not compatible with other Logitech USB receivers.
    • (6) Device basic functions will be supported without software for other systems than Windows and macOS

PACKAGE SPECIFICATIONS

Part #920-011613
Bar code5099206112438 (EAN-13) 50992061124311 (SCC-14)
Weight gr1700 7300
Length cm45 45.9
Width cm7.8 32.5
Height/depth cm14.4 15.5
Volume5.1 dm3 0m3
1 primary pack1 N/A
1 master shipper carton4 1
1 pallet EURO200 50
1 container 20 ft5340 1335
1 container 40 ft11040 2760
1 container 40 ft HQ12512 3128

GRAPHITE INTNL-973

Part #:920-011613
EAN/UPC5099206112438
Bar code50992061124311

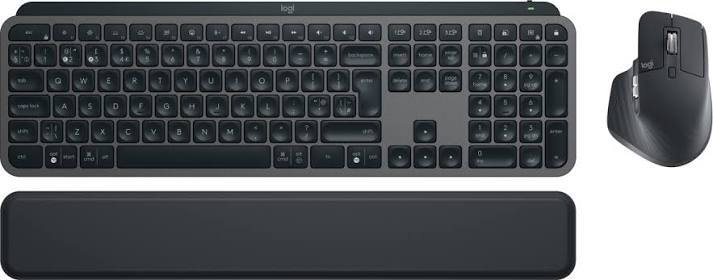

TECHNICAL SPECS

Product details

  • MX Keys S
    • Weight: 810 g
    • Dimensions: 20.5 x 430.2 x 131.63 mm
    • Rechargeable LiPo (1500 mAh) battery
    • Optional Customisation app: Logi Options+
      • Important: FileVault might be enabled on your macOS computer, which could prevent you from entering your password at start or reboot when connected to Bluetooth. In this case, use the Logi Bolt USB Receiver.
  • MX Master 3S
    • Weight: 141 g
    • Dimensions: 51 x 84.3 x 124.9 mm
    • Rechargeable LiPo (500 mAh) battery
    • Sensor technology: Darkfield high precision
    • Buttons: 7 buttons (Left/Right click, Back/Forward, App-Switch, Wheel mode-shift, Middle click), Scroll Wheel, Thumbwheel, Gesture button

Both devices are compatible with Windows, macOS, Linux, ChromeOS, iPadOS, and Android operating systems (6)

Description

When looking for a dependable and efficient input device, professionals and artists will find the Logitech MX-Master 3S Combo 920-011613 to be the ideal choice. Because of its quick and accurate movements, the MX Master 3S mouse is perfect for graphic design and video editing. With keys designed for comfort and precision, the MX Keys keyboard offers a pleasurable typing experience. The ability of both devices to connect to many devices at once facilitates smooth computer switching.

Logitech Features

  • Engineered for Speed and Precision: MX Keys S Wireless Keyboard features fast fluid laptop-like typing combined with the fast, precise scrolling of MX Master 3S Wireless Mouse.
  • Fluid Typing Experience: Laptop-like profile with spherically-dished keys shaped for your fingertips delivers a fast, fluid, precise and quieter typing experience.
  • Scroll 1000 Lines Per Second: With MagSpeed, Logitech’s fastest and most precise scroll wheel, and an 8K DPI sensor, this Logitech Mouse tracks anywhere – even on glass.
  • Automate Repetitive Tasks: Easily create and share time-saving Smart Actions shortcuts that perform multiple actions with a single keystroke with the Logi Options+ app.
  • Smarter Illumination: Backlit keyboard keys light up as your hands approach and adapt to the environment; now with more lighting customizations on Logi Options+.
  • More Comfort, Deeper Focus: Mouse and keyboard engineered for hours of work; stable keyboard with an optimum angle, and mouse sculpted for your hand for better wrist posture.
  • Multi-Device, Multi-OS Combo: Pair with up to 3 devices on nearly any operating system (Windows, macOS, Linux) via Bluetooth Low Energy or included Logi Bolt USB receiver.
  • Sustainability: Both MX Keys S and MX Master 3S include certified post-consumer recycled plastic — MX Master 3S (27% for Graphite, 22% for Pale Grey); MX Keys S (26% for Graphite and 11% for Pale Grey).
  1. Requires Logi Options+ app, available for Windows and macOS
  2. Compared to Logitech Master 2S mouse with Logitech Options installed and Smooth scrolling enabled
  3. Compared to regular Logitech mouse without an electromagnetic scroll wheel
  4. 4 mm minimum glass thickness.
  5. The combo is not compatible with other Logitech USB receivers.
  6. Device basic functions will be supported without software for other systems than Windows and macOS
  7. Battery life may vary based on user and computing conditions
  8. Excludes plastic in printed wiring assembly (PWA), receiver, wire, FFC cable, and packaging.

SUSTAINABILITY

  • Designing a Positive Future: We design technology with your future in mind, because big change starts with people.
  • Made with Recycled Plastic: The plastic parts in MX Keys S and MX Master 3S include certified post-consumer recycled plastic — 27% for Graphite and 22% for Pale Grey for MX Master 3S and 26% for Graphite and 11% for Pale Grey for MX Keys S— to give a second life to end-of-life plastic from old consumer electronics and help reduce our carbon footprint.
  • Low Carbon Aluminium: Producing aluminium is energy-intensive. That’s why the aluminium plate inside the MX Keys S is made with renewable energy rather than fossil fuels, resulting in a lower carbon impact.
  • Smart Battery Efficiency: MX Keys S' presets for backlit keys automatically adjust to the environment and turn off when not needed, resulting in optimal battery consumption.
  • Certified Carbon Neutral: MX Keys S Combo is certified carbon neutral. This means the carbon impact of the product and packaging has been reduced to zero due to Logitech’s investment in carbon offsetting and removal projects.
  • Women Who Master by Logitech: Logitech MX is committed to spotlighting and supporting impactful initiatives and individuals that are disrupting the industry worldwide, to inspire girls and women to pursue a career or continue thriving in STEM. With #WomenWhoMaster, our mission is to ignite an industry-wide movement that addresses the gender gap and unequal access to opportunities in tech and IT, once and for all.

MX Keys S

  • Graphite plastics: 26% post-consumer recycled material
  • Pale Gray plastics: 11% post-consumer recycled material
  • Black plastics: 15% post-consumer recycled material
  • Aluminium case: Low carbon aluminium
  • Paper Packaging: FSC (™) -certified
  • Certified carbon neutral

MX Master 3S

  • Graphite plastics: 27% post-consumer recycled material
  • Pale Gray plastics: 22% post-consumer recycled material
  • Paper Packaging: FSC (™) -certified
  • Certified carbon neutral

Setup Guide

Use these procedures to configure the Logitech MX-Master 3S Combo 920-011613:

  1. Put the USB receiver into your computer's USB-A port.
  2. Slide the switches on the bottom of the mouse and keyboard to the "on" position to turn them on.
  3. To connect to the receiver, press the Easy-Switch button located on the bottom of the keyboard or mouse.
  4. You can download the Logitech Options program from the Logitech website to customize the buttons and settings.

Troubleshooting

Try these fixes if the Logitech MX-Master 3S Combo 920-011613 is giving you any trouble:

  1. Verify that the gadgets are close to the USB receiver and charged.
  2. Verify that the devices are plugged into the appropriate USB receiver port.
  3. Give the gadgets and your computer a restart.
  4. Update the device firmware and reinstall the Logitech Options program.

Logitech MX-Master 3S Combo 920-011613 Pros & Cons

Pros

  • Fast and precise mouse with customizable buttons
  • Comfortable keyboard with responsive keys
  • Long battery life and USB-C charging
  • Multi-device connectivity and seamless switching
  • Customizable using Logitech Options software

Cons

  • Expensive compared to other wireless keyboard and mouse combos
  • The USB receiver may not work with some computers
  • No option for Bluetooth connectivity

Faqs

How is the Logitech MX-Master 3S Combo 920-011613 configured?

To configure, either link the USB receiver to your PC or couple the mouse and keyboard over Bluetooth. To finish the setup, adhere to the directions displayed on screen.

What does the Logitech MX-Master 3S Combo bundle include?

Included in the bundle are the USB receiver, USB-C charging cable, MX Master 3S mouse, MX Keys keyboard, and user manuals.

After a full charge, how long does the battery last?

The MX Master 3S mouse has a maximum battery life of 70 days, while the MX Keys keyboard has a maximum battery life of 10 days while the backlight is on and up to 5 months when it is off.

Can I use the keyboard and mouse as it charges?

You can use the provided USB-C cable to charge the Logitech MX-Master 3S Combo 920-011613 at the same time.

If my keyboard or mouse is not connecting to my computer, what should I do?

Verify the devices' charging status. Attempt to reconnect them by utilizing the USB receiver or removing and repairing via Bluetooth. You could try restarting your computer as well.

How can I alter the keys and buttons?

To alter button functions and key settings, download the Logitech MX-Master 3S Combo 920-011613 Options software from the Logitech website.

How can I move between different devices?

Easy-Switch buttons on the Logitech MX-Master 3S Combo allow you to quickly switch between up to three linked devices.

What should I do if my mouse's scroll wheel is malfunctioning?

Examine the Logitech Options software's options. Make sure there is no debris on the scroll wheel and it is clean. Try updating the firmware or getting in touch with Logitech assistance if the issue continues.

What does the keyboard's LED indication mean?

The LED indicators display the Easy-Switch channel, Caps Lock, and battery status.

How long is the Logitech MX Master 3S Combo warranty valid?

Warranty lasts for a year after the date of purchase. For specifics, see the warranty literature that came with your Logitech MX-Master 3S Combo 920-011613.
