Introduction

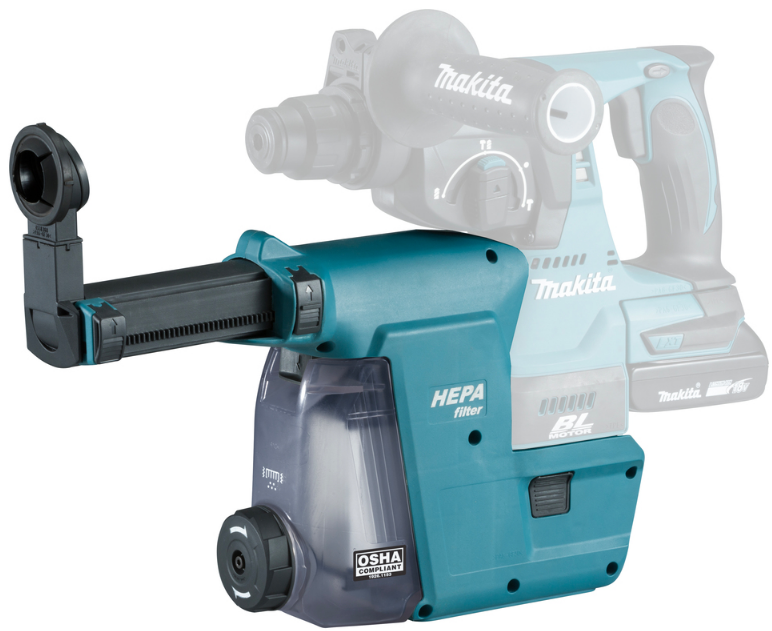

The Makita Dust Collection System DX06 is a powerful and efficient solution designed to keep workspaces clean and free of debris. This system features a compact design that easily integrates with various Makita power tools, ensuring optimal dust extraction during operation. With its high-performance motor and durable construction, it effectively captures fine dust particles, promoting a healthier work environment. The cost of the Makita Dust Collection System DX06 is approximately $199.00.

IMPORTANT: Read Before Using.

Explanation of general view

1. Switch trigger
2. Attachment (Dust collection system)
3. Release button
4. Stroke adjusting button
5. Depth gauge button
6. Depth gauge button carriage
7. Distance (X) equal to the drilling depth
8. Dust case release button
9. Dust case
10. Filter cover
11. Slit
12. Filter
13. Sealing cap
14. Nozzle
15. Dial

Specifications

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Symbols

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

• Take particular care and attention.
• Read instruction manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions before operating the attachment. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.

1. Use the attachment in accordance with these instructions. Use of the attachment for operations different from those intended could result in a hazardous situation.
2. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
3. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
4. Always wear eye and respiratory protections.

BEFORE USE

Installing or removing the dust collection system

WARNING

• Always be sure that the tool is switched off and battery cartridge is removed before carrying out any work on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up.
• Before installing the dust collection system, make sure that the attachment points and the power tool itself, particularly the electrical interface on the power tool, are free from dust and foreign matter. After installing the dust collection system, also make sure that it is securely installed.

NOTE

• This dust collection system is intended for use when drilling in only concrete. Never use this system when drilling in metal or wood.
• This dust collection system collect a significant percentage of the dust produced at work but not all of it.
• Empty the dust case regularly. Failure to empty the dust case regularly may cause dust to release.
• Do not use the dust collection system in core drilling or chiseling applications.

To install the dust collection system, follow the procedure below.

1. Hold the power tool so that finger(s) does not press the switch trigger. (Fig. 1)



2. Align the interface of the attachment with the power tool guide and slide it on the tool until it locks with a double click sound.
3. After installing the attachment on the power tool, make sure that it is secured properly.

To remove the dust collection system, follow the procedure below.

1. Hold the power tool so that finger(s) does not press the switch trigger. (Fig. 2)



2. Press the release button on the attachment and with the button pressed pull it away from the power tool.

Description

The Makita Dust Collection System DX06 is engineered to provide a comprehensive dust management solution. It features a sturdy and compact design, ensuring that it can be easily placed in tight spaces without compromising on performance. The system includes a clear dust collection bin which allows users to monitor the dust level, a HEPA filter for optimal filtration, and a detachable hose for flexibility in tool connection.

The system's quiet operation (at approximately 62 dB) makes it suitable for use in noise-sensitive environments. Additionally, the onboard storage for accessories such as the hose and wrench keeps everything organized and within reach.

OPERATION

CAUTION: Do not use the tool in wet conditions such as work on concrete surface and the similar.

Adjusting the tip protrusion length

The protrusion of the tip is adjustable according to your hammer drill bit length.

1. Hold the power tool so that finger(s) does not press the switch trigger. (Fig. 3)



2. CAUTION: When the stroke adjusting button is pressed, the telescopic section is released and then it may jump out up to 100 mm under spring pressure. Wear goggles. Keep the bar tip of the attachment away from any objects keeping the above jumping-out distance in mind and never point the attachment at yourself, a bystander or animals. Press the stroke adjusting button and keep pressing it.
   NOTE: Before starting pressing the stroke adjusting button, push the nozzle forward.
3. Press the power tool with the hammer drill bit installed against the wall until the drill bit tip touches the wall.
4. Release the stroke adjusting button to lock it.

Setting the drilling depth (depth gauge)

If holes require to be drilled to an exact depth, the correct depth needs to be determined by drilling test holes.

1. Hold the power tool so that finger(s) does not press the switch trigger. (Fig. 4)



2. Press the depth gauge button and with the button pressed slide the lock button carriage to the desired length and release it.
   The distance (X) between the attachment housing and the depth gauge button is equal to the drilling depth.

 CAUTION: Always follow the instruction in OPERATION of the instruction manual for Makita hammer drills. Failure to observe the instruction manual may cause personal injury.

 WARNING: Always follow national laws, regulations and ordinance which prescribe working with materials hazardous to health.

Makita Dust Collection System DX06 Drilling

When drilling into concrete, hold the power tool firmly with both hands so that the entire nozzle top keeps in tight contact with the concrete surface. Any part of the nozzle away from the concrete surface may cause poor dust collection.

Beating dust on the filter

(Fig. 15)

• When using the tool with the dust collection system, be sure to attach the filter to the dust collection system to prevent dust inhalation.
• Before using the dust collection system, check that the filter is not damaged. Failure to do so may cause dust inhalation.
• Do not turn the dial on the dust case while the dust case is removed from the dust collection system. Doing so may cause dust inhalation.
• Always switch off the tool when turning the dial on the dust case. Turning the dial while the tool is running may result in the loss of control of the tool.

By beating the dust on the filter inside the dust case, you can keep the vacuum efficiency and also reduce the number of times to dispose of the dust. Turn the dial on the dust case three times after collecting every 50,000 mm3 of dust or when you feel the vacuum performance declined.

NOTE: 50,000 mm3 of dust equivalents to drilling 10 holes of ø10 mm and 65 mm depth (14 holes of ø3/8″ and 2″ depth).

Switch-off delay function

After turning off, the dust collection system will run for a few seconds longer to collect the remaining dust in the duct in the dust case.

Emptying the dust case

NOTE: Too much dust in the dust case would result in a considerable loss of dust extracting power. Accordingly, clean out the dust case regularly.

 CAUTION

• Wear respiratory protection when emptying the dust case.
• Do not touch the filter section when cleaning it.
• Do not use a brush or air duster to clean the filter section. Using a brush or compressed air may damage the filter.

1. Before removing the dust case from the attachment, hold the power tool horizontally. (Fig. 5)
2. Press the dust case release button and with the button depressed pivot it on the lower side axis.

3. Remove the dust case from the attachment. (Fig. 6)



4. To open the dust case, raise the lever lightly and then pivot the transparent section. (Fig. 7)



5. Empty the dust case by tapping it lightly. Be careful not to let out excessive dust into the air.
6. Remount the dust case in place on the attachment.

Setup Guide

To set up the Makita Dust Collection System DX06, follow these steps:

1. Assembly: Carefully unpack and assemble all components according to the user manual. Ensure all parts are securely connected.
2. Tool Connection: Attach the detachable hose to your Makita power tool and connect it to the dust collection system.
3. Filter Installation: Install the HEPA filter according to the manufacturer's instructions.
4. Power On: Plug in the system and turn it on. Adjust settings as needed for optimal performance.

MAINTENANCE

WARNING: Always be sure that the tool is switched off and battery cartridge is removed before attempting to perform inspection or maintenance.

NOTE

• Do not use water, oil, grease, detergent or cleaning agents.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Cleaning of the attachment

• Clean the attachment using only a dry rug and a dry brush.
• Wear respiratory protection when cleaning.

Replacing the filter

Check the filter regularly for damage and if damaged, replace the old filter with a new one.

To replace the filter, follow the procedure below. (Fig. 8)

1. Press the dust case release button and with the button depressed pivot it on the lower side axis.
2. Remove the dust case from the attachment. (Fig. 9)
3. Pry up the filter cover on the dust case using a slotted bit screwdriver to be inserted into the slit. (Fig. 10)
4. Pull the old filter away from the dust case by hand. (Fig. 11)

5. Put a new filter in the original position. (Fig. 12)



6. Snap the filter cover on the dust case. (Fig. 13)



7. Remount the dust case in place on the attachment.

Replacing the sealing cap

(Fig. 14)

Using a worn or damaged sealing cap may cause poor dust collection. Check the sealing cap regularly. When the sealing cap is worn or damaged, replace it as follows.

1. Remove the sealing cap from the dust collection system by hand.
2. Put a new sealing cap on the dust collection system so that the protrusion on it is positioned on the upper side.

To maintain product SAFETY and RELIABILITY, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION

These accessories or attachments are recommended for use with your Makita dust collection system specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Dust case (with filter)
• Filter

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Troubleshooting

Makita Pros & Cons

Pros

• Efficient Dust Collection: Effective at capturing dust and debris, improving work environment cleanliness.
• Portability: Lightweight and compact, making it easy to transport between work locations.
• Advanced Filtration: HEPA filter ensures high-quality air filtration.
• Tool Compatibility: Works seamlessly with a range of Makita power tools.

Cons

• Cost: Pricier than some other dust collection systems on the market.
• Noisy Operation: While relatively quiet, it may still be too loud for very noise-sensitive environments.

Customer Reviews

Customers have generally praised the Makita Dust Collection System DX06 for its efficiency and reliability. Many have noted its ease of use and high-quality filtration capabilities. However, some users have mentioned that it can be quite expensive compared to other options available.

Most Common Complaints:

• Higher cost compared to competitors.
• Occasional issues with filter clogging if not maintained properly.
