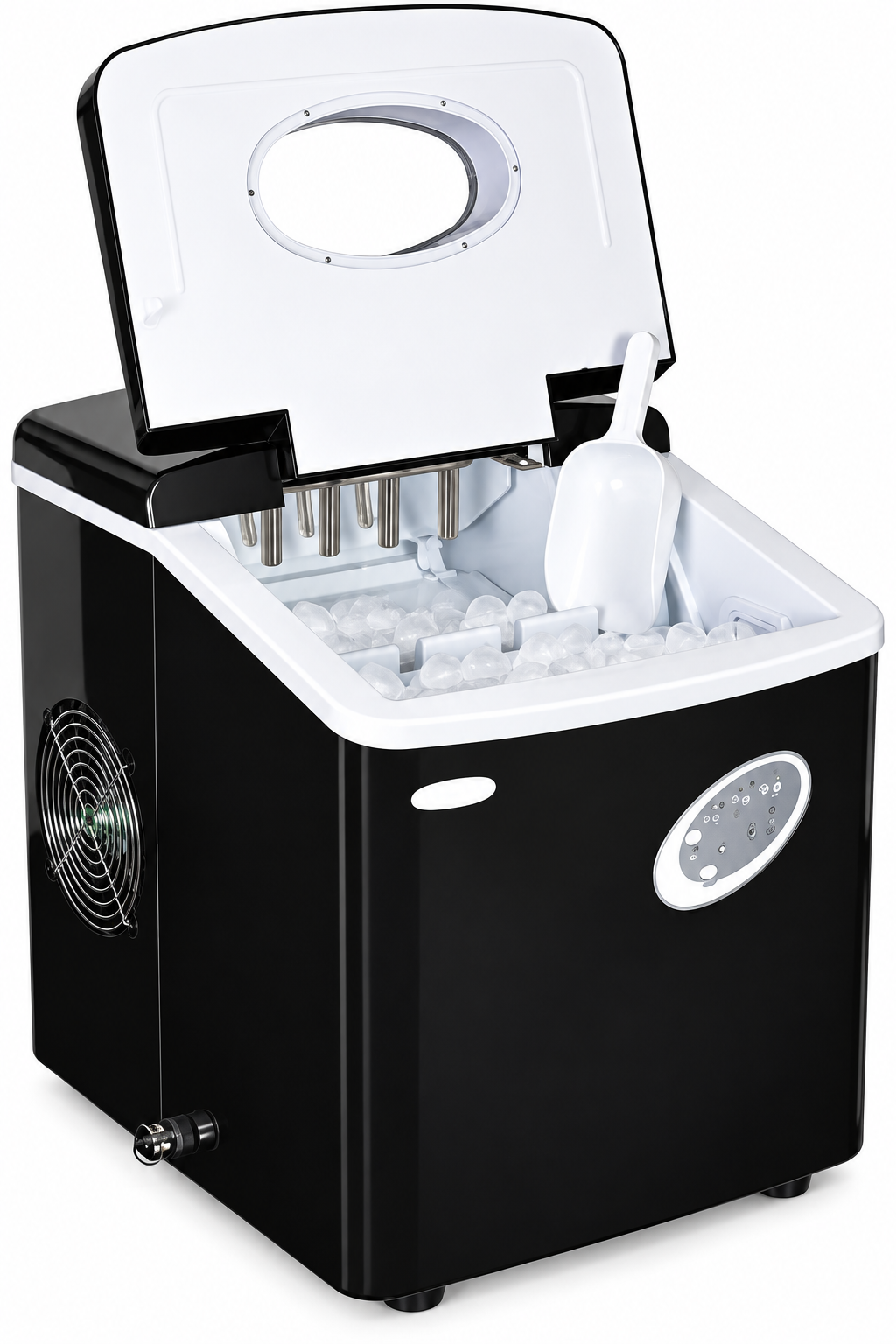

Introduction of Newair Portable Ice Maker AI-100

The Newair Portable Ice Maker AI-100 is a game-changing appliance designed to make your life easier. This compact and stylish ice maker can produce up to 26 lbs of ice in 24 hours, providing you with a constant supply of fresh and clear ice. It is perfect for any occasion, whether it's a family gathering, a backyard party, or a simple movie night at home. The Newair Portable Ice Maker AI-100 is available for purchase online and in selected stores for an estimated price of $199.99. It is set to be launched on May 1, 2023.

SPECIFICATIONS

• MODEL NO. AI-100

• RATED VOLTAGE: 115V / 60Hz

• CURRENT: 1.9/2.7 amps

• POWER CONSUMPTION: 120 watts

• CAPACITY (DAILY): 28 pounds

• CAPACITY (PER CYCLE): 9 pieces

• ICE SIZES: 3

SAFETY INFORMATION & WARNINGS

As with any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:

• Do not operate this appliance if it has a damaged cord.

• Only connect the ice maker to a properly polarized outlet. No other appliance should be plugged into the same outlet. Make sure the plug is fully inserted into the receptacle.

• An extension cord is not recommended, as it may overheat and become a fire risk. If necessary, use an extension cord with a minimum size of No. 14 AWG and rated for no less than 1875 watts.

• Do not place hands or objects on or near the ice maker’s evaporator when it is in operation.

• Do not run the power cord over carpeting or heat insulators. Do not cover the cord. Keep the cord away from high traffic areas and never submerge it in water.

• Always turn off and unplug the ice maker from the power supply before cleaning and servicing.

• Exercise caution and make sure there is supervision when this appliance is being used near children.

• If the ice maker is brought in from the outside in the winter, allow the ice maker to warm up to your room’s temperature for a few hours before plugging it in.

• Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or cause an explosion.

BASIC PARTS DIAGRAM

CONTROL PANEL DIAGRAM

BUTTONS

• Power: Turns unit on and off

• Select: Selects ice size

INDICATOR LIGHTS

• S: Small ice size selected

• M: Medium ice size selected

• L: Large ice size selected

• Ice: Ice basket is full

• Add water: Water reservoir is empty

ASSEMBLY & INSTALLATION

1. Remove the exterior and interior packaging. Check that the ice basket and ice scoop are included. If any parts are missing, please contact customer service.

2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it.

3. Place your ice maker in a location that is protected from direct sunlight and other heat sources (e.g., stove, furnace, and radiator). Make sure it is on a level surface with at least 5 inches of space between the back and sides of the unit and the wall.

4. Allow one hour for the refrigerant fluid to settle in the compressor before plugging the ice maker in.

   • NOTICE: After unpacking your ice maker, it must rest in an upright position for at least one hour before you plug it in or the compressor may be damaged, shortening the life span of the unit.

5. Plug in your appliance into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician.

We recommend you clean your ice maker thoroughly before using it.

Newair Portable Ice Maker AI-100 Description

The Newair Portable Ice Maker AI-100 is a versatile and convenient appliance that offers a wide range of benefits. Its compact size makes it perfect for any kitchen, office, or RV, while its easy-to-use control panel allows you to choose between three ice size selections. Its transparent viewing window enables you to monitor the ice production, ensuring that you always have enough ice to keep your drinks cold. The automatic shut-off feature prevents overflow, saving you time and effort in cleaning and maintenance. The removable ice basket and scoop make it easy to transfer the ice to your glass or cooler, while the high-quality and durable materials ensure that it lasts for years to come.

OPERATING INSTRUCTIONS

1. Press the “SELECT” button to choose the ice cube size. If the ambient room temperature is lower than 60°F, it is recommended that you select small or medium sized ice cubes in order to prevent the ice from sticking together.

2. Open the unit’s cover, remove the ice basket, and pour water into the water reservoir. Keep the water level below the “MAX” line marked inside the reservoir.

3. Press the “POWER” button on the control panel to begin the ice making cycle.

4. The ice making cycle lasts anywhere from 6 to 15 minutes, depending on the size of the ice cubes you select and the ambient room temperature. Ice making time may vary significantly in extremely high room temperatures.

5. Periodically verify the water level in the water reservoir when the ice maker is on. If the water level is too low, the ice maker will automatically stop and the “ADD WATER” indicator light will turn on. Press the “POWER” button, fill the reservoir with water up to the level mark, and press the “POWER” button again to restart the unit. Allow at least 3 minutes for the refrigerant inside the compressor to settle before restarting.

6. The ice maker automatically stops working when the ice basket is full. The “ICE” indicator light will also turn on at this time.

7. Change the water in the reservoir every 24 hours to ensure hygienic ice. If the ice maker will not be used for an extended period of time, drain the water from the reservoir by unplugging the drain off cap located on the side of the ice maker.

Setup Guide

Setting up the Newair Portable Ice Maker AI-100 is a straightforward and hassle-free process. Here are the steps to follow:

1. Unbox the ice maker and remove all packaging materials.
2. Place the ice maker on a flat and stable surface.
3. Plug the power cord into an outlet.
4. Fill the water reservoir with water up to the maximum fill line.
5. Turn on the ice maker using the power button.
6. Select the desired ice size using the LCD control panel.
7. Wait for approximately 15 minutes for the ice maker to produce the first batch of ice.

CLEANING & MAINTENANCE

1. Unplug the unit and remove the ice basket.

2. Clean the interior, including the water reservoir, with diluted detergent, warm water and a soft cloth.

3. Clean the outside of the ice maker with a mild detergent solution and warm water.

4. Dry the interior and exterior with a soft cloth.

5. Replace the ice basket and plug the unit in again.

To remove the build-up of calcium or other impurities, add a capful of vinegar or lemon juice to the water in the reservoir and run for two or three ice-making cycles. Drain and refill the reservoir with clean, warm water. Run two more cycles to rinse the vinegar or lemon-juice.

When the machine is not in use, open the water drain cap to completely drain the water reservoir.

STORAGE

Before storing your ice maker, clean it according to the directions above and allow it to dry thoroughly (at least 24 hours) in order to prevent the growth of mold or mildew. Store your ice maker in the original packaging, or cover with a soft cloth or plastic sheet.

TROUBLESHOOTING

Problem: The “ADD WATER” indicator light is on

• Possible Cause: There is not enough water in the tank.

• Solution: Press the “POWER” button to turn off the unit. Fill the reservoir with water. Press “POWER” to restart.

Problem: The “ICE” indicator light is on

• Possible Cause: The ice basket is full.

• Solution: Remove ice from the basket.

Problem: The “ADD WATER” and “ICE” lights are both flashing

• Possible Cause: The ice shovel may be incorrectly positioned.

• Solution: Make sure the ice shovel is properly positioned.

• Possible Cause: Ice may be blocking the sensor.

• Solution: Remove any ice that may be blocking the sensor.

Problem: The ice making cycle appears to be normal but no ice is being produced

• Possible Cause: The refrigerant may be leaking.

• Solution: Consult a qualified technician.

• Possible Cause: A pipe in the cooling system may be blocked.

• Solution: Consult a qualified technician.

Problem: The ice cubes are too small

• Possible Cause: The ambient temperature or water temperature may be too high.

• Solution: Select large sized ice cubes by pressing the “SELECT” button.

• Possible Cause: The compressor may need to warm up.

• Solution: If this is the first time the unit is being used, allow the ice maker to cycle a few times. This should result in larger cubes.

Problem: The ice has a “plastic” taste

• Possible Cause: The unit’s interior may need to be cleaned.

• Solution: Add a tablespoon of lemon juice or vinegar to a full tank of water and allow the ice maker to cycle a few times.

Problem: The unit produces a large block of ice instead of cubes

• Possible Cause: The ambient temperature may be too low.

• Solution: Unplug the unit and let the ice thaw out. Allow the ice maker to defrost for a few hours and restart the unit.

Problem: The ice cubes have a cloudy appearance

• Possible Cause: There may be trace minerals in your water or ice is being produced too quickly.

• Solution: Ice cubes may develop cloudiness when water is frozen quickly. As ice develops on the surface of water, certain gases can no longer remain dissolved and begin to surface as microscopic bubbles. This cloudiness is normal.

LIMITED MANUFACTURER’S WARRANTY

This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Pros & Cons

Here are some pros and cons of the Newair Portable Ice Maker AI-100:

Pros

• Compact and lightweight design
• Easy-to-use LCD control panel
• Transparent viewing window to monitor ice production
• Automatic shut-off feature to prevent overflow
• Removable ice basket and scoop
• High-quality and durable materials

Cons

• May produce a plastic-like taste in the first few batches
• May require frequent cleaning and maintenance

Customer Reviews about Newair Portable Ice Maker AI-100

The Newair Portable Ice Maker AI-100 has received several positive reviews from satisfied customers. Many of them praised its compact size, easy-to-use control panel, and fast ice production. However, some of them noted that it may produce a plastic-like taste in the first few batches and may require frequent cleaning and maintenance.
