Introduction

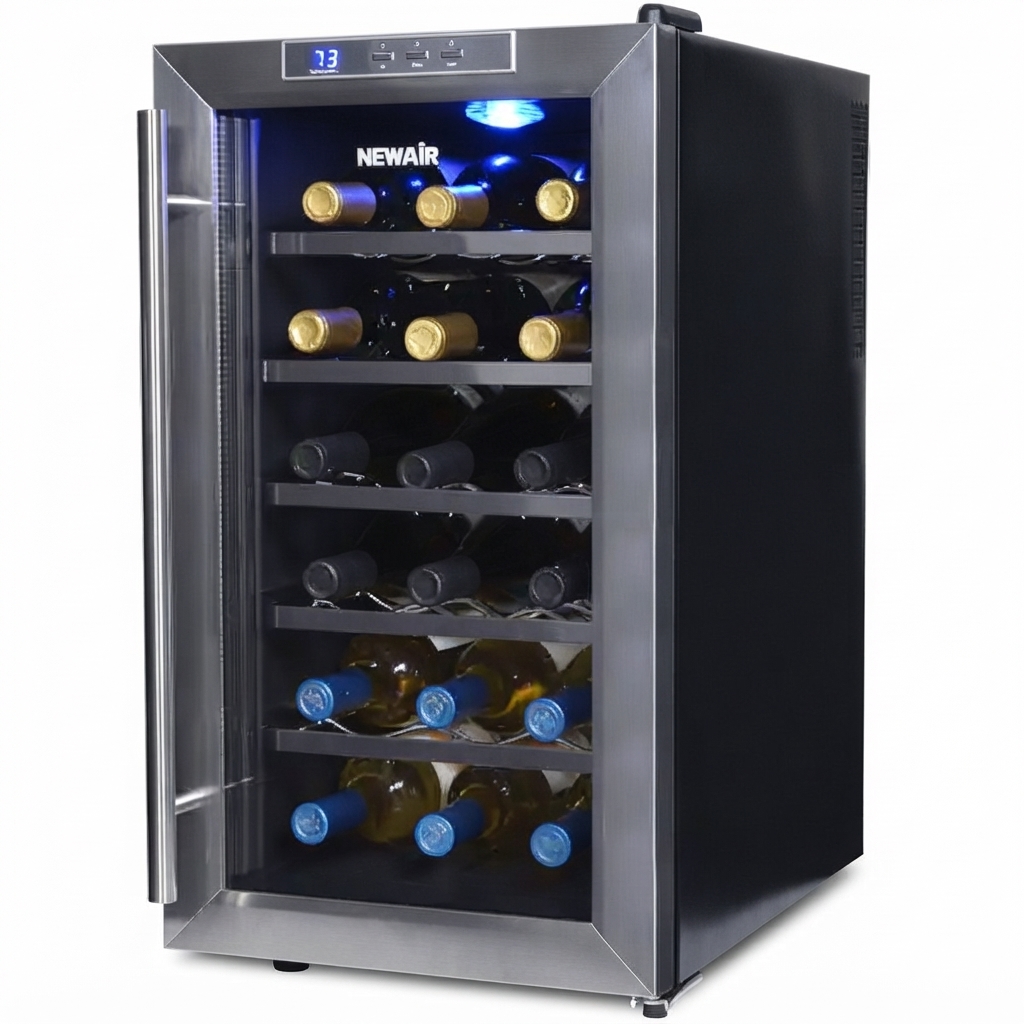

The Newair Thermoelectric Wine Cooler AW-181E is a stylish and efficient solution for wine enthusiasts looking to store their collection at the perfect temperature. With a capacity of 18 bottles, this cooler features adjustable shelves and a sleek design that fits seamlessly into any home decor. The thermoelectric cooling system operates quietly and efficiently, ensuring optimal temperature control without the noise of traditional compressors. Equipped with a digital temperature display and touch controls, it allows for precise adjustments. Priced at $210.95, the Newair AW-181E is an excellent choice for preserving the quality and flavor of your favorite wines.

PARTS LIST

When you receive your unit, carefully remove the exterior and interior packaging. It is recommended that you retain the packaging for future use.
Check to make sure the following parts are included:

• 5 slide-out shelves
• Door handle and 2 screws
• 1 instruction manual

PARTS DIAGRAM

1. Control Panel
2. Light Switch
3. Door Handle
4. Door Hinge
5. Interior Light
6. Fan
7. Wine Racks
8. Feet
9. Water Reservoir
10. Magnetic Seal
11. Glass Door
12. Door Frame

Detailed Specifications

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:

• Attention: To prevent the risk of child entrapment, do not allow children to operate, play with, or crawl inside the unit. If the unit will not be used for an extended period of time, remove the door and leave the shelves in place so that children cannot crawl inside. Also remove the door when disposing of the unit.
• Never clean the appliance parts with flammable fluids, as the fumes can create a fire hazard or explosion. Do not store or use gasoline or any other flammable vapors and liquids near this or any other appliance.
• Do not store perishable foods in the wine cooler, as the interior temperature will not be low enough to prevent food spoilage.

Shock Hazard: Electrical Grounding Required

• This cooler should be properly grounded for your safety, and in order to minimize the possibility of electrical shock, the power cord of this unit is equipped with a 3-prong plug which fits 3-prong wall outlets. Improper use of the grounded plug can result in electrical shock.
• If the power cord appears to be damaged, have it replaced by an authorized service center.
• Never cut or remove the ground wire from the supplied power cord.
• The use of an extension cord is not recommended.
• The cord should be secured behind the cooler. Also, to prevent accidental injury, do not expose or dangle the cord.

Description

The Newair Thermoelectric Wine Cooler AW-181E is a compact and stylish wine cooler that is perfect for any home or office. Its thermoelectric cooling technology ensures quiet and energy-efficient operation, while its vibration-free design helps to preserve the quality and flavor of your wine. The wine cooler's digital touch control makes it easy to adjust the temperature to your liking, while its recessed handle lighting adds a touch of elegance to any room. With a capacity of 18 standard bottles, this wine cooler is perfect for storing a variety of wines and is an excellent choice for both casual drinkers and serious collectors.

ASSEMBLY & INSTALLATION

HANDLE ASSEMBLY

Tools Required for Assembly: Phillips screwdriver (not included)
Estimated Assembly Time: 5 minutes
Before installation, attach the handle to the front of the unit with the included screws.  It may be necessary to push aside the rubber seal on the inside of the door to reveal the screw holes.
Caution: Avoid over-tightening the screws, or you may cause damage to the unit.

INSTALLATION

This cooler is a freestanding unit and should not be installed inside a cabinet or other built-in enclosure.   For proper ventilation, allow 5 inches clearance between the back of the unit and any adjacent walls.   Before operating your wine cooler for the first time, follow these steps:

• Clean the interior surface of the unit with lukewarm water and a soft cloth.
• Place the cooler on a level surface that will be strong enough to support the unit when it is fully loaded. To level your cooler, adjust the front feet located at the bottom of the unit.
• Install the cooler away from direct sunlight and heat sources such as stoves, heaters, or radiators.  Direct sunlight may affect the unit’s acrylic coating, and nearby heat sources can increase electrical consumption. Extreme cold or hot ambient temperatures may also prevent proper performance.
• Please note: this cooler is only designed for home use, and is not designed to be placed in a garage, or outdoor area.

FACTORY ODOR REMOVAL
Wash the interior of the cooler with a mild detergent and warm water. Leave the door open and allow it to air dry thoroughly. If a “plastic” smell persists, place a dish of baking soda in the unit or stuff the cooler with newspapers overnight. When finished, let the unit run a full day to complete the airing out process.

OPERATING INSTRUCTIONS

OPERATING ENVIRONMENT

It is recommended that the wine cooler be installed in an area where the ambient temperature is between 50°- 80°F (10° - 26°C). If the ambient temperature is above or below the recommended ranges, the unit’s performance may be affected, and extreme cold or hot conditions may cause the interior temperature to fluctuate. This will prevent the optimal range of 50°- 60°F (10°-16°C) from being reached. In addition, keep in mind that the temperature may fluctuate depending on whether the interior light is on or off, and whether the bottles are located on the upper, middle, or lower racks.

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

BUTTON FUNCTIONS

The interior temperature can be adjusted in increments of 1 degree between 54° and 66°F (12° - 18°C).

1. Raise the desired temperatures.
2. Lower the desired temperature.
3. Turn the light on and off.

To change the temperature readout to either Fahrenheit or Celsius, simultaneously press and hold the UP and DOWN buttons for at least 3 seconds.  After turning on the wine cooler, the LED display will show the ambient temperature first, and then the internal cabinet temperature.   After you set the desired temperature, this set temperature will flash for 5 seconds on the display and then revert back to the internal cabinet temperature.

Setup Guide

Setting up the Newair Thermoelectric Wine Cooler AW-181E is easy and straightforward.

1. Simply plug in the wine cooler, set the temperature using the digital touch control, and wait for the unit to reach the desired temperature.
2. It is recommended to allow the wine cooler to run for 24 hours before loading any bottles to ensure proper cooling.
3. When loading the wine cooler, be sure to place the bottles on the removable shelves, making sure to leave enough space between each bottle for proper air circulation.

CLEANING & MAINTENANCE

CLEANING YOUR COOLER

To clean your cooler:

• Unplug the cooler and remove anything inside.
• Wash the inside of the unit with a solution made of warm water and baking soda (2 tablespoons of baking soda to one quarter of water).
• Unscrew the water reservoir at the bottom of the unit and rinse with water.
• To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR COOLER

To move your cooler:

1. Remove anything stored inside.
2. Securely tape down all loose parts located inside the unit.
3. Turn the leveling feet up to the base in order to avoid damage.
4. Tape the door shut.
5. Be sure the cooler stays in an upright position during transportation.

WINE STORAGE GUIDE

• The ideal temperature for storing red or white wines is 55°F, with humidity between 60% and 75% RH.
• Store corked bottles on their sides, to keep the cork from drying out and allowing air into the bottle.
• UV rays make wine age faster, so keep bottles out of direct sunlight.
• Avoid heavy vibrations from motors, etc.
• Store wine separately from strong odors that might contaminate the flavor of the wine.

HOW LONG SHOULD I STORE MY WINE?
While most wines today are meant to be drunk “young” (within a few years of production) some fine wines are best served by proper aging. But aging too long can decrease the flavor of the wine. Generally speaking, red wines can age longer than white wines, but here is a storage guide for some popular vintages.

• Cabernet Sauvignon………… 7-10 years
• Pinot Noir…………………………. 5 years
• Merlot………………………………. 3-5 years
• Zinfandel…………………………… 2-5 years
• Beaujolais…………………………. Drink now
• Chardonnay………………………. 2-3 years
• Riesling……………………………… 3-5 years
• Sauvignon Blanc……………… 18 months – 2 years
• Pinot Gris………………………….. 1-2 years
• Champagne ……………………… Ready to drink

Troubleshooting

LIMITED MANUFACTURER’S WARRANTY

This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer http://www.NewAir.com

Pros & Cons

Pros

• Compact and stylish design
• Thermoelectric cooling technology for quiet and energy-efficient operation
• Digital touch control for precise temperature adjustment
• Vibration-free design
• Removable shelf for easy cleaning

Cons

• May not be large enough for serious wine collectors
• May not cool as effectively as larger wine coolers

Customer Reviews

Customers have praised the Newair Thermoelectric Wine Cooler AW-181E for its quiet operation, attractive design, and ease of use. Many users have noted that the wine cooler maintains a consistent temperature and is perfect for storing a small collection of wine. The only common complaint is that the wine cooler may not be large enough for serious wine collectors.
