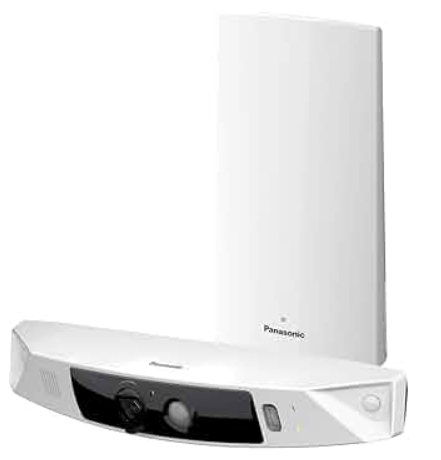

 Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C

Introduction

The Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C is a cutting-edge wireless security camera system designed to enhance your home's safety with high-definition monitoring. Featuring a wide 172-degree field of view and full-color night vision, this camera ensures clear, detailed visuals of your front door and outdoor areas at any time of day. Its two-way audio lets you communicate directly with visitors via your smartphone or tablet, providing convenience and security whether you are home or away.

Ideal for homeowners, small businesses, and anyone seeking reliable outdoor surveillance, the KX-HN7052C excels in monitoring deliveries and deterring unwanted visitors with voice alerts. The device supports motion and person detection, triggering automatic recordings on an optional microSD card without any monthly fees, making it a cost-effective security solution.

Available through various online retailers and select stores, the Panasonic HomeHawk KX-HN7052C typically falls within a mid-range price bracket of approximately $150 to $250, depending on bundled accessories and promotions. Its easy-to-install design and robust wireless capabilities make it an accessible choice for users wanting seamless integration into their smart home ecosystems.

Accessory information

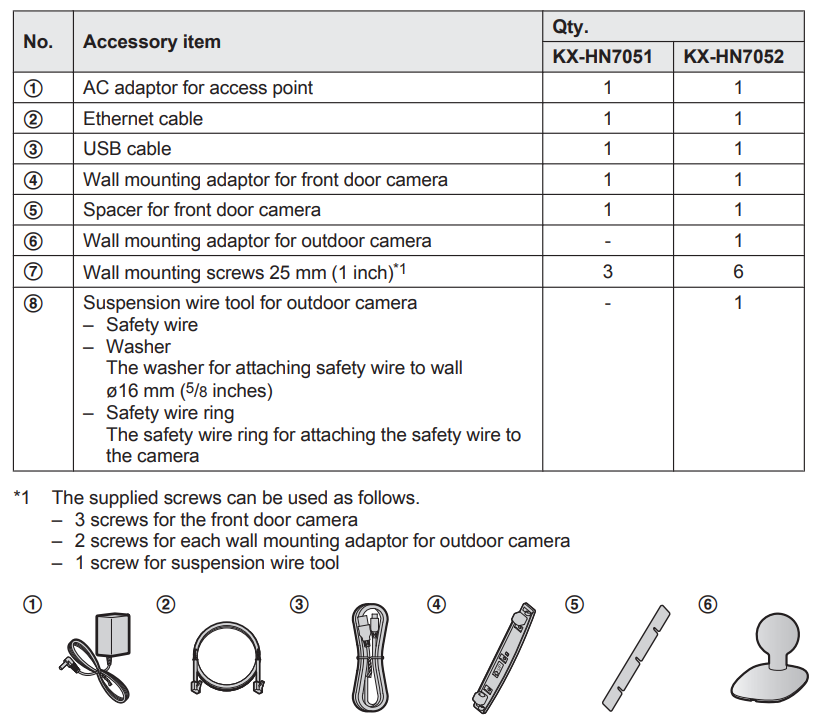

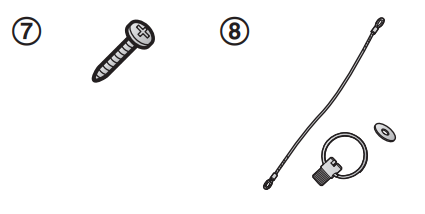

Supplied accessories

Wireless communication range
The wireless communication range of each device in the system from the access point is approximately 100 m (up to 328 feet). Wireless communication may be unreliable when the following obstacles are located between the access point and other devices.

• Metal doors or screens
• Walls containing aluminum-sheet insulation
• Walls made of concrete or corrugated iron
• Double-pane glass windows
• Multiple walls
• When using each device on separate floors or in different buildings

Note:

• The access point cannot connect wirelessly to devices other than the front door camera or outdoor camera.
• The camera’s LED indicator blinks slowly in red if it is out of range of the access point. In this case, confirm all connections, including those of the access point.
• The signal strength can be checked with the [HomeHawk] app. For more information, refer to the User’s Guide (page 31).

Information about sensor features

• The cameras have 2 sensor features that are used for motion detection: a visual sensor and an infrared sensor (i.e., heat sensor).
• Please read the following information before deciding where to install the camera.

Note:

• The camera’s sensor features are not designed to be used in situations that require high reliability. We do not recommend the use of the sensor features in these situations.
• Panasonic takes no responsibility for any injury or damage caused by the use of the camera’s sensor features.

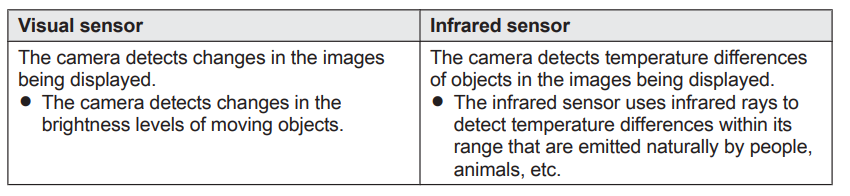

Detection method

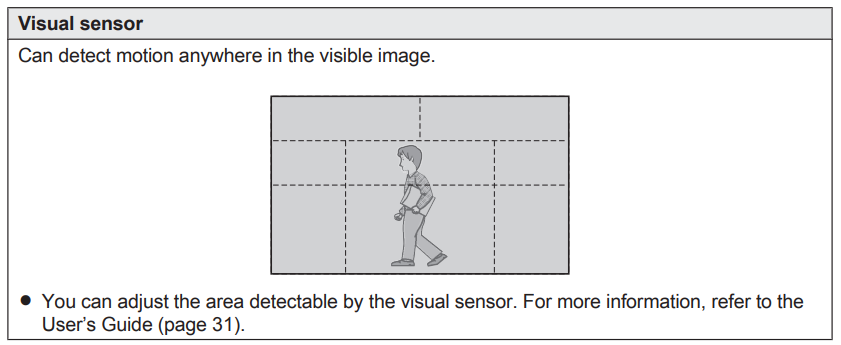

Detection range

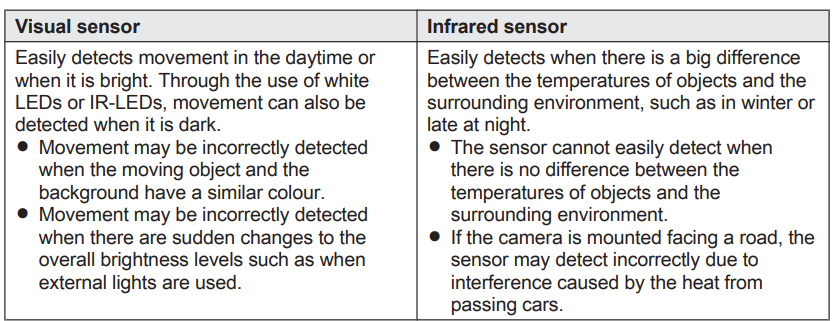

Main characteristics

Installation location examples

Important:

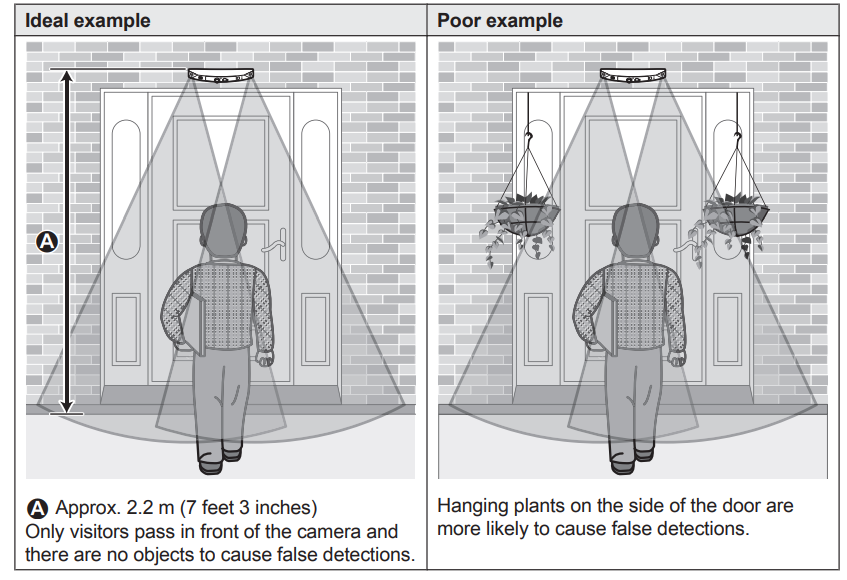

Install the front door camera with a height of up to 2.2 m (7 feet 3 inches) from the ground.  When possible, install the front door camera more than 2.5 m (8 feet 2 inches) away from streets.

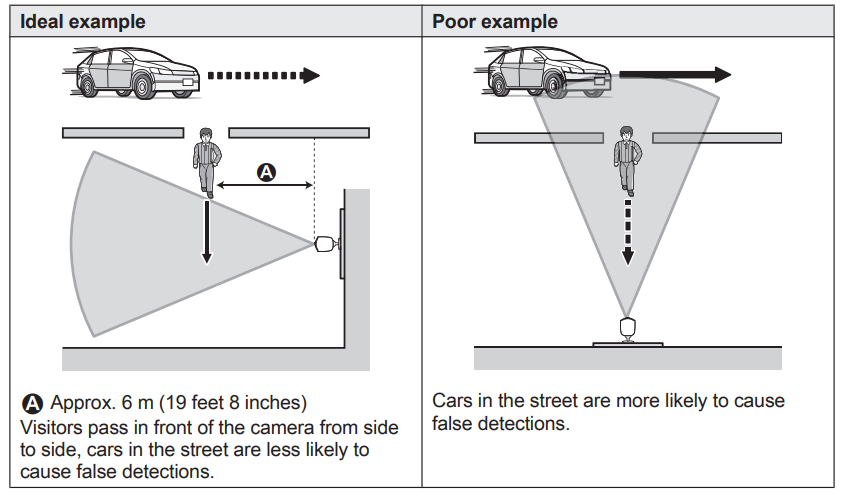

I want to detect visitors approaching the house..
Refer to the table below for detecting visitors at an entrance or gate without detecting cars in the street.

 Outdoor camera

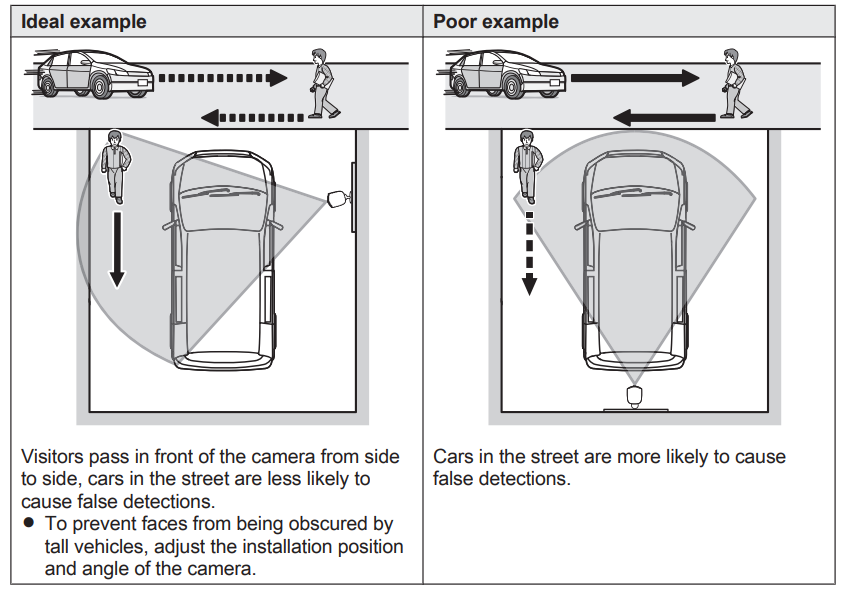

I want to detect people entering the garage. ge
Refer to the table below for detecting people entering a garage without detecting cars in the street.

Do not install in these locat..ions..

Installing in the following areas may cause deformation, discoloration, malfunction, or operationafailurere

• In direct sunlight or directly under an outdoor light (even if the surroundings are the within the operational temperature range, parts of the product may become hot.
• Areas subject to frequent vibration, shock, or impact
• Near fire, heating devices, or air conditioners (including outdoor equipment such as unit compressors)
• Areas exposed to grease or steam
• Near devices that emit strong radio waves, such as mobile phones
• Areas subject to extreme temperature changes (which can lead to condensation).
• If condensation occurs, wipe the outer surface of the product with a soft dry cloth.
• Near coasts directly subjected to seabreezes, or near sulfuric hot springs (exposure to salt can shorten the life of the product)
• Near TVs, radios, automated office equipment such as computers, air conditioners, water heater panels (with intercom), or home security equipment (these may cause noise)
• Near satellite broadcasting receivers such as tuners, TVs with built-in satellite tuners, and recorders (broadcast images may be distorted)
• Areas where hydrogen sulfide, ammonia, dust, or toxic gases are present. Installing in the following areas may cause false detection.s
• Areas where people approach directly from the front of the camera, such as narrow walkways (outdoor camera)
• Areas Areas where brightness changes easily, where objects such as trees or hanging laundry move due to wind,d temperature variations, on and motion may cause false detections.ns)
• Areas affected by breezes from fans, air conditioning unit compressors, water heaters, or car exhaust (severe temperature variations may cause false detections)
• Areas subject to severe weather, such as strong wind (camera shake can cause false detections) or rain (strong rain may be detected as an object moving in front of the camera)
• Areas with reflective objects, such as glass, that can interfere with the detection of temperature variation
• Areas where backlight occurs (faces appear dark and are difficult to identify), such as the following
• Areas where most of the background is the sky
  • Areas where direct sunlight reflects off a white wall or background
  • Bright areas, such as those exposed to direct sunlight

Setup

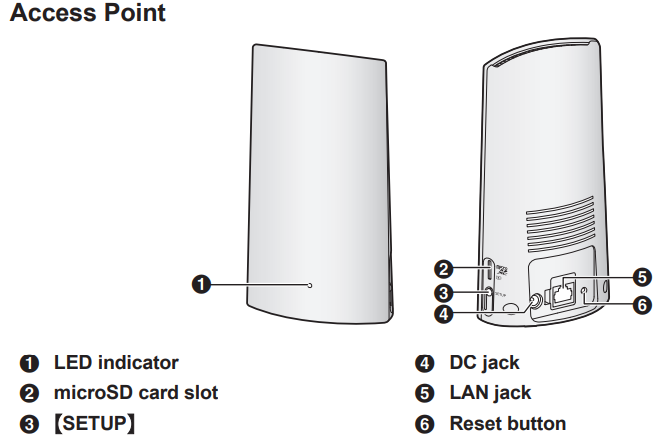

Part names and functions

Camera

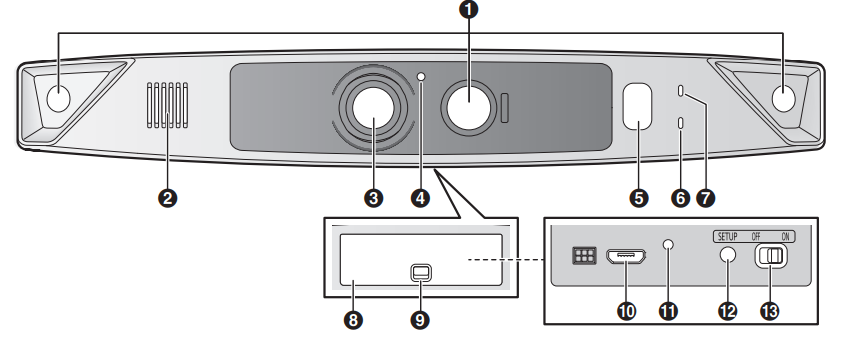

•  Front door camera

1. Infrared sensor
2. Speaker
3. Lens
4. Light sensor
5. White LED lens
6. LED indicator
7. Microphone
8. Interface cover
9. Lock key
10. micro-USB connector
11. Charging LED indicator
12. SETUP
13. Power slide switch

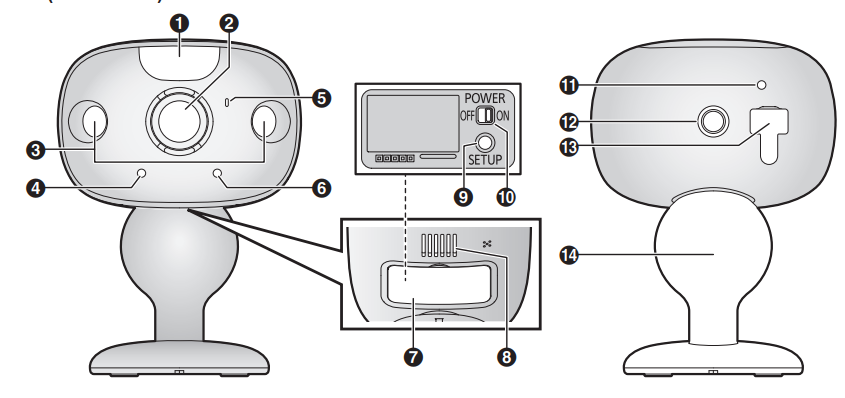

 Outdoor camera (KX-HN7052)

1. White LED lens
2. Lens
3. Infrared sensors
4. LED indicator
5. Microphone
6. Light sensor
7. Interface cover
8. Speaker
9. SETUP
10. Power slide switch
11. Charging LED indicator, Camera nut
12. USB cover/micro-USB connector N Wall mounting adaptor

Setup overview

1. Charging the cameras
   Make sure the battery is fully charged before you set up the cameras.
2. Turning the power on for the cameras
   Turn the power on.
3. Downloading the application
   Download the [HomeHawk] app to your mobile device.
4. Connection to the access point
   Connect the AC adaptor and Ethernet cable to the access point.
5. Initial setup
   Make sure you can access the system using your mobile device.
6. Registration
   Required only if the camera was purchased separately (i.e., not as part of a bundle).
7. Confirm the installation area.
   Read the information in this document to confirm that the desired installation area is suitable for proper operation.
8. Installation
   Install the camera in the desired location.

Camera installation

Installation precautions

• Do not use an impact driver. (This may lead to damaged screws or over-tightening.)
• Mount the camera in a stable location with a height of 2.2 m (7 feet 3 inches) where the unit can be adequately supported when installing.
• Do not mount the camera on a soft material. It may fall down, break, or cause injury.

Wall material information:n Siding

• Use the included screws ø4 mm ´ 25 mm (ø5/32 inches ´ 1 inch). Make sure the pull-out capacity of each screw is at least 294 N (30 kgf).

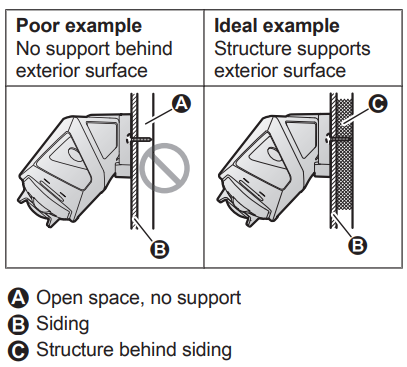

• If the weight of the camera is supported by the siding only, the siding could become damaged. Make sure you mount the camera in a location where the structure behind the siding can be used to support the weight of the camera. If this is not possible due to the thickness of the siding, commercially available screws ø4 mm ´ longer than 25 mm (ø5/32 inches ´ longer than 1 inch)
• Drill a pilot hole using a drill bit that is appropriate for the type of siding. Remove any debris after drilling the pilot hole. Do not drill the pilot hole into the structure behind the siding.

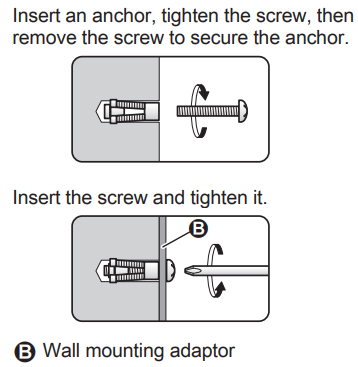

Concrete

• Do not use the included screws. Use screw anchors (screw ø4 mm (5/32 inches)) designed for concrete walls.
• Carefully read the instructions supplied with the anchors. Follow instructions regarding drill bit diameter, hole depth, etc.

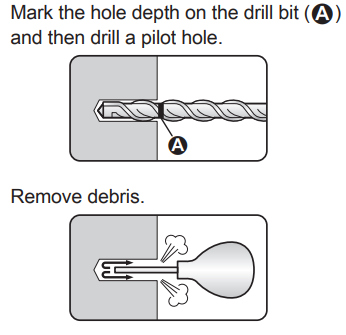

• Drill a pilot hole. Remove any debris after drilling the pilot hole.

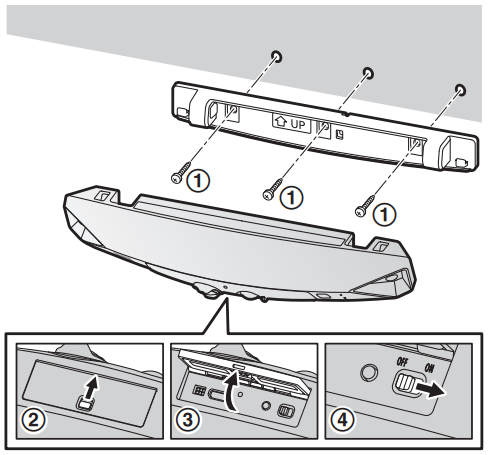

Installing the front door camera

1. Attach the wall mounting adaptor to a porch wall.
   1. Secure the wall mounting adaptor to the wall by tightening the 3 suppliedscrews (A).
   2. The spacer can be used to adjust the installation angle of the camera as necessary (“Using the spacer”, page 27).
   3. Do not attach the wall mounting adaptor at an angle or vertically. (This will result in the sensors being unable to correctly make detections.)
2. Slide the lock key of the interface cover on the bottom of the camera (B).
3. Open the interface cover (C).
4. Slide the power slide switch to ON (D).
5. Close the interface cover (E) and the lock key (F).

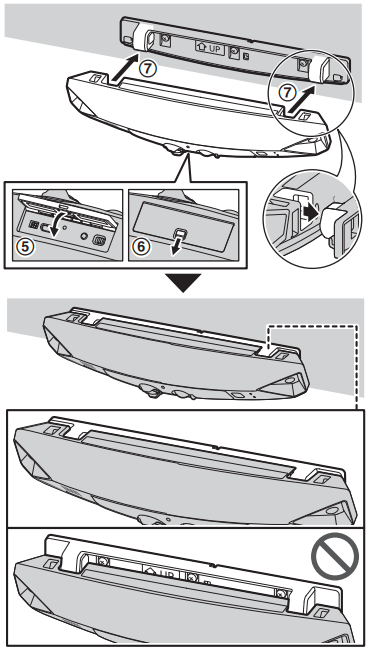

6. Match the positions of the hooks of the camera and wall mounting adaptor (G).
7. Rotate the camera until you hear a click and the camera is securely mounted.

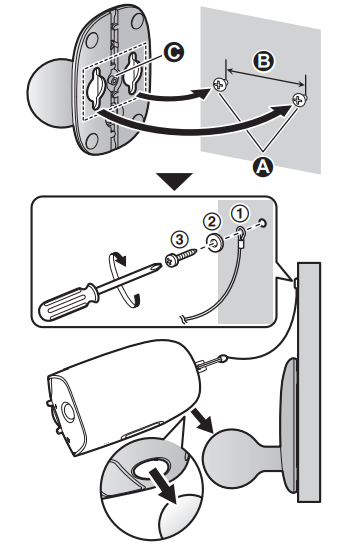

Installing the outdoor camera

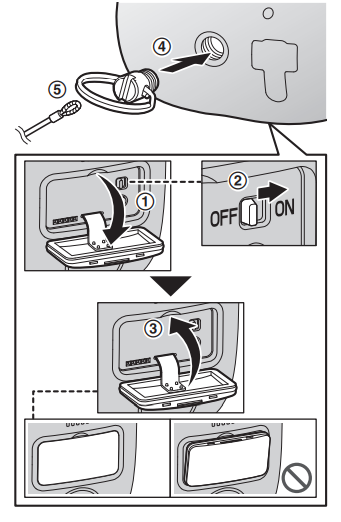

1. Open the interface cover (A), and then slide the power slide switch to ON (B) .
2. Close the interface cover (C).
3. Secure the safety wire ring to the camera nut of the camera using a driver (D), and then pass the safety wire through the ring of the safety wire ring (E).
4. Drive the wall mounting screws into the wall.

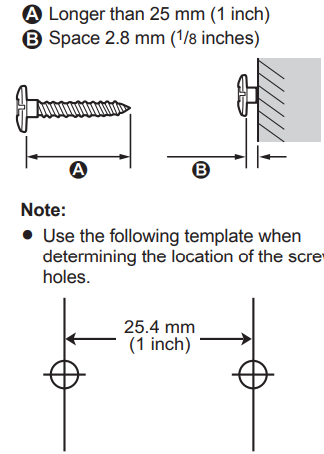

5. Longer than 25 mm (1 inch)
6. Space 2.8 mm (1/8 inches).. Mount the wall mounting adaptor to the wall. Next, attach the safety wire to the wall, and then attach the camera to the wall mounting adaptor.
   1. Wall mounting screws
   2. 25.4 mm (1 inch)
   3. Hole
      You can prevent the camera from falling by passing a string through the hole in the wall mounting adaptor.
7. Adjust the camera angle.
   Note:
   1. Attach the safety wire while it is bent.
   2. Attach the safety wire high on the wall so that the camera does not strike anyone in the event that the camera detaches from the wall.
   3. Do not hang from the camera or wall mounting adaptor.

Specifications

Frequency range

• Wireless LAN: 2.412 GHz – 2.462 GHz (channels 1 – 11)

RF transmission power

• Wireless LAN:
• Access point: 200 mW (peak transmission power)
• Front door camera/Outdoor camera: 100 mW (peak transmission power)

Power source

• Access point: 120 V AC, 60 Hz
• Front door camera/Outdoor camera: 5.0 V, 1.0 A*1

Power consumption

• Access point:
• Standby: 1.2 W
• Maximum: 6 W

Battery performance

• Front door camera/Outdoor camera:
• Operating time: 7 hours
• Approx. 3 months (when used 5 minutes a day)*2

Operating conditions

• Access point: 0 °C – 40 °C (32 °F – 104 °F)20 % – 80 % relative air humidity (dry)
• Front door camera/Outdoor camera: -20 °C – 50 °C (-4 °F – 122 °F) up to 90 % relative air humidity (non-condensing)

Image sensor

• Front door camera/Outdoor camera: 1.0 megapixel CMOS

Minimum illuminance required

• Front door camera/Outdoor camera:
• IR-LED: 0 lx*3
• White LED: 1 lx

Focal length

• Front door camera/Outdoor camera: Fixed 0.2 m (0.7 feet) – infinity

Angular field of view (camera angle)

• Front door camera/Outdoor camera: 172°

Motion detection method

• Pyroelectric infrared sensor (PIR sensor) and visual sensor PIR sensor detection range (when the surrounding temperature is approx. 25 °C (77 °F))

Front door camera:

• Horizontal: 170°
• Vertical: 36°
• Detection range: 2.5 m (8 feet 2 inches)

Outdoor camera:

• Horizontal: 170°
• Vertical: 19.1°
• Detection range: 6 m (19 feet 8 inches)

Visual sensor detection range

• Front door camera/Outdoor camera:
  • Horizontal: 150°
  • Vertical: 85°

IP rating

• Front door camera/Outdoor camera: IP65*

Dimensions (height × width × depth)

• Access point: Approx. 179 mm ´ 94 mm ´ 52 mm (7 1/16 inches ´ 3 11/16 inches ´ 2 1/16 inches)
• Front door camera: Approx. 58 mm ´ 271 mm ´ 61 mm (2 5/16 inches ´ 10 11/16 inches ´ 2 3/8 inches)*5
• Outdoor camera: Approx. 98 mm ´ 71 mm ´ 94 mm (3 7/8 inches ´ 2 13/16 inches ´ 3 11/16 inches)*5

Mass (weight)

• Access point: Approx. 200 g (0.44 lb)
• Front door camera: Approx. 390 g (0.86 lb)*5

Outdoor camera:

• Approx. 490 g (1.08 lb)*5
  • Only when charging.
  • Battery performance changes depending on the surrounding temperature, frequency of use, and the actual usage environment. For more information, refer to the User’s Guide (page 31).
  • The infrared LEDs that surround the camera lens will illuminate in low-light conditions.
  • Weatherproofness is only assured if the camera is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
  • Including the wall mounting adaptor.

Warranty

• 5770 Ambler Drive, Mississauga, Ontario L4W 2T3
• PANASONIC PRODUCT - LIMITED WARRANTY
• EXCHANGE PROGRAM
• Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
• Home Network System Products – One (1) year
• microSD card (Included model only) – One (1) year
• This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above,, sold by an authorized Panasonic dealer in Cana,, da and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packagingTORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE,, IREQUIRED.   LIMITATIONS AND EXCLUSIONS
• This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.
• Dry cell batteries are also excluded from coverage under this warranty. Rechargeable batteries are warranted for ninety (90) days from the date of original purchase.
• THIS EXPRESS, LIMITED WARRANTY IS INSTEAD OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT,, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.
• (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, da,  ta or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)
  In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights,hts and you may have other rights which vary depending on your province or territory.

Troubleshooting Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C

Common issues with the Panasonic KX-HN7052C include connectivity drops, delayed notifications, and audio difficulties. To resolve wireless connection problems, ensure the camera is within the 2.4 GHz Wi-Fi range and that your router firewall is not blocking the device. Resetting the base station or reinstalling the app often restores stable performance.

If the camera displays error codes such as "E01" or "E02," consult the user manual for specific diagnostics—typically relating to camera power or network interference. For audio issues, verify microphone and speaker settings within the HomeHawk app and check for firmware updates.

Preventive measures include regular firmware updates, keeping the lens clean, and ensuring motion detection settings match your environment to reduce false alerts. Panasonic offers a limited warranty covering manufacturing defects, and customer support can be reached via their official website or support hotline for personalized assistance.

Pros & Cons of Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C

• Pros:
  • Wide 172-degree field of view captures expansive outdoor areas.
  • Full-color night vision enhances visibility in low-light conditions.
  • Two-way audio allows communication with visitors remotely.
  • No monthly fees—use SESses' optional microSD card for video storage.
  • Easy wireless installation compatible with most 2.4 GHz networks.
• Cons:
  • Audio quality is functional but can lack clarity compared to premium models.
  • Limited to 2.4 GHz Wi-Fi, which may affect connectivity in some network environments.
  • An additional purchase of a microSD card is required for continuous recording.
  • Some users report occasional app notification delays.
• Value for Money: The KX-HN7052C provides robust security features at a reasonable price compared to competitors like Ring or Nest, especially for users avoiding subscription fees.

Customer Reviews of Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C

Users consistently praise the Panasonic Home Monitoring Front Door-Outdoor KX-HN7052C for its broad viewing angle and clear video quality, noting its effectiveness in monitoring package deliveries and deterring unwanted visitors. Positive feedback highlights easy setup and reliable motion detection.

Common complaints focus on occasional connectivity interruptions and the modest audio quality during two-way communication. Despite these, the average user rating stands around 4.5 out of 5 stars, with many recommending it as a solid, budget-friendly outdoor camera option without recurring subscription costs.

Buyers suggest pairing the device with a high-quality microSD card for seamless recording and emphasize the importance of a strong Wi-Fi signal for optimal performance.
