Introduction

The Panasonic Home Monitoring Camera Front Door-Outdoor KX-HN7001 is a state-of-the-art security solution designed to enhance home safety with advanced features tailored for outdoor use. This wireless HD camera provides a comprehensive view of your front door area, combining high-definition video quality with smart detection technology and seamless smartphone integration. Ideal for homeowners seeking reliable surveillance without monthly fees, the KX-HN7001 offers peace of mind through crisp 1080p full HD video, a wide 172-degree field of view, and vivid color night vision powered by infrared LEDs.

Key benefits include two-way communication allowing you to speak with visitors remotely, motion detection alerts that record activity even without doorbell rings, and easy installation with microSD card support for local video storage. Its robust weather resistance supports temperatures from -20 °C to 50 °C, making it perfect for year-round outdoor monitoring. The system integrates smoothly via the HomeHawk app, enabling live monitoring, customized notifications, and remote access.

Targeted at security-conscious individuals, small families, and smart home enthusiasts, this camera system excels in monitoring front doors, porches, and delivery areas. The estimated price range is competitive within the outdoor home security market, typically around $250 to $300, with availability through major electronics retailers and online platforms.

Accessory information

Supplied accessories

Installation Location

Wireless communication range
The wireless communication range of each device in the system from the access point is approximately 100 m (up to 328 feet). Wireless communication may be unreliable when the following obstacles are located between the access point and other devices.

• Metal doors or screens
• Walls containing aluminum-sheet insulation
• Walls made of concrete or corrugated iron
• Double-pane glass windows
• Multiple walls
• When using each device on separate floors or in different buildings

Note:

• The access point cannot connect wirelessly to devices other than the front door camera or outdoor camera.
• The camera’s LED indicator blinks slowly in red if it is out of range of the access point. In this case, confirm all connections, including those of the access point.
• The signal strength can be checked with the [HomeHawk] app. For more information, refer to the User’s Guide..

Information about sensor features

• The cameras have 2 sensor features that are used for motion detection: a visual sensor and an infrared sensor (i.e., heat sensor).
• Please read the following information before deciding where to install the camera.
  Note:
• The camera’s sensor features are not designed to be used in situations that require high reliability. We do not recommend d the use of the sensor features in these situations.
• Panasonic takes no responsibility for any injury or damage caused by the use of the sensor features.

Detection method

Detection range

Main characteristics

Information about night vision mode

• The cameras feature color night vision mode, which allows camera images to be viewable even when the surrounding area is dark.
  Note:
• When [Color] is selected for the night vision mode, the white LEDs are lit, enabling images to be displayed in color.
• When [Monochrome] is selected for the night vision mode, the array of infrared LEDs that surround the camera’s lens light up in a faint red color that can be seen in the dark.
• The visibility range for [Monochrome] in dark conditions is longer than for [Color].
• If the camera is installed in front of a window and points directly at the window, images may be poor when night vision mode is active.

Installation location examples

Important:
Install the front door camera with a height of up to 2.2 m (7 feet 3 inches) from the ground. R When possible, install the front door camera more than 2.5 m (8 feet 2 inches) away from streets.

I want to detect visitors approaching the house..
Refer to the table below for detecting visitors at an entrance or gate without detecting cars in the street.

 Front door camera

 Outdoor camera

I want to detect people entering the garage.ge
Refer to the table below for detecting people entering a garage without detecting cars in the street.

Do not install in these locations

Installing in the following areas may cause deformation, discoloration, malfunction, or operational failure. ure

• In direct sunlight or directly under an outdoor light (even if the surroundings are within operational temperature range, parts of the product may become. hot)
• Areas subject to frequent vibration, shock, or impact
• Near fire, heating devices, or air conditioners (including outdoor equipment such as unit compressors)
• Areas exposed to grease or steam
• Near devices that emit strong radio waves, such as mobile phones
• Areas subject to extreme temperature changes (which can lead to condensation). If condensation occurs, wipe the outer surface of the product with a soft dry cloth.
• Near coasts directly subjected to sea breezes, or near sulfuric hot springs (exposure to salt can shorten the life of the product)
• Near TVs, radios, automated office equipment such as computers, air conditioners, water heater panels (with intercom), or home security equipment (these may cause noise)
• Near satellite broadcasting receivers such as tuners, TVs with built-in satellite tuners, and recorders (broadcast images may be distorted)
• Areas where hydrogen sulfide, ammonia, dust, or toxic gases are present

Installing in the following areas may cause false detections

• Areas where people approach directly from the front of the camera, such as narrow walkways (outdoor camera)
• Areas where objects such as trees or hanging laundry move due to wind (temperature variation and motion may cause false detections)
• Areas affected by breezes from fans, air conditioning unit compressors, water heaters, or car exhaust (severe temperature variations may cause false detections)
• Areas subject to severe weather, such as strong wind (camera shake can cause false detections) or rain (strong rain may be detected as an object moving in front of the camera)
• Areas with reflective objects, such as glass, that can interfere with the detection of temperature variation
• Areas where brightness changes easily. R Areas where backlight occurs (faces appear dark and are difficult to identify), such as the following
  • Areas where most of the background is the sky
  • Areas where direct sunlight reflects off a white wall or background
  • Bright areas, such as those exposed to direct sunlight

Setup

Part names and functions

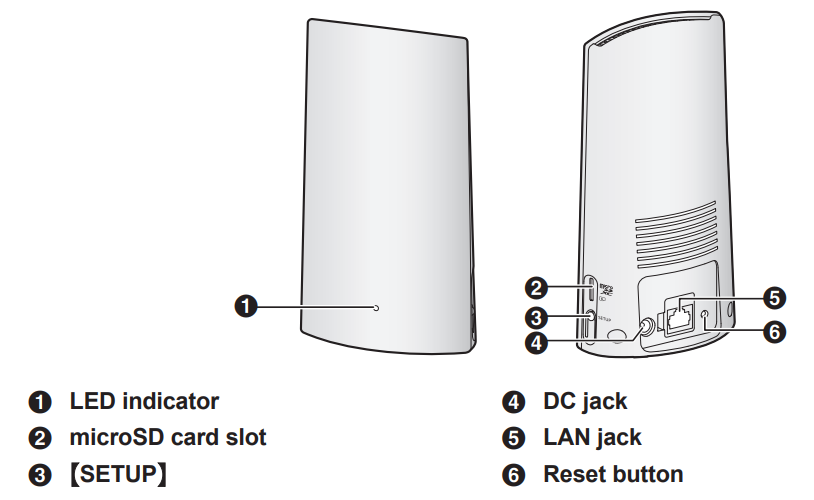

Access Point

Camera

 Front door camera

1. Infrared sensor B Speaker
2. Lens
3. Light sensor
4. White LED lens
5. LED indicator
6. Microphone
7. Interface cover
8. Lock key
9. micro-USB connector
10. Charging LED indicator
11. SETUP
12. Power slide switch

 Outdoor camera
(KX-HN7002/KX-HN7003)

1. White LED lens
2. Lens
3. Infrared sensors
4. LED indicator
5. Microphone
6. Light sensor
7. Interface cover
8. Speaker
9. SETUP
10. Power slide switch
11. Charging LED indicator
12. Camera nut
13. USB cover/micro-USB connector
14. Wall mounting adaptor

Setup overview

1. Charging the cameras
   Make sure the battery is fully charged before you set up the cameras.
2. Turning the power on for the came.ras Turn the power on.
3. Downloading the application
   Download the [HomeHawk] app to your mobile device.
4. Connection for access point
   Connect the AC adaptor and Ethernet cable to the access point.
5. Initial setup
   Make sure you can access the system using your mobile device.
6. Registration
   Required only if the camera was purchased separately (i.e., not as part of a bundle).
7. Confirm the installation area..
   Read the information in this document to confirm that the desired installation area is suitable for proper operation.
8. Installation
   Install the camera in the desired location

Camera installation

Installation precautions

• Do not use an impact driver. (This may lead
  to damaged screws or over-tightening.) R Mount the camera on a stable location with a height of 2.2 m (7 feet 3 inches) where the unit can be adequately supported when installing.
• Do not mount the camera on a soft material. It may fall down, break, or cause injury.

Wall material information

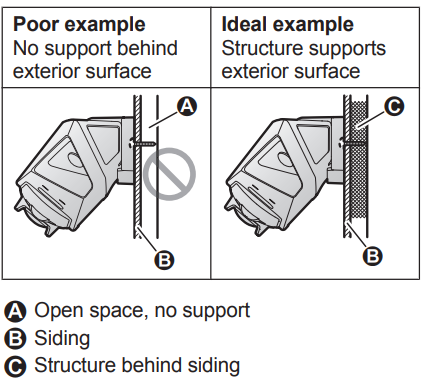

Siding

• Use the included screws ø4 mm ´ 25 mm (ø5/32 inches ´ 1 inch). Make sure the pull-out capacity of each screw is at least 294 N (30 kgf).
• If the weight of the camera is supported by the siding only, the siding could become damaged. Make sure you mount the camera in a location where the structure behind the siding can be used to support the weight of the camera. If this is not possible due to the thickness of the siding, use commercially available screws ø4 mm´ longer than 25 mm (ø5/32 inches ´ longer than 1 inch).
• Drill a pilot hole using a drill bit that is appropriate for the type of siding. Remove any debris after drilling the pilot hole. Do not drill the pilot hole into the structure behind the siding.

Concrete

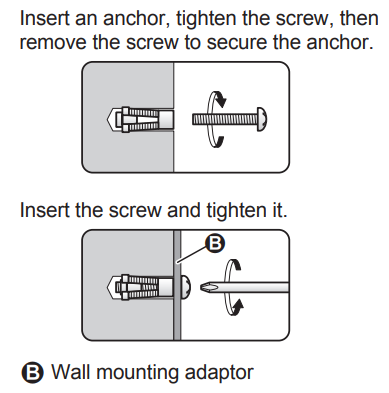

• Do not use the included screws. Use screw anchors (screw ø4 mm (5/32 inches)) designed for concrete walls.
• Carefully read the instructions supplied with the anchors. Follow instructions regarding drill bit diameter, hole depth, etc.

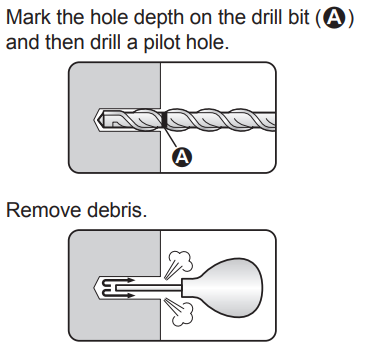

• Drill a pilot hole. Remove any debris after drilling the pilot hole.

Installing the front door camera

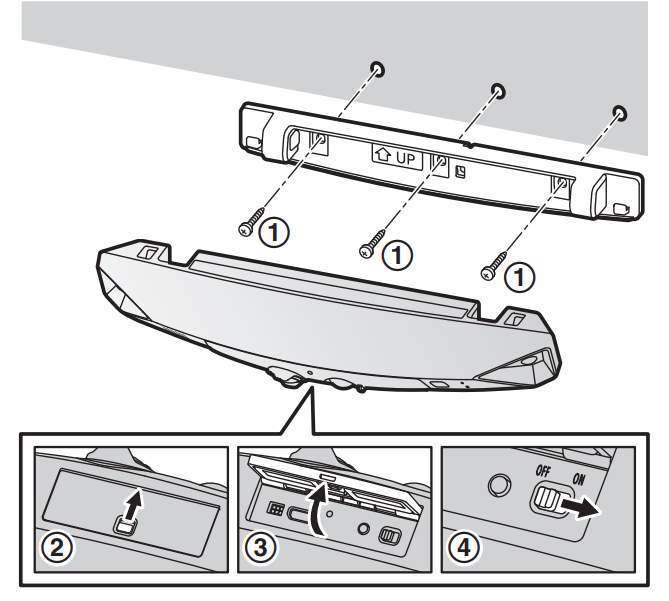

1. Attach the wall mounting adaptor to a porch wall.
   1. Secure the wall mounting adaptor to the wall by tightening the 3 supplied screws (A).
   2. The spacer can be used to adjust the installation angle of the camera as necessary (“Using the spacer”, page 28).
   3. Do not attach the wall mounting adaptor at an angle or vertically. (This will result in the sensors being unable to correctly make detections.
2. Slide the lock key of the interface cover on the bottom of the camera (B).
3. Open the interface cover (C).
4. Slide the power slide switch to ON (D).
5. Close the interface cover (E) and the lock key (F).

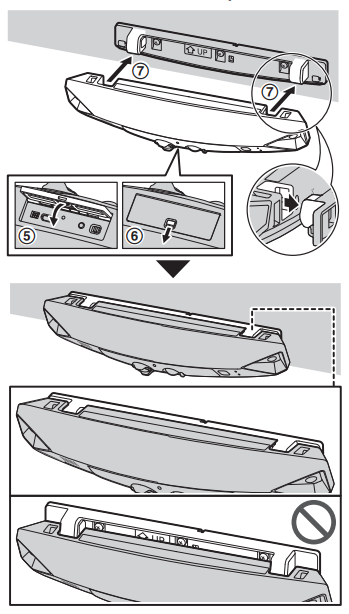

6. Match the positions of the hooks of the camera and wall mounting adaptor (G).
7. Rotate the camera until you hear a click and the camera is securely mounted.

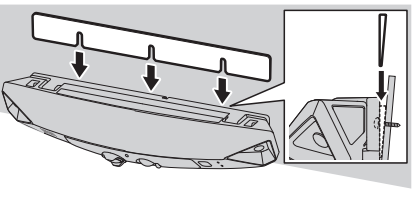

Using the spacer
Use the supplied spacer to adjust the installation angle of the camera. Insert the spacer between the mounting adaptor and the wall.

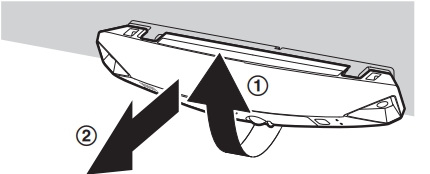

Removing the front door camera
Rotate the camera towards the wall (A), and then pull it away from the wall mounting adaptor (B).

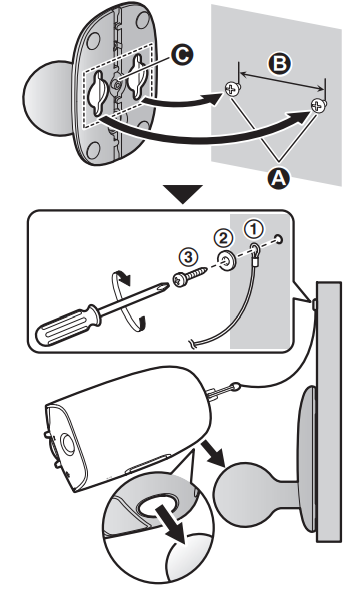

Installing the outdoor camera

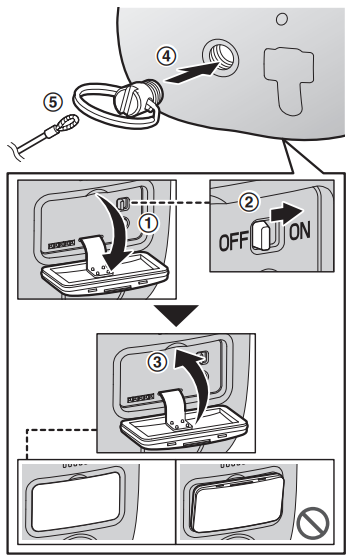

1. Open the interface cover (A), and then slide the power slide switch to ON (B) .
2. Close the interface cover (C).
3. Secure the safety wire ring to the camera nut of the camera using a driver (D), and then pass the safety wire.

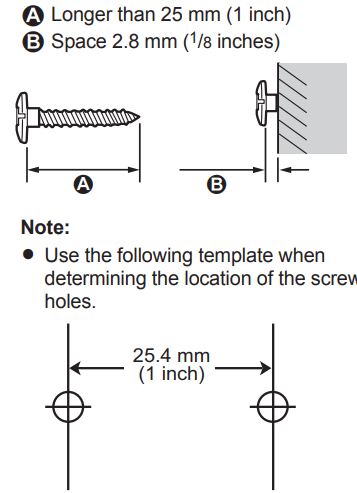

4. Drive the wall mounting screws into the wall.
5. Longer than 25 mm (1 inch)
6. Space 2.8 mm (1/8 inches), the ring of the safety wire ring (E).
7. Mount the wall mounting adaptor to the wall. Next, attach the safety wire to the wall, and then attach the camera to the wall mounting adaptor.
   1. Wall mounting screws
   2. 25.4 mm (1 inch)
   3. Hole
      You can prevent the camera from falling by passing a string through the hole in the wall mounting adaptor.
8. Adjust the camera angle.
   Note:
   1. Attach the safety wire while it is bent.
   2. Attach the safety wire high on the wall so that the camera does not strike anyone in the event the camera detaches from the wall.
   3. Do not hang from the camera or wall mounting adaptor.

Panasonic Products Limited Warranty

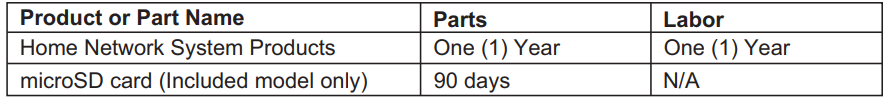

Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace, cease, or refund will be made by the warrantor.

During the “Labor” warranty period, there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States.

• This warranty is extended only to the original purchaser of a new product that was not sold “as is”.
• Mail-In Service--Online Repair Request
• Online Repair Request
• To submit a new repair request and for quick repair status ,,  visit our website.
• When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured,, anwell-packedll in a carton box. When shipping Lithium Ion batteries, please visit our website..
• Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.
• IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID, AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

• This warranty ONLY COVERS failures due to defects in materials or workmanship,  and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty  ALSO DOES NOT COVER damages which occurred in shipment, or failures which = are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, fault installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or otherbusiness r rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER  “LIMITED WARRANTY COVERAGE”.
• THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT  OF ANY BREACH OF THIS WARRANTY.
• (As examples, this excludes damages for lost time, travel to and from the servicer,  loss of or damage to media or images, data ,  or other memory or recorded content.
• The items listed are not exclusive, but for illustration only.)
• ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department Panasonic Corporation of North America 661 Independence Parkway Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY

Troubleshooting Common Issues with Panasonic Home Monitoring Camera KX-HN7001

Common issues faced by users of the Panasonic Home Monitoring Camera Front Door-Outdoor KX-HN7001 include connectivity interruptions, motion detection sensitivity problems, and video lag during live streaming. To resolve connectivity issues, ensure the access point is within range (preferably within 30 meters) and confirm your wireless LAN operates on the 2.4 GHz band, as this model does not support 5 GHz Wi-Fi. Restarting both the camera and access point often restores connection stability.

For motion detection irregularities, adjust sensitivity settings within the HomeHawk app to reduce false positives caused by pets or passing vehicles. When video streaming lags, verify your home internet speed and check for app updates. Battery life typically lasts about 7 hours on a full charge, with standby times up to 3 months when used sparingly; ensure timely charging via the micro-USB port.

Error codes are minimal but generally indicate network or power issues. Refer to the user manual for specific LED indicator signals, such as flashing red for low battery or orange for connection errors. Preventive measures include keeping firmware updated, positioning the camera away from direct sunlight glare, and regular cleaning of the lens and sensors.

Panasonic offers a one-year limited warranty covering manufacturing defects and provides dedicated technical support through their official website and customer service hotline.

Pros & Cons of Panasonic Home Monitoring Camera Front Door-Outdoor KX-HN7001

Pros

• No Monthly Fees: Unlike many competitors, it offers complete functionality without subscription costs, utilizing local microSD storage for recorded events.
• Wide 172-Degree Field of View: Captures extensive area coverage, reducing blind spots around your front door.
• High-Quality Night Vision: Infrared LEDs provide clear color video even in low light, enhancing nighttime security.
• Two-Way Audio Communication: Enables direct interaction with visitors or delivery personnel remotely via smartphone.
• Weather-Resistant Design: Operates reliably in temperatures ranging from -20 °C to 50 °C and high-humidity outdoor conditions.

Cons

• Limited Wi-Fi Compatibility: Supports only 2.4 GHz networks, which may be less optimal for some modern routers favoring 5 GHz bands.
• Audio Quality: While functional, the microphone and speaker audio has been reported as less clear compared to premium competitors.
• Battery Life Constraints: Approximately 7 hours of continuous operation per charge, requiring regular recharging for uninterrupted usage.
• App Limitations: Some users note occasional lag and limited customization options within the HomeHawk app interface.
• Price Point: Slightly higher upfront cost compared to basic models, though justified by feature set and no recurring fees.

Customer Reviews and Feedback on Panasonic KX-HN7001 Front Door Camera

Users consistently praise the Panasonic Home Monitoring Camera Front Door-Outdoor KX-HN7001 for its exceptional video clarity and wide-angle coverage, with many highlighting its effective color night vision and reliable motion detection. The two-way communication feature is often cited as a valuable tool for interacting with visitors remotely.

Common complaints focus on the audio quality, described as functional but not premium, and occasional connectivity issues in larger homes with complex Wi-Fi environments. The battery life is considered sufficient for typical daily use but requires planned charging for extended monitoring.

Overall, the camera maintains a strong average rating aof round 5d5 out of 5 stars. Many users recommend it for front door security and package monitoring without the hassle of monthly fees. The ease of installation and robust smartphone app control further enhance its appeal.
