Setup: Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK User Manual

Content

Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK

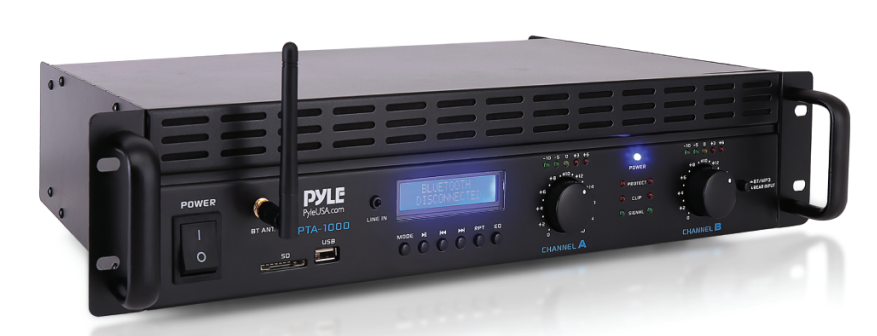

Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK-PRODUCT

Introduction

The Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK is a professional-grade, rack-mountable, 2-channel power amplifier designed for demanding audio applications. With a robust 1000W max power output, Bluetooth 5.0 connectivity, and versatile input/output options, this amplifier is engineered to deliver crisp, powerful sound for live events, public address systems, DJ setups, and home audio enthusiasts seeking pro-level performance.

Key benefits include instant wireless streaming from smartphones, tablets, and laptops, thanks to built-in Bluetooth with a 30+ foot range. The amplifier supports multiple connection types: XLR, 1/4" TRS, and SpeakO,n making it compatible with a wide range of audio equipment. Its bridgeable design allows for even greater output when driving a single speaker, while built-in cooling fans ensure reliable operation during extended use.

Ideal for mobile DJs, event organizers, house-of-worship sound systems, and anyone needing reliable, high-power amplification, the Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK stands out for its combination of power, flexibility, and user-friendly features. It is commonly available through major electronics retailers and online marketplaces, with an estimated price range of $300–$500 depending on the seller and region.

What's in the Box:

  • Pro Audio Amplifier
  • Power Cable
  • BT and FM Antenna

Specifications

  • Amplifier Type: 2-Channel, Bridgeable
  • Max Power Output: 1000W
  • Continuous Power: 2 x 500W @ 4Ω, 2 x 250W @ 8Ω
  • Frequency Response: 20Hz – 20kHz, +/-0.2dB
  • Total Harmonic Distortion (THD): <1.0%
  • Signal-to-Noise Ratio: 102dB
  • Inputs: XLR, 1/4" TRS, RCA
  • Outputs: SpeakOn (A/B/Bridged), 5-way binding posts
  • Bluetooth: Version 5.0, 30+ ft range, easy pairing
  • Cooling: Built-in ventilation fans
  • Power Supply: 120/220V, switchable
  • Dimensions: 19.09" x 9.84" x 3.54"
  • Weight: 15.06 lbs
  • Warranty: 1 year

Compared to similar amplifiers, the Pyle PTA1000BTEU-PTA1000BTUK offers a competitive blend of power, connectivity, and Bluetooth convenience at a mid-range price point. Its multiple input/output options and rack-mount design make it more versatile than many basic PA amplifiers, while its performance metrics rival higher-priced professional models.

SAFETY INSTRUCTIONS

  1. Do not use this apparatus near water.
  2. Clean only with a dry cloth.
  3. Do not block any of the ventilation openings. Install the amplifier in accordance with the manufacturer's instructions.
  4. Do not install near any heat source, such as a radiator, heat register, stove,e or other apparatus (including amplifiers).
  5. Do not alter a polarized plug (two blades with one wider than the other) or grounding-type plug (two blades with a third prong), as they provide protection. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  6. Protect the power cord from being damaged, particularly near the plugs, convenience receptacles,, and the point where they connect to he amplifier.
  7. Only use attachments/accessories provided by the manufacturer
  8. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the amplifier. When a cart is used, use caution when moving to avoid injury from tipping over.
  9. Unplug the amplifier during lightning storms or when unused for long periods of time.
  10. Refer all servicing to qualified service personnel. Servicing is required when the amplifier has been damaged in any way. Some examples when the power cord or plug is damaged, liquid has been spilled, objects have fallen into the amplifier, the amplifier has been exposed to rain or moisture, it does not operate normally, or has been dropped.
  11. Never break off the ground pin and connect only to a proper power supply type, indicated on the unit. For more information, write for our free booklet "Shock Hazard and Grounding.
  12. If this product is to be mounted on an equipment rack, rear support should be provided.
  13. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in their susceptibility to noise-induced hearing loss, but nearly everyone will experience some hearing damage if exposed to intense noise for an extended period of time.

The US Government's Occupational and Health Administration (OSHA) has specified the following permissible noise level exposures:

Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK- noise level

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals must be worn when operating this amplification system, in order to prevent permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels, such as this amplification system, be protected by hearing protectors while this unit is in operation.

OPERATION

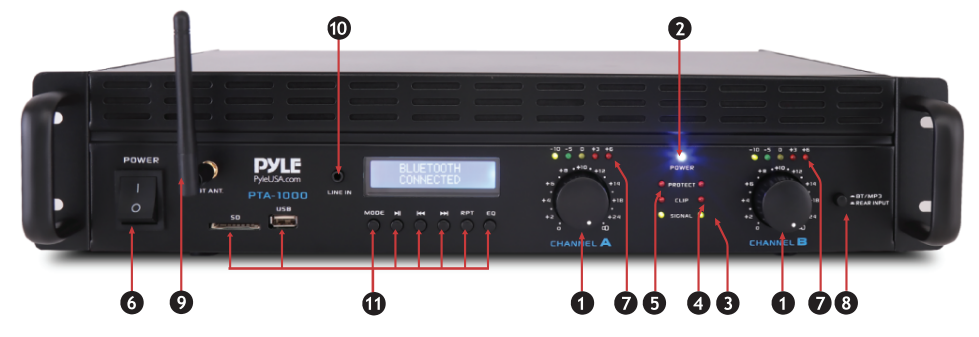

Front Panel

  1. INPUT GAIN (dB)
    These controls are used to adjust the input gain of each channel.
    They determine how loud each channel of the power amplifier will sound for a given input signal level. The maximum input gain is achieved by turning the control completely clockwise - this setting yields the maximum mixer/system headroom. Turning the control back counter-clockwise will yield lower system noise at the expense of mixer/system headroom. Turning the control counterclockwise turns this setting OFF. It is always a good idea to power up any new installation at this setting to protect the system loud loudspeakers.
  2. POWER LED (POWER)
    These indicators illuminate when the AC main power is being supplied to the amp and both channels are operational. If either channel experiences faulty conditions, exceeds safe operating temperature limits, or if the main circuit breaker trips, then both channel power LEDs will be dark, indicating shutdown. If the BRIDGE mode is selected, the PWR indicator on channel B will remain dark, indicating this mode selection.
  3. SIGNAL ACTIVITY LEDS (SIGNAL)
    These indicators illuminate when the associated channel output signal level exceeds 1 Volt RMS.
  4. OVERLOAD LEDS (CLIP)
    These indicators illuminate when the associated channel has been overloaded.
  5. FAULT LEDS (FAULT)
    These indicators illuminate when the amplifier has just been turned ON or if the amplifier has detected a problem, such as overheating or circuit problems.
  6. POWER SWITCH
    This heavy-duty, rocker-type switch turns on the power to the amplifier. When the unit is turned on, there is a three-second delay, which reduces /eliminates the turn-on transients associated with the system equipment connected to the amplifier and protects loudspeakers.
  7. LEVEL INDICATOR
    Channel A and Channel B level LED indicator.
  8. BT/AUX IN BUTTON SWITCH
    Press to switch Wireless BT mode. Unpress for AUX mode.
  9. Wireless BT ANTENNA: Wireless BT receiver antenna for better signal.
  10. AUX INPUT JACKS: Connect the AUX input to these jacks.
  11. DIGITAL MP3 PLAYER
    •    Support USB SD Card
    •    Music format: Mp3, WMA , WAV
    •    Connect via Wireless BT, Compatible Wireless BT: version 5.0
    •    With an LCD, it shows ID3 format.
    •    FM: 87.0 - 108MHz
    •    6 Preset digital EQ effect.
Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK-Front Panel

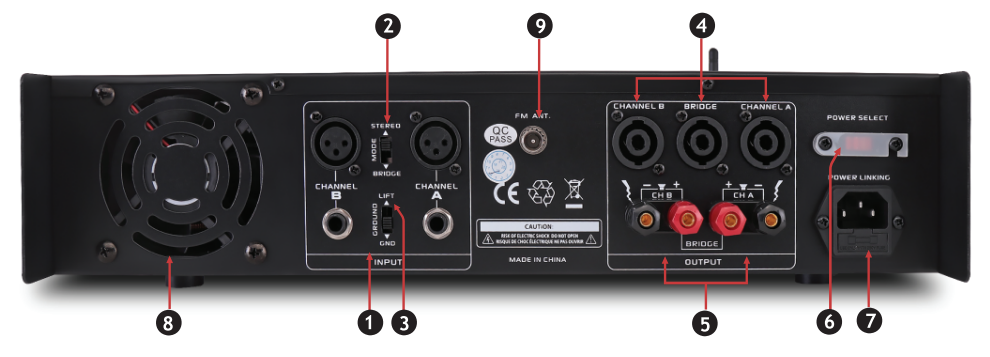

Back Panel

  1. INPUT
    The cannon and input jack connector provide a balanced or unbalanced input mode.
  2. MODE SWITCH
    This switch is used to select STEREO or BRIDGE mode operation.
  3. GROUND LIFT SWITCH
  4. BINDING POST OUTPUTS
    Shockproof binding posts are provided. For each channel, the outputs are in parallel,l, and the speaker connection cables can be terminated with banana plugs or stripped wires.
  5. SPEAKER OUTPUT
    The amplifier provides (3) four-conductor speaker connectors, one for each channel and one for bridge mode.
  6. POWER SELECT
    Switch to choose 110V-120V or 220V-240V power supply.
  7. POWER INPUT
    This is a standard IEC power connector. An AC main cord, which has the appropriate AC plug and rating for the intended operating voltage, is included in the carton.
  8. FAN GRILL
    (Two) 2-speed DC fans supply cool air to the amplifier. The fans switch to high speed automatically when the unit requires additional cooling.
  9. FM ANTENNA: Connect for tuner antenna.
Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK-Back Panel

Features

  • 2-Channel Pro Audio Amplifier
  • Bridgeable Amp: Bridge Mode Ability
  • Built-in Wireless BT Streaming
  • (2) 1/4" TRS Input Connector Jacks
  • (2) XLR Input Connector Jacks
  • (3) SpeakOn Output Connectors (AlB/Bridged)
  • (2) Pair Speaker Terminal Binding Post Connectors
  • Power, Protect, Clip, Signal LED Indicators
  • Left and Right Channel Level Signal Indicators
  • Built-in Ventilation Cooling Fans
  • Front Panel Control Center
  • Rack-Mountable System

Wireless BT Connectivity:

  • Simple & Hassle-Free Pairing
  • Instant Wireless Audio Streaming Ability
  • Works with All of Today's Latest Wireless BT Devices
  • Wireless BT Network Name: ‘PYLE PRO’
  • Wireless BT Version: 5.0
  • Wireless Range: Up to 330'+'ft.

Troubleshooting

Common Problems & Solutions

  • No Power: Check that the power cable is securely connected and the voltage selector switch matches your local mains supply. Ensure the power outlet is functional.
  • No Sound: Verify all input and output connections. Make sure the source device volume is up and the correct input is selected. Check speaker wiring and impedance compatibility.
  • Distorted Audio: Reduce input levels to avoid clipping. Ensure all cables are in good condition and properly shielded.
  • Bluetooth Pairing Issues: Ensure the amplifier is in pairing mode. Move the source device closer (within 30 feet). Restart both devices if necessary.
  • Overheating: Confirm that ventilation fans are operational and the amplifier has adequate airflow. Avoid stacking other equipment directly on top.

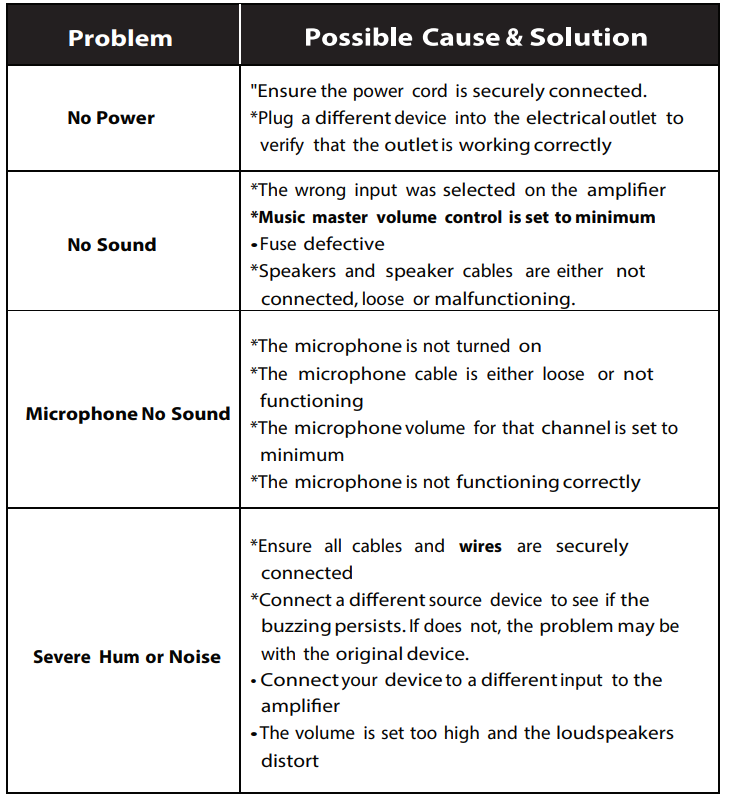

Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK-Troubleshooting

Preventive Measures

  • Regularly inspect cables and connectors for wear.
  • Keep the amplifier clean and dust-free.
  • Ensure proper ventilation at all times.
  • Use only compatible speakers and cables.

Warranty & Support

The Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK comes with a 1-year limited warranty. For technical support, contact Pyle customer service via their official website. Keep your purchase receipt for warranty claims.

Pros & Cons

Pros

  • High power output suitable for large venues and outdoor events
  • Versatile connectivity with XLR, TRS, RCA, and SpeakOn options
  • Built-in Bluetooth 5.0 for wireless streaming from any device
  • Rack-mountable design for easy integration into professional setups
  • Effective cooling system for reliable long-term use
  • Competitive price for the feature set

Cons

  • Heavier than some compact amplifiers, making transport slightly more cumbersome
  • Bluetooth range is typical but not exceptional compared to dedicated wireless systems.
  • Basic LED indicators; lacks advanced display features found in premium models

Value for Money

The Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK offers excellent value, especially for users needing reliable, high-power amplification with modern connectivity. While it may lack some luxury features of top-tier brands, it delivers robust performance and flexibility at a mid-range price.

Customer Reviews

Users consistently praise the Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK for its powerful output, clear sound quality, and easy Bluetooth pairing. Many highlight its suitability for outdoor events, DJ gigs, and public address systems, appreciating the multiple input/output options and solid build quality.

Common complaints include the unit’s weight and the need for specific connectors (TRS/XLR) for optimal performance. Some users note that while the Bluetooth works well, the range is standard for the category. Overall, the amplifier receives strong ratings (4–4.5 stars out of 5) for reliability and value, with several users recommending it for both professional and semi-professional use.

If you need a dependable, feature-rich power amplifier for demanding audio applications, the Pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK is a smart choice especially for those prioritizing power, connectivity, and ease of use.

PDF

Faqs

How do I set up and connect my pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK for the first time?

Begin by placing your pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK on a stable, well-ventilated surface or rack. Connect your audio source using the available TRS, XLR, or Bluetooth inputs. For speakers, use the SpeakOn or binding post outputs—ensure proper impedance matching (4 or 8 ohms). Plug in the power cable and switch the unit on. Adjust channel levels using the front panel controls. For Bluetooth, pair your device to ‘Pyle Speaker’ and stream wirelessly. Always power off when making connections to avoid damage[1][2][4].

What should I do if my pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK is not producing sound or has poor audio quality?

First, check all connections—ensure input sources and speaker cables are secure and correctly matched. Verify the amplifier is powered on and not in protect mode. Adjust the input level and check for clipping or signal indicators. If using Bluetooth, confirm pairing and that your device’s volume is up. For persistent issues, test with a different audio source or cable. Poor audio quality may also result from incorrect impedance matching or faulty speakers. If problems continue, consult the user manual or contact Pyle support[1][2][4].

Can I use the pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK in bridge mode for more power, and how do I configure it?

Yes, the pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK supports bridge mode for higher output. To activate, connect your speaker to the bridged SpeakOn output and ensure the unit is set to bridge mode via the front panel. This combines both channels into a single, more powerful output—ideal for large venues or subwoofers. Always check your speaker’s impedance compatibility (usually 8 ohms minimum in bridge mode) to avoid damage. Refer to the manual for detailed bridge mode instructions and safety precautions[1][3][4].

What types of speakers and audio sources are compatible with the pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK?

The pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK works with passive speakers rated for 4 or 8 ohms impedance. For inputs, use TRS, XLR, or Bluetooth-enabled devices like smartphones, tablets, or laptops. The built-in Bluetooth 5.0 supports wireless streaming from most modern devices. Professional audio mixers and instruments can connect via TRS or XLR. Always match speaker impedance to the amplifier’s output specifications for optimal performance and to prevent overheating or damage[2][3][4].

How do I maintain and clean my pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK to ensure long-term reliability?

Regularly dust the exterior and vents to prevent overheating—use a soft, dry cloth. Ensure the cooling fans are unobstructed and functioning. Avoid exposing the amplifier to moisture or extreme temperatures. Periodically check all connections for corrosion or looseness. For internal maintenance, refer to a qualified technician. Always power off and unplug the unit before cleaning. Following these steps helps maintain sound quality and extends the lifespan of your pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK[2][4].

What are the key differences between the pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK and other pro audio amplifiers in its class?

The pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK stands out with its high power output (up to 2000W max), built-in Bluetooth 5.0 for wireless streaming, and multiple input/output options including TRS, XLR, and SpeakOn connectors. It features bridge mode, rack-mount design, and advanced cooling fans. The unit supports both 120V and 220V operation, making it versatile for different regions. These features, combined with a clear LCD display and robust build, make it a flexible choice for live sound, DJs, and installations[1][3][4].

Why is my pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK overheating or shutting down during use, and how can I prevent this?

Overheating or shutdowns usually occur due to insufficient ventilation, excessive volume, or impedance mismatch. Ensure the amplifier is in a well-ventilated area and the cooling fans are working. Avoid pushing the unit beyond its rated power for extended periods. Check that connected speakers match the recommended impedance. If the issue persists, reduce the volume or add external cooling. Regularly clean dust from vents. These steps help prevent thermal protection triggers and ensure reliable performance of your pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK[2][4].

How do I optimize the sound quality and performance of my pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK for different venues and events?

For optimal sound, match speaker impedance to the amplifier’s output—use 4 ohm speakers for maximum power or 8 ohms for more headroom. Adjust input levels to avoid clipping, indicated by the front panel LEDs. Utilize the bridge mode for larger venues or subwoofers. Position the amplifier in a cool, dry location with good airflow. For wireless streaming, keep Bluetooth devices within 30 feet. Experiment with placement and settings to suit your venue’s acoustics, ensuring clear, distortion-free audio from your pyle Audio Power Amplifier PTA 1000BTEU-PTA1000BTUK[1][3][4].
