Introduction

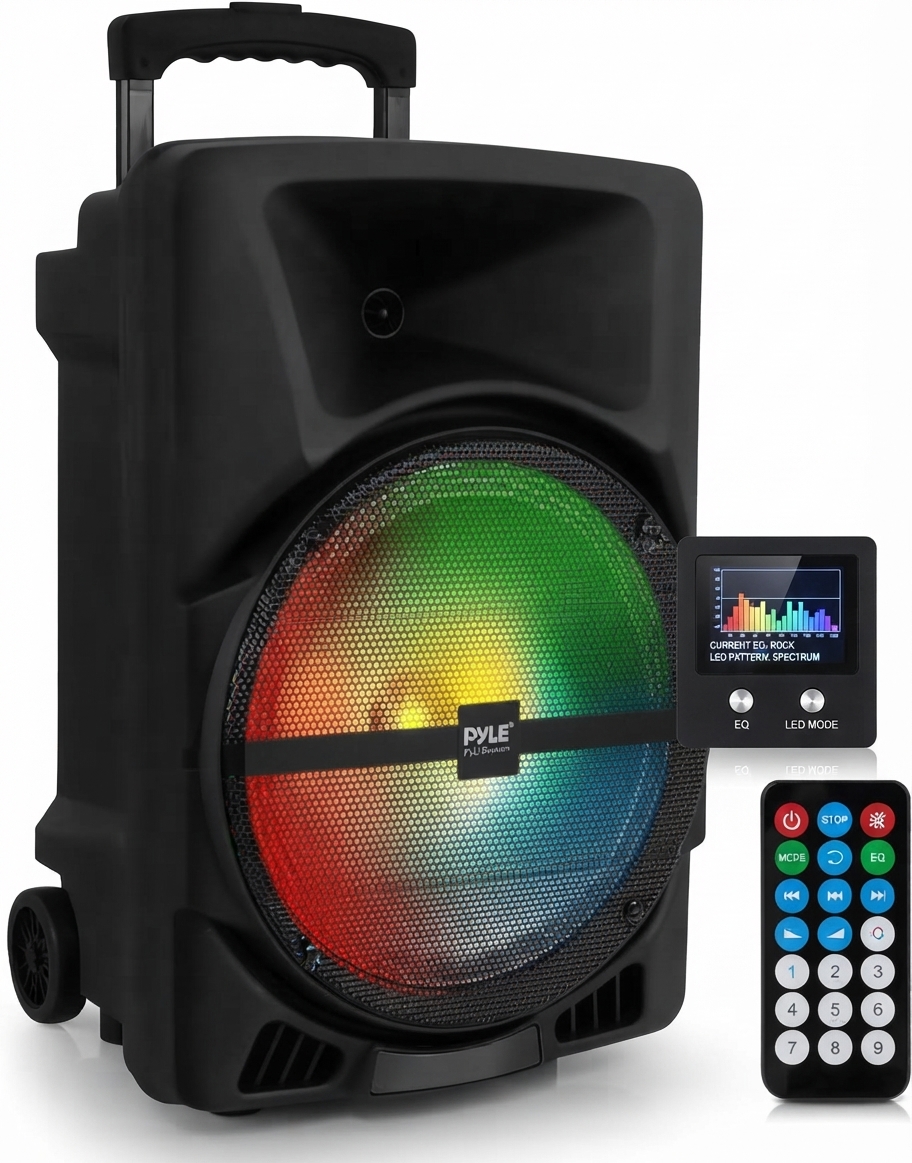

The Pyle Wireless Loudspeaker PPHP1244B is a versatile and powerful audio solution designed for various applications, including outdoor events, parties, and professional presentations. This loudspeaker boasts a robust design and advanced features that make it a standout in its class.

What's in the Box

• PA Speaker System
• Remote Control
• Power Adapter

Technical Specs Pyle Wireless Loudspeaker PPHP1244B

• Power Output: 800 Watt MAX
• Sound System: 12'' Subwoofer + 1’’ Tweeter
• Impedance: 4 Ohm
• Frequency Response: 55-20kHz
• S/N Ratio: 60dB +/-3dB
• SPL: 94dB (1W/M)
• T.H.D.: <1%
• USB Interface Type: 2.0
• Digital Media File Compatibility: MP3
• Maximum USB Flash Drive Support: Up to 16GB
• LED Lights: ON / OFF
• PA Speaker Rechargeable Battery 7.4V Li-iOn, 2200mAh - 16.2Wh
• Battery Powered Remote, Requires (1) x ‘CR-2025’, Included
• Power Supply: 110/240V (9V Power Adapter)
• Total Speaker Size (L x W x H): 12.5’’ x 13.7’’ x 20.4’’’ -inches

Usage Purpose

The Pyle PPHP1244B is ideal for both personal and professional use. It can be used for backyard parties, weddings, public speaking events, and even as a PA system for small to medium-sized gatherings.

Product Details

• Model: PPHP1244B
• Type: Wireless Loudspeaker
• Frequency Response: 50 Hz - 18 kHz
• Power Output: 100W RMS
• Battery Life: Up to 10 hours on a single charge
• Dimensions: 10.5 x 7.3 x 15.7 inches
• Weight: Approximately 22 pounds

Wireless BT Streaming Indoor / Outdoor Loudspeaker with Built-in Rechargeable Battery, Flashing Party Lights, MP3/USB/SD Readers, FM Radio (800 Watt)

Features

• Portable & High-Powered Speaker System
• Rugged & Compact Speaker Designed for Portability
• Bluetooth Wireless Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Flashing LED Lights Bounce & Pulse to the Music Beat
• FM Radio with Digital Display
• Built-in Rechargeable Battery
• Recording Function
• Microphone Priority ‘Talk-Over’ Button
• Connect & Stream Audio from External Devices
• USB Flash Reader & Micro SD Card Reader
• MP3 Digital Audio File Support
• Aux (3.5mm) Input
• 1/4’’ -inch Microphone Input
• Rear Panel Button Control Center
• Mic Volume, Treble, Bass, Echo Adjustment
• Telescoping Handle & Rolling Caster Wheels
• For Indoor / Outdoor Use
• *Optional Power via DC 12V Input

Bluetooth Connectivity

• Built-in Bluetooth for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Version: 4.0
• Bluetooth Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ ft.

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT insert any foreign objects into the device.
4. DO NOT expose the device to strong magnetic or electrical field.
5. DO NOT use the device in the rain
6. Please check with your Local Authority or retailer for proper disposaI of electronic products.
7. DO NOT disassemble the device. Only a certified service technician should perform repair.
8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

Description

The Pyle Wireless Loudspeaker PPHP1244B is engineered with a focus on both sound quality and portability. Its compact size and lightweight design make it easy to transport, while its robust speaker system delivers clear and powerful audio. The loudspeaker features multiple input options, including Bluetooth, USB, and SD card slots, ensuring compatibility with a wide range of devices. The built-in rechargeable battery provides extended playback time, making it perfect for events where power outlets may not be readily available.

FEATURES OF THE MACHINE

• This system can be used with personal computers, mobile phone, DVD, VCD, CD, LD, TV, MP3, radio, electronic piano and any devices which have audio output.
• Amplifier circuit are using high-performance, high-fidelity design, coupled with high-quality professional speaker, in order to make the sound field to get positioned so clear, distinct levels effect.
• The sound system is outstanding, with deep and powerful bass and the treble effect is strong, with clear and bright pitch.
• The professional electronic frequency division circuit enhances the machine's crossover point effect.
• Using professional design and manufacture of high-capacity batteries, and dedicated audio power capacitors, to make the speaker's power reserve margin larger, more stable, better dynamics, higher signal to noise ratio.

BACK PANEL FUNCTIONS

1. USB Control board
2. USB and Micro SD Memory Card input jack
3. Master volume control knob
4. 3.5MM AUX input jack
5. Bass volume control knob
6. Treble volume control knob
7. Echo volume control knob
8. Microphone volume control knob
9. Charge LED indicator, red color is charging mode, blue color is full charge
10. DC 9V input jack
11. 6.5MM microphone input jack
12. Extra DC 12V input
13. Power switch
14. LED light switch

Setup Guide

To set up and operate the Pyle Wireless Loudspeaker PPHP1244B:

1. Charge the Battery: Ensure the battery is fully charged before use.
2. Connect Your Device: Pair your device via Bluetooth or use the USB/SD card slot.
3. Adjust Settings: Use the onboard controls to adjust volume, equalizer settings, and mic priority.
4. Place Strategically: Position the speaker in an optimal location for best sound distribution.
5. Test Audio: Play some music or use the microphone to test audio quality.

REMOTE CONTROL FUNCTIONS

1. Standby button
2. Choose input AUX/FM/BT/USB signal
3. Mute button
4. Play/Stop button on Mp3 mode, scan function on FM mode
5. Next song of USB/Micro SD Memory Card, next channel of FM mode
6. Previous song of USB/Micro SD Memory Card, last channel of FM mode
7. EQ effect on Mp3 mode
8. Increase speaker volume
9. Choose song number directly on Mp3 mode
10. Stop button
11. Decrease music volume
12. Repeat song on USB/Micro SD Memory Card

TROUBLESHOOTING

BUILT˜IN WIRELESS BT STREAMING FUNCTION

• Press the "MODE" button to choose the input signal source as BT channel when starting the machine.
• Please ensure the BT devices you want to connect is open. Then scan and connect the speaker to the device. When the connection is successful, "tick" tone will prompt. If the speaker can't be connected, please restart the speaker or the device and try again.
• After the mobile phone and the BT are successfully connected, you can play music. To ensure continuous stability of the music signal, try to keep the BT and the mobile phone facing one another.
• This unit supports iPad, iPhone, Samsung, HTC, MOTOROLA, Nokia, and other BT mobile devices wirelessly transmitting audio. It supports stereo playing of A2DP.
• The BT of the unit can be used up to 10 meters if there are no barriers.

Pros & Cons

Pros

• Portability: Lightweight and easy to carry.
• Versatile Connectivity: Multiple input options including Bluetooth, USB, and SD card.
• Long Battery Life: Up to 10 hours of continuous playback.
• Durable Construction: Sturdy design with a heavy-duty speaker grille.
• Customizable Sound: Built-in equalizer with bass, treble, and echo controls.

Cons

• Limited Power Output: This may not be sufficient for very large events or gatherings.
• No Water Resistance: Not designed for use in wet conditions.
• Limited Bass Response: Some users may find the bass response lacking compared to larger speakers.

Customer Reviews

Customers have praised the Pyle Wireless Loudspeaker PPHP1244B for its ease of use and robust sound quality. However, some users have noted that the bass response could be improved and that it may not be suitable for very large events due to its power output.

Most Common Complaints

• Bass Response: Some users find the bass response inadequate.
• Power Output: Limited power may not be enough for large gatherings.
