Pyle Audio Receiver Headunit PLDNAND692 Introduction

The Pyle Audio Receiver Headunit PLDNAND692 is a multifunctional car audio system designed to enhance your driving experience. Featuring a large 7-inch touchscreen display, this head unit supports various media formats, including DVD, USB, and Bluetooth streaming, allowing you to enjoy your favorite music and videos on the go. With built-in GPS navigation, Wi-Fi connectivity, and the ability to download apps, the PLDNAND692 combines entertainment and convenience in one sleek package, making it an ideal choice for modern vehicles.The price of the Pyle Audio Receiver Headunit PLDNAND692 is $299.99.

Compatibility

This unit is a standard “Double Din” sized radio. Check to see that your vehicle accepts a double din sized radio. This unit conforms to the standard size and dimensions of a double din radio. Your vehicle may require a vehicle speci􀀁ic or 3rd party double din installation kit.

Precautions & Warnings

• Please take a moment to read through this information booklet and heed all precautions to ensure a positive user experience.
• For your safety, you must not operate the head unit’s controls while driving. Make sure you have the volume set to a level where external sounds are still audible.
• Do not watch the monitor, or attempt to operate any of the multimedia features while driving. If the parking brake is not engaged video playback will be disabled for your safety.

Cleaning

• Clean the LCD with a slightly damp cloth. Keep the screen clean and free of any debris.
• Do not use solvents such as alcohol, benzene, thinner, commercially available cleaners or antistatic spray. When wiping the screen be sure not to scratch the surface.

Temperature

• In cold weather, check for condensation on the disc. If found, wipe the moisture from the disc and do not operate your player for an hour until condensation disappears from the unit’s optical reader.

System Handling

• Screen may not be clear if the temperature of the vehicle is too cold or too hot. The picture will return as the car’s temperature returns to normal. Never touch the screen, or operate the touch screen, with anything besides your 􀀁inger(s). When the display is subject to direct sunlight and glare, the unit may become
• hot resulting in possible damage to the LCD display. Avoid exposing the display to excessive sunlight as much as possible.

Note

• Driving on rough terrain may cause the disc to skip during playback.
• In the event of a malfunction, never open the unit’s casing or lubricate any parts. Contact Sound Around USA for repair information. If liquid or any other foreign substances enter the unit, turn the power off immediately and consult your dealer or the nearest authorized repair center. If you notice smoke, irregular noises or smells coming from the unit, power off immediately and consult your dealer or the nearest authorized repair center. Do not attempt to disassemble or modify the unit as there are sensitive and high voltage electronic components which can cause damage to the unit, or to one's self, if handled improperly. Be sure to consult your dealer or the nearest authorized repair center for any technical assistance.
• This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC rules and regulations. These limits are designed to provide reasonable protection against any harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the unit may cause harmful interference to radio communications. If the unit is found to cause harmful interference the user is encouraged to consult an experienced radio technician.

System Installation

Before starting: To prevent short circuits, be sure to disconnect the battery terminal before starting.

Installation Guide

Double Din Fitting

Caution:

1. This screen opens up. Install the unit within 30 degrees of the horizontal plane. Check that the screen has enough room to fully open. Restricting screen movement will cause damage to the mechanism.
2. Consult your vehicle dealership before making any modi􀀁ications to your car’s body (ex. Drilling holes)
3. Use included screws in installation. Improper hardware may result in damage.
   Do not install unit in any area where:
   • It may obstruct the steering wheel and gearshift lever operations
   • It may obstruct the operation of safety devices such as air bags
   • It may obstruct visibility

Installation kits

This unit conforms to the standard size and dimensions of a double din radio. Your vehicle may require a vehicle-specific or 3-party double din installation kit. Consult your dealer or the nearest authorized repair center for any technical assistance.
*Mounting Sleeve Bracket not included

*Ensure that the opening or closing of the in-dash unit, when mounted, so as it will not interfere with any of your vehicle's interior panels, consoles, gear shifts, etc. Ensure not to use elongated screws when installing /securing your unit to the in-dashconsole to avoid damage.

Installing Steering Wheel Control

Note on compatibility: This unit is a dual wire code learning Steering wheel interface, adaptable to any vehicle with existing steering wheel controls. This unit has the ability to wire directly to your vehicle’s steering wheel column and does not, but may, require a party steering wheel control interface. Pyle Audio Technical support can assist you in interfacing into vehicles with existing steering wheel controls. For additional help, contact Pyle Technical Support and be sure to supply Year Make Model and options of vehicle so that proper instructions can be supplied.

Key 1 and Key 2 wires are used for setting up steering wheel controls. The location of the attachment wires in the steering wheel column varies between different vehicle makes and models.

Remote Control

Factory batteries are sometimes depleted from extended storage time. Replace the batteries if the unit does not respond to the remote. Also note that Pyle Receiver Remotes are universal and used between multiple radio models, which may or may not, have some buttons / functions that do not work or provide other functionality with your receiver headunit. If some functions respond your remote is not defective. Contact parts at https://www.PyleAudio.com. Go to “contact us” - “parts” if you believe your remote is defective.

Button Layout

Front Panel & Buttons

Tips: Navi----You might have several maps in this device, by pressing Navi button, you will enter into the map which you set as default in the Navi path, if you want to change the navi path to another map, please go to setting to change it Setting         Car setting         Navi setting  .

Turning Power On

1. Turn on the engine key to the “ACC” or “ON” position
2. Press and hold the power button for 3 seconds
   When the engine key is turned to the off position the unit is turned off

Status Bar

(Along top of radio screen and app screen) you can swipe down for more.

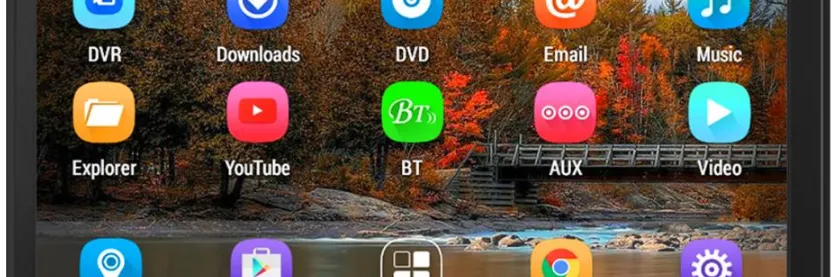

App Interference Layout

Swipe left/right to access more apps

Please Note: GPS - Navigation and CD/DVD options and applications may only be found in select headunit receiver stereo systems, which include these, and other, additional/special features -- not all Pyle stereo models come equipped with GPS Navigation and/or CD/DVD players.

Detailed Specifications

The Pyle Audio Receiver Headunit PLDNAND692 comes with the following key features:

• 7-inch HD touchscreen display
• Bluetooth connectivity for hands-free calling and wireless music streaming
• AM/FM radio with RDS
• USB and SD card ports for music playback
• Aux input for connecting external devices
• Built-in equalizer with presets
• Steering wheel control interface
• Rearview camera input
• 10-band graphic equalizer
• Max output power: 800W

Description

The Pyle Audio Receiver Headunit PLDNAND692 is a high-quality car audio system that offers a range of features to enhance your listening experience. With its 7-inch HD touchscreen display, you can easily navigate through menus, adjust settings, and control your music. The Bluetooth connectivity allows you to make hands-free calls and stream music wirelessly from your smartphone. The AM/FM radio with RDS ensures that you stay up-to-date with the latest news and music, while the USB and SD card ports let you play your favorite music from external devices. The built-in equalizer with presets lets you customize your sound, while the steering wheel control interface allows you to control your music and settings without taking your hands off the wheel. The rearview camera input ensures that you can safely reverse your car, while the 10-band graphic equalizer lets you fine-tune your sound to your liking. With a max output power of 800W, the PLDNAND692 delivers clear and powerful sound, making it the perfect choice for anyone who wants to upgrade their car's audio system.

Wiring Back Panel

Wiring Color Panel

Radio Antenna		Radio antenna receptacle
	Subwoofer Output	Pre ampsubwoofer output (5V)
	Audio /Video Input	Auxiliary input for external hardware
	Audio /Video Output 1	Connect to headrest display (Optional)
	Audio /Video Output 2	Connect to headrest display (Optional)
Green/White	SW KEY	Steering wheel control Key1 interface wire
Blue/White	AMP REMOTE TURN ON	DC 12 + Volt Remote turn on trigger for external amplifier
Orange	ILLUMINATION	12 volt + trigger dash board illumination
Brown	BACK UPCAMERA	12 volt + trigger from reverse lights
Pink	PARKING	Connect to parking brake ground. Disables video play unless grounded
Blue	AUTO ANTENNA	12 volt + trigger output
Gray/White	SW-GROUND	Steering wheel control Key2 interface wire
Black (RCA)	CAM VIDEO IN	Camera RCAvideo input for usewith rearview camera
Red	ACC	Ignition Accessory 12V+
Yellow	FUSE/ POWER B+	Connectto (+) sideof car battery
Black	GROUND	Connectto (–) sideof car battery
Orange	CANBUSINTERFACE	TXD - Vehicle Diagnostic CANBUS Interface
Brown	CANBUSINTERFACE	RXD/R - Vehicle Diagnostic CANBUS Interface
Purple	Speaker Rear R	Rear right speaker           Purple (+)                 Purple/Black (-)
Green	Speaker Rear L	Rear left speaker              Green (+)                  Green/Black (-)
Gray	Speaker Front R	Front right speaker         Gray (+)                     Gray/Black (-)
White	Speaker Front L	Front left speaker            White (+)                   White/Black (-)

DVD

DVD app will only open if a compatible DVD disc is detected.

1. Scrubbing
   Press and drag along the time line to quickly skip through DVD times line.
   (Note: DVD formatting does not allow scrubbing through previews and warnings)

2. Menu options & controls:





Bluetooth

Bluetooth app allows Bluetooth pairing with compatible devices for making calls and music playback. To pair your phone, ensure Bluetooth is enabled in your phone’s system settings and that you are disconnected from all other devices.
In the Bluetooth app of your radio, press the “Gear” icon in the left column to access Bluetooth settings. Next, press the “Magnifying glass” icon to set the radio into pair mode. The radio will then display “searching” and show all nearby compatible Bluetooth devices:

• Select your phone from the list, and tap a second time to initiate pairing.
• Your phone should now display a pin pad where you will enter “0000”
• Check that device named “CAR_KITT” shows as connected on your phone.

Note: Once your phone is paired, you can use the other functions within the radio’s Bluetooth app.

Left hand column:

• Select the “Keypad” icon to dial out using the radio’s number pad
• Select the “address book” icon to display your phone’s contact list. You will need to import your contact list using the “download” icon located in the right column of the Bluetooth app.
• Select the “phone” icon to see a log of incoming and outgoing calls
• Select the “gear” icon for phone pairing and selection options
• Select the “headphones” icon for music playback controls

Right hand column:

• “Trash” delete currently selected entry
• “Download” Use to download contact data to address book
• “Speaker selection” Switch between car speaker/mic and phone speaker/mic “ ”Press this function icon for search/disconnect/connect/delete

How to access internet

You can have three ways to access internet.

1. Use a 3G dongle
   Insert USB type 3G dongle to one of the rear USB port, wait for few seconds, then 3G signal icon will be shown on status bar, and you can access internet now.
2. Use your smartphone as hotspot
   Please turn on your smartphone hotspot, then go to this car Android unit and turn on wifi, find out your smartphone hotspot and connect it, now you can access internet.
3. Use car wifi router or any other portable wifi router
   You can also use car wifi router or any other portable wifi router as a hotspot for internet access.

Setup Guide

Setting up the Pyle Audio Receiver Headunit PLDNAND692 is easy.

• First, connect the headunit to your car's power source and speakers.
• Then, turn on the headunit and pair your smartphone with it via Bluetooth.
• Once paired, you can start streaming music wirelessly from your smartphone.
• To play music from external devices, insert your USB drive or SD card into the respective ports.
• To adjust the sound settings, use the built-in equalizer with presets or the 10-band graphic equalizer.
• To connect a rearview camera, plug it into the rearview camera input.

Settings

1. Scrolling
   Use the red bar to scroll through the list of all available options.
2. Turn on/ off
   Many settings can be toggled on or off in this screen

*Note: Factory setup is not adjustable by user. Do not attempt to enter this setup menu.

Set Time

1. Time Options
   You can select using GPS to provide positioning time or using net work-provided time.
2. Date and Time
   Use the up and down arrows to set the date and time accordingly.

Sound

• Fade/ Balance
  Hold and drag left, right up or down to control the fade and balance of your audio output.

Aux

Auxiliary input (rear RCA jacks) allow audio and video from external devices to be displayed or played through the unit. Auxiliary output (rear RCA jacks) allow audio and video to be sent out to external devices.

• Customization – Use the settings to adjust and optimize the display quality.



  Note: auxiliary app will display “No Signal” if no video signal is connected. Screen controls will not become active until external video signal is detected.
  *The Parking brake will need to be wired to a grounding trigger to allow video pass through or a warning message will appear saying warning video disabled while driving.

Calendar

Displays the day, month and year.
Use forward and back arrows the view past or future months. Selected dates are highlighted in blue

Note: Calendar does not allow entry of appointments. Date must be set within system settings

Calculator

A handy little app for simple calculations

EQ-Equlizer

• Presets
  Select one to automatically adjust the equalizer
• Adjustments
  Hold and drag up or down to manually adjust the EQ by each frequency band

Pyle Audio Receiver Headunit PLDNAND692 Radio

1. Scanning: Press, hold, and drag the slider to quickly tune the radio.
2. Current Station: The currently selected station will be displayed in the center. Press the forward and back arrows to change the current station.
3. Favorite Stations: Press and hold one of the six preset slots to set and save a selection for later.

SD - Flash Memory File Browsing

Warning: Do not attempt to browse 􀀁iles while operating the vehicle

1. Browsing Files
   File location is displayed. Use “Back Arrow” to return to the previous folder
2. Selecting Files
   The files and folders of your storage media are displayed. Once the desired folder is located, select it and press “check icon” to open

USB - Flash Memory File Browsing

• Plug in flash drives to access music video and photos.

Video

1. Brightness, Contrast, Hue
   Press, hold and drag to adjust the brightness, contrast and hue of the display.
2. Presets
   Select to automatically adjust the display settings.

Wall Paper

Note: Wallpapers can be imported from a 􀀁lash drive or SD card. Check format sheet online for specs on formats.

1. Browse - Use left and right arrows to select the desired wallpaper
2. Select - Press OK to select the wallpaper

Wheel

1. Steering Wheel Controls
   Select the command in the application, then press the corresponding button on the wheel to teach the unit how to behave when steering wheel controls are used. To enter the steering wheel menu it will prompt you for a 4 digit pass code you will need to enter '0000'. Then you can manually program each desired option following the on screen instructions. (Note: This feature is not compatible with all vehicle types).
2. Third Party Apps
   For the detailed operation instruction for a certain 3rd party App, such as Google map, Youtube etc., please  contact your 3rd party App provider for further service.

Trouble Shooting

Unit doesn’t power up
Use a multi-meter to check for 12v+ to red and yellow wires. Check for proper Ground on the Black wire.

My video does not play
Attach “PARK” wire to parking brake. When this wire is grounded, the video will play (Grounding trigger of the parking brake).

Reverse camera does not come up on the screen
Attach “BACK UP CAMERA” wire to reverse tail light 12v+ (Make sure camera is and sending video signal).

Can I set up steering wheel control?
Key 1 and Key 2 wires need to be wired to your vehicle’s steering wheel column.

The time I set is not saved after device reboot
Are other settings saved?
 If not: Check that yellow memory wire is attached to 12v+ constant.
Turn off GPS auto update.
Go to radio settings > Set Time > switch off auto update.

My GPS gets no reception.
Check antenna is connected properly.
Mount Antenna directly to your vehicle (GPS antenna is to be magnetically mounted, it will boost GPS reception when attached).
Check alternate antenna placement to test for interference.

How do I turn up GPS instruction volume (I can’t hear it over music)?
Change GPS sound settings.
Go to Navi > Settings > Sounds > Set GPS voice level to max > Set radio volume to min (Adjust accordingly).

How do I update my map card?
The radio will notify you when a map update becomes available. We will need to send out a new map card from our parts department. Log onto http://www.pyleaudio.com  and open a parts ticket under “contact us” requesting the map update.

Where can I download firmware updates?
This unit’s hardware does not allow it to be updated with new OS or firmware.

How to set the time?
System setting, set time.

How do I use / set-up RDS?
(Traffic and weather feature only available in Europe)

My Bluetooth microphone is not working as expected

• Check that nothing is covering microphone port.
• Check to see if closer proximity to the mic affects its pickup.
• Check that phone connection is good.
• Make sure the call recipient has speaker volume set to an appropriate level.
• Check that the mic is not picking up too much background noise.

Note: The built-in mic cannot be changed, replaced, or upgraded.

I am having trouble setting up Bluetooth

• Check that your device is Bluetooth compatible 4.0+.
• Check if you are able to pair with alternate devices via Bluetooth.
• Clear out your device history in your Bluetooth setting menu and attempt to pair / connect again.

My map card no longer loads (COCKPIT ERROR DISPLAYED)
This is caused by a bug in the map software. Please contact Tech Support: Pyle, go to http://www.pyleaudio.com the “contact us” page.
You may be able to fix the software on your own:

• Insert GPS card into computer.
• Open text file under Primo\save\profiles\01\system.ini.
• Edit the file to return the cockpit type to “1”.
• Deleting the profile folder will default the unit's settings back to cockpit number 1.

How do I play video files?
My unit cannot read my digital video files.
Make sure SD card is compatible.
Check file format of your video (You may need to convert your video file to an alternate file format).

My unit shows 5 circles and will not load
Your unit requires touchscreen calibration.
You have entered the 'Touch Screen Calibration Menu'. For optimum touchscreen performance, this feature enables you to enjoy the best functionality of your device's touch screen. To complete the touchscreen calibration, an "X" will appear in the circles on the screen in numbered order. Continue to press the center of the "X" as it passes through each numbered circle.
(In circle number one, you will see an "X", touch the center of the "X", then the "X" will move to circle number two. Continue to touch the center of the "X" as it will move to the other circles in numbered order. If calibration senses an error, the process may restart; Repeat if necessary.)

Pyle Audio Receiver Headunit PLDNAND692 Pros & Cons

Pros

• 7-inch HD touchscreen display
• Bluetooth connectivity
• AM/FM radio with RDS
• USB and SD card ports
• Built-in equalizer with presets
• Steering wheel control interface
• Rearview camera input
• 10-band graphic equalizer
• Max output power: 800W

Cons

• No CD/DVD player
• No Apple CarPlay or Android Auto
