Introduction

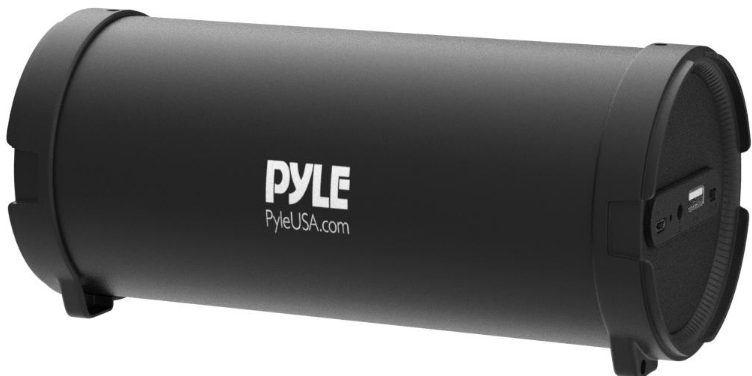

Designed for convenience and dynamic audio performance, the Pyle BoomBox Speaker PBMSPG6 is a portable Bluetooth speaker system. This BoomBox is ideal for on-the-go music enjoyment and features a rechargeable battery, providing wireless freedom. With Bluetooth connectivity, it facilitates seamless streaming from your devices, and its robust, high-quality speakers produce a potent audio experience. The PBMSPG6 is an ideal companion for everyday listening, outdoor activities, and parties, as it includes an AUX input, USB flash drive reader, and FM radio, providing multiple methods to enjoy your favorite tunes.

What’s in the Box

• Wireless Tube Speaker
• USB Charging Cable
• Audio Connection Cable
• Detachable Carry Strap

Pyle BoomBox Battery Speaker PBMSPG6 Specifications

Key features of the Pyle BoomBox include:

• Rechargeable 1800mAh battery providing up to 5 hours of playtime
• Bluetooth connectivity for wireless audio streaming
• FM radio with 12 preset stations
• Built-in 8" subwoofer and 3" tweeters for dynamic sound performance
• USB ports for charging mobile devices and playing MP3 files
• LED battery indicators and control buttons
• Water-resistant design with IPX4 rating
• Compact and lightweight for easy portability

FEATURES

1.0 Outdoor Passive HIFI Bluetooth Speaker

• Output very clear sound and dynamic sound effect;
• With A2DP Bluetooth, wireless stream music from any Bluetooth-enabled device such as your mobile phone, notebook, iPhone or iPad;
• Secure simple pairing for user-friendly operating;
• 10 meters operating range;
• With Line-in function, suitable for PC, MID, TV and other audio device;
• Built-in lithium rechargeable battery 1500mAh;
• With lanyard, easy to take outside.
• Digital Sound Amplifier
• FM Radio with Auto-Tuning
• USB Flash Drive Reader
• MP3 Digital Audio File Compatibility
• Aux (3.5mm) Input Jack
• Side Panel Button Control Center
• Full Range Stereo Sound Reproduction
• Ported Enclosure Design for Impressive Bass Response

Description

The Pyle BoomBox Battery Speaker PBMSPG6 is a portable and potent audio solution that is designed to be water-resistant to IPX4. It is an optimal choice for both indoor and outdoor use due to its rechargeable battery and wireless connectivity. For optimal sound quality, the BoomBox is equipped with an 8" subwoofer and 3" tweeters. The device also includes an FM radio with 12 preset stations, as well as a USB interface for charging mobile devices and playing MP3 files. The control buttons and LED battery indicators facilitate effortless operation and monitoring.

INSTRUCTION FOR APPEARANCE AND KEY

1. Charging
2. Aux-in jack
3. USB port
4. ON/OFF button
5. Backward/Volume down
6. Mode (Switch Bluetooth, USB disk, TF, FM and AUX-IN state)
7. Forward/Volume up
8. Play/Pause

Bluetooth connection

1. Turn the power button to “ON”, The LED light turn blue and twinkle quickly and beep twice.
2. Activate Bluetooth of mobile phone and search for device name “BT speaker” then connect it. The blue LED light will blink slowly and beep three times once connected successfully.
3. Play the music from your mobile phone and enjoy.
4. Press Forward or Backward button on the devices or on Mobile phones to select songs you like.
5. Press Play/pause button on the devices or on Mobile phones to play/stop the music.
6. Use the Bluetooth device to adjust volume up and down. Or long press to Forward or Backward button to adjust volume up and down.

Playing music from USB disk

1. Turn the Power button to “ON”.
2. Insert USB flash disk into slot, the music stored will be played automatically and blue LED light always keep lighting.
3. Under playing mode, short press forward or Backward button to select songs you like, or long press to Forward or Backward button to adjust volume up and down.
4. PLAY/PAUSE to play or pause.
5. Please turn the Power button to “OFF” while without use.

Remark: Under Bluetooth playing mode, insert USB disk will disconnect the Bluetooth and switch the playing from USB disk. You can press the MODE button to switch to Bluetooth mode again.

Setup Guide

To set up and operate the Pyle BoomBox Battery PBMSPG6, follow these steps:

1. Fully charge the BoomBox before first use.
2. Turn on the BoomBox by pressing the power button.
3. Connect your device to the BoomBox via Bluetooth or use the AUX input.
4. Use the control buttons to adjust volume, track, and radio settings.
5. Monitor the battery level using the LED indicators.

How to Use FM Radio

1. Under FM radio state, the audio cable provided treat as antennal. Please insert the audio cable to get the best FM signal before using.
2. Turn the power button to “ON”, press the “MODE” button to switch to FM radio state.
3. Under playing mode, short press “Play/pause” button to auto search the FM Channel and store it automatically.
4. Press Forward or Backward button to change the stored FM channel.

Pyle BoomBox Battery Speaker PBMSPG6 AUX-IN

For other compatible music devices or your MP3/MP4 players, use the supplied audio line cable to connect from the device’s “Line Out” to the “Aux In” of this device. Then press the “MODE” button to switch to AUX-IN state. Enjoy… When using an external device, all functions will be controlled by the external device except the “Play/pause” button.

Battery Charging

1. Power off the unit, put the provided charge cable into the charge slot of the unit, connect the other end to PC or other charger with 5V output, the red charging indicator keep lighting.
2. Charge time should be 3-5 hours. When charging full, the indicator light will switch off.
3. In order to prolong the life of battery, please do not charge more than 8 hours.

Note

1. The unit will operate without the wire connection using the lithium battery. The amount of battery life depends on how hard the unit is working. Heavy, loud, bass music will use more energy to produce than spoken word.
2. The built-in rechargeable battery is not replaceable. Do not remove or replace it, do not throw in the trash or in the fire.
3. When cleaning the product, use a soft dry cloth. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Troubleshooting

Common issues with the Pyle BoomBox Battery Speaker PBMSPG6 include:

1. No sound: Ensure the Bluetooth is connected, the volume is turned up, and the source is selected.
2. Short battery life: Charge the BoomBox fully, and minimize using other device-charging functions when playing music.
3. Connectivity issues: Restart the Bluetooth on both devices or ensure the distance between devices is within the recommended range.

Pros & Cons

Pros

• Rechargeable battery for portable use
• Wireless connectivity for added convenience
• Water-resistant design for outdoor use
• Quality sound performance with bass and treble balance
• Extra features such as USB charging and FM radio

Cons

• Limited battery life compared to some competitors
• No built-in microphone for hands-free calling

Customer Reviews

Customers generally praise the Pyle BoomBox Battery Speaker PBMSPG6 for its powerful sound, water-resistant design, and wireless connectivity. However, some users have noted the limited battery life and lack of a built-in microphone as drawbacks.
