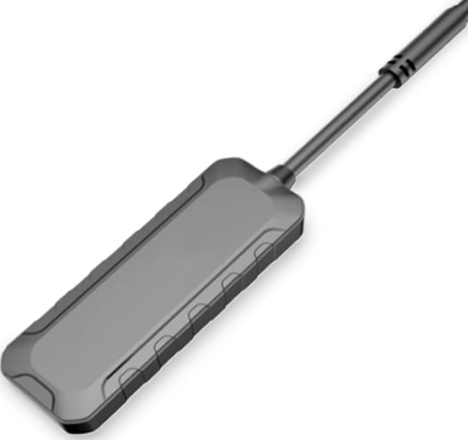

Rewire Security E-Bike GPS Tracker

Introduction

The rewire security E-Bike GPS Tracker is a cutting-edge anti-theft device designed specifically for electric bicycles, offering riders peace of mind through real-time location monitoring and advanced security features. Its compact design allows discreet installation, usually hidden under the bike’s plastic engine cover, ensuring the tracker remains undetectable to thieves while maintaining optimal GPS signal reception. This tracker is ideal for e-bike owners who want to protect their valuable assets from theft or unauthorized use, as well as fleet operators managing multiple bikes.

Key benefits include continuous live tracking, instant geofence alerts, route history playback, and low power consumption due to an intelligent accelerometer that puts the device into sleep mode when stationary. This maximizes battery life while ensuring immediate wake-up upon movement. The device supports multi-network SIM cards for seamless connectivity across regions, including Europe, without roaming charges. With an estimated price range typically between £100 and £150, it offers excellent value considering its robust features and subscription-based GPSLive app integration for mobile alerts.

Designed for e-bike enthusiasts, commuters, delivery riders, and rental services, the Rewire Security E-Bike GPS Tracker enhances security and asset management through a user-friendly interface and reliable hardware. Whether for personal use or commercial fleet oversight, this tracker delivers comprehensive theft deterrence and recovery assistance.

Specifications of Rewire Security E-Bike GPS Tracker

GPS Accuracy: High precision location tracking with directional GPS receiver
Battery: Built-in rechargeable lithium-ion battery with 14–21 days active mode life depending on usage
Connectivity: Multi-network M2M SIM card included; supports seamless roaming across Europe with no extra charges
Alerts: Overspeed, geofence breach, movement detection, and idling notifications via SMS, email, or push notifications
Data Storage: Route history stored in the cloud for up to 1 year accessible through GPSLive app
Installation: Recommended hidden installation under plastic covers with logo facing up for optimal signal reception
Durability: Dust and waterproof casing ensuring reliable operation in various weather conditions
Dimensions: Compact and slim design for discreet mounting
Software Integration: Compatible with GPSLive app for iOS and Android for real-time monitoring and control

Compared to similar products like the DB1 Lite and DB2 models, this tracker balances ease of installation with advanced features such as accelerometer-based sleep mode for battery efficiency and multi-network SIM capabilities for superior coverage.

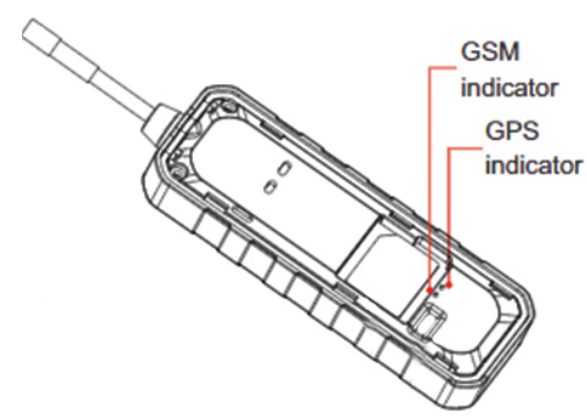

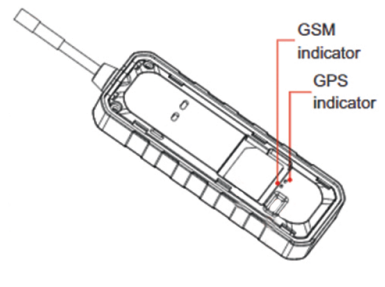

Charging & Status LEDS

GPS LED

Flashing Blue - Indicates that your device is searching for a GPS signal. Once signal has been established, the LED light will become solid.

GSM LED

Flashing Green - Indicates that your device is searching for a GSM signal. Once signal has been established, the LED light will become solid.

Rewire Security E-Bike GPS Tracker-SET UP

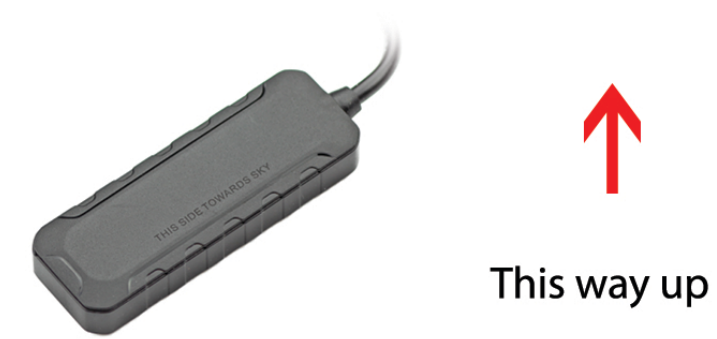

If this is the first time you are using your tracker, it may take a while to establish a GPS fix. Take your device for a quick drive to allow it to establish a GPS satellite fix. Check that both LED lights on the tracker are flashing. Ensure the device is installed with the logo side facing up as this is where the directional GPS receiver is located.

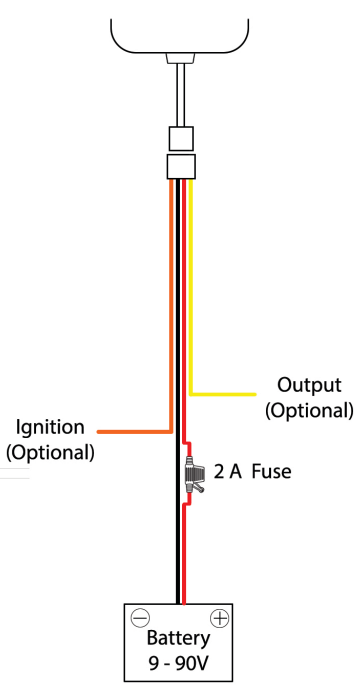

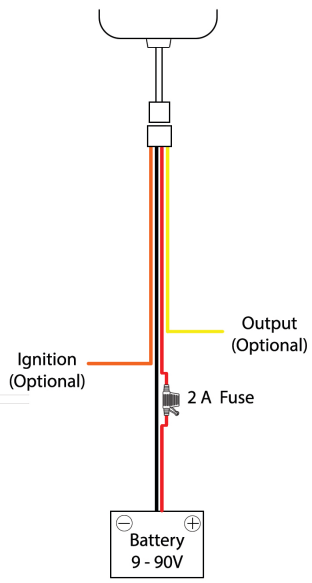

Wiring Diagram

Rewire Security E-Bike GPS Tracker-SET UP-A

Installation

We recommend the installation to be carried out by a professional auto electrician. The device should be connected to a permanent live feed.
If you only require location information, simply connect the RED - Power and BLACK - Ground cables only. The ignition and output wires are optional.

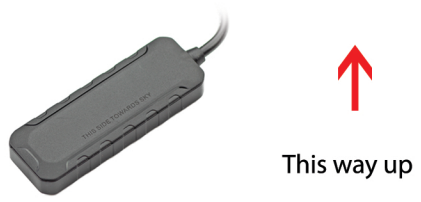

The device should be installed with the logo side facing up as this is where the directional GPS receiver is located.

GPS Signal works off of line of sight and can travel through thin materials. When installing the device, you should check the number of GPS satellites that are picked up by the device displayed under device information on GPSLive. LOW 0-5, GOOD 6-9, BEST 10 - 14+

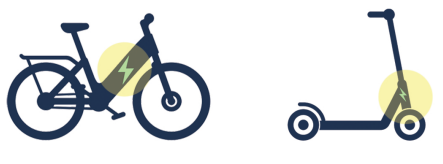

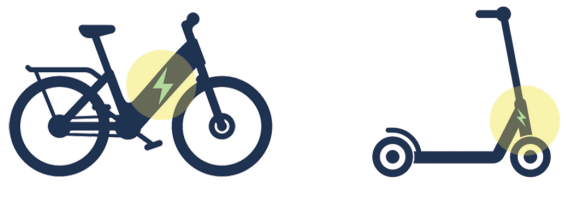

Ideal location for your tracker Ideal location for the device would be the area of the battery pack as shown below

Rewire Security E-Bike GPS Tracker-SET UP-E

Accessing your account

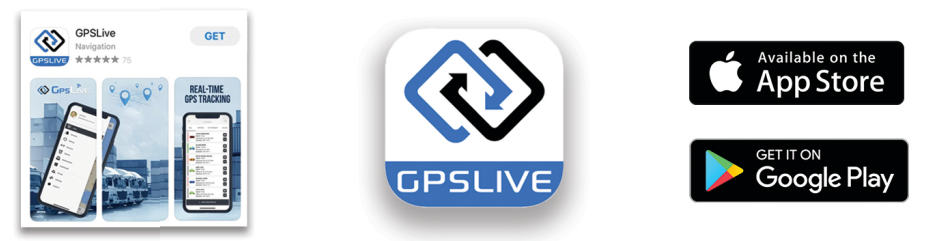

To access your account please visit: WWW.GPSLIVE.CO.UK or get our free to download app GPSLive on Google Play or Apple App Store

Rewire Security E-Bike GPS Tracker-SET UP-C

If you have purchased this device with subscription, it will have already been added to your account. You'll receive your login details via email if you're a new user.

How do I manage my subscription?

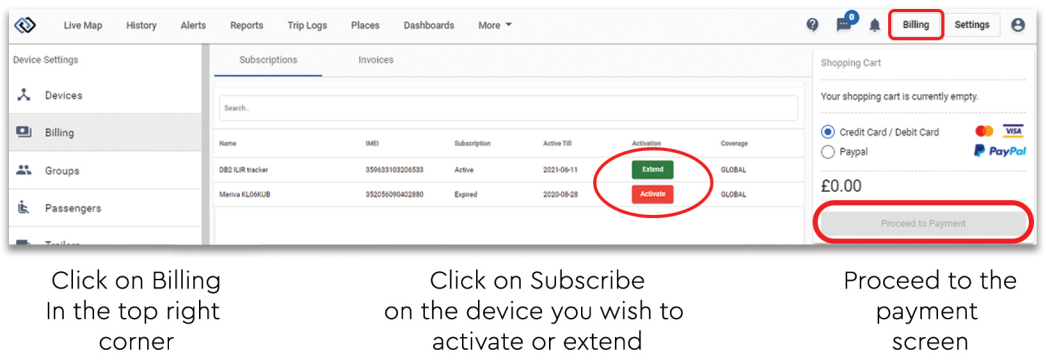

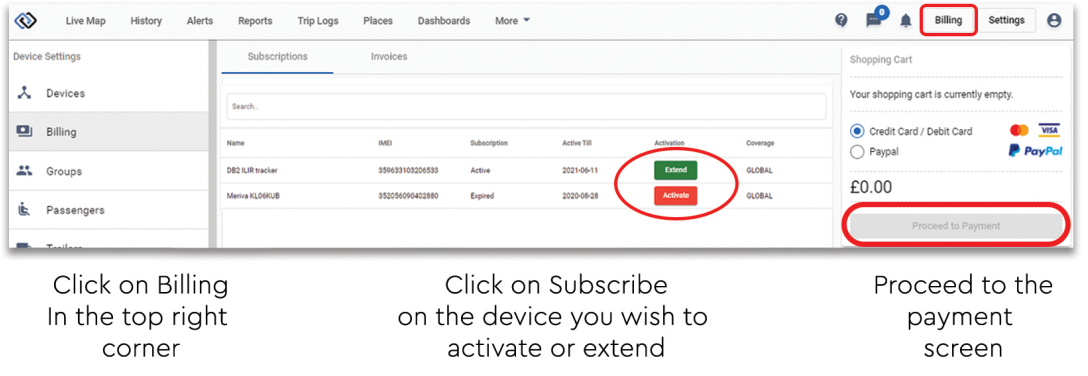

Visit WWW.GPSLIVE.CO.UK log in and follow the instructions below:

Rewire Security E-Bike GPS Tracker-SET UP-D

IF YOUR SUBSCRIPTION RUNS OUT, YOUR VEHICLE WILL NOT BE PROTECTED AGAINST THEFT AND TRACKING WILL BE DISABLED DURING THIS PERIOD.

Troubleshooting for Common Issues with Rewire Security E-Bike GPS Tracker

No GPS Signal: Ensure the logo side faces upward and is not obstructed by metal. Move the bike to an open area for better reception.
No App Connection: Verify SIM card status and data subscription; restart the device and app if necessary.
Battery Draining Quickly: Check for continuous movement alerts or frequent location updates; enable sleep mode settings in the app if available.
Error Codes: Refer to the user manual for specific error codes such as "SIM not registered" or "GPS signal lost" and follow recommended fixes.
Preventive Measures: Regularly update the GPSLive app, keep firmware current, and perform device health checks via the app dashboard.

Warranty coverage typically includes defects in materials and workmanship; consult Rewire Security’s support for claims. For technical assistance, contact their support team via the official website or phone.

Pros & Cons of Rewire Security E-Bike GPS Tracker

Pros:
- Discreet and durable design with waterproof casing
- Multi-network SIM ensures broad coverage without roaming fees
- Extended battery life with accelerometer-enabled sleep mode
- Real-time alerts including geofencing and overspeed notifications
- Cloud storage of route history accessible via intuitive GPSLive app
Cons:
- Installation may require some technical knowledge or professional help
- Ongoing subscription cost for GPSLive service beyond initial purchase
- GPS signal can be hindered if improperly installed or surrounded by metal
- Limited physical size restricts additional sensor integration

Overall, the rewire security E-Bike GPS Tracker offers strong value for money, especially when compared with alternatives that lack multi-network SIM or intelligent power management features. It suits riders prioritizing discreet, reliable, and feature-rich tracking solutions.

Customer Reviews of Rewire Security E-Bike GPS Tracker

Users consistently praise the tracker’s reliability and discreet installation, with many highlighting the usefulness of instant alerts via the GPSLive app. Common positive feedback includes the battery life lasting weeks, even with active tracking, and the peace of mind provided by detailed route histories and geofencing.

Some customers note initial setup challenges, especially with wiring, but appreciate available video guides and responsive customer support. Star ratings frequently range between 4 and 5 stars, with testimonials recommending the product for serious e-bike owners concerned about theft.

Frequent issues mentioned involve occasional GPS signal loss if installed incorrectly or in dense urban areas, which users resolve by repositioning the device. Overall, the rewire security E-Bike GPS Tracker is highly recommended for those seeking advanced, dependable e-bike security.

PDF

Faqs

How do I set up the rewire security E-Bike GPS Tracker for the first time?

To set up the rewire security E-Bike GPS Tracker, first ensure the device is installed with the logo side facing up for optimal GPS signal reception. Connect the tracker to the bike’s power supply within 9-36V DC range. Optional ignition and output wires can be connected if needed. Activate the device by sending configuration SMS commands as described in the user manual, including setting your phone numbers for alarms. Finally, register the tracker on the web-based platform for real-time tracking and alerts.

What should I do if the rewire security E-Bike GPS Tracker is not updating location in real time?

If your rewire security E-Bike GPS Tracker is not updating location in real time, check the GSM signal strength and ensure the SIM card is active with data enabled. Verify GPS signal by placing the tracker outdoors or near a window. Also, confirm the GPRS settings and timing interval commands are correctly set. Restart the tracker by sending the RESET# SMS command to reboot it. If problems persist, inspect wiring and battery status or consult the troubleshooting section of the user manual.

Can the rewire security E-Bike GPS Tracker send alerts if someone tampers with or moves my e-bike?

Yes, the rewire security E-Bike GPS Tracker includes a built-in vibration sensor that detects unauthorized movement or tampering. If the bike is moved while the power or ignition is off, the tracker will trigger a security alarm and send an instant alert to your phone via SMS or app notification. This anti-theft feature helps protect your e-bike by notifying you immediately if suspicious activity is detected.

Is the rewire security E-Bike GPS Tracker compatible with mobile apps for real-time tracking and notifications?

The rewire security E-Bike GPS Tracker supports integration with GPSLive and other compatible GPS tracking platforms, allowing real-time location viewing, route history, and customizable notifications via smartphone apps. You can receive alerts for geo-fence breaches, speeding, ignition status, and theft alarms through push notifications, SMS, or email, making it convenient to monitor your e-bike remotely.

How can I optimize battery life and performance of the rewire security E-Bike GPS Tracker?

To optimize battery life on the rewire security E-Bike GPS Tracker, adjust the GPS and GPRS reporting intervals to balance between update frequency and power consumption. Use longer intervals for location updates if real-time tracking is not critical. Also, ensure the tracker is correctly installed with stable power input and avoid placing it in locations that obstruct GPS signals. Regularly check the backup battery status to maintain continuous protection even if the main power is disconnected.

What maintenance is required to keep the rewire security E-Bike GPS Tracker functioning properly?

Maintenance for the rewire security E-Bike GPS Tracker includes periodic inspection of the wiring connections to prevent loosening or corrosion, ensuring the device is securely mounted with the logo side up for optimal GPS reception, and checking battery health if using the backup battery. Keep the device firmware updated via the provider’s platform to benefit from the latest features and security improvements. Clean the tracker occasionally to avoid dirt buildup that could affect sensors.

How do I configure geo-fence zones on the rewire security E-Bike GPS Tracker for theft prevention?

You can configure geo-fence zones on the rewire security E-Bike GPS Tracker by using SMS commands or through the web-based tracking platform. Draw virtual boundaries (geo-fences) around safe areas like your home or workplace. When the e-bike leaves or enters these zones, the tracker sends instant alerts to your phone. This feature helps you monitor unauthorized use or movement outside designated areas, enhancing theft protection.

What are common problems with rewire security E-Bike GPS Tracker installation and how can I solve them?

Common installation problems for the rewire security E-Bike GPS Tracker include incorrect wiring connections, poor GPS signal due to improper device orientation, and inactive SIM card issues. To solve these, ensure the tracker is mounted with the logo side facing up, connect power cables within the recommended voltage range (9-36V DC), and confirm your SIM card has active data and SMS capability. Follow the detailed installation guide provided by Rewire Security to avoid these problems.
