Setup: Rewire Security RX-2S V2.0 Body Worn Camera User Manual

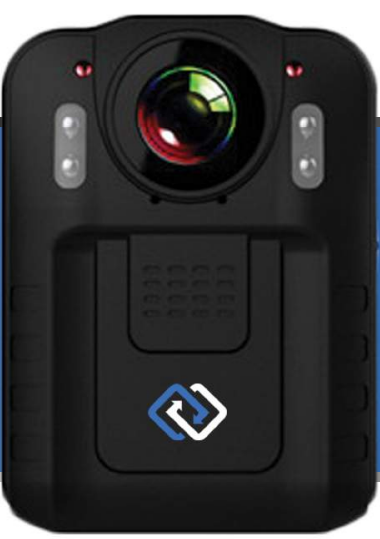

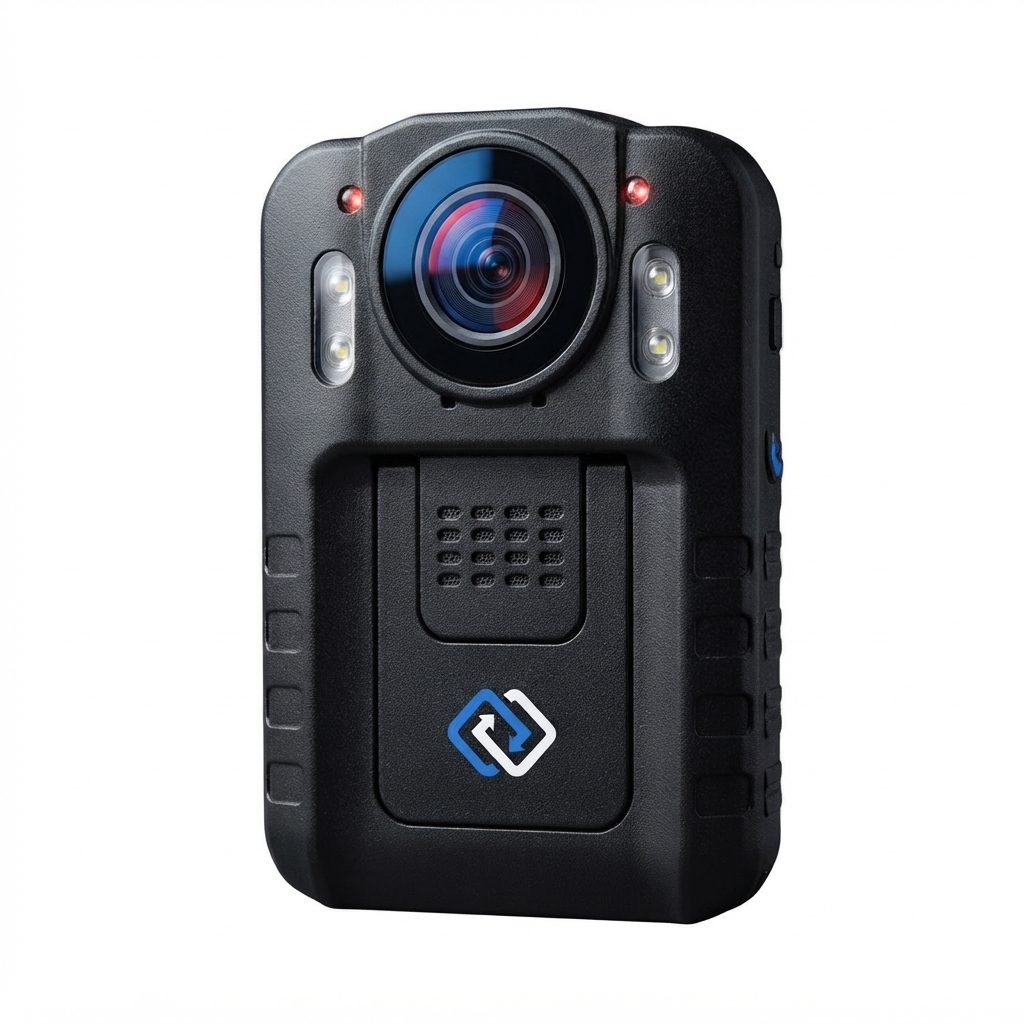

Rewire Security RX-2S V2.0 Body Worn Camera

Introduction

The Rewire Security RX-2S V2.0 Body Worn Camera is a rugged, high-performance solution designed for law enforcement, security personnel, and private investigators. Featuring advanced HD video recording, real-time GPS tracking, and robust wireless connectivity, this camera ensures reliable evidence capture in any environment. Its compact design and intuitive interface make it ideal for daily operational use, while military-grade durability withstands harsh conditions.

Key benefits include seamless Wi-Fi and Bluetooth integration, long-lasting battery life, and encrypted data storage for enhanced privacy. The RX-2S V2.0 supports instant file transfer, remote viewing, and cloud backup, streamlining workflow for agencies and organizations. With a user-friendly mobile app, users can manage recordings, adjust settings, and monitor device status from anywhere.

Designed for professionals who demand reliability and clarity, the Rewire Security RX-2S V2.0 Body Worn Camera is suitable for patrol, surveillance, and incident documentation. Priced competitively between $299 and $399, it is available through authorized security equipment retailers and online stores. Whether for public safety or private security, this camera delivers unmatched value and performance.

Specifications

• Video input: Built-in lens resolution up to 1920 * 1080
• LCD display: 2.0inch 16:9 TFT LCD
• Lens angle: 170-degree wide-angle
• Focus: 0.3-co
• CMOS sensor: 1 / 4" Color CMOS sensor
• Size: 83mmx55mmx28mm(lengthxwidthxheight)
• Picture: JPG format resolution up to 8Mpixels
• Video recording: 1920x1080; 1280x720; 848x480; 640x480 Video format: A YI
• Exposure: Mode Auto Exposure
• IR night vision: Built-in 6 high-power infrared lights
• Audio: Built-in microphone/speaker
• Memory: Standard 32GB TF memory
• Shutter / Shutter Speed: Electronic Shutter/1 /2-1 /2000s White Balance: Automatic USB Interface: Mini USB/USB 2.0
• Battery: 3.7V 2000mAh polymer battery
• Operating Temperature/ Humidity: -30°( "-'65°(/ <90%
• Operating Current: 3.7V
• IP Rating: IPS4

Product Overview

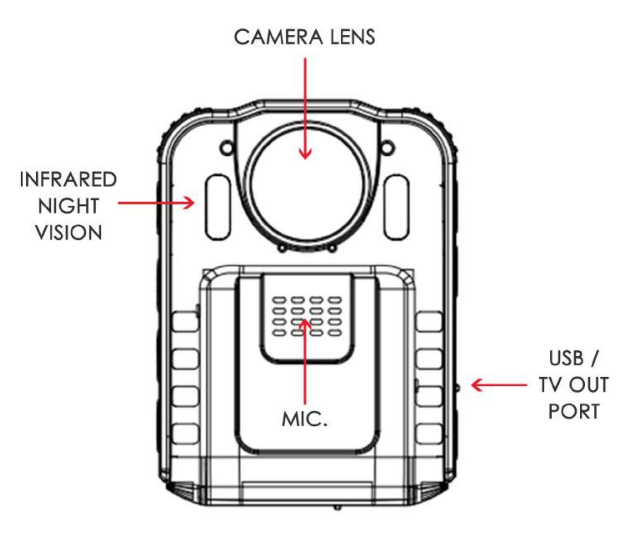

FRONT

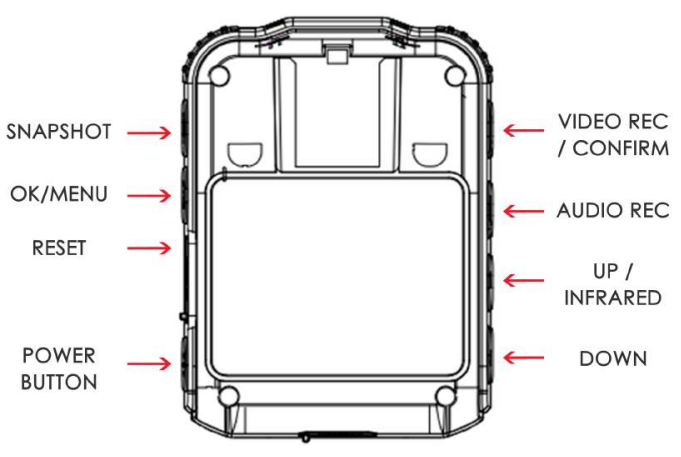

BACK

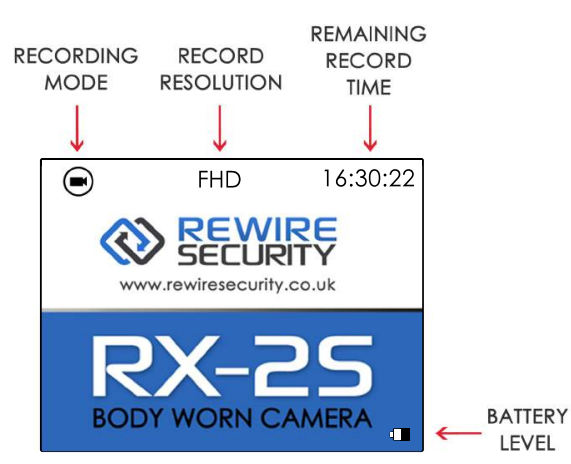

LCD Display

Charging

Please fully charge the camera before use. To charge the RX2s, connect the supplied mini USB cable to the side of the camera and then to either a computer or USB charging plug. The blue LED charging light will light up on the top of the camera and will go out once charged.

Basic Operation

• Turning the Camera ON/OFF
  Press and hold the Power button on the side of the camera to turn the camera ON or OFF.
• Night Vision
  Infrared night vision is OFF by. To activate the cameras built in night vision, press the UP/INFRARED button and press again to deactivate.
• Media Playback
  Press and hold the OK button to enter the media playback mode. See the UP & DOWN buttons to navigate between each recorded file & press the CONFIRM button to play the file. To exit the playback, press and hold the OK button.
• Remote Control
  The remote control features three buttons that can be used to activate the camera remotely.
  • SNAPSHOT BUTTON .
  • AUDIO BUTTON
  • VIDEO BUTTON

Configuration Menu
To enter the settings menu,u press the OK button. Once in the settings menu, I use the UP /DOWN buttons to navigate through the menus, the CONFIRM button to sel,ect and the OK button to go back and exit to the standard standby mode.

Functions

• The following settings can be configured from the settings menu

Movie Size (Video Resolution)

• 1920xl 080 (Default)
• 1280x720
• 640x480

Resolution (PhotoResolution)

• 8M (Default)
• 3M
• lM

Loop Record

• ON (Default)
• OFF

Video Time (Split Time)

• Choose how often a new file is created
• 5 Min (Default)
• 2Min

Video Sound (Inclaudioaudi while recording video?)

• ON (Default)
• OFF

Frequency {VIDEO OUT)

• S0MHZ (Default Europe)
• 60MHZ

LCD (Screen Standby)

• Choose whether the LCD screen goes into standby while recording to save power
• 1 MIN (ON / Default)
• OFF

Power Save (Auto Shutdown)

• If active, the camera will automatically shut down to save power while not recording video/audio.
• lMIN
• 3MIN
• 5MIN (Default)
• OFF

Date and time

• Adjust date/time and date/time format

Reset All

• Restore all settings to factory defaults.

Downloading Recorded Data

• Connect the camera to the computer using the supplied mini USB cable while turned off. Once connected , turn the camera "ON" and select MSDC to open the camera as a mass storage device for file archiving. Once finished, safely eject the camera before disconnecting.

TV Connection

The camera can be connected to a larger screen for playback of recorded files via either a mini USB to AV cable (included) or by a mini HDMI to HDMI cable (optional).

Notes of Use

• Avoid using the camera neara strong magnetic field.
• Avoid shining light directly into the camera's lens.
• Misuse of the camera may cause loss of data.
• Between each use of the camera , a it is recommended that any recorded data be backed up to a computer.
• Avoid allowing the camera's battery to go completely flat. Always charge the camera before use or periods of storage.

Troubleshooting Common Issues with the RX-2S V2.0 Body Worn Camera

Users of the Rewire Security RX-2S V2.0 Body Worn Camera may occasionally encounter technical issues. Common problems include battery drain, Wi-Fi connectivity drops, and recording errors. If the camera fails to power on, ensure the battery is fully charged and properly seated. For Wi-Fi issues, restart the device and check for firmware updates via the companion app.

Error codes such as “E01” (low battery) or “E05” (storage full) can be resolved by charging or clearing space. If recordings are missing or corrupted, avoid abrupt shutdowns and use only compatible SD cards. Preventive measures include regular cleaning, timely software updates, and proper storage when not in use.

The RX-2S V2.0 comes with a 12-month warranty covering manufacturing defects. For support, contact Rewire Security or call 1-800-555-0199. Online resources and live chat are also available for immediate assistance.

Pros and Cons of the Rewire Security RX-2S V2.0 Body Worn Camera

Advantages

• High-definition video and audio recording for clear evidence capture
• Integrated GPS and wireless connectivity for real-time tracking
• Durable, weather-resistant design suitable for outdoor use
• Easy-to-use mobile app for remote management and file sharing
• Competitive pricing compared to similar models like the Hytera VM780 and Hikvision DS-MCW405

Disadvantages

• Battery life may be limited during extended continuous use. The app interface can be slow on older smartphones.
• Requires regular firmware updates for optimal performance
• Higher storage capacity SD cards sold separately

The Rewire Security RX-2S V2.0 Body Worn Camera offers excellent value for money, especially for agencies seeking reliable, feature-rich body cameras without premium pricing.
