Samsung SmartCam HD Plus SNH-C6417BN

Introduction

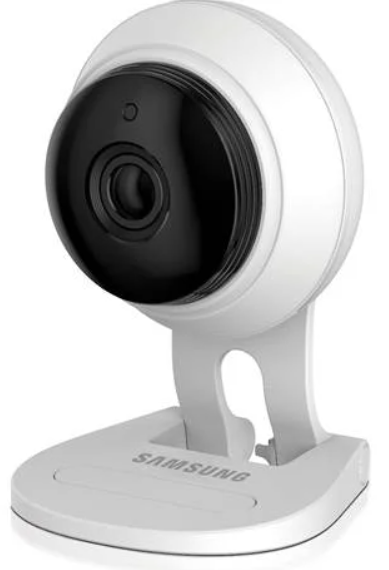

The Samsung SmartCam HD Plus SNH-C6417BN is a high-definition wireless security camera designed to provide crystal-clear video surveillance for your home or office. Launched in 2015, this camera is part of Samsung's lineup of smart home security solutions. Priced around $150-$200, it offers a balance of quality and affordability.

The SmartCam HD Plus is intended for indoor use and is equipped with advanced features such as 1080p full HD video, night vision, motion detection, and two-way audio. It is designed to be user-friendly, allowing you to monitor your space remotely through the Samsung SmartCam app on your smartphone or tablet.

This camera is ideal for homeowners looking to enhance their security setup without the hassle of complicated wiring. With its sleek design and robust feature set, it makes a compelling choice for anyone seeking reliable and high-quality video surveillance.

Features

Dedicated Wi-Fi Product

• The camera is registered through the Wi-Fi connection.

Easy to install

• The Wi-Fi Direct button allows easy connection to a wireless router.
• Simply visit the home page (www.samsungsmartcam.com) and download and install the program without a separate installer program.

Remote monitoring

• Whenever and wherever,, if you are in an Internet-enabled environment, remote monitoring is ready for you.
• PC, laptop,, smartphone can be used for monitoring.
• Real-time alarm
• When a motion and sound are detected, your smartphone will generate real-time alarms.

Saving to the SD card

• When an event occurs, the user can save the video to their SD card.
• Two-way Audio-- With the built-in speakers and microphone, you can make Two-way communications.
• However, it is available only with a smartphone (Not applicable to the PC or laptop computers).

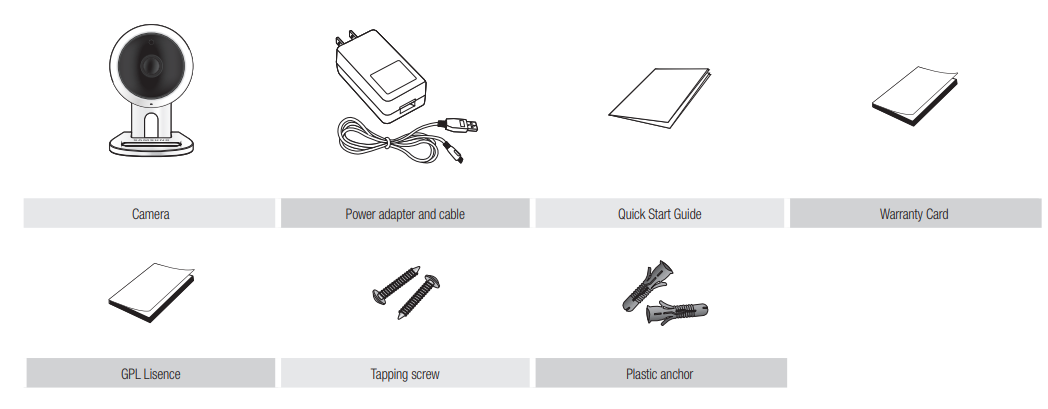

What’s Included

• Check for components when opening the product package.

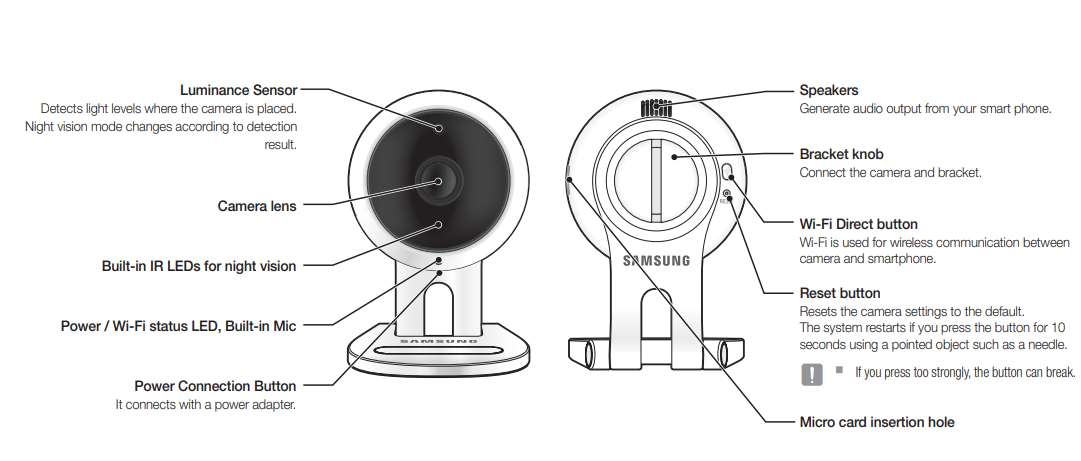

Part names and functions

Installation

Precautions

1. Install the camera in a place where the Wi-Fi signal can be reached and without interference.
2. Keep it away from humidity s,, such as around the humidifier.
3. Keep it away from direct sunlight, strong light, or dust; install it in a place with a clear view.
4. Do not install it in a place where there are a lot of obstacles.
5. Keep the lens clean at all times.
   Wipe off the dust with a soft cloth.

Installing on the wall with screws

Assembly

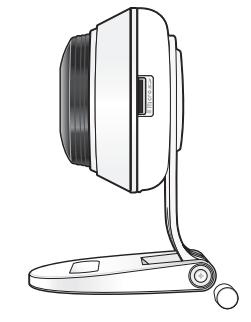

1. Remove the rubber packing attached to the camera stand.
2. Take out the screws (M3xL20) and anchors (Φ5x25mm).

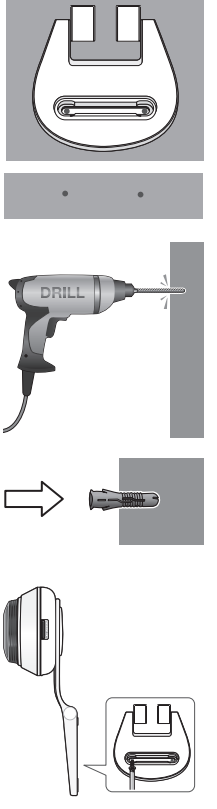

3.  If installing on a wooden wall, mount the bracket wall using the screws as shown in the figure on the side. First, using a Phillips screwdriver, tighten the screws in the two holes on the wall to which you want to attach the bracket.



4. If installing on a concrete wall, mount the racket using screws and anchors. First, mark the wall to which you want to attach the bracket as shown in the figure.
5. On the mark, drill a hole to a depth of about  3cm in the wall using a drill bit and drill with a 5mm diameter for concrete. Remove any debris remaining in the hole after drilling.
   Use caution when drilling to avoid injury.
6. Insert an anchor in each of the 2 holes for the screws, then hit the back of the anchor with a hammer or a rubber mallet until it is completely inserted.
7. Insert a screw in each of the 2 holes in the wall, and tighten the screws using a Phillips screwdriver.

8. Connect the adapter plug to the power terminal of the camera

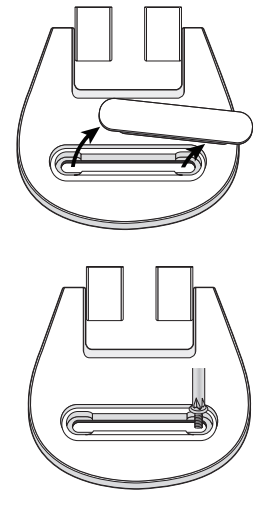

9. If the bracket hinge becomes loose, remove the rubber cover and tighten the screw using a screwdriver.

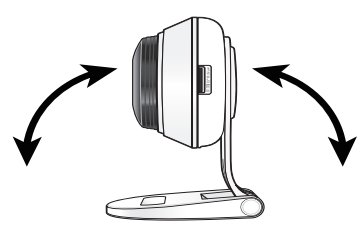

Adjusting the camera angle

1. Place the camera stand on a flat surface.
2. Adjust the camera’s shooting angle as appropriate.

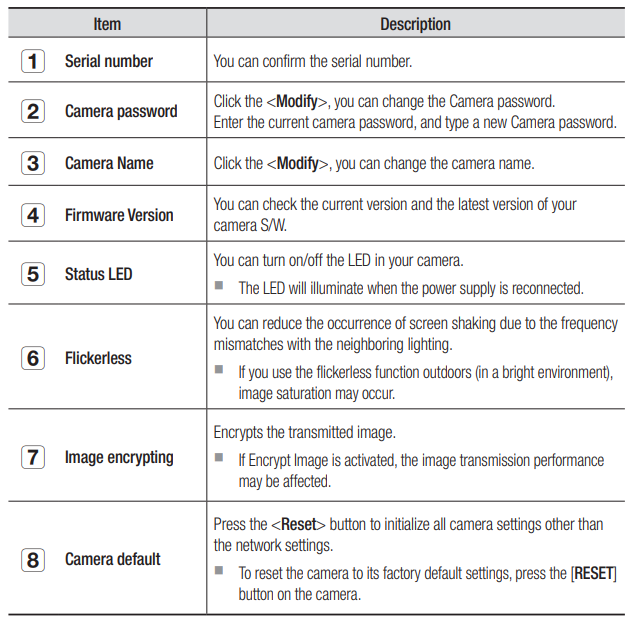

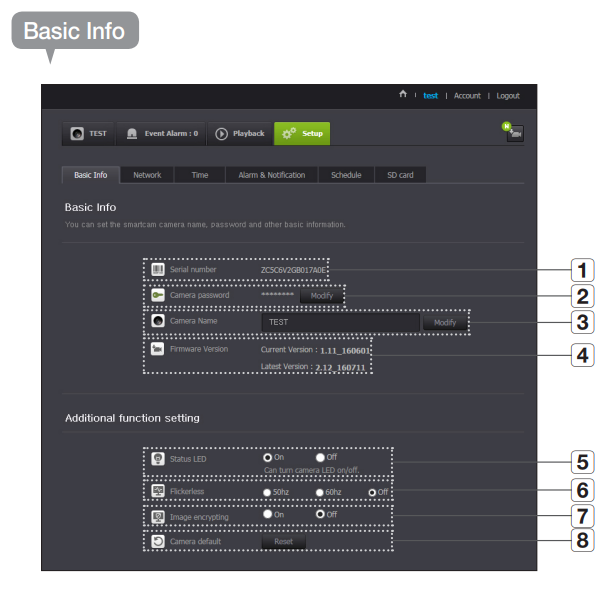

Setup

• If you change the camera password, you will be logged out and returned to the camera password input page.
• Keep the camera password in a safe place,, as it is used for viewing the live screen of the camera or for changing the display settings.

Specifications

• OS: Linux
• Resolution:  1920x1080, 1280x720, 640x360
• Max. Framerate : 1080p@30fps
• Video Compression Format : H.264
• Streaming Capability : Multiple Streaming (Up to 4 Profiles)
• Angular Field of View:  (D/V/H) 130°/ 63°/ 113°
• Low Light Performance:  0.3Lux(Color), 0Lux(Black/White)
• WDR:  HDR
• Day & Night : True D/N Filter
• Night vision : IR-LED, 10M
• Digital Zoom : 4X
• Flip / Mirror:  Support
• Motion Detection:  Support
• Audio Detection:  Support
• Audio I/O:  Built-in microphone and speaker
• Audio Compression : Format G.711 μ-law
• Audio Communication : 2-Way Audio (Built-in Microphone & Speaker), Half Duplex
• Memory Slot SDXC memory slot (up to 128GB)
• Recording & Playback : Event recording, Manual recording, Continuous recording, Remote playback
• Ethernet:  -
• Wireless : Wi-Fi 802.11 b/g/n (Single-band)
• WiFi Direct:  Support (Push button)
• Security : HTTPS(SSL) Login Authentication Digest Login Authentication
• Max.:  User Access 5 users at Unicast Mode
• Operating Temperature:  / Humidity DC 5V, 0°C ~ 40°C (+32°F ~ +104°F) / Less than 90% RH
• Ingress Protection:  Indoor
• Input Voltage:  / Current 5V/2A
• Power Consumption : 5W
• Indication : 1 LED (Power, Status, Link)
• Color/Material : White/Plastic
• Dimension:  Ø65mm × 36.5mm (without bracket)
• Weight:  137g

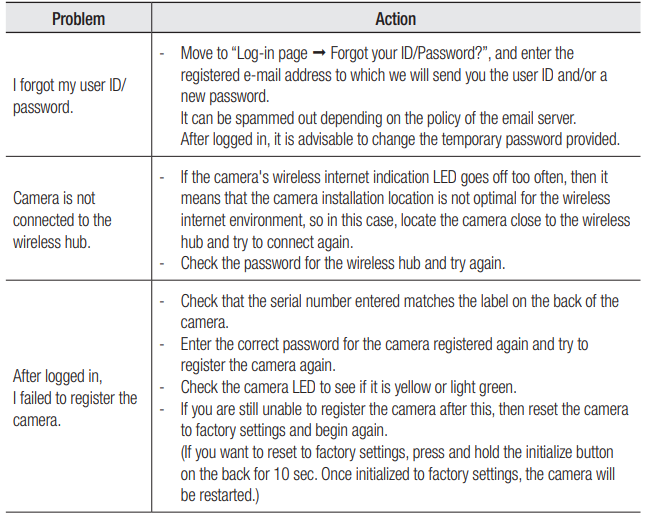

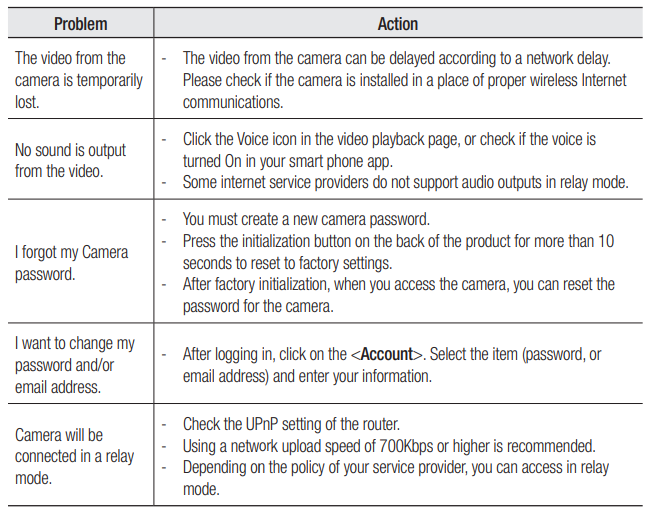

Troubleshooting

If you encounter a problem with your system, see the table below to solve the problem as quickly and easily as possible. Please follow the instructions below:

Pros & Cons

Pros

• High-quality 1080p Full HD video
• Effective night vision up to 16 feet
• Two-way audio for real-time communication
• Adjustable motion detection with alerts
• Wireless connectivity for easy setup
• Supports microSD cards for local storage

Cons

• No battery option; requires a constant power supply
• No weatherproofing for outdoor use
• Some users report occasional connectivity issues

Customer Reviews

Customers generally praise the Samsung SmartCam HD Plus for its clear video quality and easy setup process. Many appreciate the two-way audio feature and the adjustable motion detection. However, some users have reported occasional connectivity issues and wish for more robust cloud storage options.

Common Complaints

Some common complaints include intermittent connectivity problems and the lack of a battery option, which limits its portability. Additionally, some users find the cloud storage options limited without a subscription.
