Setup: Sino Track GPS Tracker ST-901A, ST-901AL 4G User Manual

Sino Track GPS Tracker ST-901A, ST-901AL 4G

Introduction

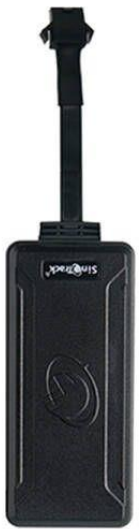

Sino Track GPS Tracker ST-901A, ST-901AL 4G is a state-of-the-art vehicle tracking device designed to deliver precise real-time location monitoring using advanced 4G LTE connectivity. It stands out with its robust construction, long battery life, and user-friendly installation options, making it an ideal choice for fleet managers, vehicle owners, and logistics professionals seeking reliable tracking solutions.

Key benefits include accurate GPS positioning combined with fast 4G data transmission for near-instant updates. The ST-901AL variant offers enhanced features such as extended battery capacity and improved network compatibility. These devices support multiple tracking modes,s including geo-fencing, speed alerts, and remote engine cut-off, enhancing vehicle security and management efficiency.

These trackers are suited for personal vehicles, commercial fleets, and asset tracking in diverse environments. Their compact design allows for discreet placement, while features like magnetic mounting simplify installation. The estimated price range typically falls between $50 and $90, depending on distributor and region, with wide availability through online retailers and authorized dealers.

SpeciSino Track of Sino Track GPS Tracker ST-901A, ST-901AL 4G

• Network: 4G LTE Cat M1/NB-IoT with fallback to 2G GSM
• GPS Module: High-sensitivity GPS+GLONASS for faster and accurate positioning
• Battery: Rechargeable lithium battery; ST-901A ~10000mAh, ST-901AL enhanced capacity for longer standby
• Standby Time: , Up to 30 days, depending on usage and settings
• Dimensions: Compact and lightweight for easy placement
• Durability: Water-resistant casing suitable for vehicle mounting
• Key Features: Real-time tracking, geo-fencing alerts, over-speed alarm, vibration detection, SOS button, remote engine immobilization
• Installation: Magnetic base or fixed wiring; plug-and-play SIM card slot compatible with multiple carriers
• Performance: GPS accuracy within 5-10 meters; rapid cold start time (~30 seconds)
• Comparison: Compared to similar 4G trackers like the iStartek VT100-L, the ST-901 series offers competitive battery life and user-friendly installation with additional security features

WEBSITE Tracking (PC Version)

• Platform: Pro.SinoTrack.com
• User name: ID on the tracker
• Password: 123456

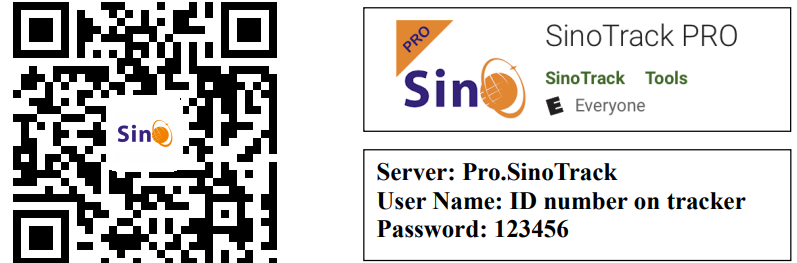

APPLICATION Tracking (Mobile APP)

You can search SinoTrack PRO on the APP Store (iOS) or Google Play (Android), Or Download from the QR Code:

If you have more SinoTrack GPS trackers, and want to manage them in one account, please contact us. We will create an account for you, so you can monitor multiple devices on the platform at the same time.

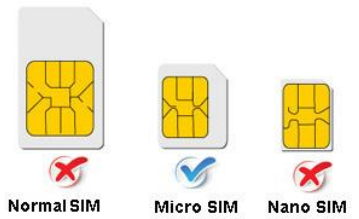

1. Choose a GSM card; it should be a Micro SIM card, without a PIN code.



2. Open the top cover of the tracker by screw.
3. Properly insert the GSM card, the tracker will start, and Connect the external power supply.
4. Put the device outside for around 30 seconds, the LED lights will keep lit, and stands for device can work normally.
5. Dialing the ce number, it will hang up and reply tracking message with valid Lon and lat.
6. Please send SMS to tracker to set the APN: (the yellow place is BLANK) SMS: 8030000 APN (APN is Access Point Name of your SIM Card, please check with your SIM Card provider if you don’t know it)
   If the APN , the ser name, and Password, please send the command: SMS: 8030000 APN APNuser APNpassword.
7. Send SMS to set trackers to our server: SMS: 8040000 45.112.204.246 8090
8. If you set it all up, you can track it online.
   If the device is not online, please check devithe ce settsettingsnd: RCONF on the device.

It will reply to the setting.

1. The APN is correct.;
2. The IP and Port are correct.
3. The ID on the platform is correct.
4. The device working model, (SMS model or GPRS model)

Installation

Open the tracker and put the SIM Card in

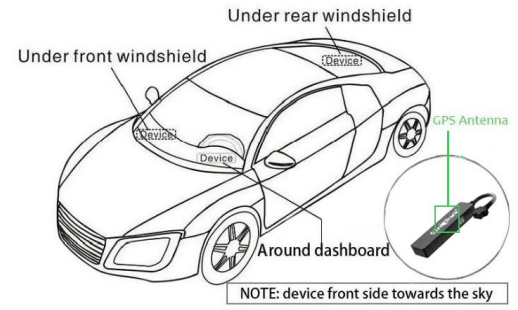

1. The GPS antenna side should be towards to clear sky. (Can’t put under Metal, but Glass and Plastic are ok)

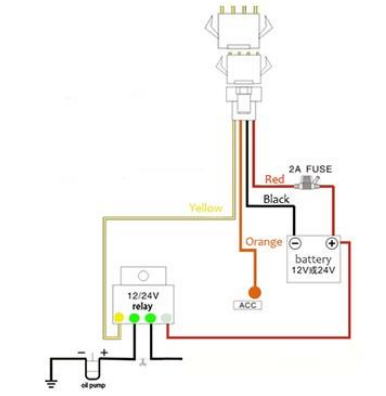

2. Connect the wires:



Online Track: Please log in from www.SinoTrack.com or http://45.112.204.246

Troubleshooting TrackorSino Track GPS Tracker ST-901A, ST-901AL 4G

Common problems and resolutions include:

• No GPS signal: Ensure the device is installed with a clear sky view; check SIM card activation and network signal strength.
• Device Not Reporting Location: Verify SIM card data plan is active; restart the device; check APN settings for your carrier.
• Error Codes: “No SIM” error indicates improper SIM installation; “Network Unavailable” suggests poor cellular coverage.
• Battery Issues: Charge device fully; replace battery if capacity drops significantly after prolonged use.
• Preventive Measures: Regularly update firmware via authorized channels; avoid exposure to extreme temperatures; perform periodic device resets.

Warranty coverage typically includes a 12-month period for manufacturing defects. Support can be accessed through Sino's official Sino track distributors or authorized service centers. For technical assistance, users can contact customer support the via email or the hotline provided in the product packaging.

Pros & Cons of sino track GPS Tracker ST-901A, ST-901AL 4G

• Pros:
  • Reliable 4G connectivity ensures fast, accurate tracking updates.
  • Long-lasting battery enables extended standby, reducing frequent charging.
  • Multiple security features such as SOS and engine , immobilization,n increase vehicle safety.
  • Compact design and magnetic installation make setup quick and non-intrusive.
  • Competitive pricing offers good value compared to other 4G GPS trackers on the market.
• Cons:
  • Some users report occasional GPS signal loss in dense urban or tunnel environments.
  • Initial APN and SIM configuration may require technical knowledge for non-expert users.
  • Warranty and support quality can vary depending on the distributor or region.

Custom Sino Tof of of Sino Track GPS Tracker ST-901A, ST-901AL 4G

Users generally appreciate the Sino track GPS Tracker ST-901A, ST-901AL 4G for its solid build and reliable tracking performance. Many highlight its long battery life and ease of installation as strong points, awarding the product 4 to 4.5 stars on average. Customers using it for fleet management report improved operational efficiency and quick theft recovery.

Common complaints include initial setup challenges relating to the SIM card and network settings. A few users mention intermittent GPS signal issues in obstructed areas, but overall, the device meets expectations for personal and commercial tracking needs. Purchase recommendations emphasize the tracker’s value for money and robust feature set compared to alternatives in the same price range.
