Introduction

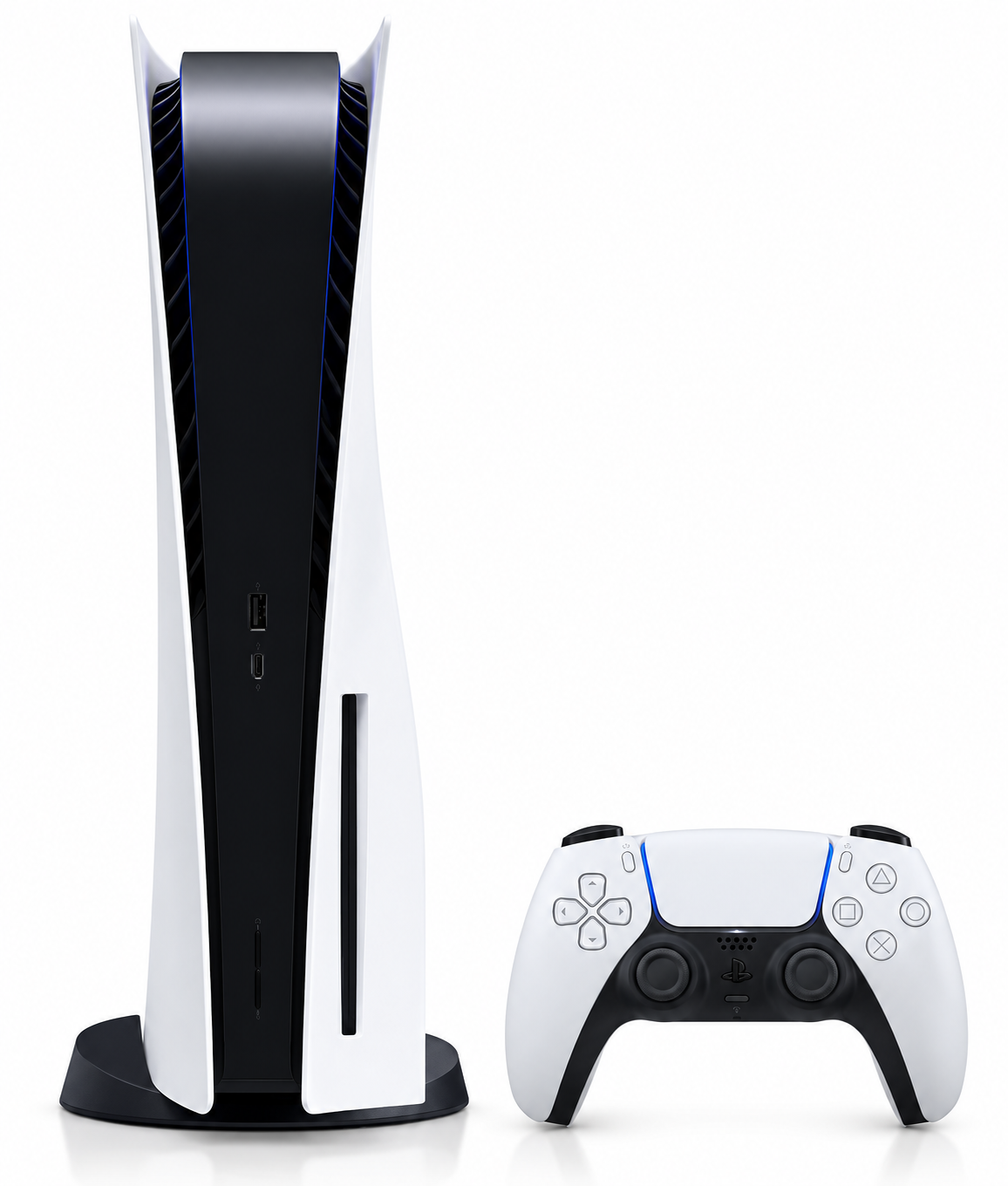

The Sony PlayStation 5 Game Console CFI-1116A is a cutting-edge gaming system that redefines home entertainment. With its custom AMD Zen 2 processor and RDNA 2 graphics architecture, the PS5 delivers stunning visuals and lightning-fast load times, enhancing the gaming experience. The console supports 4K gaming and features an innovative DualSense controller that offers haptic feedback for more immersive gameplay. Its sleek design and advanced cooling system ensure optimal performance during extended play sessions. Priced at approximately $499.99, the PS5 stands out as a premier choice for gamers seeking next-gen technology.

Detailed Specifications

The PlayStation 5 CFI-1116A boasts several key features:

• Processor: AMD Zen 2 CPU with 36 compute units at 3.2 GHz -
• Graphics: Radeon Navi GPU with 24 GB GDDR6 RAM and 10.3 teraflops
• Storage: 825 GB SSD storage for fast loading times
• Controller: DualSense with haptic feedback, adaptive triggers, and share button
• Display Output: Supports up to 8K resolution at 60 Hz and ray tracing
• Sound: 3D audio support with Tempest Engine

Let’s get started

Attach the base.
Always attach the base to the console, whether it’s in the vertical or horizontal position. Place your console on a flat surface when attaching the base.

You’ll need to reconfigure the base for the position of your console. Rotate the top and bottom part of the base in opposite directions. Keep rotating until you hear a “click”.

For the vertical position
With the base attached

Make sure the hook is in the position as illustrated below before attaching the base to the console.

1. Place the console with the rear side facing up, and then remove the screw hole cap



2. Attach the screw hole cap to the bottom of the base.

3. Remove the screw from the bottom of the base.



4. Attach the base, and then secure with the screw using your hand. You can also use a coin to tighten the screw.



For the horizontal position

With the base attached

Make sure the hook is in the position as illustrated below before attaching the base to the console.

1. Place the console with the rear side facing up. Align the base with the marked area on the console, and press the base in firmly.



Connect the HDMI cable and the AC power cord.

Use the included cables.
Make all connections before plugging the AC power cord into an electricity supply.

Connect the LAN cable.

For a wired connection to the internet, use a LAN cable (not included).
If you’re going to use Wi-Fi®, don’t connect a LAN cable and skip to the next step.

Turn on your TV and set the input to HDMI.

Turn on your PlayStation®5 console by pressing the (power) button.

The power indicator blinks blue, and then turns white.

If you leave the console idle for 60 seconds after you turn it on, the screen reader turns on. You can listen to on-screen text and other important information read aloud to help you accomplish what you want to do.
Screen reader is only available in certain languages.

Connect your wireless controller to your console using a USB cable, and then press the (PS) button.

To pair your controller, connect it with a USB cable to the USB port on your console. When you press the (PS) button, the controller turns on.

Make it your own.

You’re almost done! Follow the on-screen instructions to

• Set up your console
  Select your language, configure your internet connection settings, and manage your power save settings.
  To save energy while powered down, your console is set to Low Power Use in rest mode. See also “Put your console in rest mode” (page 12).
• Set up your account
  Create a new account or sign in with an existing account, such as one you created on a PlayStation®4 console. See also “For PS4 users” (page 6).
• Download your content
  Download purchased PS5™ games and media apps. If you have a PS4™ console, you can transfer the data to your PS5 console. You’ll know that setup is complete when Welcome to PlayStation 5 appears on your screen.
  Will a child be using your PS5 console? See also “Parental controls” (page 6).
• The setup options that you see are tailored to your needs, based on information such as your network environment and the account that you’re signed into.
• You can go back and change any of your settings by selecting Settings from the home screen.

For PS4 users

Play some PS4 games on your PS5 console
Enjoy supported PS4 games* on your PS5 console. Some functionalities available on the PS4 console may be absent when played on the PS5 console. You must update to the latest system software version. Internet connection required.

Transfer data from a PS4 console to your PS5 console
Connect your PS4 console and PS5 console to the same network to transfer data such as game save data, user information, and downloaded content. If you have a USB drive that you’ve been using as USB extended storage for your PS4 console, you can continue using it by simply connecting it to your PS5 console.

Use the same account you created on a PS4 console
There’s no need to create a new account for your PS5 console. Just sign in with your existing account and your game history, trophies, profile, and any exchanges you’ve had with friends will transfer to your PS5 console.

Parental controls

You can manage settings for children who use your PS5 console. Parental controls let you set restrictions on the games children can play, when and how long they play, whether or not they can chat, and more.
Each adult and child will need their own separate accounts. When you create an account for a child, it’s automatically linked to your account, creating a family. You can set parental controls only for children in your family.
You can use an existing account, such as one you created on a PS4 console, for your PS5 console. Your family and parental control settings will carry over to your PS5 console.

Create an account for a child

1. You can create a child account and set parental controls at the same time.
2. Press the (PS) button to open the control center. Select your profile picture, then select Switch User. From the user selection screen, select Add User to create an account.
3. Review and change your parental control settings
4. We recommend that you check the child’s parental controls regularly. You can review or update them by selecting Settings > Family and Parental Controls from the home screen.

Game rating icons
Each game comes with a game rating icon that helps you determine whether it’s age-appropriate for the child.

Europe, Africa and India

Kingdom of Saudi Arabia

United Arab Emirates

Find out more about parental control features and setup in the User’s Guide (page 13).

What’s on the screen

Home screen
From the home screen, you can go to two types of content: games or media.
In the games home, you’ll find your games, PlayStation™Store, and other game-related apps. In the media home, you’ll find music, video, and other non-game-related apps.

•  On the PS5 console, the button confirms selected items.
• To return to the home screen while your game or app is running, select Home from the control centre, or press and hold the (PS) button on your controller.

Control centre
Press the (PS) button to open the control center. You can access a variety of features without leaving your game or app.

Description

The PlayStation 5 CFI-1116A is a sleek and powerful gaming console that combines advanced hardware with innovative software features. The console's design is sleek and futuristic, with a white and black aesthetic that fits seamlessly into any living room setup. The DualSense controller offers a new level of immersion with its haptic feedback system, allowing players to feel tactile sensations during gameplay.

The console also includes features like ray tracing for realistic lighting effects, a solid-state drive (SSD) for rapid loading times, and support for 8K resolution at 60 Hz. Additionally, the Tempest Engine provides 3D audio capabilities, further enhancing the gaming experience.

Let’s play

Play a game from a disc Insert the disc.
Game data will start copying, and you’ll get a notification when the game is ready to play. Select the game from your games home.

Eject the disc
Press the (eject) button to eject the disc.

Play a digital game
You can play a game that you downloaded from PlayStation Store .
You’ll get a notification when the game is downloaded and ready to play.
Select the game from your games home.

• To purchase and download games, you’ll need to connect your console to the internet and sign in to your account.
• PlayStation™Network and PlayStation Store are subject to terms of use and country and language restrictions. Users are responsible for internet service fees. Charges apply for some content and / or services.
  Users must be 7 years or older and users under 18 require parental consent. Additional age restrictions may apply. Service availability is not guaranteed. Online features of specific games may be withdrawn on reasonable notice – playstation.com/gameservers. Full terms apply: PSN Terms of Service at playstation.com/legal.

Use your controller in PlayStation 5

Charge your controller
With your PS5 console turned on or in rest mode, use a USB cable to connect your controller to the console. When your console is in rest mode, the light bar on your controller slowly blinks orange. After charging is complete, the light bar turns off.

To charge your controller while your console is in rest mode, go to Settings > System > Power Saving > Features Available in Rest Mode > Supply Power to USB Ports, and select an option other than Off.

Mute your microphone
Each time you press the mute button, your mic switches between muted (button lit) and unmuted (button off).
Press and hold the mute button to mute your mic and to turn off sound output from the speakers on your controller and TV. Press the mute button again to return to the original state.

Use multiple controllers
You can use up to 4 controllers at once. Press the (PS) button to assign numbers to your controllers. The player indicator lights turn on accordingly. Numbers are assigned in order from 1, and you can determine your controller’s number by the number of lights that turn on.

• You’ll need to pair your controller when you use it for the first time (page 5).
• When you play a PS4 game, your controller’s light bar glows blue, red, green, or pink based on the order that the controller is connected. This is separate from the player indicator.

Turn on your PS5 console with a controller

Press the (PS) button on a controller that has finished pairing to turn on your PS5 console.

Shutting down

Caution
Disconnect the AC power cord from the electricity supply only when the power indicator is off. If you disconnect it while the power indicator is on solidly or blinking, data might be lost or become corrupted, and you might damage your console.

Put your console in rest mode
Your PS5 console’s power-saving mode is called rest mode. You can do things like charge your controller via the console’s USB ports, automatically update your system software, and keep your game or app suspended while powered down. To find out which rest mode settings are optimal for you, see the User’s Guide (page 13).

For some features, you’ll need to enable their settings to use them. Go to Settings > System > Power Saving > Features Available in Rest Mode.
Select Power from the control centre, and then select Enter Rest Mode. The power indicator blinks white and then turns orange. To exit rest mode, press the (PS) button.

Turn off your console completely
Select Power from the control centre, and then select Turn Off PS5. The power indicator blinks white, and then the console turns off.

Power indicator

• White Console is on.
• Orange Console is in rest mode.
• Off Console is off.

Setup Guide

To set up your PlayStation 5 CFI-1116A:

1. Unboxing: Carefully remove the console and accessories from the packaging.
2. Power Connection: Connect the power cord to a wall outlet.
3. HDMI Connection: Connect the HDMI cable to your TV or monitor.
4. Controller Pairing: Insert the included USB-C cable into the console and the other end into your DualSense controller to pair it.
5. Initial Setup: Follow on-screen instructions to set up your console, including language selection, network configuration, and user account creation.

Troubleshooting

Common issues and solutions:

• No Power: Ensure the power cord is securely connected to both the console and the wall outlet. Check the power button for any debris or dust.
• No Display: Verify that the HDMI cable is properly connected to both the console and the display device.
• Controller Issues: Restart your controller by pressing the PS button and the Share button simultaneously until the lights flash blue, then release.
• Network Issues: Restart your router and check your internet connection settings on the console.

Sony PlayStation 5 Game Console CFI-1116A Pros & Cons

Pros

• Fast Loading Times: The SSD storage significantly reduces loading times compared to previous models.
• Immersive Graphics: Ray tracing and 3D audio enhance gameplay visuals and sound.
• Innovative Controller: The DualSense controller offers unique haptic feedback and adaptive triggers.
• Future-Proof: Supports up to 8K resolution at 60 Hz.

Cons

• Costly: The base model starts at $399, which may be out of budget for some users.
• Large Size: The console is larger than its predecessors, requiring more space in your entertainment setup.
• No Backward Compatibility for PS3 Games: Games from the PS3 era are not natively supported on the PS5.
• Expensive Accessories: Additional accessories like extra controllers or headsets can add significant cost.

Customer Reviews

Customers have generally praised the PlayStation 5 for its impressive performance, stunning visuals, and innovative controller features. However, some users have noted that the console's size can be an issue for those with limited space. Here are some common complaints:

"The PS5 is a beast of a console The load times are incredibly fast, but it does take up quite a bit of space under my TV." - John D.

"I love the new controller; it's so immersive However, I wish they had made it backward compatible with all my old games." - Sarah K.
