Introduction

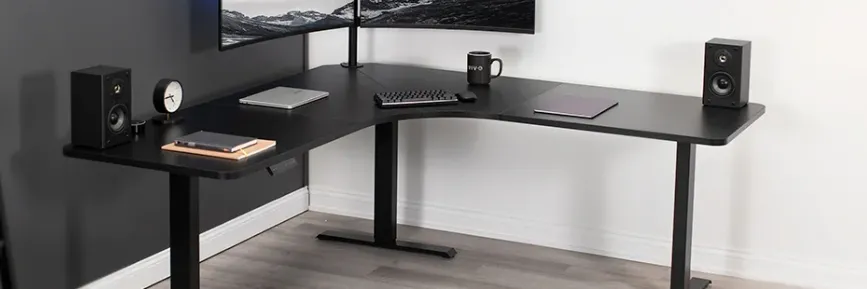

The vivo Black Electric Desk EP43TB is a sleek and modern height-adjustable desk that is perfect for any home or office. This electric standing desk allows you to easily switch between sitting and standing positions, promoting a healthier and more productive workstyle. With a load capacity of up to 154 pounds, this desk is sturdy and reliable. The estimated price of the vivo Black Electric Desk EP43TB is around $399.99, and it is now available for purchase.

Safety Instructions

WARNING
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

ELECTRICAL SAFETY INSTRUCTIONS

THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.

• DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.
• DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.
• NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR SELLER TO REPLACE DAMAGED PARTS.
• NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE MADE CONTACT WITH LIQUIDS.
• ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.
• OUTDOOR USE IS PROHIBITED.
  WARNING: CHOKING HAZARD: SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

PACKAGE CONTENTS

TOOLS NEEDED

Detailed Specifications

• Dimensions: 47.6" W x 23.6" D x 29.2"-47.6" H
• Load Capacity: 154 lbs
• Adjustable Height Range: 29.2"-47.6"
• Motor Type: Dual Motor
• Transition Speed: 1.3"/s
• Noise Level: < 50dB
• Power Supply: 100-240V, 50/60Hz
• Material: Steel, Tempered Glass
• Color: Black

ASSEMBLY STEPS

1. Assemble the desktops (L, M, N) using the desktop connectors (Q) and flat head screws (P).  Tighten screws with a Phillips screwdriver.



2. Loosen the two set screws on the telescopic crossbar (A) using the Allen wrench (S-F) and partially extend the crossbar.



3. Place the crossbar spacer (D) on the motorized leg (B) as shown. Attach the telescopic crossbar to the legs (B, C) as shown using M6x12mm bolts (S-A), and tighten with the Allen wrench (S-F).
   NOTE: Insert all necessary screws into holes before tightening.



4. Attach the side brackets (E) to both ends of the frame using four M6x12mm bolts (S-A). Tighten with the Allen wrench (S-F).



5. Loosen the knob on the socket end of the sync rod (F) and slide the sync rod onto the shaft of the motorized leg. Tighten the knob.



6. Loosen the knob on the other end of the sync rod and extend the hex shaft into the socket in the leg, making sure the shaft is fully inserted with the red O-ring bumper spaced no more than 0.5” from the leg. Tighten the knob.



7. Place the frame upside down on the desktop, extend to match the desktop mounting holes, then tighten the set screws with the Allen wrench (S-F).



8. Place the feet (G) on the legs as shown. Insert and tighten bolts (S-A) using the Allen wrench (S-F).



9. Place the adapter holder (H) over the telescopic crossbar and tighten the two thumbscrews. Place the AC adapter (I) into the adapter holder (H).



10. Connect the AC adapter and motorized leg to the controller (K). Connect the power cable (J) to the AC adapter.



11. Insert the anti-vibration pads (S-E) into the desktop mounting holes in the crossbar and side brackets.



12. Place the assembled frame on the desktop, making sure the holes are aligned with the desk frame, and secure the frame using ST4.2x20 screws (S-B).



13. Attach the controller to the underside of the desktop using ST3.5x20 screws (S-C) as shown. Once the controller is installed, cable clips (S-D) can be attached to the desk for cable management.



14.  If necessary, adjust foot pads to level the desk.  Plug the power cable (J) into an AC wall outlet.



15. Press and hold the UP or DOWN buttons to operate the desk.

Description

The vivo Black Electric Desk EP43TB is a stylish and functional height-adjustable desk that is perfect for any workspace. The desk features a spacious tempered glass top that is resistant to scratches and scuffs. The dual-motor lifting system provides smooth and quiet transitions between sitting and standing positions, with a transition speed of 1.3"/s and a noise level of less than 50dB. The desk also has a load capacity of up to 154 lbs, making it sturdy and reliable. The vivo Black Electric Desk EP43TB is available in a sleek black finish, and it is easy to assemble and configure.

Setup Guide

To set up the vivo Black Electric Desk EP43TB, follow these steps:

1. Unpack the desk from the shipping box and remove all packaging materials.
2. Assemble the desk frame by attaching the legs to the crossbar using the included screws and hex key.
3. Place the tempered glass top on the desk frame and secure it with the included clamps.
4. Plug in the power cord and press the power button to turn on the desk.
5. Use the control panel to set your desired height and program the memory presets.
   1. Check the power cord to ensure it is plugged in securely.
   2. Check the control panel to ensure it is set to the correct mode.
   3. Check the memory presets to ensure they are programmed correctly.
   4. If the desk is making strange noises, try lubricating the lifting columns with a silicone-based lubricant.
   5. If the desk is not moving, try resetting the desk by unplugging it for 30 seconds and then plugging it back in.
      • Sleek and modern design
      • Smooth and quiet transitions between sitting and standing positions
      • Large load capacity
      • Easy to assemble and configure
      • Affordable price
   • Some users have reported issues with the control panel
   • The desk may wobble slightly at higher heights
