Vivo Stand Up Electric Desk EW43TW Instruction Manual

Content

Introduction of Vivo Stand Up Electric Desk EW43TW

Whether you're at work or at home, the vivo stand up electric desk EW43TW will be a great addition to your workstation. You can improve your posture, productivity, and health with the help of this electric height-adjustable desk, which lets you effortlessly go from sitting to standing. We anticipate the desk's release in late 2022.

PACKAGE CONTENTS

TOOLS NEEDED

DO NOT EXCEED WEIGHT CAPACITY: 143lbs (65kg)
Failure to do so may result in serious injury

Detailed Specifications

Adjustable height range: 27.2" to 47.6" (70 to 121 cm)
Desktop dimensions: 47.2" x 23.6" (120 x 60 cm)
Load capacity: 154 lbs (70 kg)
Dual motor lift system
Anti-collision and obstacle detection
4 programmable memory presets
Whisper-quiet operation (below 50 dB)
Digital LCD display with height indication

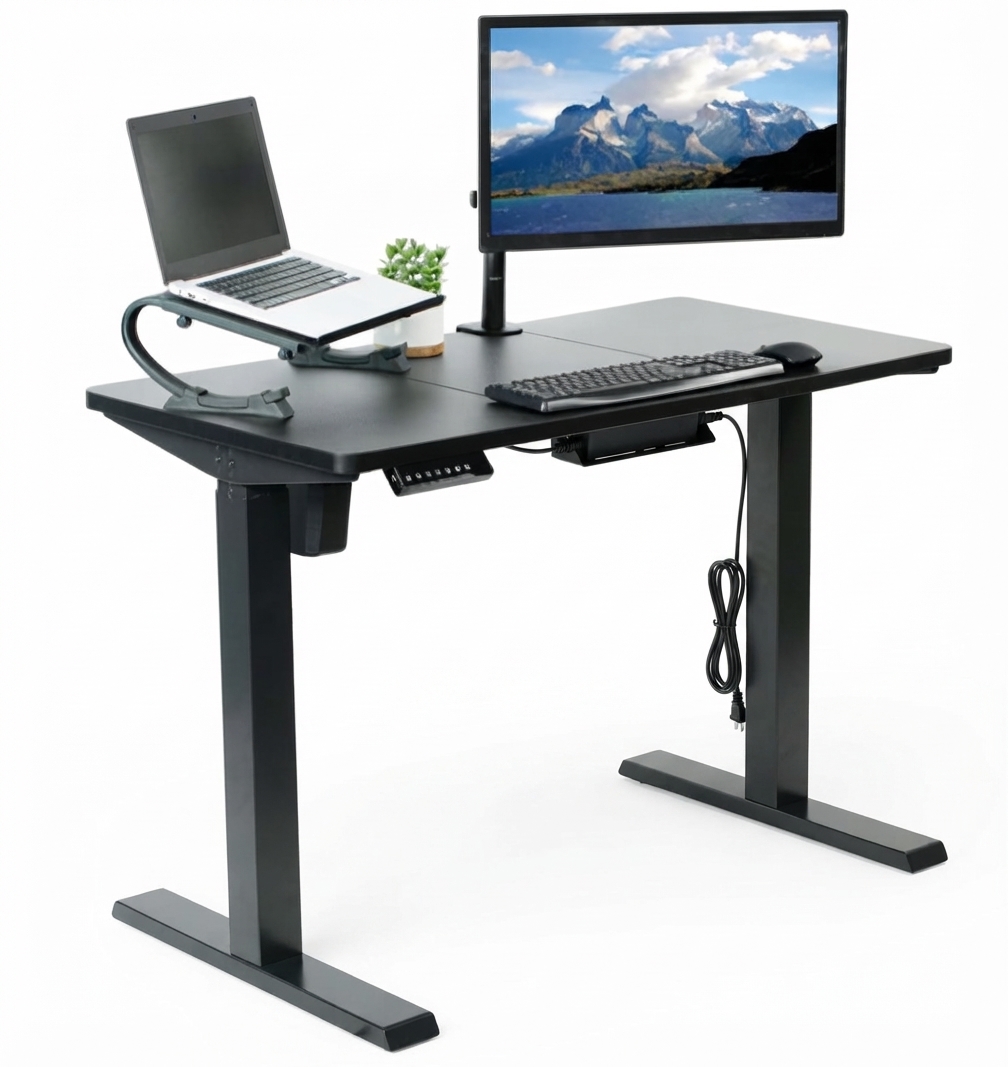

Vivo Stand Up Electric Desk EW43TW Description

The EW43TW from vivo is an electric stand up desk with a large, fashionable desktop crafted from eco-friendly materials that exudes a sleek, contemporary style. With the electric height adjustment's twin motor lift technology, you may easily and steadily go from sitting to standing. Easy and fast height changes are made possible by four customizable presets, and the anti-collision and object detection technology guarantees safe operation. With its whisper-quiet operation and LCD display that show the current height, this workstation is perfect for any office.

ASSEMBLY STEPS

Assemble the desktops (L, M, N) using the desktop connectors (Q) and flat head screws (P). Tighten screws with a Phillips screwdriver.
Loosen the two set screws on the telescopic crossbar (A) using the Allen wrench (S-F) and partially extend the crossbar.
Place the crossbar spacer (D) on the motorized leg (B) as shown. Attach the telescopic crossbar to the legs (B, C) as shown using M6x12mm bolts (S-A), and tighten with the Allen wrench (S-F). NOTE: Insert all necessary screws into holes before tightening.
Attach the side brackets (E) to both ends of the frame using four M6x12mm bolts (S-A). Tighten with the Allen wrench (S-F).
Loosen the knob on the socket end of the sync rod (F) and slide the sync rod onto the shaft of the motorized leg. Tighten the knob.
Loosen the knob on the other end of the sync rod and extend the hex shaft into the socket in the leg, making sure the shaft is fully inserted with the red O-ring bumper spaced no more than 0.5” from the leg. Tighten the knob.
Place the frame upside down on the desktop, extend to match the desktop mounting holes, then tighten the set screws with the Allen wrench (S-F).
Place the feet (G) on the legs as shown. Insert and tighten bolts (S-A) using the Allen wrench (S-F).
Place the adapter holder (H) over the telescopic crossbar and tighten the two thumbscrews. Place the AC adapter (I) into the adapter holder (H).
Connect the AC adapter and motorized leg to the controller (K). Connect the power cable (J) to the AC adapter.
Insert the anti-vibration pads (S-E) into the desktop mounting holes in the crossbar and side brackets.
Place the support pads (O) onto the crossbar in the locations shown below.
NOTE: The measurements shown will place the pads (O) beneath the seams of the desktop, which is critical for ensuring the desktop panels are level.
Place the assembled frame on the desktop, making sure the holes are aligned with the desk frame, and secure the frame using ST4.2x20 screws (S-B).
Attach the controller to the underside of the desktop using ST3.5x20 screws (S-C) as shown. Once the controller is installed, cable clips (S-D) can be attached to the desk for cable management. Refer to the Controller User Guide for operational instructions.

CAUTION: When moving desk, ALWAYS carry the desk by the frame part ONLY and never by the divided desktop.
If necessary, adjust foot pads to level the desk.

CAUTION!

Do not exceed desk weight limit.
Keep area of vertical motion free of obstacles.
Keep weight on desk balanced for correct operation and longer life of components.
Leave enough slack in cables to allow for full range of vertical motion.

Setup Guide of Vivo Stand Up Electric Desk EW43TW

Unbox and assemble the desk according to the instructions provided.
Plug the power cord into an electrical outlet.
Press and hold the "M" button on the control panel for 3 seconds to enter the setup mode.
Use the "+" and "-" buttons to adjust your desired sitting and standing heights.
Once set, press and hold the "M" button again to save each preset.
To switch between heights, simply press the corresponding memory preset button.

WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

Electrical Safety Instructions

The product is powered by electricity. In order to avoid burns, fire and electric shock, please read the instructions carefully
Don’t clean the product with water while the power is still connected.
Don’t disassemble or replace components while the power is still connected.
Never operate the system with a damaged cord or plug. Please contact your point of purchase to replace the damaged parts.
Never operate the system if it’s in moist environment or its electrical components have contact with liquids.
Don’t operate the system if the control box makes noise or odor. Alterations of the given power unit and control box aren’t allowed.

WARNING: CHOKING HAZARD
SMALL PARTS: NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Troubleshooting

If your desk does not respond, ensure it is properly plugged in and check the fuse or circuit breaker.
If the desk collides with an object, make sure there is enough clearance around the desk.
If the desk is noisy during operation, check for loose parts and tighten them as needed.
Always unplug the desk when not in use and avoid exposing the control panel to liquids or moisture.

Vivo Stand Up Electric Desk EW43TW Pros & Cons

Pros

Ergonomic and adjustable height
Spacious and stylish desktop
Anti-collision and obstacle detection
Whisper-quiet operation
Easy-to-use control panel

Cons

Higher cost compared to manual desks
Assembly may be time-consuming

Faqs

How should I construct the Vivo Stand Up Electric Desk EW43TW?

Follow the steps outlined in the user handbook. All required hardware and equipment are supplied. Before utilizing the desk, make sure that all of its pieces are properly fastened.

What should I do if my desk stops moving or becomes unresponsive?

Use the control panel found on the desk. To adjust the desk's height, use the up or down arrows.

Does the desk have any height memory settings?

Vivo Stand Up Electric Desk EW43TW includes memory settings. To store your chosen heights, set the desk to the correct level and press and hold one of the memory buttons until it beeps.

Can I put a monitor mount on the Vivo Stand Up Electric Desk EW43TW?

The desk is compatible with most monitor mounts. Make sure the mount is correctly placed and the weight does not exceed the desk's limit.

How loud is the desk when shifting its height?

Vivo Stand Up Electric Desk EW43TW runs softly, with a decibel level of less than 50.

How can I clean and maintain the Vivo Stand Up Electric Desk EW43TW?

Wipe off the desk surface with a moist towel. Avoid using strong chemicals or abrasives. Regularly inspect and tighten all screws and bolts.

Is the Vivo Stand Up Electric Desk EW43TW safe for kids to use?

While the desk is suitable for general use, children should be watched when altering its height to avoid unintentional harm. Always make sure the desk is sturdy before using it.

How can I reset the Vivo Stand Up Electric Desk EW43TW if it stops working?

To reset the desk, push and hold the down arrow on the control panel until the desk is at its lowest height, then release. Continue to press the button until the desk makes a little adjustment and stops.

How do I set the memory presets?

Adjust the Vivo Stand Up Electric Desk EW43TW to the appropriate height, then press and hold the "M" button until the display flashes, then select one of the preset buttons (1, 2, or 3 to store the height setting.
