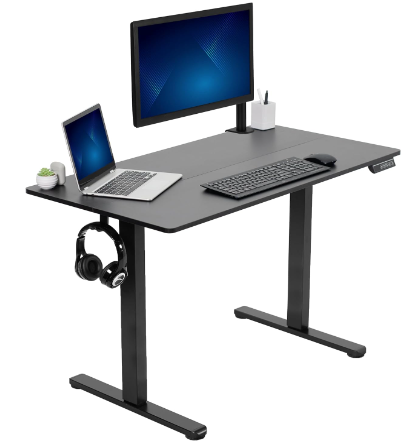

Introduction of Vivo Black Electric DESK-E144B Controller

The Vivo Black Electric DESK-E144B Controller is a stylish and functional electric desk that offers a range of features designed to promote productivity and well-being. With a sleek black finish, this desk is not only practical but also adds a modern touch to any workspace. The estimated price of the vivo Black Electric DESK-E-Y60SB is around $500, and it is set to launch in the coming months.

Detailed Specifications

The Vivo Black Electric DESK-E144B Controller has a spacious desktop that measures 60 x 30 inches, providing plenty of room for multiple monitors, a laptop, and other work essentials. The desk can be adjusted in height from 27.6 to 47.6 inches, making it suitable for users of all heights. The desk features a quiet and powerful motor that can lift up to 154 pounds with ease. The DESK-E-Y60SB also has a programmable memory panel, allowing users to save their preferred heights for quick and easy adjustments.

Description

The Vivo Black Electric DESK-E144B Controller is a high-quality electric desk that is perfect for any workspace. With its stylish black finish, this desk not only looks great but also offers a range of features designed to promote productivity and well-being. The spacious desktop provides plenty of room for multiple monitors, a laptop, and other work essentials, while the adjustable height range makes it suitable for users of all heights. The quiet and powerful motor allows for easy and smooth height adjustments, while the programmable memory panel saves users time and effort. Overall, the vivo Black Electric DESK-E-Y60SB is a versatile and practical desk that is sure to meet the needs of any user.

OPERATING CONTROL PANEL

1. OPERATING INSTRUCTIONS
   When the system is powered on, the existing desktop height will appear on the control panel.
2. Upward and Downward Movement
   Press and hold the up or down arrow until the desk reaches the desired height.
3. Memory Mode
   To store a certain height in the controller’s memory, first press “S”. The controller display will begin flashing. Now press the sitting position or standing position button within 6 seconds to store the current height in memory. Once in memory, you can recall the sitting or standing height settings by pressing the corresponding button. Touching any button will stop the automatic adjustment.
4. Power-Saving Mode
   When no actions are made for over 2 minutes, the system will enter power-saving mode. Touch any button to enter operation mode.
5. Function Mode
   Press and hold the “S” button for 3 seconds, or until “S - -” begins flashing on the display. Press “S” again to enter Function mode. Within function mode, use the up and down buttons to scroll through settings, and use the “S” button to select options. If no action is taken for 20 seconds, the desk will return to operating mode.
   • Change Displayed Unit (Un): Press the up or down buttons until the display shows “Un”, and press “S” to select. Press up or down to select “SI” (metric) or “In” (imperial). Hold “S” for 2 seconds to save the setting.
   • Change Brightness (br): Press the up or down buttons until the display shows “br”, and press “S” to select. Press up or down to select Low (L), Normal (n) or High (H) brightness. Hold “S” for 2 seconds to save the setting.
   • Collision Force Detection (CF): Press the up or down buttons until the display shows “CF”, and press “S” to select. Press up or down to select “OFF”, Low (L), Normal (n) or Heavy (H) collision force detection. Hold “S” for 2 seconds to save the setting.
6. Reset Mode
   While the unit is powered on, press the down arrow until the desk moves to the fully lowered position. Press and hold the down arrow for 5 seconds or until “rES” is displayed to enter reset mode. Continue holding the down arrow, and the desk will move down to the lowest possible height and then move back up slightly. The desk will then return to operating mode.
7. E20 - Desk Overload: If overloaded while moving up, error will clear after 3 seconds.  If overloaded moving down, unplug desk for 10 seconds then reconnect power.

Setup Guide

Setting up the Vivo Black Electric DESK-E144B Controller is a straightforward process. First, unpack the desk and all of its components from the box. Next, assemble the frame using the included screws and tools. Once the frame is assembled, attach the desktop to the frame using the pre-drilled holes. Finally, plug in the desk and use the remote control to adjust the height to your preferred setting. Be sure to read the user manual carefully for detailed instructions and safety precautions.

ELECTRICAL SAFETY INSTRUCTIONS

THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.

• DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.

• DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.

• NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR SELLER TO REPLACE DAMAGED PARTS.

• NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE MADE CONTACT WITH LIQUIDS.

• ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.

• OUTDOOR USE IS PROHIBITED.

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

TROUBLESHOOTING

• Error Code

  • Description/Resolution

• E10

  • Sensorless Alarm. This alarm triggered when the sensor cannot be detected. Power off desk and check the connection between the motor and control panel, then re-power.

• E20

  • Overload Alarm. Remove desk items and try again.

• E02

  • Rebound Protection. Check for desk vibration, obstacles, or desk incline. If no issues found, complete the reset process and try again.

• E32

  • Overvoltage Alarm. Voltage is higher than allowed value. Power off desk and check connection between power and control panel. Power on again.

• E31

  • Undervoltage Alarm. Voltage is lower than required value. Power off desk and check connection between power and contorl panel. Power on again.

• HOT

  • Overheated Alarm. Power off and wait 18 seconds before use again.3

NOTES

1. Circuit Protection: If motor or controller becomes disconnected, the desk will cease operation. Error will clear after all components are reconnected.
2. Self-protection function: The unit will enter a protective mode should the system operate continuously in excess of 2 minutes with “HOT” on the controller display. The system will return to normal operation after approximately 18 minutes.
3. Do NOT remove or reconnect power to reset the unit when in a protective or “HOT” state, as this may damage the electronics.

Vivo Black Electric DESK-E144B Controller Pros & Cons

Pros

• Spacious desktop for multiple monitors and work essentials
• Adjustable height range for users of all heights
• Quiet and powerful motor for smooth height adjustments
• Programmable memory panel for easy height adjustments
• Stylish black finish for a modern look

Cons

• May be too large for small workspaces
• Assembly process may be difficult for some users
• Remote control may require frequent battery replacements

Customer Reviews

Customers who have purchased the Vivo Black Electric DESK-E144B Controller have praised its spacious desktop, adjustable height range, and quiet motor. However, some have noted that the assembly process can be difficult and that the remote control may require frequent battery replacements. Overall, users have found the desk to be a practical and stylish addition to their workspace.
