Assembly: Vivo Electric Motor Desk Frame V120EW

cover-image

Content

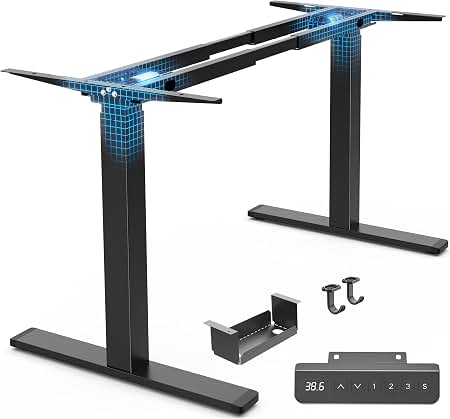

vivo Electric Motor Desk Frame V120EW

The Electric Motor Desk Frame V120EW is a high-quality, adjustable desk frame that allows you to easily switch between sitting and standing positions while working. This electric desk frame is perfect for anyone who wants to improve their posture and reduce the negative effects of sitting for long periods of time. With a modern design and a variety of customization options, the vivo Electric Motor Desk Frame is a great choice for any home or office. The estimated price of this product is around $300, and it is set to be launched in the second quarter of 2023.

Detailed Specifications

The vivo Electric Motor Desk Frame has a number of impressive features, including a powerful electric motor that can lift up to 176 lbs, a smooth and quiet operation, and a range of height adjustments from 25.2" to 50.4". The frame is made from high-quality steel and aluminum, and it is available in a variety of colors and finishes. The desk frame also has a built-in digital display that shows the current height setting and allows you to easily adjust the height with the touch of a button.

PACKAGE CONTENTS


Description

The vivo Electric Motor Desk Frame V120EW is a versatile and durable desk frame that is perfect for anyone who wants to improve their posture and reduce the negative effects of sitting for long periods of time. With a modern design and a variety of customization options, this desk frame is a great choice for any home or office. The electric motor makes it easy to switch between sitting and standing positions, and the smooth and quiet operation ensures that you won't be disturbed while working. The high-quality steel and aluminum construction ensures that this desk frame will last for years to come, and the built-in digital display makes it easy to adjust the height to your liking.
WARNING
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

Setup of vivo Electric Motor Desk Frame

Setting up the Electric Motor Desk Frame V120EW is easy. Simply follow these steps

  1. Unpack the desk frame and all included parts from the box.
  2. Assemble the frame according to the instructions provided in the user manual.
  3. Attach the desk top to the frame using the included screws and brackets.
  4. Plug in the power cord and turn on the desk frame using the power button on the control panel.
  5. Use the up and down buttons on the control panel to adjust the height of the desk to your preferred setting.

ASSEMBLY STEPS

  1.  Loosen, but do not remove, screws in legs (6). Tilt legs up and into frames and secure each leg with two M6x16 screws (C) using Allen wrench (E).  Attach feet (7) to legs using four M6x12 screws (B) for each, then tighten with Allen wrench.  Remove protective film from foot pads (D) and install pads into feet.


  2. Turn assembled legs with frames right side up, then slide the crossbars (9) into the frames. Attach the side brackets (3) to the frames using four M6x16 screws (C) and tighten with the Allen wrench (E).


  3. Adjust the width of the frame to fit your desktop. Tighten eight M6x12 screws (B) into the underside of the frames (6) to secure the adjusted length.


  4.  Attach your desktop (1) to the assembled desk frame using eight M5x16 screws (A).


  5. Remove the protective film from the control panel (2).  Mount the control panel and control unit (8) to the underside of the desktop using four M5x16 screws (A). Use the extension cords (5) to connect the motors to the control unit, then connect the control panel and power cord (4). Attach cable clip (F) where desired.

  6. Plug the power cable into an AC wall outlet, then use the control panel to adjust the height.

CAUTION

  • Do not exceed desk weight limit.
  • Keep area of vertical motion free of obstacles.
  • Keep weight on desk balanced for correct operation and longer life of components.
  • Leave enough slack in cables to allow for full range of vertical motion.

ELECTRICAL SAFETY INSTRUCTIONS

THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.

  • DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.
  • DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.
  • NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR SELLER TO REPLACE DAMAGED PARTS.
  • NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE MADE CONTACT WITH LIQUIDS.
  • ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.
  • OUTDOOR USE IS PROHIBITED.

WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Troubleshooting of Electric Motor Desk Frame

If you experience any problems with the vivo V120EW, try the following solutions

  • If the desk frame is not responding to the control panel, make sure that it is plugged in and turned on.
  • If the desk frame is moving slowly or making strange noises, check to make sure that all screws and brackets are tight and that the frame is level.
  • If the digital display is not working, try resetting the desk frame by unplugging it and plugging it back in.
  • If you are having trouble adjusting the height of the desk, make sure that the desk frame is in the "up" position before attempting to adjust it.

Pros & Cons of vivo V120EW

Pros

  • Powerful electric motor that can lift up to 176 lbs
  • Smooth and quiet operation
  • Range of height adjustments from 25.2" to 50.4"
  • High-quality steel and aluminum construction
  • Built-in digital display

Cons

  • May be too expensive for some budgets
  • May be too heavy for some users to assemble on their own

Customer Reviews of vivo Electric Motor Desk Frame V120EW

Customers love the ivo Electric Motor Desk Frame for its powerful electric motor, smooth and quiet operation, and range of height adjustments. However, some customers have complained that it is too expensive, and others have found it to be too heavy to assemble on their own. Overall, the Electric Motor Desk Frame V120EW is a high-quality, adjustable desk frame that is perfect for anyone who wants to improve their posture and reduce the negative effects of sitting for long periods of time.
